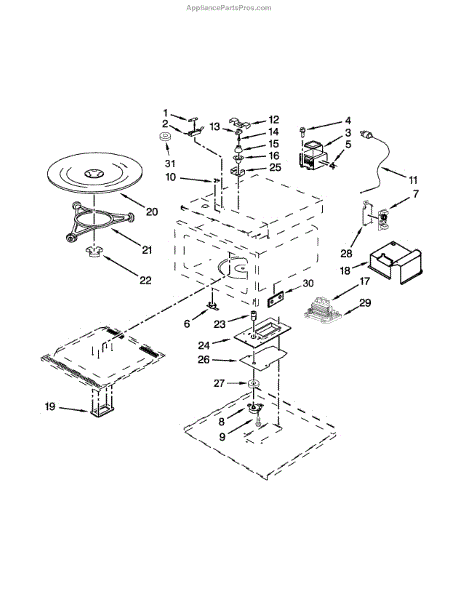

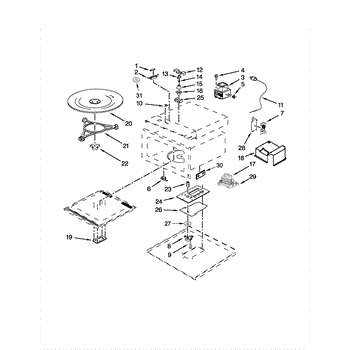

Parts for Ikea IBMS1455DS01: Oven Interior Parts

The Fuse is an OEM component for Whirlpool microwaves. As a critical safety device, it protects circuits from power surges or overloads that could damage internal electronics.

The fuse properly calibrates electrical flow through the appliance, preventing excessive currents from traveling between high and low-voltage systems. Its compact design installs discretely but is easily accessible for replacement when needed.

Causes for blown fuses include voltage spikes from power outages, faulty door interlocks energizing the magnetron with the door open, or short circuits due to loose wires or water intrusion over time.

Causes of a bad fuse can include:

• Repeatedly blowing when the appliance is in use
• No power to any microwave functions
• Tripped circuit breakers upon turning on the microwave
• Discoloration or physical damage to the fuse body

Compatible with microwave models from Maytag, Magic Chef, Admiral, and more for consistent, worry-free operation.

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

This magnetron is the microwave's high-voltage tube that generates the microwaves used to heat food. Replacing a faulty magnetron restores heating performance and stops power-related cooking failures. What it does:

• Converts high-voltage electrical energy into microwave radiation that heats food
• Common symptom: microwave runs but does not heat
• Also be needed if you notice humming, arcing, or a burning electrical smell during operation
• Works with the oven's high-voltage system and waveguide to deliver cooking power

• Disconnect power before servicing; microwave high-voltage components can retain lethal charge
• Discharge the high-voltage capacitor and follow safety procedures
• Inspect waveguide cover and surrounding components for damage when replacing the magnetron

This fixed thermostat protects the appliance by opening the circuit when excessive heat is detected. Replacing a failed or weak thermostat restores reliable over-temperature protection and helps prevent heat-related shutdowns.

• Opens the circuit if the protected area overheats to help prevent damage to components
• Helps with symptoms like unexpected shutdowns during operation or no power after overheating
• Can be the cause when the unit only runs again after cooling down
• Helps maintain safe operating temperatures around heat-sensitive parts

• Disconnect power before servicing; some appliances contain high-voltage components
• Access location varies by model; note wire positions before removal and transfer one lead at a time
• Reuse existing mounting hardware; ensure firm terminal connections and correct orientation
• After replacement, confirm proper airflow/venting and normal operation

This thermostat retainer secures the refrigerator thermostat or temperature sensor in place to ensure accurate temperature sensing and stable operation. It replaces a worn or broken mounting clip to restore proper sensor positioning. What it does:

• Holds the thermostat/temperature sensor firmly against the evaporator or designated mounting point
• Prevents sensor movement that can cause erratic temperature readings or cooling issues
• Maintains correct sensor alignment for reliable refrigerator temperature control
• Helps reduce vibration and wear on the thermostat assembly

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access may require removing interior panels or trim; keep fasteners organized
• Handle the thermostat and sensor carefully to avoid damaging the sensing element or wiring

The Turntable Motor is an OEM part for Whirlpool microwave ovens. It is responsible for rotating the turntable or carousel tray inside the microwave, ensuring even heating and cooking of food.

Causes of a bad Turntable Motor can include wear and tear over time, lack of proper lubrication, or issues with the motor's bearings or electrical connections.

Symptoms of a bad Turntable Motor may include:

• The turntable not rotating or spinning erratically
• Loud grinding or squeaking noises during operation
• Potential uneven heating or hot/cold spots in food

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This high-limit thermostat is a safety temperature limiter that stops heating when temperatures climb too high, protecting the appliance and preventing overheating. Use it to restore proper temperature cutoff and improve safe operation. What it does

• Acts as a temperature safety cutoff to interrupt power when temps exceed safe limits
• Prevents continuous heating and reduces fire/overheat risk
• Can cause loss of heat, no heating cycles, or oven/range failing to reach temperature when faulty
• Restores the appliance's built-in over-temperature protection when replaced

• Disconnect power to the appliance before servicing to avoid shock or injury
• Located behind panels or at the heating assembly; access may require removing exterior panels
• Verify electrical continuity with a multimeter before installation

This lamp holder secures and powers the oven/cabinet G4-base bulb so interior lighting works reliably and safely. It restores proper bulb contact and helps prevent flickering or intermittent lighting. What it does:

• Holds the G4-base light bulb in place and provides the electrical connection
• Restores interior lighting when the socket is loose, corroded, or damaged
• Helps stop flickering or intermittent on/off issues caused by a faulty holder
• Compatible with the oven/cabinet light assembly that uses a G4-style bulb

• Disconnect power to the appliance before servicing to avoid shock
• Allow the appliance and bulb to cool before touching components
• Inspect wiring and connectors; replace the holder if terminals are corroded or melted
• Use the correct G4 bulb type and wattage per the appliance manufacturer's instructions

The Halogen Bulb is an OEM replacement part is for Whirlpool range and oven models. This bulb provides concentrated light for the oven cavity, allowing users to clearly see food and monitor cooking progress.

Causes of a bad halogen bulb can include natural burnout over the lifecycle of the bulb from prolonged and frequent use of the oven light, or damage to the bulb from accidental impact or breakage during cleaning.

Symptoms of a bad halogen bulb include:

• Dim or no light emitted from the oven cavity
• Flickering or intermittent light function
• Premature burnout of the bulb filament

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This lens-lamp assembly replaces a damaged or missing interior light lens and lamp, restoring clear, protected illumination inside the appliance. It provides a covered light source that reduces glare and shields the bulb from food and debris. What it does:

• Covers and protects the appliance interior light bulb from spills, splashes, and impact
• Diffuses light for more even interior illumination
• Restores proper visibility when the original lens is cracked, cloudy, or missing
• Helps prevent direct exposure to the bulb, improving safety during use

• One lens-lamp assembly

• Disconnect power to the appliance before starting any repair
• Allow the bulb to cool before handling; wear gloves to protect hands and avoid fingerprints on bulb
• Test the light function after installation to ensure proper fit and operation

The Inverter is an OEM replacment part for Whirlpool microwaves. It regulates the magnitude and duration of electromagnetic waves generated during cooking functions.

Causes of a faulty inverter can include general wear from prolonged use or damage from power surges entering the microwave.

Symptoms include:

• Inconsistent or incomplete heating of foods
• Sparking or burning smells emanating from within
• Control panel errors or failure to properly sense wattage settings

This OEM Whirlpool replacement ensures precise electromagnetic wave output. Compatible with KitchenAid, Maytag, Jenn-Air, and select other branded microwaves, the inverter restores consistent cooking performance.

The Waveguide Cover is an OEM part for Whirlpool microwave ovens. This component serves as a protective cover for the waveguide, which is responsible for directing and distributing the microwave energy within the oven cavity.

Symptoms of a bad waveguide cover:

• Sparking or arcing inside the microwave oven cavity
• Uneven or inconsistent heating of food
• Damage or discoloration to the interior walls or components
• Potential leakage of microwave radiation

Causes of a faulty waveguide cover can include physical damage from impact or mishandling, exposure to excessive heat or moisture, or general wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave oven models.

The Turntable Tray is an OEM part for Whirlpool microwaves. This circular plastic tray sits atop the cavity within the microwave. The turntable tray is responsible for smoothly rotating food items during cooking cycles to ensure even heating exposure. It prevents hot and cold spots that can ruin prepared meals. The tray measures approximately 16 inches in diameter.

Causes relate to extended use over time, warping from high heat exposure, or accumulating residue that impedes free movement.

Symptoms of a worn turntable tray include:

• Inconsistent cooking results with some portions remaining underdone
• Squeaking or scraping noises emitting from below during operation
• The tray no longer spinning smoothly on its post seal track

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This turntable coupler links the microwave's turntable motor to the glass tray or support, enabling smooth, consistent rotation for even heating. Replace a worn or cracked coupler to restore reliable tray movement and reduce noise.

• Connects the turntable motor to the tray/support to rotate food evenly
• Maintains proper tray engagement and height for stable rotation
• Common symptoms: tray not turning or intermittent rotation; uneven heating
• May also cause clicking/grinding noises beneath the tray or visible damage to the coupler

• Disconnect power before servicing
• Remove the glass tray and roller ring; pull the old coupler straight up from the cavity floor
• If it won't release from above, access the motor from below to disengage the coupler
• Align the new coupler with the motor shaft and press fully into place; reinstall ring and tray; test with a cup of water

This turntable drive shaft connects the turntable motor to the coupler and glass tray so the microwave can rotate food for even heating. Replacing a worn or damaged shaft restores smooth, reliable turntable rotation.

• Transfers motor torque to the coupler and tray to spin the turntable
• Helps ensure even cooking and reheating performance
• Common symptoms: turntable not turning, intermittent or jerky rotation, tray wobbling or uneven heating, grinding/clicking from under the tray

• Unplug the appliance before service; microwave components can retain dangerous voltage
• Remove the glass tray and support, then access the shaft from inside the cavity
• Inspect the coupler and motor for wear; replace related parts if damaged
• Align the shaft properly to avoid stripping or noise on startup

This motor cover protects and secures the appliance motor assembly, keeping wiring and components shielded from debris and wear. It restores the motor's protective housing for safer, quieter operation. What it does:

• Shields the motor and wiring from lint, dust, and foreign objects
• Helps maintain proper airflow and component alignment around the motor
• Replaces cracked, broken, or missing housings that leave the motor exposed
• Can reduce rattle or rubbing caused by a damaged motor cover

• Disconnect power to the appliance before beginning any work
• Remove access panels or panels obstructing the motor to reach the mounting location
• Align the cover over the motor and secure with the original fasteners
• Inspect wiring and nearby components while installing; ensure no wires are pinched or contacting moving parts

This cover plate conceals and protects an opening on the appliance cabinet or chassis. Replacing a damaged or missing cover restores a finished look and helps shield internal components from debris, moisture, and accidental contact.

• Closes a service/component opening to maintain proper protection and airflow
• Helps prevent dust, moisture, and accidental contact with internal parts
• Reduces rattles or vibration from a loose or missing cover
• Typical symptoms: cracked or broken cover, visible gaps, rattling, or exposed components

• Disconnect power (unplug or switch off breaker); shut off gas if applicable
• Remove retaining screws or release tabs from the old cover and note orientation
• Transfer any clips/gaskets if present and seat the new cover plate
• Reinstall fasteners snugly without overtightening; verify clearance from moving parts

This seal-foam piece provides a cushioned, insulating barrier between cabinet or door panels to help reduce air leaks and vibration. It restores proper contact where foam sealing is required for consistent temperature control and quieter operation. What it does

• Fills gaps and cushions panel edges to improve thermal insulation and reduce drafts.
• Helps prevent moisture intrusion that can cause condensation or frost buildup.
• Dampens vibration and reduces rattling between panels or trim pieces.
• Supports proper door/panel alignment so seals and gaskets seat correctly.

• One seal-foam piece as shown

• Intended for replacement where existing foam is damaged, compressed, or missing.
• Clean mating surfaces and remove old adhesive or residue before installing for best adhesion.
• May require adhesive or clips depending on application—verify mounting method on your appliance.
• Disconnect power and follow appliance manufacturer's safety instructions before servicing.
