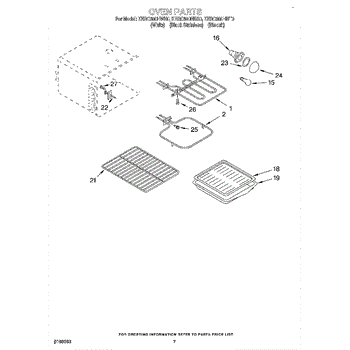

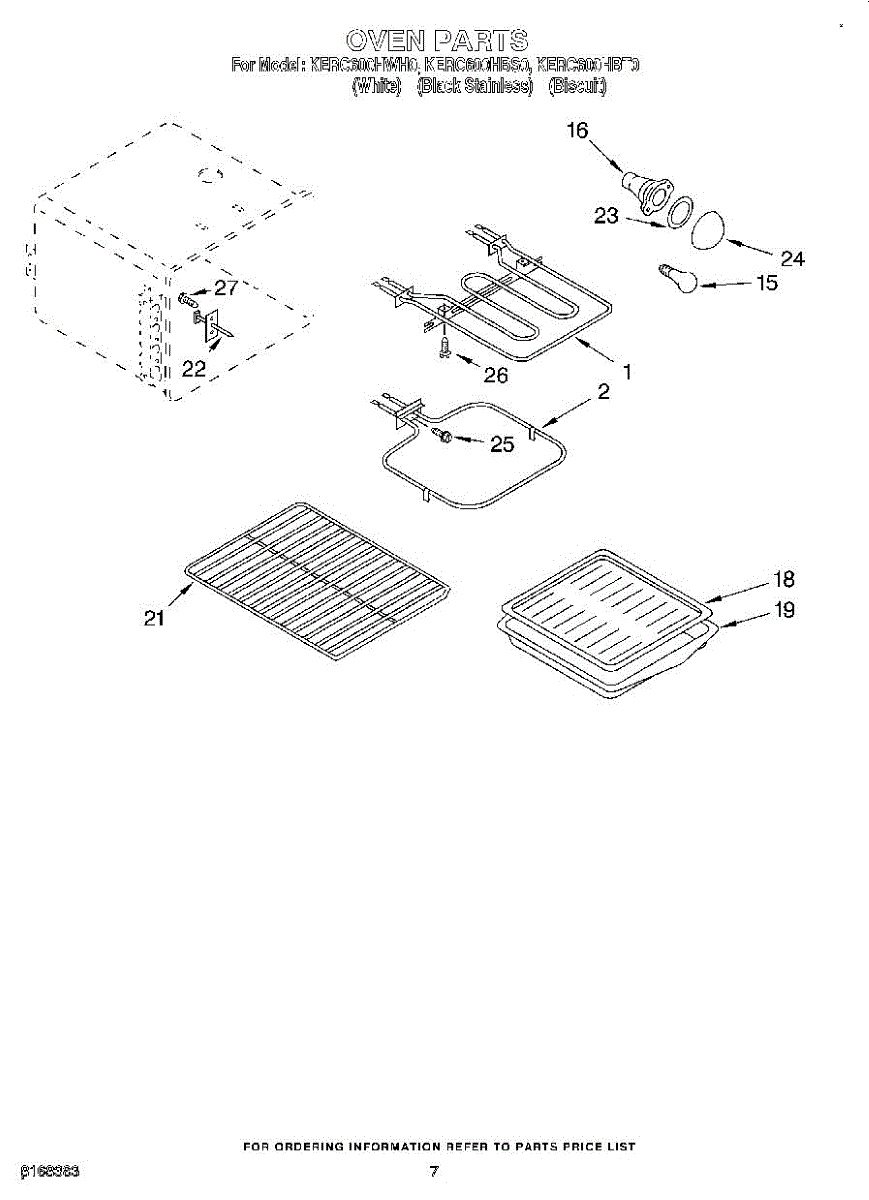

Show parts
This part is discontinued by the manufacturer and is no longer available for purchase.
The Bake Heating Element is an OEM Replacement Part for Whirlpool ovens, designed with push-on terminals. It measures 14-5/8" from the front to the mounting bracket, 19" in width, and 2-1/2" from the mounting bracket to the terminal end. The mounting holes on the bracket are spaced 1-7/8" apart, center to center. The terminals are designed as 1/4" male spades and the unit is rated for 2500 Watts at 240 Volts.
Causes of a bad bake element may include repeated heating and cooling cycles over time, electrical malfunctions, or physical damage from impact or exposure to spills.
Symptoms of a faulty bake element include:
This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.
Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.
Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.
Size: 6 inches long. Includes ceramic wire connectors.
Seals the light lens to the oven cavity, blocking heat, steam, and grease from the bulb housing. Replace if cracked, brittle, or missing. Confirm fit.
Clear glass lens cover for oven interior light. Replace when cracked, broken, or discolored from heat. 3-inch diameter. Confirm fit with your model number.
Size: 8-32 x 3/8 inch.
Replacement mounting screw for washers. Secures internal components and panels. Needed when original screws are stripped, missing, or damaged.
Mounting screw for securing components in compactors, cooktops, dishwashers, and ranges. Replace if screw is stripped, missing, or damaged.
