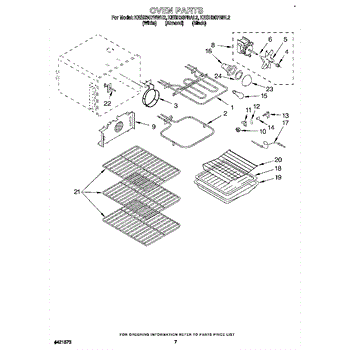

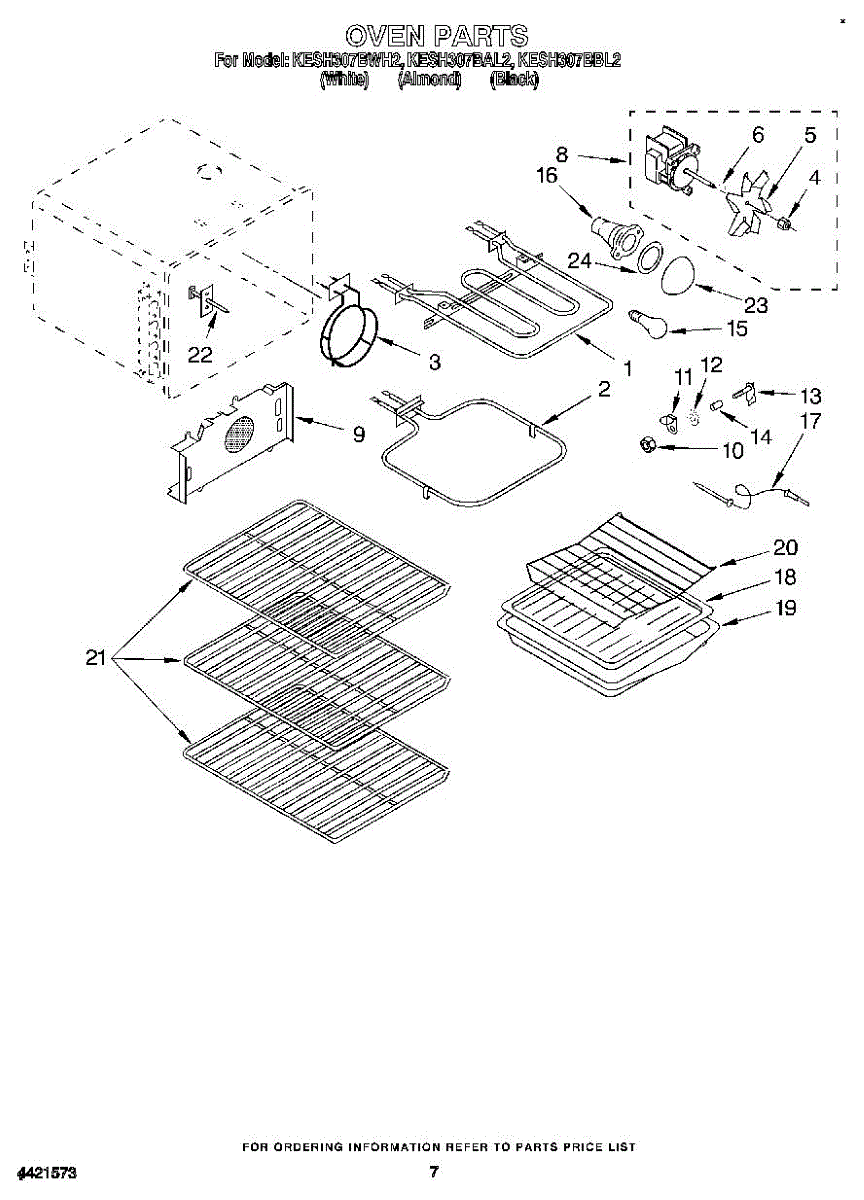

Parts for Kitchenaid KESH307BBL2: 05 - Oven Parts

The Bake Heating Element is an OEM Replacement Part for Whirlpool ovens, designed with push-on terminals. It measures 14-5/8" from the front to the mounting bracket, 19" in width, and 2-1/2" from the mounting bracket to the terminal end. The mounting holes on the bracket are spaced 1-7/8" apart, center to center. The terminals are designed as 1/4" male spades and the unit is rated for 2500 Watts at 240 Volts.

Causes of a bad bake element may include repeated heating and cooling cycles over time, electrical malfunctions, or physical damage from impact or exposure to spills.

Symptoms of a faulty bake element include:

• Oven not heating up properly or taking an excessive amount of time to preheat
• Hot or cold spots within the oven cavity, leading to uneven baking
• Visible damage or discoloration to the bake element itself
• Popping or sparking noises coming from the element area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8 x 3/8 inch.

Size: 10-16 x 1 1/2 inch.

This bake element replaces the lower heating element in electric ovens to restore even baking and broiling performance. It heats the oven interior so food cooks through and reaches set temperatures reliably. What it does:

• Heats the oven cavity f

Size: 10-16 x 1/2 inch.

Convection fan motor.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout

Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.

Meat temperature probe.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replacement broiler pan for ranges and ovens. Holds food under high heat while collecting drippings. Order if your pan is missing, warped, or damaged.

Size: 8 x 3/8 inch.

Size: 6 inches long. Includes ceramic wire connectors.

Color: clear. Measures about 3 inches in diameter.

Seals the light lens to the oven cavity, blocking heat, steam, and grease from the bulb housing. Replace if cracked, brittle, or missing. Confirm fit.
