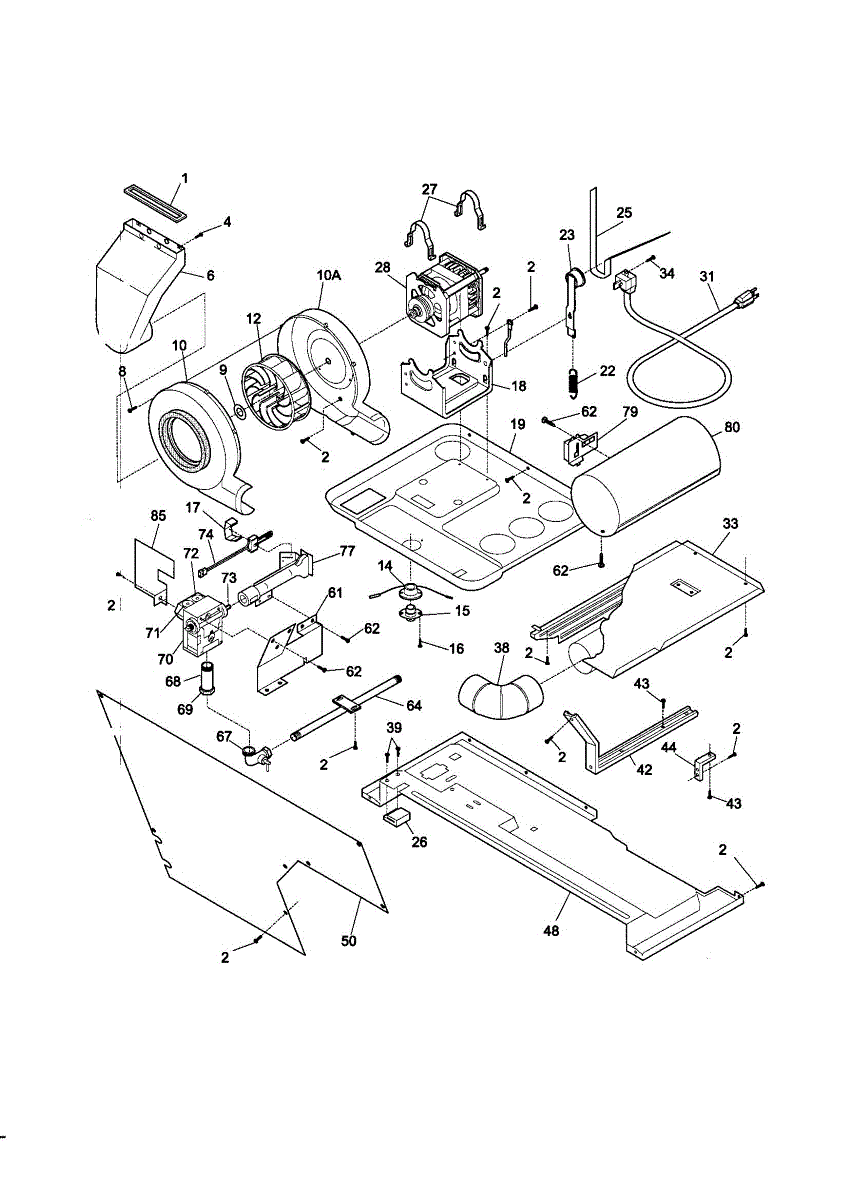

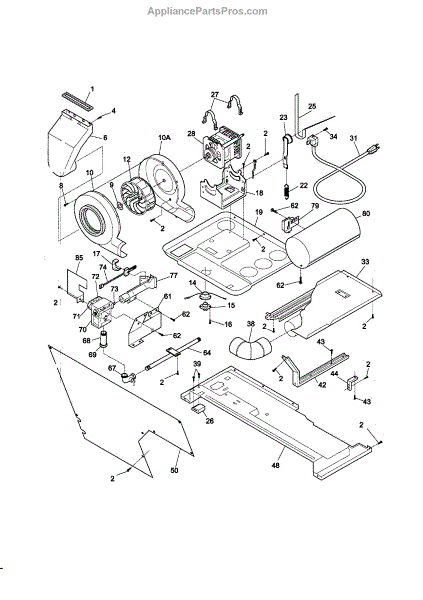

Parts for Kenmore 417.99862990 (41799862990, 417 99862990): Page 2 Parts

This air duct seal creates a tight barrier between the dryer's lint housing and cabinet. Replacing a worn seal helps prevent air leaks, maintain proper airflow through the lint filter, and restore consistent drying performance.

• Seals the air duct/lint housing to the front panel to direct airflow through the lint screen and drum
• Helps maintain dryer efficiency and temperature control by preventing bypass air leaks
• Common symptoms of a failed seal include longer dry times, weak exhaust airflow, excess lint inside the cabinet, or lint around the door opening
• Replaces a deteriorated or missing seal to restore the intended air path

• Disconnect power; shut off gas supply for gas models
• Access the air duct by removing the lint screen and top/front panels as needed
• Remove the old seal and any residue; clean mating surfaces before installing the new seal
• Seat the duct evenly against the panel when reassembling to ensure a uniform seal

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

Replacement mounting screw that fastens panels and components in laundry centers. Needed when original is missing, stripped, or damaged to restore secure fit.

Replacement air duct for laundry center dryer section. Directs heated air from element to drum. Order if your duct is cracked, damaged, or missing.

PPH ab st/z/ch `6 - 18x.60

This factory clamp secures a hose or tubing connection so it stays tight during normal operation. Replace a worn or rusted clamp to restore a firm hold and help prevent leaks, drips, or accidental disconnections.

• Holds a hose, tube, or duct firmly to its fitting
• Helps maintain a sealed connection under vibration
• Helps resolve loose connections, drips/moisture at a joint, or rattling noises
• Common wear includes loss of tension, corrosion, or visible damage

• Disconnect power; if servicing a water line, shut off the water supply
• Note the original clamp position and orientation before removal
• Use appropriate hand tools (pliers, screwdriver, or nut driver as applicable)
• After installation, test for leaks or movement

The blower housing assembly encloses the blower wheel and channels air through the unit's coils. Replacing a cracked or warped housing helps restore smooth airflow and reduce blower noise caused by rubbing or misalignment.

• Directs and focuses airflow through the heat-exchange coils for proper operation
• Supports and aligns the blower wheel so it spins with correct clearance
• Helps minimize vibration and noise when the housing is intact
• Symptoms of a failed housing may include scraping or rattling noises, weak airflow, vibration, or visible cracks/broken mounts around the blower area

• Disconnect power before servicing; wear cut-resistant gloves and eye protection.
• Remove the front panel/cabinet to access the blower section; note screw and clip locations.
• Transfer the blower wheel, seals, and any reusable hardware from the old housing.
• Before reassembly, spin the blower wheel by hand to ensure free, rub-free rotation.

The Blower Wheel is an OEM part for Frigidaire clothes dryers. This component works to propel hot air through clothes during drying cycles.

Causes of a bad blower wheel involve wear from years of operation, such as bearing deterioration or plastic fan blade cracking/warping. Foreign object damage or improper cleaning techniques pose other risk factors.

Symptoms of a bad blower wheel include:

• Slow or weak drying even on high heat settings
• Loud clanking or grinding noises from inside the duct
• The dryer not activating or functioning when turned on
• Reduced air discharge observable at the vent

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Metal sheet-metal screw secures panels, brackets, and internal components. Replace when missing, stripped, or damaged to restore proper fit.

Keep your dryer tumbling smoothly by restoring proper belt tension. This idler spring attaches to the idler arm and maintains tension on the drive belt so the drum turns reliably without slipping or squealing. What it does:

• Applies constant tension to the idler pulley to keep the drive belt tight around the drum and motor
• Helps resolve a drum that won't turn or tumbles intermittently
• Addresses belt issues such as slipping off, appearing loose, or premature breakage from low tension
• Can reduce squealing/chirping from the idler area caused by belt slip

• 1 idler spring

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the idler assembly by removing the front or lower access panel per your model
• Relieve belt tension, unhook the old spring from the idler arm/frame, and install the new spring in the same orientation and holes
• Rotate the drum by hand to check smooth operation before reassembly

The Idler Arm Assembly is an OEM part for Frigidaire dryers. It is an essential component of the dryer's drum support system, responsible for maintaining the proper alignment and smooth rotation of the drum during operation. The idler arm assembly typically consists of an idler arm, pulley, and bearings, working together to support the weight of the drum and facilitate its rotational movement.

Symptoms of a bad idler arm assembly in a dryer include:

• Loud squeaking or grinding noises during operation
• Excessive vibration or shaking of the dryer
• Difficulty in starting or maintaining the drum's rotation
• Potential damage to other components due to misalignment

Causes of a bad idler arm assembly can include wear and tear over time, damage from foreign objects entering the drum, or issues with the bearings or pulley components. A faulty idler arm assembly can lead to improper drum alignment, increased friction, and potential damage to other parts of the dryer.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Dryer drum won't turn or making loud banging noises? A broken drum belt is the likely cause. This belt connects the motor to the drum for rotation.

Includes motor, motor pulley and housing. Motor pulley no longer available separate

Replacement power cord for laundry centers. Restores electrical connection when original cord is damaged, frayed, or missing. Includes durable insulation.

Hex washer head ,10-32 x 0.375. Ground

Pan head mounting screw for dryers. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance.

Hex head screw for securing panels and components in freezers, refrigerators, washers, and dryers. Replace if missing, stripped, or corroded.

External mounting bracket for laundry center units. Secures and supports the appliance frame. Replace if bent, cracked, or missing for proper installation.

Brass male connector union for dryer installations. Replaces cracked, corroded, or missing connector fittings. Ensures secure connections.

A replacement union hex nut that secures a refrigerator water line or tubing to a mating valve or fitting, restoring a tight, leak-free connection. Simple, serviceable fastener used on water and refrigeration line unions. What it does

• Secures tubing or line to a mating union fitting or valve to maintain a sealed connection
• Stops leaks at the union when worn or damaged nuts allow seepage
• Helps restore proper water flow to dispenser or ice maker when connection is the cause
• Works with compatible refrigerator water and refrigeration line unions

• One union hex nut

• Shut off the refrigerator water supply before starting work
• Tip: loosen slowly and re-tighten by hand then wrench to avoid overtightening and damaging tubing
• If replacing a corroded nut, inspect the ferrule/sleeve and mating fitting and replace if damaged

Gas smell during or after cycles? Dryer won't heat? Replace the gas valve assembly to restore proper gas flow and safe operation. Advanced repair.

Dryer won't heat or stops heating after 10-15 minutes? Gas valve coils control burner ignition. Simple 5-10 minute repair with video guide included.

Dryer won't heat or stops heating after 10-15 minutes? Gas valve coils control burner ignition. Simple 5-10 minute repair with video guide included.

Burner orifice that meters gas flow to your dryer's burner. Replace if clogged, damaged, or wrong size for fuel type during LP/natural gas conversion.

The Ignitor Assembly is an OEM replacement part for Frigidaire dryers. It serves as the ignition source safely firing up burners to initiate drying cycles.

Causes usually relate to the continual thermal shock experienced from heating and then rapidly cooling over extended use. As a foundational safeguard, ignitors require OEM replacement when arcing declines.

Symptoms of a faulty ignitor can include:

• The dryer fails to start or stop heating intermittently
• Cycles taking overly long to complete or feel uneven
• Excessive service calls relating to "no heat" troubles
• Risk of uncombusted gas pooling in dryer if ignition falters

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

Dryer not heating or flame goes out after igniting? This flame sensor monitors burner temperature to regulate gas flow. Easy 15-minute DIY repair.

Printed owner's manual for washer dryer combos. Includes operation instructions, care guidelines, and troubleshooting tips. Replace lost or damaged guides.

Harness cable tie secures and organizes wiring inside your appliance. Replace if damaged, cracked, or no longer holding wires firmly in place.

Vertical spring adjuster insert.

Secures the backsheet to the cabinet, preventing panel gaps and rattling. Replace if clip is broken or panels are loose. Confirm fit with your model number.

Snap-in bushing for washer assemblies. Replaces worn, cracked, or missing bushings that provide cushioning and support in internal components.

Converts compatible gas dryers from natural gas to propane. Includes orifices and components for safe LP operation. Order if switching fuel types.
