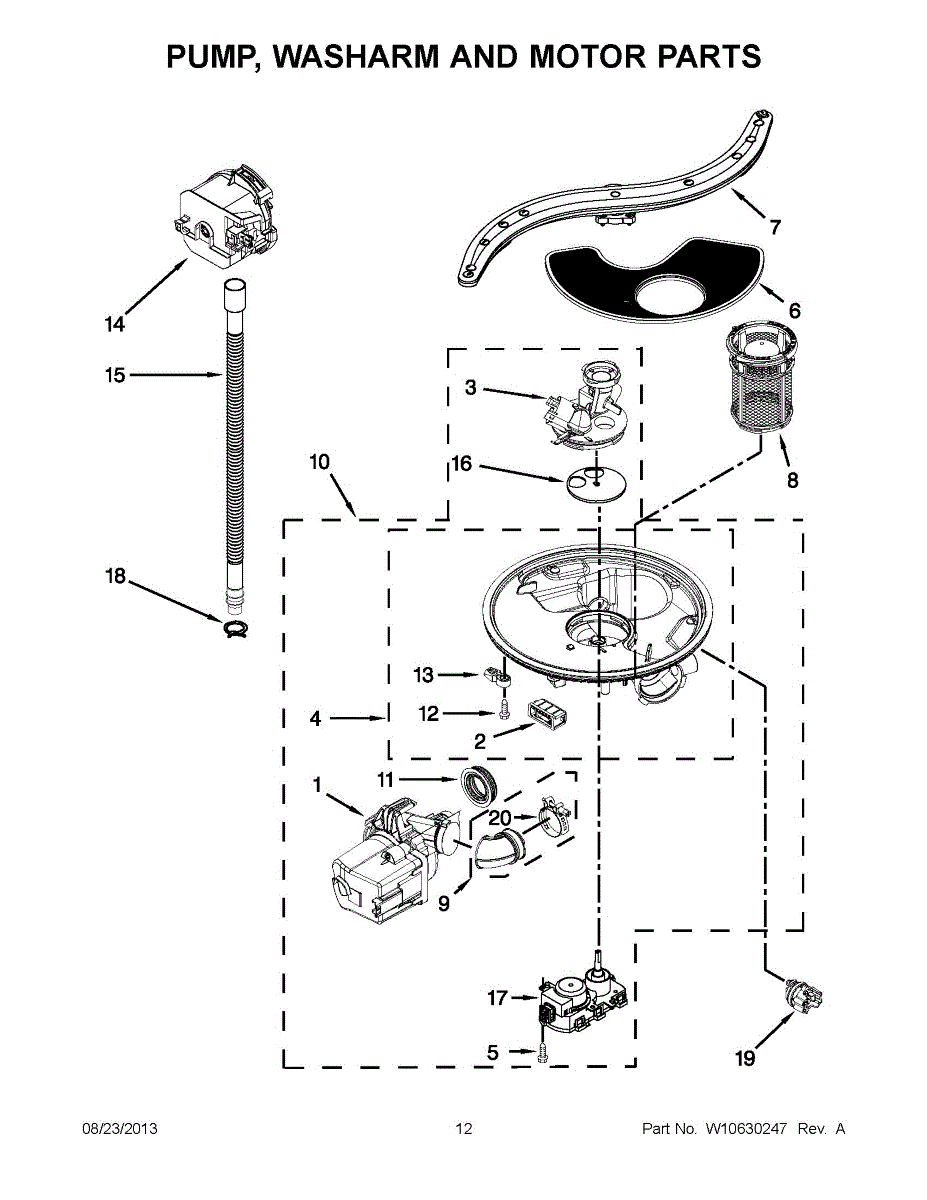

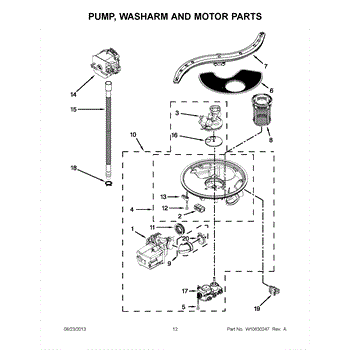

Parts for Kitchenaid KDTE554CSS0: 07 - Pump, Washarm And Motor Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Motor-Pump is an OEM part for Whirlpool dishwashers. It is responsible for circulating water throughout the dishwasher during the cleaning cycles, ensuring that dishes are thoroughly washed and rinsed. This component combines both the motor and pump functions, providing efficient and reliable water movement within the appliance.

Causes of a bad motor-pump can include electrical issues, blockages from debris or food particles, or mechanical wear due to prolonged use.

Symptoms of a bad motor-pump include:

• The dishwasher not cleaning dishes properly
• Unusual noises during the wash cycle
• Water not circulating or draining correctly
• The dishwasher failing to start or complete a cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This support bracket helps hold internal components in place to restore proper alignment and reduce movement. It's a simple replacement that stabilizes the affected assembly and helps stop rattling or sagging. What it does:

• Secures and supports a loose or misaligned internal component or panel
• Prevents shifting that can cause vibration, noise, or uneven operation
• Restores proper alignment to reduce wear on adjoining parts
• Functions as the OEM replacement for the original support bracket

• One support bracket

• Inspect the mounting points and surrounding parts for wear before installing
• Replace only with the matching OEM part number to ensure fit; fasten securely per manufacturer torque recommendations
• Disconnect power and follow basic safety precautions before servicing the appliance

Supplies water to upper and lower spray arms.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

The Sump Filter is an OEM part for Whirlpool dishwashers. It is responsible for trapping food particles and debris from the water during the wash cycle, preventing them from recirculating and ensuring clean water is used throughout the cycle.

You should replace this sump filter if it becomes clogged, damaged, or excessively dirty. Causes of a bad sump filter can include the accumulation of food particles, grease buildup, or wear and tear over time. A compromised filter can lead to reduced cleaning performance and potential damage to other dishwasher components.

Symptoms of a bad Sump Filter include:

• Poor cleaning results, with food particles left on dishes
• Slow or incomplete draining
• Unpleasant odors from the dishwasher
• Error codes related to water flow or drainage issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This lower spray arm directs pressurized water across the dishwasher's bottom rack to remove food and detergent residue. Replacing a warped, cracked or clogged spray arm helps restore proper water coverage for cleaner dishes. What it does:

• Rotates and distributes wash water across the bottom rack to remove stuck-on food and soil.
• Clogged or blocked spray holes reduce cleaning performance on the lower rack.
• Cracks, breaks, or worn mounting tabs prevent rotation or cause rattling noises.
• A loose or damaged arm can cause uneven cleaning or poor rinse results.

What's included: One lower spray arm. Install notes:

• Disconnect power to the dishwasher (turn off breaker) before servicing.
• Remove the lower rack to access the spray arm; most arms simply snap or press into place.
• Inspect mounting tabs and hub for damage; replace arm if cracked or worn.
• Reinstall securely and run a short cycle to ensure proper rotation and no interference.

The pump filter is an OEM part for Whirlpool dishwashers. It is responsible for trapping large particles, preventing them from entering the pump and potentially causing blockages or malfunctions.

A bad filter can occur due to regular use, accumulation of debris, or wear and tear over time.

Symptoms of a bad pump filter include:

• Dirty or cloudy dishes after a cycle.
• Noisy operation, such as grinding or rattling sounds.
• Water pooling at the bottom of the dishwasher.
• Foul odors in the dishwasher.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dishwasher Motor to Sump Hose is an OEM replacement part for Whirlpool dishwashers. It is a flexible tube that connects the dishwasher's drain pump motor to the sump, allowing for the efficient drainage of water from the dishwasher tub.

Symptoms of a faulty motor to sump hose include:

• Water leaks around the hose connections or along its length
• Poor drainage or standing water in the dishwasher tub
• Visible cracks, bulges, or damage to the hose material

Causes of a bad motor to sump hose can range from normal wear and tear over time, exposure to high temperatures or chemicals, physical damage from kinks or pinches, or improper installation or connections.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Pump and Motor Assembly is an OEM part for Whirlpool dishwashers. It is a crucial component that circulates water during each cycle using its centrifugal pump and motor. Proper circulation is necessary to thoroughly wash and rinse dishes.

Causes of a bad pump and motor assembly typically include normal wear and tear over time reduced efficiency, mineral buildup within the pump mechanism inhibiting water flow, or failures in the motor electronics.

Symptoms of a bad pump and motor assembly include:

• Incomplete cleaning of dishes even after full cycles
• Water not dispensing or draining properly
• Strange noises originating from the pump area
• Leaks at the pump housing

This genuine Whirlpool replacement par is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and Kenmore dishwasher models.

The Motor to Sump Seal is an OEM part for Whirlpool dishwashers. It creates a watertight seal between the motor and the sump, preventing leaks and ensuring efficient operation of the dishwasher. This seal plays a critical role in maintaining the integrity of the dishwasher's internal components.

Causes of a bad motor to sump seal can include wear and tear from regular use, damage due to improper installation or maintenance, and deterioration from exposure to heat and detergents over time. A compromised seal can lead to leaks and reduced efficiency.

Symptoms of a bad motor to sump seal include:

• Water leaking from the bottom of the dishwasher
• Puddles of water underneath the appliance
• Unusual noises or reduced performance of the dishwasher
• Visible cracks or wear on the seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This factory fastener is a #10-16 screw used to secure appliance panels and components. Replacing worn or missing hardware restores a tight fit, helps prevent rattles, and keeps parts properly aligned for dependable operation.

• Secures brackets, panels, and covers to the cabinet or frame
• Replaces missing, stripped, or corroded mounting hardware
• Helps reduce vibration and rattling from loose mounts
• Correct 10-16 thread to match designated OEM mounting points

• Disconnect power and shut off water or gas supply before servicing
• Match the screw to the original location using your model's diagram
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• If replacing multiple screws, swap one at a time to maintain alignment

This tab-sump mounting secures the dishwasher sump/dispenser area so detergent tabs and related components stay properly aligned. Replacing a worn or broken mounting restores correct dispenser positioning and helps prevent tabs from falling loose during cycles. What it does:

• Holds the tab/sump assembly in place to maintain proper detergent tab positioning
• Prevents the dispenser or sump from shifting or sagging during operation
• Helps reduce incidents of tabs dislodging or failing to stay seated
• Supports correct alignment of adjacent dispenser components

• Disconnect power and water supply before starting any repair
• Remove the door panel or access cover to reach the sump area
• Inspect surrounding clips and seals; replace any damaged fasteners for a secure fit

The Drain Pump is an OEM part for Whirlpool dishwashers. It is essential for removing water from the dishwasher tub during the drain cycle, ensuring the proper expulsion of water to complete the cleaning process effectively.

Causes of a bad drain pump can include clogs from food particles or debris, electrical issues such as a burnt-out motor, or damage due to improper installation or handling.

Symptoms of a bad drain pump include:

• Water not draining from the dishwasher
• Unusual noises during the drain cycle
• Error codes related to drainage problems
• Water leaks from the pump area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drain Hose is an OEM part for Whirlpool dishwashers. This flexible hose is designed to carry waste water from the dishwasher to the kitchen drain system or garbage disposal, ensuring that the dishwasher drains properly after each wash cycle.

Causes of damage to the Drain Hose often involve regular wear and tear, bending or kinking of the hose during installation or maintenance activities, or deterioration over time due to exposure to hot water and detergents.

Symptoms of a bad Drain Hose include:

• Water remaining in the bottom of the dishwasher after a cycle
• Leaks found under or behind the dishwasher, which could be due to holes, cracks, or loose connections in the drain hose.
• Unpleasant odors emanating from the dishwasher, potentially caused by food particles or debris caught in a hose that is not draining correctly.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This diverter disc directs wash water to different spray zones during a cycle, helping ensure alternating spray patterns and thorough cleaning. A worn or damaged disc can cause poor wash performance or incorrect spray routing.

• Routes water from the sump to selected spray arms/zones
• Helps alternate spray to improve coverage and cleaning
• Worn discs may lead to weak spray, poor cleaning, or unusual cycle behavior
• Can contribute to water leaking at the diverter area if the seal interface is compromised

• Disconnect power and water before servicing
• Access is typically from the bottom; remove the toe kick and lower panel as needed
• Note the disc orientation in relation to the diverter mechanism during removal
• Inspect related components (diverter motor/shaft, seals, sump) and replace if worn

The Diverter Motor is an OEM part for Whirlpool dishwashers controls the diverter valve, which directs water flow to various spray arms throughout the dishwasher during a wash cycle. By accurately adjusting the flow of water, the diverter motor ensures that dishes are thoroughly cleaned and rinsed by optimizing coverage and water intensity according to the cycle selected.

Causes of a bad Diverter Motor can include electrical failures, mechanical wear over time, or damage from water infiltration.

Symptoms of a bad Diverter Motor include:

• Dishes not being cleaned properly due to insufficient water reaching all areas.
• Unusual noises coming from the dishwasher, which may indicate a struggling or stuck diverter motor.
• Error codes displayed on the dishwasher that are related to water distribution functions.
• Leakage from the dishwasher base

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This hose clamp secures dishwasher hoses to fittings and ports to maintain a tight, leak-resistant seal. Replacing a worn clamp helps prevent drips and loose connections that can cause water under the unit.

• Secures drain or circulation hose to the pump, sump, or other dishwasher fittings
• Helps maintain a watertight seal at hose connection points
• Can help resolve water dripping from a hose joint or a loose hose
• Replace if corroded, deformed, cracked, or no longer holds tension

• Disconnect power and turn off the water supply before servicing
• Place a towel or shallow pan to catch residual water when removing hoses
• Fully seat the hose on the fitting, position the clamp over the barb/connection, and secure firmly
• After reassembly, run a brief fill/drain and check all connections for leaks

The Turbidity Sensor is an OEM part for Whirlpool dishwashers. It detects the level of particles in the water during the wash cycle, allowing the dishwasher to adjust the cycle duration and water usage for optimal cleaning performance. This sensor ensures that dishes are thoroughly cleaned by monitoring water clarity.

You should replace the turbidity sensor if it becomes faulty or damaged. Causes of a bad turbidity sensor can include regular wear and tear, exposure to hard water minerals, or electrical malfunctions. A malfunctioning sensor can lead to inefficient cleaning cycles and poor wash results.

Symptoms of a bad turbidity sensor include:

• Dishes not being cleaned properly
• Dishwasher running longer than usual or shorter cycles
• Error codes related to the sensor
• Inconsistent wash performance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Clamp is an OEM part for Whirlpool dishwashers. It is designed to secure various hoses or wiring within the appliance, ensuring that connections remain tight and well-organized.

Causes of a bad clamp can include corrosion due to exposure to moisture and chemicals, loss of tension which leads to a loose fit, and physical damage from mishandling or excessive vibration during the appliance's operation.

Symptoms of a failing Clamp include:

• Leaks occurring under or around the dishwasher
• Unusual noises like rattling or banging from loose components
• Electrical malfunctions if wiring is dislodged
• Performance issues due to misplaced or pinched hoses

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
