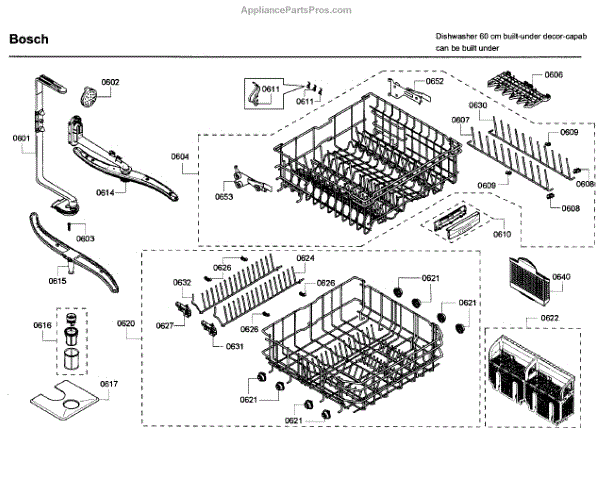

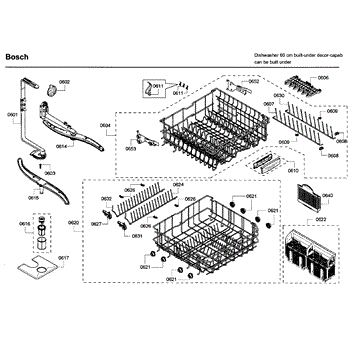

Parts for Bosch SHE65P05UC/63: Rack Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Tube Dishwasher is an OEM component for Bosch dishwashers. It is responsible for circulating water throughout critical spray arms during different cycles.

Causes of a bad tube dishwasher can include mineral buildup reducing the tube diameter over time, physical damage from scraping dishware against the pipes, or wear from normal vibration/motion.

Symptoms of a bad tube dishwasher include:

• Incomplete spray coverage in hard-to-reach areas
• Soft or spotty cleaning performance in certain sections
• Puddles or leaks at the tube installation points
• Dirty or stagnant water unable to circulate properly

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Tall item spray head.
This Spray Head is an OEM part for Bosch Dishwashers. It plays a role in distributing water evenly during the dishwasher's washing cycles. Continuous exposure to hard water, debris, or mineral deposits can cause issues with this component.

What Causes a Bad Spray Head:
Hard water deposits, debris, or mineral buildup can clog or block the spray head, affecting its performance. Physical damage can also impair its functionality.

Symptoms of a Bad Spray Head:

• Inadequate cleaning of dishes
• Uneven water distribution
• Reduced water pressure during washing cycles

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.


This sump screw secures the dishwasher's sump or sump cover to the tub, keeping the assembly tight and leak-resistant. Replace a missing, stripped, or damaged screw to restore a proper seal and stable mounting.

• Fastens the sump or sump cover to the dishwasher tub
• Helps maintain a watertight seal to reduce leaks
• Keeps filter/sump components aligned and secure
• Replaces missing, stripped, or damaged hardware
• Helps address leaks or rattling around the sump area

• Disconnect power and turn off water supply before servicing
• Remove the lower rack and filters to access the sump area
• Ensure mating surfaces and seals are clean and properly seated
• Tighten snugly by hand; do not overtighten to avoid stripping

The Upper Dishrack Assembly is an OEM replacement part for Bosch dishwashers.

Causes of a bad assembly include cracked or broken rack modules from years of abusive slamming during loading. Mineral buildup may also lead to jammed or stuck tines no longer gliding freely between positions.

Symptoms of a bad Upper Dishrack include:

• Rack unable to stay securely fixed inside washer cavity
• Broken or missing attachment clips compromising structural integrity
• Sharp cracking noises emitting from rack under duress

Compatible with Thermador, Gaggenau and certain Kenmore models.

This replacement cup shelf mounts to the dishrack to support cups, mugs, and other small items during the wash cycle. Replacing a damaged or missing shelf restores organized loading and helps prevent items from tipping or rattling.

• Provides a dedicated support area for cups, mugs, and lids on the rack
• Helps keep small items stable during wash and rinse cycles
• Attaches to rack wires in the designated location
• Common symptoms: cracked or broken tabs, won't stay attached, missing shelf, items tipping over

• Disconnect power to the dishwasher before servicing
• Pull out the rack to access the mounting location
• Align the shelf's tabs/hooks with the rack wires and press until it snaps securely into place
• Verify a secure fit before running a cycle

The Tine Row Holder is an OEM part for Bosch dishwashers. It is designed to hold and secure the tines in place within the dishwasher rack, allowing you to organize dishes efficiently for optimal cleaning. This holder ensures that the tines remain upright and stable, providing proper spacing for dishes and preventing them from shifting during the wash cycle.

Causes of a bad tine row holder can include regular wear and tear from frequent use, damage from heavy or improperly loaded dishes, or brittleness from prolonged exposure to high temperatures and detergent. These issues can lead to the tine row holder breaking or failing to secure the tines properly.

Symptoms of a bad tine row holder include:

• Tines falling over or becoming loose
• Difficulty organizing dishes in the dishwasher rack
• Visible cracks or damage to the holder

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Tine Row Holder is an OEM part for Bosch dishwashers. It is designed to securely hold the tines in place within the dishwasher rack, allowing for optimal organization and stability of dishes during the wash cycle.

You should replace this tine row holder if it becomes damaged or fails to secure the tines properly. Causes of a bad tine row holder can include breakage due to heavy loads, wear and tear from frequent use, or damage from accidental impacts.

Symptoms of a bad tine row holder include:

• Tines that do not stay upright or move out of place
• Difficulty arranging dishes securely in the rack
• Unstable or loose tines during the wash cycle
• Unusual noise from the dishwasher rack area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement door handle restores a secure, comfortable grip for opening and closing the appliance door and refreshes the unit's appearance. Designed to match OEM fit and finish for a clean, factory look. What it does:

• Provides a sturdy grip for opening and closing the appliance door.
• Replaces cracked, loose, or broken handles that make the door hard to operate.
• Helps maintain proper door alignment and user control when opening or closing.
• Restores the appliance's finished appearance where the original handle is damaged.

• Disconnect power to the appliance before beginning any repair and follow all safety precautions.
• Installation may require removing the door trim or access panel and common hand tools (screwdriver, socket); your appliance manual for exact steps.
• Retain original fasteners; this part listing does not guarantee included hardware.

The Clip is an OEM part for Bosch dishwashers. This part secures and stabilizes items within the dishwasher, such as racks, hoses, or panels. This part prevents movement that can lead to wear, noise, or even damage during cycles, the Clip is essential for maintaining the dishwasher's integrity and performance over time.

Causes of a bad Dishwasher Clip can range from natural wear and tear, which can weaken or break the clip, to accidental damage during cleaning or maintenance.

Symptoms of a bad Dishwasher Clip include:

• Dishwasher components becoming loose or detached
• Increased noise or vibration during operation, indicating parts are not securely held
• Difficulty in loading or unloading dishes if racks or similar parts are not properly secured

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Spray Arm is an OEM part for Bosch dishwashers. It is responsible for evenly distributing water across the dish racks during wash cycles using a rotating arm and nozzle design.

Causes of a bad spray arm can include mineral or limescale buildup that inhibits water pressure/flow, or damage from accidental impact that impacts its rotation. Over time, normal wear and tear on plastic spray arms can also affect optimal spray coverage.

Symptoms of a bad spray arm include:

• Poor or uneven cleaning results
• Dirt or food debris remaining on dishes after cycles complete
• Clogs or blockages in the arm and nozzle openings

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Filter-Micro is an OEM part for Bosch dishwashers. This filter plays a critical role in trapping food particles and debris during the wash cycle, preventing them from recirculating and ensuring that the water used for cleaning is as clean as possible. By maintaining proper filtration, it helps improve the dishwasher’s cleaning performance and extends the life of the pump and other components.

Over time, the filter can become clogged with food particles, grease, or mineral deposits, which may reduce its effectiveness. Regular cleaning can extend its life, but eventually, it may need to be replaced if it shows signs of wear or damage.

Symptoms of a bad filter include:

• Poor cleaning results
• Water drainage issues
• Strange noises during operation
• Dishes remaining dirty after a wash cycle

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

This fine filter captures small food particles and debris from dishwasher wash water to help protect the pump and keep drains from clogging. Designed to fit into the dishwasher sump for reliable filtration and consistent wash performance. What it does

• Traps fine food particles and sediment before they reach the pump and spray arms
• Reduces the chance of drain clogs and pump damage from debris
• Helps maintain consistent wash and drainage performance when clean
• Common symptoms that indicate replacement: poor draining, recurring food remnants on dishes, or unusual pump/grinding noises

• Disconnect power to the appliance before servicing
• Remove the lower rack to access the sump and twist/lift the old filter assembly out
• Clean surrounding area and seating surface before installing the new filter; ensure it seats and locks correctly
• Do not force or over-tighten; reassemble racks and restore power before testing

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Silverware Basket is an OEM component for Bosch dishwashers. Located within the lower rack, it provides a handy holder for washing utensils together during cycles.

Causes of a faulty basket typically involve natural wear of plastic handle and base parts. Mineral scale buildup left unaddressed between cleanings jeopardizes smooth component movement as well.

Symptoms of a damaged or defective Silverware Basket include:

• Difficulty or inability to smoothly roll the basket out
• Detached sections no longer securely containing cutlery
• Noticeable cracks developing within the plastic casing
• Rough surfaces impeding smooth operation

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This insert is a small mounting/retaining piece used within the appliance assembly to secure a mating component. It helps maintain proper alignment and a solid fit so parts operate smoothly and stay in place.

• Provides a seat or guide for a mating part
• Helps keep components aligned and reduces unwanted play
• Supports stable, rattle-free operation
• If cracked, worn, or missing, you may notice looseness, misalignment, vibration/rattling, or parts that won't stay attached

• Disconnect power (and water or gas, if applicable) before servicing
• Note the original orientation; take photos for reference during reassembly
• Inspect related clips/fasteners and replace if damaged
• Do not overtighten; confirm secure fit and smooth operation before final reassembly

The Tine Row Holder is an OEM component specifically designed for select Bosch dishwashers. Located inside the tub basin, it secures the tine row assembly in place to direct spray patterns.

Symptoms of a bad tine row holder include:

• Improper spray distribution inside the tub
• Loosening of the tine rows from their intended position
• Visible cracks or damage to the holder's mounting points

Causes of failure may be normal wear over time or accidental impacts that compromise integrity. Mineral buildup could also affect its securing function.

This replacement holder is also compatible with Gaggenau and Thermador dishwashers.

The Tine Row Holder is an OEM replacement part for Bosch dishwashers. Located inside the upper basket, it securely holds a row of retractable spray arm tines in place.

Causes of a faulty tine row holder can include cracks or breaks in the plastic from repeated folding and unfolding of the tines over time.

Symptoms of a bad tine row holder include:

• Tines detaching from the spray arm assembly and getting loose inside the tub
• Inability to properly angle or position spray coverage where needed
• Reduced washing power on certain sections of loaded dishes

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Tine Holder is an OEM replacement part for Bosch dishwashers. It secures the tines within the dishwasher, which in turn holds the dishes in place during the wash cycle. This component ensures that dishes remain stable and stationary, preventing movement that could lead to damage or incomplete cleaning.

Symptoms of a bad Tine Holder include:

• Tines becoming loose or falling out of place
• Dishes not being held securely, leading to movement or clattering during cycles
• Inability to adjust tines effectively for different dish sizes
• Visible damage or wear to the holder, affecting its grip on the tines

Causes for a malfunctioning Tine Holder can include physical damage from loading or unloading dishes, wear and tear from regular use, or material degradation over time.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.
