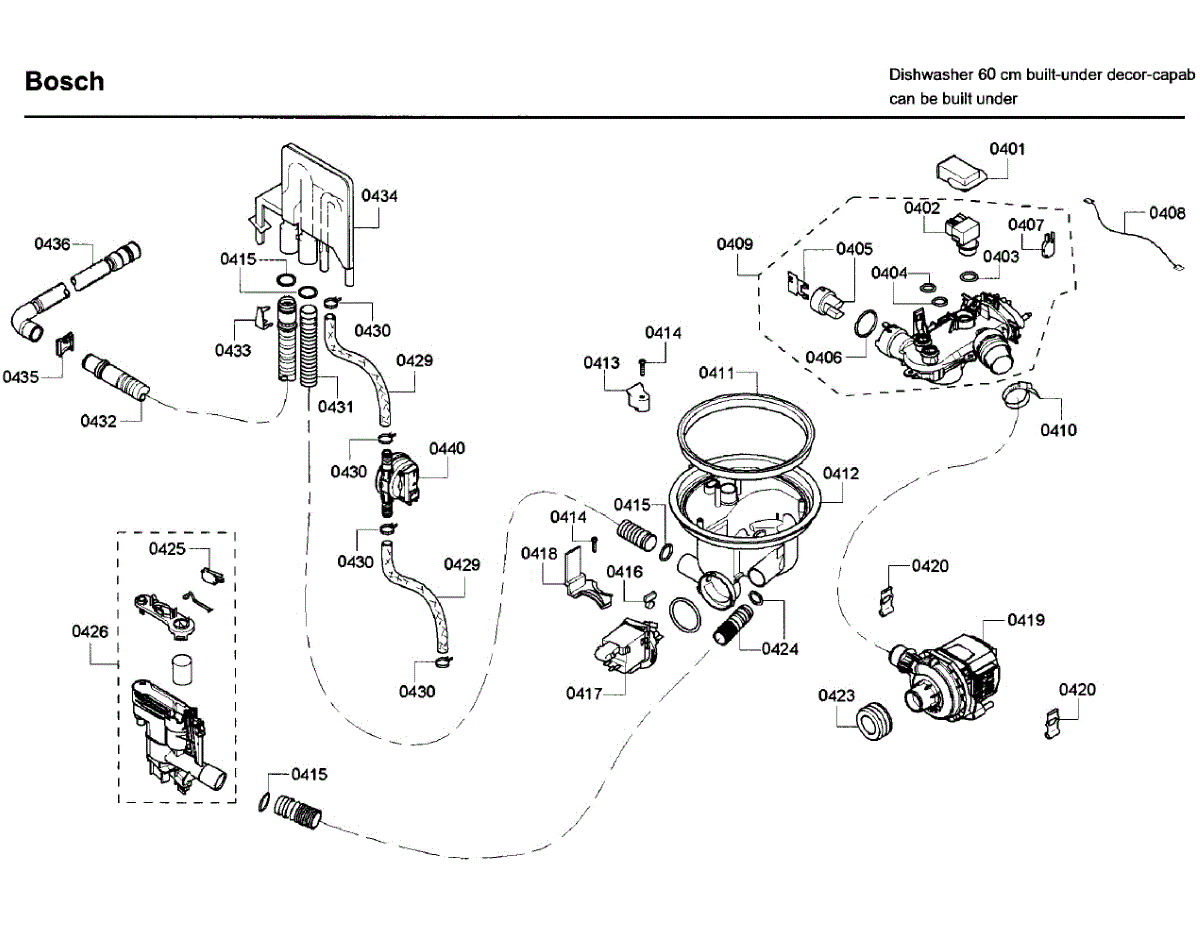

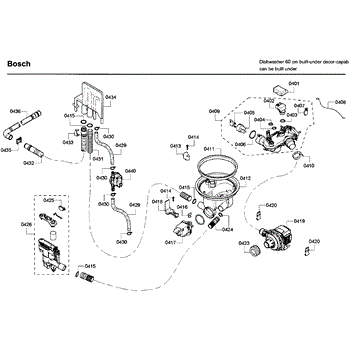

Parts for Bosch SHE65P05UC/63: Pump Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

NTC (negative temperature coefficient). Resistance or capacitance decreases when temperature increases.

The Temperature Sensor with Hi Limit Thermistor is an OEM part for Bosch dishwashers. This sensor monitors internal temperatures, providing feedback to the control module during each cycle.

Causes of failure can be related to mineral buildup over time interfering with sensing or physical damage to wiring or connectors.

Symptoms of a bad temperature sensor include:

• Abnormal or inconsistent wash temperatures
• Error codes related to temperature issues
• Reduced cleaning performance from improper heating

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This O-ring seals the NTC (negative temperature coefficient) temperature sensor where it inserts into the appliance. It restores a watertight seal at the sensor port to help prevent leaks and maintain reliable temperature-sensing performance.

• Provides a leak-tight seal between the NTC temperature sensor and its housing/tub/sump
• Helps prevent water seepage and moisture intrusion around the sensor opening
• Common symptoms of a failed seal: drips near the base, moisture in the leak tray, flattened/cracked ring, or a sensor that feels loose
• Good practice to replace when the NTC sensor is removed for service

• Disconnect power and shut off water supply before servicing
• Access the NTC sensor, remove the old O-ring, and clean mating surfaces
• Lightly moisten the new O-ring with water; seat it evenly to avoid pinching, then reinstall the sensor fully
• Run a brief test cycle and inspect for leaks

This O-ring is a circular sealing gasket that creates a watertight joint between mating parts. Replacing a flattened or cracked ring restores a tight seal and helps prevent leaks during operation.

• Provides a compressible seal between fittings, hoses, or housings
• Helps prevent drips and leaks at joints under normal system pressure
• Maintains proper flow by keeping connections sealed
• Typical failure signs: visible cracking/flattening, seepage at a joint, pooling water near the appliance

• Disconnect power and shut off the water supply before servicing
• Relieve any line pressure and place a towel to catch residual water
• Clean and inspect mating surfaces; replace any damaged components
• Lightly lubricate the O-ring with approved silicone lubricant, seat evenly without twisting, and test for leaks after reassembly

This turbidity sensor detects how clear the dishwasher's wash water is so the control can adjust cycle time, rinses, and water changes. Replacing a faulty sensor helps restore proper cleaning performance and normal cycle lengths.

• Monitors soil level/clarity of the wash water
• Signals the control to extend or shorten wash and rinse phases as needed
• Helps optimize water use while maintaining cleaning results
• Failure symptoms can include unusually long or short cycles, poor cleaning, repeated draining/refilling, or cycles that won't advance

• Disconnect power and turn off the water supply before servicing
• Pull the dishwasher out as needed; access the sensor from the base area
• Place a towel to catch residual water; release the locking tab or twist-lock, unplug the connector, and install the new sensor fully seated and locked
• Restore power/water and run a test cycle; check for leaks

Small replacement O-ring that seals the dishwasher aqua sensor assembly to maintain a watertight seal and help ensure reliable sensor operation. Fits the sensor housing to reduce leaks and protect internal electronics. What it does:

• Seals the aqua/sensor housing to prevent water from escaping the sensor area
• Helps maintain accurate sensor readings by keeping the sensor dry and properly seated
• Commonly replaced when you see water pooling or dripping near the sensor assembly
• Used during aqua-sensor, pump, or housing repairs where the original seal is damaged

• Always disconnect power and turn off the water supply before starting repairs
• Replace the O-ring only when the sensor or housing is disassembled; inspect mating surfaces for damage or debris
• Ensure the O-ring is seated evenly in its groove before reassembly to avoid pinching or leaks

This electrical control switch completes or interrupts the power circuit that runs a specific appliance function, restoring on/off control for responsive operation and safer use. What it does:

• Acts as the user-activated or circuit-activated on/off control for a discrete function
• Restores power flow when the switch is made, allowing the associated component or cycle to run
• Common symptom: appliance function won't start or respond when the control is pressed or activated
• Common symptom: intermittent operation or no power to a given feature

• One switch

• Disconnect power to the appliance before attempting any service to prevent shock
• Access and replacement steps vary by model; follow the appliance service manual or schematic for safe disassembly
• Handle connectors carefully and confirm secure wiring/terminal seating after installation

The Pump to Heater Hose Clamp is an OEM part for Bosch dishwashers. This clamp secures the hose that connects the pump to the heater, ensuring a tight and leak-free connection. It plays a crucial role in maintaining the integrity of the water flow within the dishwasher, preventing leaks and ensuring efficient operation.

Causes of a bad hose clamp can include wear and tear over time, loosening due to vibrations, or damage from repeated tightening and loosening. A faulty clamp can lead to water leaks, which can cause further damage to the dishwasher.

Symptoms of a bad pump to heater hose clamp include:

• Water leaking from the hose connection points
• Reduced water pressure within the dishwasher
• Visible wear, rust, or damage on the clamp
• The clamp not holding the hose securely in place

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This Sump Gasket is an OEM part for Bosch Dishwashers. It seals the dishwasher sump to prevent water leaks during the washing cycle. Continuous exposure to water, detergent, and heat can lead to wear or damage to this component.

What Causes a Bad Sump Gasket:
Exposure to hot water, chemicals in detergents, and constant water pressure can cause the sump gasket to deteriorate or develop tears.

Symptoms of a Bad Sump Gasket:

• Water leakage from the dishwasher
• Incomplete washing cycles
• Visible tears or damage to the gasket

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This sump is the dishwasher wash-pump housing that collects and directs wash water to the pump assembly, keeping circulation and drainage working properly. Replacing a damaged sump restores proper water flow and helps prevent leaks. What it does

• Houses the wash pump and channels water between the tub and pump for normal wash and drain cycles.
• Prevents internal leaks by providing a sealed path for wash water.
• Symptoms it commonly addresses: leaking under the dishwasher, poor wash performance, pumps running but no water movement, or intermittent drainage problems.
• Works with the motor/pump assembly and associated seals to maintain correct water flow.

• Disconnect power and shut off water supply before starting any repair.
• Access typically requires removing the lower kickplate and tilting or pulling the dishwasher out to reach the sump area.
• Inspect pump seals, mounting clips, and gaskets during replacement; replace any worn or damaged components separately.

This sump clamp secures the dishwasher sump/drain assembly to the tub, keeping the seal and pump assembly held in place to prevent leaks and movement. It's a small but essential fastener for a watertight sump connection. What it does:

• Holds the sump/drain housing tightly against the tub to maintain a proper seal
• Prevents the sump assembly from shifting during operation, which can cause leaks or noise
• Helps stop water from leaking under the machine when the pump runs
• Supports proper alignment of the drain/pump components for reliable draining

• One sump clamp

• Disconnect power and water supply before starting any repair
• Access the sump area by removing the lower access panel or toe kick and tilting the machine as needed
• Inspect the sump seal/gasket and replace if cracked or damaged when replacing the clamp
• Tighten clip until secure but avoid forcing or deforming the sump housing; test for leaks after reassembly

This sump screw secures the dishwasher's sump or sump cover to the tub, keeping the assembly tight and leak-resistant. Replace a missing, stripped, or damaged screw to restore a proper seal and stable mounting.

• Fastens the sump or sump cover to the dishwasher tub
• Helps maintain a watertight seal to reduce leaks
• Keeps filter/sump components aligned and secure
• Replaces missing, stripped, or damaged hardware
• Helps address leaks or rattling around the sump area

• Disconnect power and turn off water supply before servicing
• Remove the lower rack and filters to access the sump area
• Ensure mating surfaces and seals are clean and properly seated
• Tighten snugly by hand; do not overtighten to avoid stripping

This O-ring is the sealing gasket between mating components, keeping fluid contained inside the system. Replacing a worn ring restores a tight, leak-free connection and helps prevent drips, moisture, and leak-related error indications.

• Creates a compressible seal between parts to prevent leaks at the joint
• Helps maintain proper system flow by stopping seepage or air ingress
• Direct replacement for rings that are flattened, cracked, brittle, swollen, or missing
• Common symptoms include dripping at the connection, moisture beneath the unit, or leak/float error alerts

• Disconnect power and shut off the water supply before servicing; wear appropriate PPE.
• Note the original ring's location; clean the groove and mating surfaces before installation.
• Apply a light coat of compatible silicone grease; avoid twisting or overstretching the ring.
• Seat evenly, reassemble, restore service, and check for leaks during a test cycle.

The Check Valve is an OEM part for Bosch dishwashers. It prevents the backflow of water into the dishwasher after it has been drained, ensuring that dirty water does not re-enter the appliance and contaminate clean dishes.

Causes of a bad check valve can include blockages from debris or food particles, wear and tear over time, or damage from improper installation or handling. These issues can impair the valve's ability to effectively prevent backflow.

Symptoms of a bad check valve include:

• Water not draining properly from the dishwasher
• Dirty water pooling at the bottom of the dishwasher
• Foul odors coming from the dishwasher
• Residual water remaining in the tub after the cycle ends

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Drain Pump is an OEM replacement part for Bosch dishwashers. It is responsible for pumping out dirty water from the dishwasher tub at the end of each cycle. The drain pump works to thoroughly empty the tub in a timely manner to facilitate a smooth transition to the next cycle.

Causes of a bad drain pump can include a clogged impeller or blockage of debris inside the pump housing that inhibits proper water flow.

Symptoms of a bad drain pump include:

• Incomplete draining of water at the end of cycles
• Water remaining or pooling at the bottom of the tub
• Loud grinding or clicking noises emanating from the pump area
• Cycles failing to advance or resume properly

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

Note: Due to a factory design change, connector part# 00623143 may also be needed.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Drain Pump Cover is an OEM part for Bosch dishwashers. This cover protects the drain pump mechanism from debris while draining dirty water after each cycle.

Causes of a bad drain pump cover include cracks or breaks from heavy impacts over time.

Symptoms of an improperly functioning cover include:

• Leaks in the area around the drain pump
• Decreased drain and pump performance over time
• Potential clogs from broken pieces inside

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Circulation Pump Assembly is an OEM component specifically designed for Bosch dishwashers. It is responsible for circulating water during the wash cycle and helping dishes get properly cleaned.

Causes of a bad circulation pump assembly can include normal wear and tear, as well as damage from debris getting caught in the pump mechanism over time.

Symptoms of a bad circulation pump assembly include:

• Inability to circulate water, resulting in poor wash performance
• Loud noises or vibrations coming from the pump area
• Leaks around or below the pump housing

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers. Replace yours today to restore optimal water circulation for thorough yet gentle cleaning.


Support strap that cushions and secures the dishwasher circulation motor, stabilizing the motor assembly to reduce vibration and help maintain alignment for steadier, quieter operation. Designed for circulation motors with softer bearings. What it does:

• Cushions and supports the circulation motor to limit movement and vibration and reduce motor noise.
• Secures the motor assembly to the tub/chassis to maintain proper clearance and fit.
• Helps prevent undue stress on motor bearings and mounting points that can cause premature wear.
• Commonly replaced when the strap is cracked, stretched, or no longer holds the motor firmly in place.

• Disconnect power and water supply before servicing; follow all safety and OEM service instructions.
• Remove access panels and any obstructing components to reach the circulation motor as required.
• Replace using the original mounting hardware; inspect motor mounts and bearings while accessible.
• Reassemble and run a short test cycle to confirm reduced vibration/noise and proper motor operation.

The Pump to Sump Gasket is an OEM part for Bosch dishwashers. It serves as a seal between the dishwasher's pump and the sump, preventing water leaks during the washing cycle. This gasket is essential for maintaining the integrity of the dishwasher's internal components, ensuring that water flows where it's supposed to go without causing damage to the machine or your home.

Causes of a malfunctioning Pump to Sump Gasket can stem from normal wear and tear, as repeated exposure to water and detergent can degrade the gasket over time. Improper installation may cause the gasket not to seal properly.

Symptoms of a bad Pump to Sump Gasket include:

• Water leaking from underneath the dishwasher.
• Signs of water damage or corrosion around the pump or sump area.
• Unusual noises during operation, which may indicate water is seeping into areas it shouldn't.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Hose, with o - ring, shu (uc/12 & above)

This Sump to Float Hose is an OEM part for Bosch Dishwashers. It functions to carry water from the dishwasher sump to the float assembly. Continuous water flow and exposure to detergents can lead to wear or damage over time.

What Causes a Bad Sump to Float Hose:
Exposure to chemicals and hot water, along with wear from water flow, can cause the hose to degrade or develop cracks.

Symptoms of a Bad Sump to Float Hose:

• Water leakage around the dishwasher
• Incomplete or interrupted washing cycles
• Visible cracks or damage to the hose

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Float Switch is an OEM replacement part specific to Bosch dishwashers. It is a switch located in the sump area of the dishwasher tub that detects water levels and provides feedback for automatic filling and draining functions.

Symptoms of a bad float switch include:

• The dishwasher fails to fully drain water after cycles
• Cycles not initiating or advancing properly due to water level issues
• Float switch area where the sensor attaches developing leaks
• Loose or detached float switch from normal wear over time

Causes of a bad float switch are usually mineral or sediment buildup disrupting its buoyancy and sensing ability. Without a properly functioning float switch, the dishwasher cannot effectively monitor water levels to manage filling and drainage.

This OEM Bosch replacement switch is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

The Float Assembly is an OEM part for Bosch dishwashers. This part prevents water from overfilling and potentially leaking onto the kitchen floor. The float triggers the switch to shut off the water inlet when the appropriate water level is reached, ensuring the dishwasher operates efficiently and safely.

Causes of a bad float assembly can vary from debris or buildup restricting the float's movement, damage to the float mechanism, or issues with the float switch itself.

Symptoms of a malfunctioning Float Assembly include:

• The dishwasher not filling with water properly
• Water overflowing from the dishwasher
• The dishwasher not starting due to the float being stuck in the "full" position

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement drain hose routes wastewater from the appliance to the household drain so the unit can empty properly. It restores reliable draining and helps prevent leaks or water backing up during cycles. What it does:

• Carries wastewater from the appliance pump to the household drain connection
• Enables normal drain cycles and helps prevent standing water in the tub
• A damaged or clogged hose can cause leaks, poor draining, or error codes related to drainage
• Works with clamps and fittings at both appliance and drain-end connections

• One drain hose

• Disconnect power and shut off water supply before starting any work
• Inspect and replace any worn clamps; secure hose to the pump outlet and drain connection per OEM routing
• Avoid sharp bends or kinks; route hose to maintain proper flow and prevent siphoning
• If trimming is required, follow OEM instructions for cut length and reattach clamps securely; test for leaks after installation

This hose clamp secures a rubber or plastic hose to its fitting inside the appliance, helping prevent leaks at connection points. Replace a stretched, corroded, or damaged clamp to maintain a tight, reliable seal.

• Clamps the hose to a barb or fitting to keep it from slipping off
• Helps maintain a watertight connection and reduce drips at the joint
• Can help resolve leaks caused by a loose hose connection
• Common signs: moisture around a hose joint, visible rust/deformation, or a clamp that won't tighten

• Disconnect power and turn off the water supply before servicing
• Place a towel or tray to catch residual water; note hose routing and clamp position
• Use appropriate hand tools for your clamp style; fully seat the hose and tighten evenly
• After reassembly, run a brief test and inspect for leaks at the connection

The Sump to Water Inlet Hose is an OEM replacement part for Bosch dishwashers. It efficiently transports water from the internal sump to the dishwasher's inlet valve during wash cycles. The flex hose comes with 2 o-rings. Approximate size: 19 5/8 inch.

Symptoms of a faulty sump hose include:

• Incomplete or ineffective washing from insufficient water transfer
• Hoses detaching from connections allow water to spill
• Reduced water pressure signs like slower fills or weak sprays
• Leakage where the hose connects to other components

Over many uses, mineral deposits can build inside the hose restricting flow. Physical damage like cracks or kinks also inhibits proper drainage. Replace your hose with this genuine Bosch part to restore maximal washing capacity.

Compatible with Thermador, Gaggenau, and some Kenmore models utilizing the same hose dimensions, this OEM hose ensures washing needs are consistently met.

The Drain Hose is an OEM replacement part for Bosch dishwashers. It is responsible for draining water from the dishwasher tub at the end of each cycle.

Causes of a bad drain hose can include cracks or ruptures developing over time due to repeated drainage and high temperatures, or blockages obstructing flow.

Symptoms of a faulty drain hose include:

• Water remaining in the tub after cycles finish
• Puddles or leaks found under or around the appliance
• Loud draining noises or sounds of water splashing inside the tub
• Reduced overall washing or drying performance

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

A small spring-style hose clamp used to secure flexible appliance hoses to fittings and prevent leaks. Simple, durable replacement that restores a tight connection for water and drain lines. What it does:

• Compresses around a hose to hold it firmly on an inlet, outlet or drain fitting
• Helps stop leaks caused by loose or slipping hoses
• Keeps hoses seated during normal appliance operation and vibration
• Commonly used on dishwasher and washer drain or water hoses

• One hose clip / spring clamp

• Disconnect power and water supply before starting repairs
• Use pliers to expand the clamp for removal and reinstall; ensure hose is fully seated before releasing clamp
• Inspect the hose and fitting for damage; replace any cracked or brittle hose
• Do not overtighten or deform clamp when installing; replace if corroded or weakened

The Water Inlet System is an OEM component specifically designed for select Bosch dishwashers. Comprising inlet valve, screens, hoses, and connectors, it precisely meters fresh water. Reliable flow prevents mineral buildups from impairing performance.

Causes of a bad water inlet system commonly involve bursting hoses or stripped connectors. Prolonged pressure weakens seals requiring timely replacement.

Symptoms of a faulty water inlet system include:

- Fluctuating or absent water flow to spray arms
- Leaks forming inside or near the installation site
- Errors relating to improper water temperature or amounts

Causes of a bad water inlet system involve typical degradation such as:

• Limescale clogging narrow valve openings
• Plumbing joint corrosion compromising integrity
• Splitting plastic tubing unable to withstand cycles

This OEM Bosch part is also compatible with some Miele, Blomberg, and Thermador dishwashers.


This stress relief is a small strain-relief clip that protects wiring where the harness passes through the cabinet, reducing pull and chafing on connections. Replacing a worn clip helps prevent loose wires and intermittent electrical issues. What it does:

• Secures the appliance wiring at an entry point to reduce strain on terminals and connectors.
• Prevents chafing and abrasion of wire insulation where harnesses pass through the cabinet or mounting openings.
• Can reduce symptoms such as intermittent power, flickering controls, or visible loose/frayed wires at the harness.
• Simple mechanical part: no electrical function but critical for long-term wiring reliability.

• Disconnect power (unplug appliance or switch off breaker) before accessing wiring; turn off gas supply where applicable.
• Remove panels as needed to access the harness entry; seat the clip fully so wires are routed through the relief, not pinched.
• Inspect surrounding wiring and replace any frayed or damaged wires; do not use the clip to conceal damaged wiring.

The Drain Hose is an OEM part for Bosch dishwashers. This hose is responsible for carrying the wastewater out of the dishwasher and into the household plumbing system during the draining cycle. It ensures the efficient removal of dirty water, allowing the dishwasher to function correctly and maintain optimal cleaning performance.

Causes of a bad drain hose can include blockages from food particles or debris, kinks or twists in the hose, or damage from wear and tear over time. If the drain hose is compromised, it can lead to drainage problems and potential water leaks.

Symptoms of a bad drain hose include:

• Water not draining from the dishwasher
• Puddles of water around or under the dishwasher
• Error codes related to drainage issues
• Visible damage or cracks in the hose

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Impeller Jug is an OEM part for Bosch dishwashers. Located inside the wash chamber, the impeller jug is responsible for evenly distributing water throughout the dish rack during the wash cycle. It features strategically placed holes and channels that work with the spray arms to direct water flow and ensure all dishes receive thorough coverage.

Symptoms of a bad impeller jug include:

• Incomplete cleaning even on short or heavy wash cycles
• Dirty dishes remaining at the end of the cycle
• A buildup of food or grime deposits inside the wash chamber
• Off-balanced or excessive noise levels during washing

Causes of failure can be mineral or scale buildup inhibiting water flow, cracked or damaged casing allowing leaks, or worn impeller fins no longer efficiently dispersing water. Over time, hard water deposits and normal use can degrade performance.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
