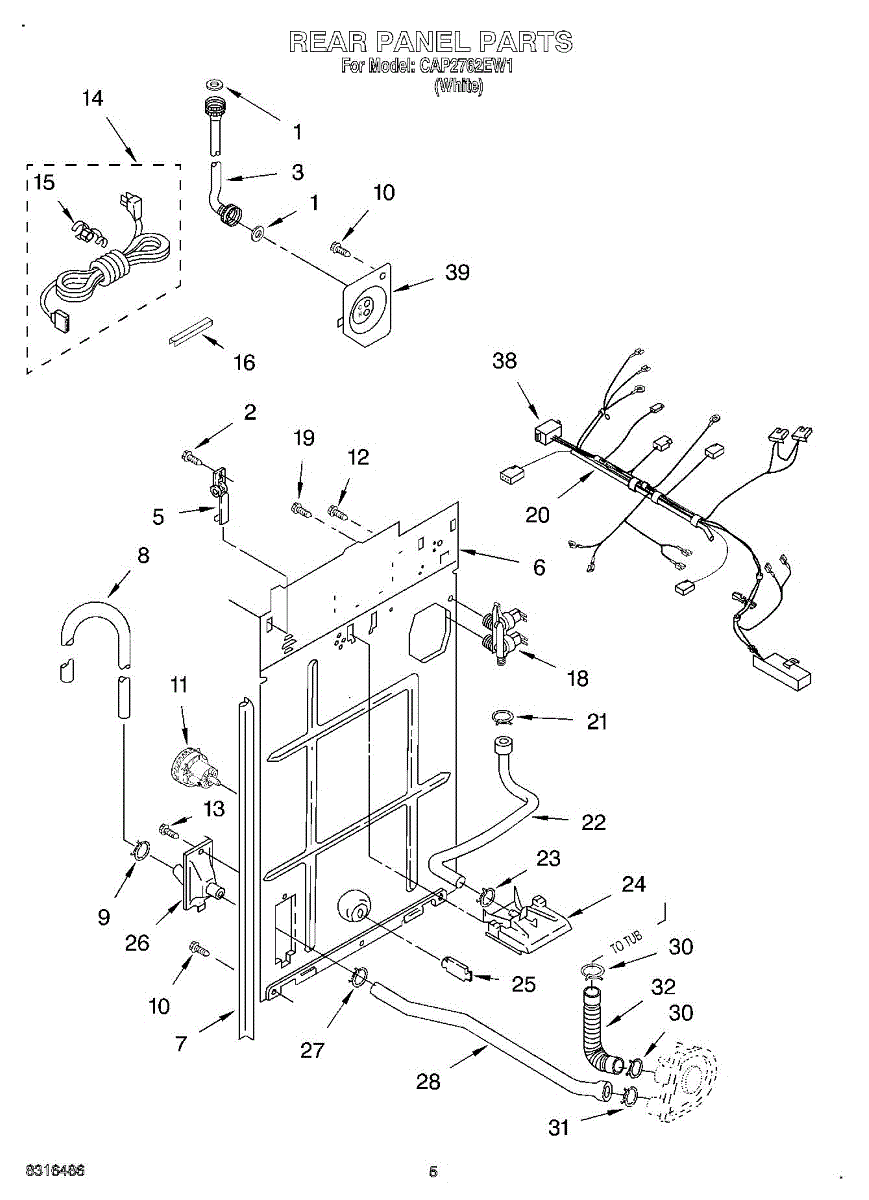

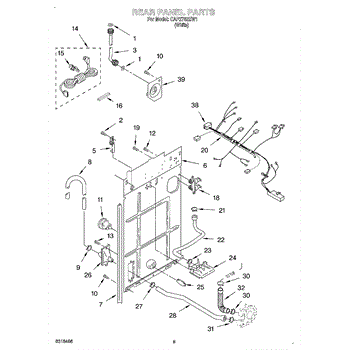

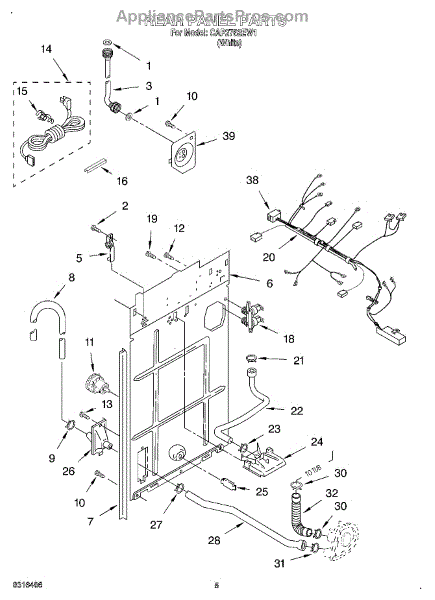

Parts for Whirlpool CAP2762EW1: 04 - Rear Panel Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Used for control panel.

Rear panel pad cushions and insulates the appliance's rear cabinet to reduce vibration, noise and rubbing against the back panel. Replacing a damaged pad helps stop rattles and protects internal components from wear. What it does:

• Provides rear-cabinet cushioning and thermal/abrasion protection for the back panel.
• Dampens vibration and reduces operational noise.
• Prevents direct metal-to-metal contact that can cause rubbing or wear.
• Common symptom fix: reduces rattling or vibrating noises from the appliance rear.

• Always disconnect power (and gas, if applicable) before starting any repair.
• Remove the rear access panel to access the pad; replace using the original mounting points, adhesive or clips.
• Inspect surrounding insulation and mounting hardware; replace any damaged fasteners.

Flexible drain hose with gooseneck that routes wastewater from the appliance to the household drain. Replaces damaged or clogged discharge tubing to restore normal draining and reduce the risk of leaks. What it does:

• Channels wastewater from the pump to the home drain via a gooseneck discharge connection.
• Restores proper draining when original discharge tubing is cracked, split, or clogged.
• Helps maintain the gooseneck high loop to reduce backflow/siphoning when installed correctly.
• Common symptoms it addresses: standing water in the tub, slow draining, or leaks at the hose connection.

• Disconnect power and water supply before starting any repair.
• Route the hose to match the original gooseneck/high-loop routing; avoid kinks and sharp bends.
• Secure both ends with appropriate hose clamps or factory clips and check for tight, leak-free connections.

Size: 8 foot long. This external washer drain hose is needed when there is more distance between the washer and the drain. Note: comes with 1.5" diameter clamp but hose is 1.25" in diameter; therefore you may need to order the 1.25" diameter clamp separately: WP356138

Size: 21 inches long. Clamp included.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

10 - 16 x 1/2

This water level pressure switch senses the washer tub's water height and signals the control to stop filling. Replaces a failed level sensor to help restore proper fill control and prevent incorrect water amounts. What it does:

• Monitors air pressure from the tub to detect water level and tells the control when to stop or continue filling
• Can cause symptoms such as incorrect fill levels, overfilling, underfilling, or interrupted cycles when faulty
• Works with the washer's control system to ensure cycles progress only when the correct water level is reached
• Requires checking the air hose and connections when diagnosing related issues

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Shut off the water supply and remove the necessary access panels to reach the switch
• Handle the switch and wiring carefully; note connector positions and routing of the air hose for correct reinstallation
• After installation, run a short test cycle and inspect the air hose for secure, leak-free connections

Size: 10-24 x 3/8 inch.

Size: 10-24 x 3/8 inch.

This power cord supplies mains electricity to the appliance, restoring reliable power delivery so the unit can run normally. It replaces a damaged or missing cord and restores a safe, secure connection to the household outlet. What it does

• Delivers AC power from the wall outlet to the appliance's internal wiring and controls.
• Restores operation when a frayed, cut, burned, or otherwise damaged cord prevents the appliance from powering on.
• Helps stop intermittent power or sparks caused by a compromised cord connection.
• Provides a secure connection point when installed with the appliance's strain-relief and terminal block.

• One replacement power cord as shown.

• Always disconnect power at the circuit breaker or unplug the appliance before starting work.
• Route the cord to avoid pinch points and secure it with the factory strain-relief or clamp.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Water Inlet Valve is an OEM part for Whirlpool washing machines. It controls the flow of hot and cold water into the washer. This component is crucial for starting the wash cycle, as it opens to allow water to enter and closes to stop the flow once the appropriate level is reached, ensuring efficient wash performance.

Causes of a bad Water Inlet Valve can include mineral deposits and sediment build-up, which can obstruct the flow of water, or mechanical failure such as a broken solenoid that prevents the valve from opening or closing properly.

Symptoms of a bad Water Inlet Valve include:

• Water not filling the tub at the beginning of the cycle
• Water leaking from the valve
• Washer not starting due to inability to fill
• Unusual noises from the valve area during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a clear plastic hose that runs from the water level switch to the bottom of the tub.

The Water Level Pressure Switch Hose is an OEM part for Whirlpool washers, playing a critical role in the accurate measurement of water levels within the machine.

Causes of damage to the Water Level Pressure Switch Hose can stem from natural wear and tear over time, leading to cracks or holes in the hose.

Symptoms of a bad Water Level Pressure Switch Hose include:

• The washer overfills or underfills, indicating a problem with water level detection.
• Unusual noises during the fill cycle, which may suggest air leaks in the hose.
• Error codes related to water level or filling issues displayed on the washer.
• The machine stops mid-cycle due to incorrect water level readings.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Vacuum Break Inlet Hose is an OEM part for Whirlpool washing machines. This hose is designed to prevent backflow of water into the washer, ensuring that water flows in the correct direction during the wash cycle. It plays a crucial role in maintaining the efficiency and hygiene of the washing process.

Common causes of a bad hose include regular wear and tear, exposure to harsh detergents, or accidental punctures. A compromised hose can lead to water flow issues and potentially contaminate the wash water.

Symptoms of a bad vacuum break inlet hose include:

• Water leakage around the hose area
• The washer not filling properly
• Backflow of water into the washer
• Reduced water pressure during the wash cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This vacuum break is the washer's water-inlet anti-siphon fitting. It maintains a required air gap so the tub fills properly without drawing used water back into the supply, helping prevent leaks and backflow issues.

• Maintains an air gap at the inlet to prevent backflow/siphoning into household water lines
• Helps ensure consistent, unobstructed water flow into the tub
• Replaces a cracked, clogged, or leaking vacuum break at the fill area
• Common symptoms include leaks from the rear/top during fill, visible cracks, or restricted/noisy fill

• Unplug the appliance and shut off both water supplies before servicing
• Access the fill/inlet area; note hose routing and part orientation
• Remove hose clamps/hoses and the old vacuum break; install the new part and secure clamps
• Restore water and power, then run a fill test and check carefully for leaks

This rear panel support is the structural bracket that secures the appliance's rear cover/backguard in place. Replacing a worn or broken support restores proper alignment, helps protect internal components, and reduces vibration noise.

• Secures the rear panel/backguard to the chassis for stable, proper fit
• Maintains alignment of panels and mounting points
• Helps minimize vibration, flexing, and rattles from a loose rear panel
• Common signs of failure: cracked or missing bracket, stripped mounting points, panel movement or buzzing

• Disconnect power at the breaker; shut off gas supply
• Pull the appliance forward carefully to access the back; protect flooring
• Remove fasteners, replace the damaged support, and reuse original hardware/clips
• Keep wiring clear of sharp edges; tighten screws evenly without over-torquing and check for vibration before repositioning

The Internal Drain Hose is an OEM part for Whirlpool washing machines. This hose is responsible for carrying used water from the washer tub to the drain pump, facilitating the efficient removal of water during the drain cycles. It ensures that water is properly directed out of the washer, preventing leaks and maintaining optimal washing performance.

Causes of a bad internal drain hose can include blockages from debris or lint, wear and tear from regular use, or damage such as cracks or splits from mishandling or aging.

Symptoms of a bad internal drain hose include:

• Water leaking inside or around the washer
• Slow or incomplete draining
• Error codes related to draining issues
• Unusual noises during the drain cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This internal pump-to-drain hose routes water from the drain pump to the outlet, helping prevent leaks and ensuring proper draining. Replace a cracked or clogged hose to restore reliable, mess-free operation.

• Connects the pump outlet to the machine's drain/outlet port to carry wastewater out during the drain cycle
• Maintains a sealed path to help prevent internal leaks
• Common symptoms of failure: water on the floor, slow or incomplete draining, visible splits or soft spots on the hose
• Replacing a restricted hose can reduce drain pump strain and noise

• Disconnect power and shut off water supply; remove standing water from the tub if needed
• Access the drain pump and hose by removing the cabinet/front or rear panel per your model
• Release hose clamps, remove the old hose, and seat the new hose fully on both fittings; reuse clamps if in good condition
• Route the hose as originally to avoid kinks; run a drain cycle and check for leaks

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Tub to Pump Hose is an OEM replacement part for Whirlpool washing machines. It connects the washer tub assembly to the pump, carrying water drained from the tub into the pump housing. This hose is a component that allows the machine to drain water efficiently during the spin cycle.

Causes of a bad tub to pump hose can include mineral buildup that restricts water flow, fatigue and wearing that cause cracks or splits, damage from rodents or sharp/heavy objects in the wash load, and deterioration from age that increases brittleness.

Symptoms of a bad hose include:

• Water leaks during or after the drain cycle
• Inability to fully drain water from the tub
• Water remaining in the tub after spinning

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
