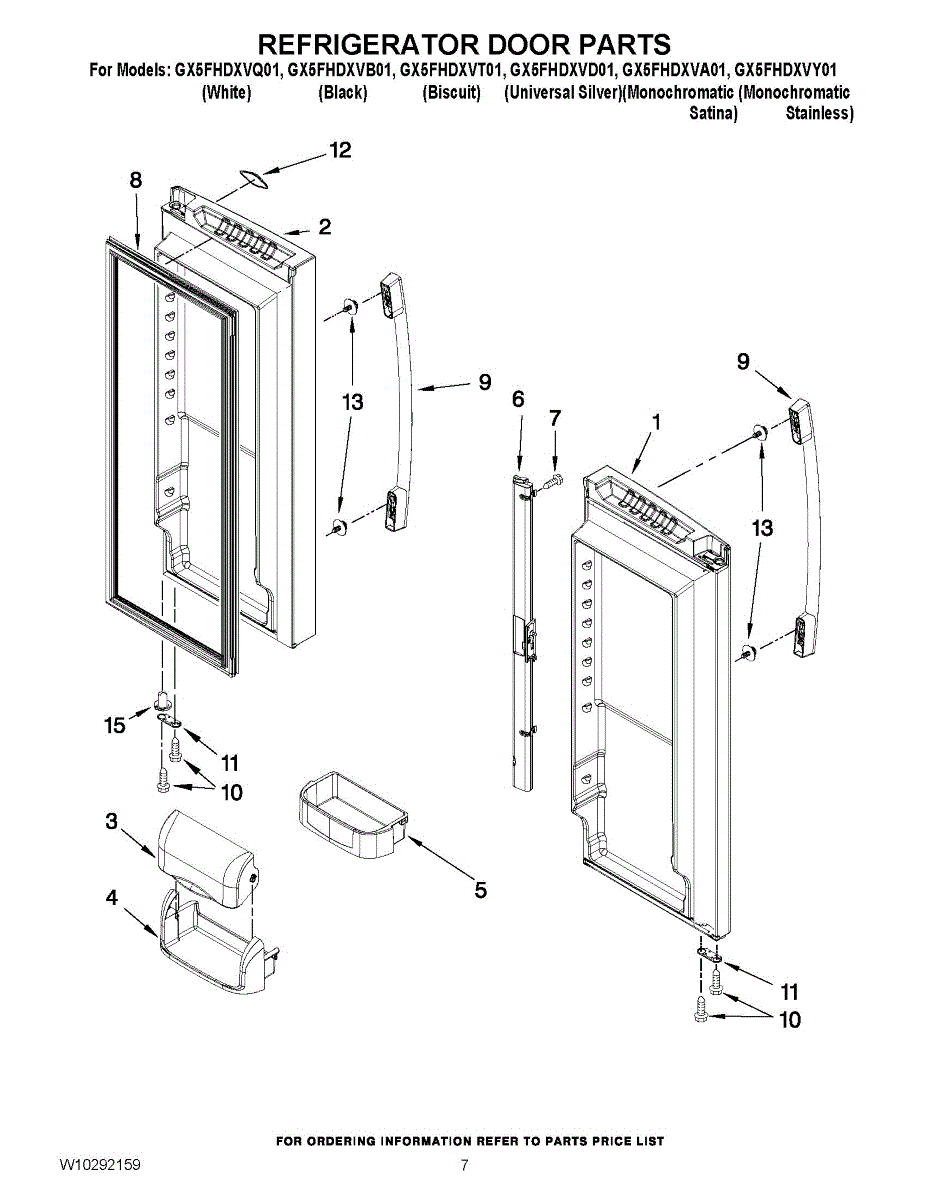

Parts for Whirlpool GX5FHDXVB01: 05 - Refrigerator Door Parts

Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators. It is a specialized storage compartment designed to fit the refrigerator door, providing convenient and organized storage space for smaller items such as condiments, jars, or bottles. The bin measures approximately 15 inches wide, 3 inches high, and 6 inches deep.

Causes of a damaged or unusable door shelf bin can include physical impact, cracks or breaks due to excessive weight or pressure, or general wear and tear over time.

Symptoms of a door shelf bin that needs replacement include:

• Cracked or broken shelves, making it difficult to store items securely
• Warping or misshaping, preventing a proper fit in the door compartment
• Missing or loose components, resulting in items falling out or shifting during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Bin is an OEM part for Whirlpool refrigerators. This bin is designed to fit into the door of the refrigerator, providing additional storage space for items such as bottles, condiments, and small containers. This door bin measures about 15 inches wide by 3 inches high by 8 inches deep.

Symptoms of a failing Door Shelf Bin include:

• Cracks or breaks in the plastic, which can cause items to fall out
• The bin not fitting securely into the door slots
• Sagging or bending of the bin, especially when loaded with heavier items
• Difficulty in removing or replacing the bin due to damage or warping

Causes of a bad door shelf bin can include regular wear and tear from frequent use, overloading with heavy items that exceed the bin’s weight capacity, or exposure to temperature fluctuations that can cause the plastic to become brittle and break.

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

The Flapper Door with Mullion Heater is an OEM part for Whirlpool refrigerators. It plays a crucial role in maintaining the proper temperature inside the fridge by sealing the gap between the doors when closed, and the mullion heater prevents condensation build-up.

Causes of a bad flapper door with mullion heater can include wear and tear over time, damage from accidental impacts, or electrical issues affecting the heater's functionality.

Symptoms of a bad flapper door with mullion heater include:

• Warm air entering the refrigerator, causing temperature fluctuations
• Excessive condensation or frost build-up around the door seal
• Increased energy consumption due to the refrigerator working harder to maintain temperature
• Difficulty in closing the refrigerator door properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

The Flapper Door with Mullion Heater is an OEM part for Whirlpool refrigerators. It plays a crucial role in maintaining the proper temperature inside the fridge by sealing the gap between the doors when closed, and the mullion heater prevents condensation build-up.

Causes of a bad flapper door with mullion heater can include wear and tear over time, damage from accidental impacts, or electrical issues affecting the heater's functionality.

Symptoms of a bad flapper door with mullion heater include:

• Warm air entering the refrigerator, causing temperature fluctuations
• Excessive condensation or frost build-up around the door seal
• Increased energy consumption due to the refrigerator working harder to maintain temperature
• Difficulty in closing the refrigerator door properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

The Flapper Door with Mullion Heater is an OEM part for Whirlpool refrigerators. This part helps seal the gap between the refrigerator and freezer doors, preventing warm air from entering and cold air from escaping.

Causes of a bad flapper door with mullion heater can include wear and tear over time, electrical issues affecting the heater, physical damage from repeated opening and closing of the doors, or warping due to temperature fluctuations.

Symptoms of a bad flapper door with mullion heater include:

• Condensation or frost buildup around the door seal
• Increased energy consumption due to temperature inefficiency
• The refrigerator door not closing properly
• Visible damage or wear to the flapper door or heater

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Door Guide is an OEM part for Whirlpool refrigerators. It helps to guide and align the refrigerator door during opening and closing, ensuring a smooth and secure fit that maintains the seal and efficiency of the refrigerator.

Causes of a bad door guide can include wear and tear from regular use, physical damage from accidental impact, or misalignment due to improper handling or installation.

Symptoms of a bad door guide include:

• Difficulty in opening or closing the door
• The door not sealing properly
• Visible damage or misalignment of the door guide
• Unusual noises during door operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

Black for Right Hand Door

The Gasket-FIP (BLK) is an OEM part for Whirlpool refrigerators. This gasket is designed to create a tight seal around the refrigerator or freezer door, helping to maintain the internal temperature by preventing cold air from escaping and warm air from entering.

Causes of a bad gasket can include wear and tear over time, cracks or tears from frequent door openings and closings, and deformation due to improper cleaning or handling. A compromised gasket can lead to energy inefficiency, increased frost build-up, and higher utility bills.

Symptoms of a bad gasket include:

• Warm spots inside the refrigerator or freezer
• Excessive frost or condensation buildup
• The door not sealing properly or gaps in the seal
• Higher than usual energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For WHITE gasket, order W10830189.

Color: White
Note: For RH Door. For BLACK gasket, order W11368721.

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. This part forms a seal around the refrigerator or freezer door, ensuring that cold air stays inside and warm air stays out. By maintaining a tight seal, the gasket plays a critical role in the appliance's energy efficiency, helping to keep food fresh and safe while minimizing energy consumption.

Over time, door gaskets can lose their elasticity, get torn, or wear out, leading to gaps between the gasket and the refrigerator frame.

Symptoms of a bad Refrigerator Door Gasket include:

• Visible cracks, tears, or wear in the gasket
• Condensation or frost buildup near the door edges
• The refrigerator or freezer door does not close as tightly as it should
• Increased energy consumption as the refrigerator works harder to maintain temperature

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Grey for Right Hand Door

The Refrigerator Door Gasket is an OEM replacement part for Whirlpool refrigerators. It creates an seal between the refrigerator doors and the body, helping to maintain proper temperatures inside. The gasket is a soft, pliable material designed to tightlen without allowing air or warm moisture to infiltrate the refrigerator. Measures approximately 39 by 16 inches

Causes of a bad door gasket include cracking, splitting, or compression from repeated opening and closing of the door over time. Deterioration leads to diminished sealing and temperature control performance.

Symptoms of a bad door gasket are:

• Difficulty keeping items cool or frozen
• Frost or moisture buildup between the door and refrigerator body
• Higher energy costs from the refrigerator working overtime
• Food odors transferring between compartments

This OEM Whirlpool gasket is also compatible with Maytag, Jenn-Air, Amana, Norge, Gibson, Kelvinator, and some Kenmore models.

This door handle assembly replaces a damaged or worn refrigerator door handle to restore a secure grip and smooth opening. It installs in place of the original handle and matches OEM fit and appearance for compatible units. What it does:

• Provides a solid grip for opening and closing the refrigerator door
• Replaces cracked, loose, or cosmetically damaged handles
• Restores correct alignment so the door closes and seals properly
• Matches factory styling and mounting points for a direct replacement

• Disconnect power and empty the door area before starting to avoid injury or damage
• Typical installation uses basic hand tools (screwdriver/socket) to remove the old handle and secure the new one
• Support the door while loosening/tightening fasteners to prevent strain on hinges
• Do not overtighten screws; follow torque guidance from the appliance manual

This is a replacement appliance handle designed to restore a secure, comfortable grip and the original appearance of your appliance door. It lets you open and close the door safely and reliably when the original handle is damaged or worn. What it does:

• Provides a secure grip for opening and closing the appliance door
• Replaces cracked, broken, loose, or cosmetically damaged handles
• Restores proper alignment and fit where the handle mounts to the door
• Helps prevent further wear or damage from using a compromised handle

• One replacement handle

• Disconnect power to the appliance before beginning any repair
• Verify correct orientation and alignment before tightening fasteners
• Use basic hand tools (screwdriver, nut driver) as required by your model
• Inspect mounting hardware; replace any stripped or damaged screws for a secure fit

Restore a secure, comfortable grip with this black replacement handle. It refreshes the look of your appliance and makes opening the door or drawer feel smooth and confident again when the original handle is cracked, loose, or missing.

• Provides a sturdy handhold to open and close the appliance door or drawer
• Common symptoms: cracked or broken handle, looseness, wobble, or missing handle
• Helps resolve difficulty opening the door due to a damaged or unstable grip
• Color-matched black finish to maintain a consistent appearance

• Disconnect power to the appliance before servicing
• Access the handle's mounting screws from the inner side of the door/drawer; some models require removing inner trim
• Support any glass/inner panel while removing and reinstalling the handle
• Reuse existing hardware where applicable; tighten screws evenly and check operation

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal

This door stop limits the door's travel to its intended range, helping prevent overextension that can stress hinges or damage adjacent cabinetry. Replacing a worn or broken stop restores smooth, controlled door operation.

• Limits door opening/closing travel to protect hinges and alignment
• Helps maintain proper seal and fit by preventing overextension
• Replaces cracked, worn, or missing stop that allows excess movement
• Typical symptoms include door opening too far, a hard "clunk" at full travel, or visible damage to the stop

• Disconnect power; also shut off the water supply
• Support the door while servicing the hinge/stop to avoid strain
• Note the original orientation and transfer/secure fasteners firmly
• Open/close the door slowly to ensure smooth movement and proper stop action

Color: For white, black and bisque models.

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Door Closure is an OEM part for Whirlpool refrigerators. It is a critical component responsible for ensuring the proper sealing and closure of the refrigerator door, maintaining the desired temperature and preventing air leaks.

A faulty or worn door closure can lead to issues such as inadequate cooling, increased energy consumption, and potential food spoilage. Causes of a bad door closure may include normal wear and tear over time, physical damage from impact or mishandling, or compatibility issues with the specific refrigerator model.

Symptoms of a faulty Door Closure include:

• Air leaks around the door seal, causing cooling inefficiency
• Difficulty in opening or closing the refrigerator door
• The door not sealing tightly or feeling loose when closed
• Visible cracks, breaks, or damage to the door closure mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Door Closer is an OEM part for Whirlpool refrigerators. This component ensures that the refrigerator door closes smoothly and securely, maintaining the seal that keeps cold air inside and warm air out. The door closer helps to prevent the door from remaining ajar, which can lead to increased energy consumption and reduced cooling efficiency.

Causes of a bad door closer can include regular wear and tear, physical damage from repeated use, or misalignment. A malfunctioning door closer can result in the refrigerator door not closing properly, leading to cooling issues and higher energy bills.

Symptoms of a bad door closer include:

• The refrigerator door not closing or sealing properly
• The door not staying closed
• Warm air entering the refrigerator, causing the interior temperature to rise
• Increased energy consumption due to the door not sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
