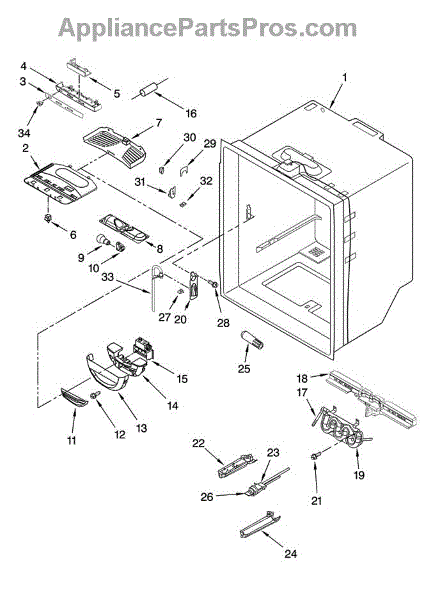

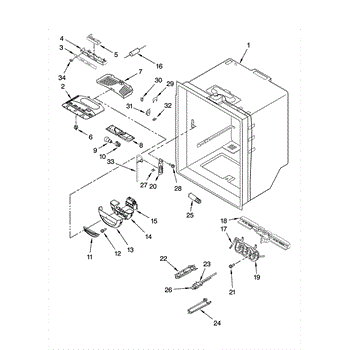

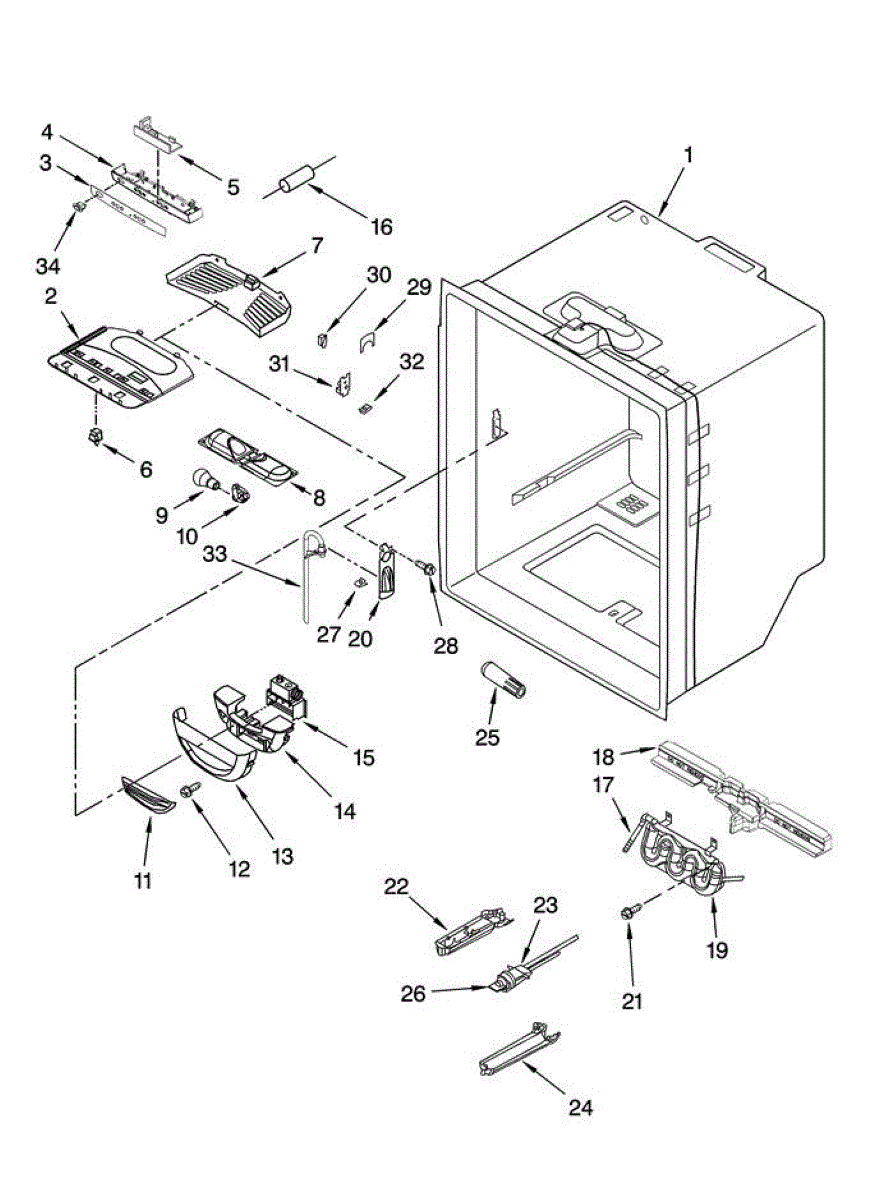

Parts for Whirlpool GX5FHTXTB11: Refrigerator Liner Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Electronic Control Board is an OEM replacement part for Whirlpool refrigerators. This Electronic (JAZZ) Control Board manages various functions of your refrigerator, ensuring proper temperature control and operation. After installation, the board will need to be programmed. An instruction sheet is included.

Causes of a bad Electronic Control Board can include electrical surges, which can damage components on the board, age-related wear and tear affecting its functionality, and exposure to moisture or extreme temperature fluctuations. These factors can lead to a malfunctioning fridge with erratic behaviors.

Symptoms of a bad Electronic Control Board include:

• The refrigerator not cooling properly
• Irregular defrost cycles leading to frost buildup or thawing issues
• Unresponsive controls or display issues
• The ice maker or water dispenser not working as expected

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement cover restores a finished look and protects underlying components on your appliance. Replacing a cracked or missing cover helps keep out debris and moisture while maintaining proper function and appearance. What it does:

• Shields internal parts from dust, splashes, and accidental contact
• Helps maintain intended airflow/water routing depending on location
• Secures the opening or mechanism for a snug, rattle-free fit
• Typical symptoms: cracked, warped, loose, or missing cover; exposed components; new rattling or vibration noises

• Disconnect power; shut off water supply before servicing
• Note orientation and any clips/gaskets before removal; transfer reusable hardware
• Reinstall with original screws/clips; do not overtighten to avoid cracking
• Restore power and test; check for proper fit and any leaks or vibration

This replacement light bulb restores clear, dependable illumination so you can easily see inside your appliance and check status at a glance. Replacing a burned-out or dim lamp improves visibility, convenience, and day-to-day safety.

• Provides light when the door opens or the light switch is turned on
• Helps you view contents and monitor progress without guesswork
• Addresses no-light, dim, or flickering conditions
• Installs in the designated light socket on compatible models

• Disconnect power to the appliance before servicing
• Allow the bulb and surrounding area to cool completely
• Handle glass with a clean cloth or gloves; skin oils can shorten bulb life
• Install gently without overtightening; use only the type/rating specified for your model

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This damper cover insert fits the refrigerator's air damper/diffuser. It helps guide and seal airflow from the freezer to the fresh food section, supporting stable temperatures and reducing drafts when the original insert is cracked or missing.

• Seats inside the damper cover to shape and restrict airflow between freezer and refrigerator compartments
• Helps seal the vent opening to limit air leaks
• Supports proper temperature balance and airflow distribution in the fresh food section
• Typical symptoms include a broken/missing insert, air drafts at the vent, rattling from the cover, or inconsistent cooling

• Disconnect power to the refrigerator before servicing
• Remove shelves as needed and access the damper cover in the fresh food compartment
• Release and remove the damaged insert; snap the new insert into the cover with correct orientation and a secure fit
• Handle nearby foam seals and the damper door carefully to avoid damage

This base damper cove is the plastic cover that protects and supports the refrigerator damper assembly, keeping airflow components secure and helping maintain proper internal airflow. Replacing a damaged cove prevents loose parts and air leaks. What it does:

• Protects the damper assembly and related components from debris and damage
• Helps maintain proper airflow routing between compartments
• Reduces rattling or vibration from a loose or broken damper cover
• Can prevent cold-air leaks that contribute to uneven cooling

• One base damper cove

• Disconnect power to the appliance before beginning any service
• Remove the kickplate or access panel to reach the damper area as required
• Handle plastic pieces gently to avoid cracking; use proper fasteners if provided

This insulation panel helps reduce heat transfer in the refrigerator cabinet so the appliance holds cold temperatures more efficiently and reduces frost buildup. It's a direct-fit replacement for the factory cabinet insulation. What it does:

• Slows thermal transfer between the cabinet and ambient air to help maintain interior temperatures
• Helps reduce frost buildup on evaporator and interior surfaces
• Improves cooling efficiency by minimizing cold-air loss
• Quietly adds a layer of thermal and acoustic insulation behind the liner

• Disconnect power and remove food before starting any repair
• Access requires removing the interior liner or trim
• Handle gently and wear gloves; insulation can tear or shed fibers
• Follow OEM instructions for adhesive or fastener placement and secure fit

The Damper Control Assembly is an OEM part for Whirlpool refrigerators. This component regulates the flow of cold air from the freezer compartment to the refrigerator compartment, ensuring consistent and optimal temperatures throughout the appliance. It plays a critical role in maintaining the balance between freezer and refrigerator temperatures.

Common causes of a bad damper control assembly include electrical malfunctions, physical damage to the damper, or wear and tear from regular use. Over time, the motor or the damper flap can fail, leading to improper air regulation.

Symptoms of a bad damper control assembly include:

• Inconsistent temperatures between the freezer and refrigerator compartments
• The refrigerator being too warm or too cold
• Frost buildup in the refrigerator compartment
• The damper making unusual noises or not moving as it should

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Thermistor Kit is an OEM part for Whirlpool refrigerators and freezers. This component plays a role in monitoring and controlling the temperature within your appliance. A thermistor is a type of resistor whose resistance changes with temperature changes, allowing the refrigerator's control system to accurately maintain the desired cooling levels based on the readings it provides.

Causes of a bad thermistor can include wear and tear from constant use, exposure to extreme temperatures that can damage the component, or electrical issues such as short circuits.

Symptoms of a bad Thermistor Kit include:

• The refrigerator or freezer is too cold or not cold enough
• The appliance cycles on and off more frequently or for longer periods than normal
• Unexplained changes in temperature settings

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Water Line Union is an OEM part for Whirlpool refrigerators. It connects sections of the water line, ensuring a secure and leak-proof connection that facilitates the proper flow of water to the ice maker and water dispenser.

Causes of a bad water line union can include wear and tear from prolonged use, exposure to fluctuating temperatures, or physical damage from handling.

Symptoms of a bad water line union include:

• Leaks or water pooling around the refrigerator
• Reduced water flow to the dispenser or ice maker
• Water line disconnections
• Visible cracks or damage on the union

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This oven cavity insulation panel helps keep heat inside the oven for more even cooking and reduces heat transfer to surrounding cabinetry. Replace damaged or missing insulation to restore proper oven temperature stability and efficiency. What it does:

• Provides thermal barrier around the oven cavity to limit heat loss
• Helps maintain even baking and cooking temperatures
• Reduces excess heat reaching surrounding surfaces and components
• Can prevent hot spots, burning smells, or smoky operation from deteriorated insulation

• Disconnect power (and gas, if applicable) before beginning any service
• Remove oven doors and panels as needed to access the insulation; follow OEM service instructions
• Handle insulation with gloves to avoid irritation and avoid compressing or tearing the material

A replacement water reservoir that stores and routes water for the refrigerator dispenser and ice system, restoring proper water flow and stopping leaks from a damaged or cracked reservoir. What it does

• Holds and directs water to the dispenser and ice maker assembly.
• Replaces cracked, damaged or leaking tanks that can cause pooling or drips inside the cabinet.
• Restores proper fill to the ice maker and consistent dispenser flow when the original reservoir is faulty.
• Helps prevent water damage and reduces the chance of contamination from a compromised reservoir.

• Disconnect power and shut off the water supply before any repair.
• Remove interior panels or shelving as required to access the reservoir; follow OEM disassembly steps.
• Handle the reservoir carefully to avoid new cracks; check seals and gaskets during reassembly.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Water Filter Backing Plate is an OEM part for Whirlpool refrigerators. It supports and secures the water filter, ensuring it stays in place and functions correctly to provide clean, filtered water.

Over time, the backing plate can become damaged due to regular use, exposure to moisture, or physical impact. A compromised backing plate can lead to improper positioning of the water filter, potentially causing leaks or reduced filtration efficiency.

Symptoms of a bad Water Filter Backing Plate include:

• Water filter not fitting securely or properly
• Leaks around the water filter area
• Reduced water flow or filtration issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Filter Head and Tube Assembly is an OEM part for Whirlpool refrigerators. This part is designed to house the water filter, ensuring that water entering the refrigerator is properly filtered before being dispensed or used to produce ice.

Causes of damage to the water filter head and tube assembly can include normal wear and tear, excessive force when installing or removing filters, or damage from water pressure fluctuations.

Symptoms of a bad Water Filter Head and Tube Assembly include:

• Difficulty in installing or removing the water filter
• Leaks occurring at the point where the water filter connects to the refrigerator
• Poor water flow from the dispenser or ice maker
• Unusual noises when the water dispenser is used, pointing to potential issues with the assembly or filter fit.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Water Filter Cover is an OEM part for Whirlpool refrigerators. This cover encases and protects the water filter, ensuring it remains secure and clean while also blending seamlessly with the refrigerator's interior design.

You should replace the water filter cover if it becomes damaged or fails to secure the filter properly. Common causes of a bad water filter cover include physical damage from accidental impact, wear and tear from regular use, or warping due to temperature fluctuations.

Symptoms of a bad water filter cover include:

• Cracks or visible damage to the cover
• Difficulty securing the water filter
• The cover not fitting properly or coming loose
• Leaks around the water filter area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

2 pack of water filters.

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Cartridge Bypass is an OEM part for Whirlpool refrigerators. It is designed to replace the water filter cartridge when filtration is not desired or necessary. This allows the refrigerator to bypass the filter and provide unfiltered water to the dispenser and ice maker.

Common causes of failure include wear and tear, improper installation, or physical damage from mishandling.

Symptoms of a bad Cartridge Bypass include:

• Water leakage around the filter area
• Reduced water flow or no water flow from the dispenser
• Ice maker not producing ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components securely in place to maintain proper alignment and a tight, rattle-free fit. Install it when a fastener is missing, stripped, or rusted to restore stability and prevent loosening.

• Secures brackets, panels, trim, and assemblies inside the appliance
• Helps maintain proper alignment and support of mounted parts
• Can reduce vibration, buzzing, or rattling from loose hardware
• Replace when the original screw is missing, corroded, or the head/threads are stripped

• Disconnect power; for refrigerators, also shut off the water supply before servicing
• Use the correct driver bit to avoid stripping the screw head
• Start threads by hand to prevent cross-threading, then tighten snugly without overtightening
• Reuse any original washers or spacers if required by your application

This dispenser facade replaces the outer trim pieces around your refrigerator's ice and water dispenser, restoring appearance and proper fit for smooth operation and sealing. It's a direct-fit cosmetic and protective assembly. What it does:

• Covers and protects the dispenser opening and controls from damage and debris
• Provides a finished look and helps direct water/ice into the cup
• Restores proper alignment when cracked, warped, or broken facade causes interference
• Helps prevent drafts and minor water splash at the dispenser area

• Disconnect power and shut off water to the appliance before servicing
• Many installations require removing the dispenser bezel and releasing snap-clips or screws; save hardware for reinstallation
• Handle plastic trim carefully to avoid scratches; use a soft pad when setting parts down

This limit switch monitors a set condition and opens or closes its contacts when that limit is reached. Replacing a failed switch restores proper safety cutoff and consistent operation of the appliance's heating or movement system. What it does:

• Senses a limit condition at its mounting point (such as temperature or travel/position, depending on model)
• Changes state at a defined threshold to protect components and wiring
• Interrupts power to heat or motor circuits, or signals a control to respond
• Common failure signs: no heat or shuts down early, runs continuously, won't start, or intermittent operation

• 1 limit switch

• Disconnect power to the appliance before servicing
• Note wire positions; transfer connectors one at a time or take a photo for reference
• Reinstall in the original orientation so the actuator or sensing surface contacts the correct area
• Address root causes (blocked airflow, binding mechanisms, shorted components) to prevent repeat failures

This replacement cover restores the outer housing and protects internal components while keeping the appliance looking finished. It fits where the original outer panel or housing cover was damaged or missing. What it does:

• Shields internal parts from dust, debris and accidental contact
• Provides a finished appearance and helps reduce vibration noise
• Keeps wiring and controls enclosed to maintain safe operation
• Prevents loose panels or gaps that can catch on clothing or items

• Disconnect power to the appliance before starting any work
• Use basic hand tools; support the appliance panel to avoid drops or damage
• Watch for sharp edges and take care when removing the old cover

This small plastic waterline clip secures the refrigerator/dishwasher water tube to the cabinet or frame to keep the line routed and stable. It prevents the waterline from shifting or rubbing against components. What it does:

• Holds the water supply tube in place to prevent chafing and movement
• Helps keep the waterline aligned so fittings stay seated and leak risk is reduced
• Stops rattling or vibration noise caused by loose tubing
• Commonly used where the waterline passes through panels or along the appliance frame

• One waterline clip

• Disconnect power and shut off the water supply before servicing
• Typically snaps onto a flange or frame and the tubing pushes into the clip—no special tools required
• Inspect tubing and fittings for damage when replacing the clip; replace any compromised tubing or seals
• If access is limited, remove the necessary trim or panel per your model's service instructions

This drawer slide guide helps align and support a refrigerator/freezer drawer so it opens and closes smoothly and stays on track. Replacing a worn or broken guide restores proper drawer movement and prevents binding or misalignment. What it does:

• Guides the drawer along its track to ensure smooth, even movement
• Prevents the drawer from tipping, sticking, or coming off the rails
• Keeps contents properly supported when opening or closing the drawer
• Helps reduce noise and uneven wear caused by a damaged guide

• One drawer guide

• Disconnect power to the appliance before starting any repair
• Remove the drawer or bin to access the guide; note orientation for reassembly
• This guide typically snaps or screws into place—use basic hand tools as needed
• Test drawer operation after installation; if movement is still restricted, inspect the track and adjacent guides
