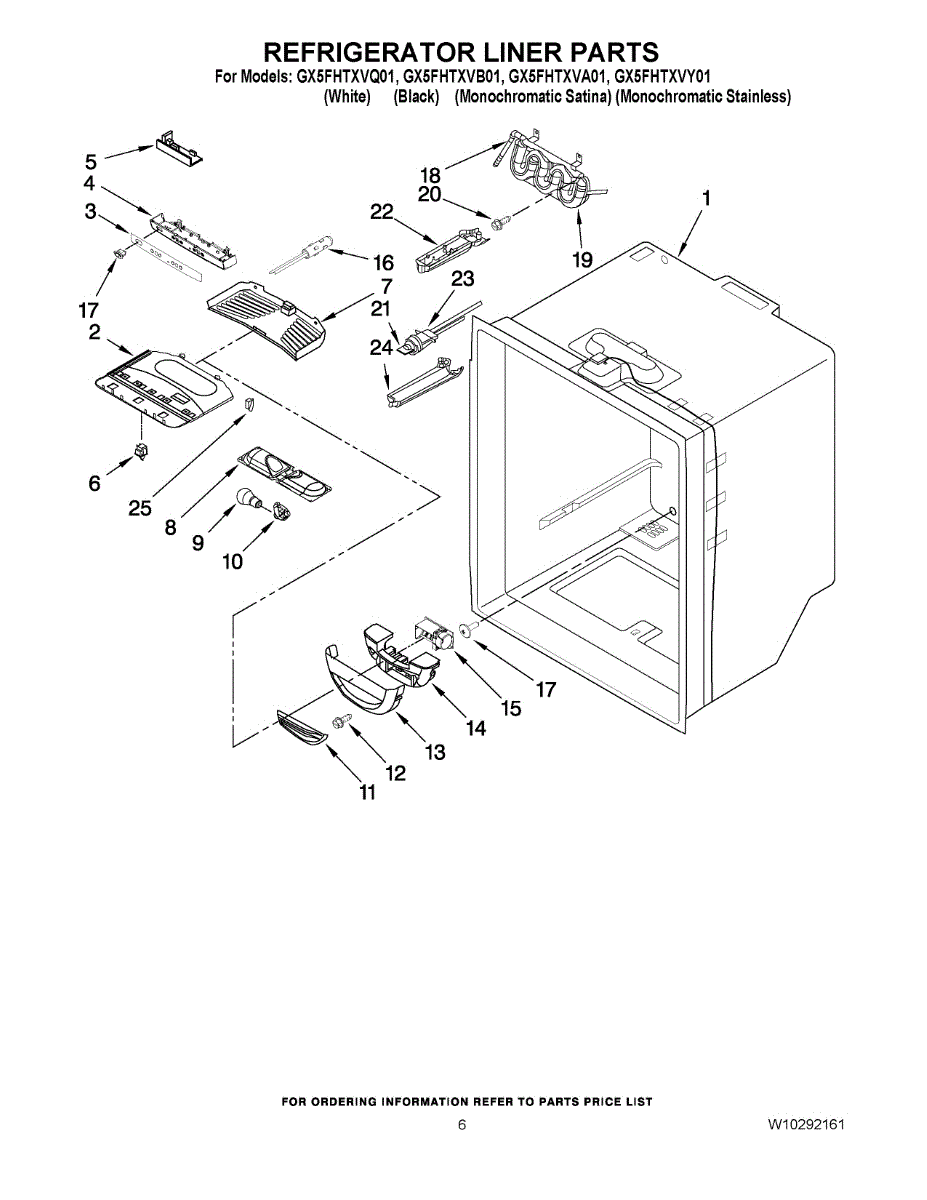

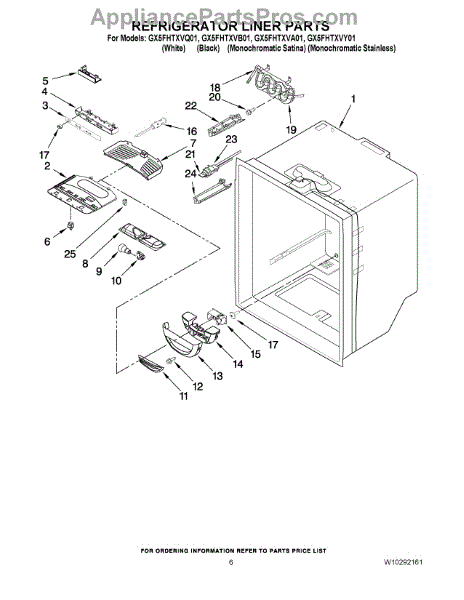

Parts for Whirlpool GX5FHTXVB01: 04 - Refrigerator Liner Parts

The Electronic Control Board is an OEM replacement part for Whirlpool refrigerators. This Electronic (JAZZ) Control Board manages various functions of your refrigerator, ensuring proper temperature control and operation. After installation, the board will need to be programmed. An instruction sheet is included.

Causes of a bad Electronic Control Board can include electrical surges, which can damage components on the board, age-related wear and tear affecting its functionality, and exposure to moisture or extreme temperature fluctuations. These factors can lead to a malfunctioning fridge with erratic behaviors.

Symptoms of a bad Electronic Control Board include:

• The refrigerator not cooling properly
• Irregular defrost cycles leading to frost buildup or thawing issues
• Unresponsive controls or display issues
• The ice maker or water dispenser not working as expected

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement cover restores a finished look and protects underlying components on your appliance. Replacing a cracked or missing cover helps keep out debris and moisture while maintaining proper function and appearance. What it does:

• Shields internal parts from dust, splashes, and accidental contact
• Helps maintain intended airflow/water routing depending on location
• Secures the opening or mechanism for a snug, rattle-free fit
• Typical symptoms: cracked, warped, loose, or missing cover; exposed components; new rattling or vibration noises

• Disconnect power; shut off water supply before servicing
• Note orientation and any clips/gaskets before removal; transfer reusable hardware
• Reinstall with original screws/clips; do not overtighten to avoid cracking
• Restore power and test; check for proper fit and any leaks or vibration

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This damper cover insert fits the refrigerator's air damper/diffuser. It helps guide and seal airflow from the freezer to the fresh food section, supporting stable temperatures and reducing drafts when the original insert is cracked or missing.

• Seats inside the damper cover to shape and restrict airflow between freezer and refrigerator compartments
• Helps seal the vent opening to limit air leaks
• Supports proper temperature balance and airflow distribution in the fresh food section
• Typical symptoms include a broken/missing insert, air drafts at the vent, rattling from the cover, or inconsistent cooling

• Disconnect power to the refrigerator before servicing
• Remove shelves as needed and access the damper cover in the fresh food compartment
• Release and remove the damaged insert; snap the new insert into the cover with correct orientation and a secure fit
• Handle nearby foam seals and the damper door carefully to avoid damage

This base damper cove is the plastic cover that protects and supports the refrigerator damper assembly, keeping airflow components secure and helping maintain proper internal airflow. Replacing a damaged cove prevents loose parts and air leaks. What it does:

• Protects the damper assembly and related components from debris and damage
• Helps maintain proper airflow routing between compartments
• Reduces rattling or vibration from a loose or broken damper cover
• Can prevent cold-air leaks that contribute to uneven cooling

• One base damper cove

• Disconnect power to the appliance before beginning any service
• Remove the kickplate or access panel to reach the damper area as required
• Handle plastic pieces gently to avoid cracking; use proper fasteners if provided

This insulation panel helps reduce heat transfer in the refrigerator cabinet so the appliance holds cold temperatures more efficiently and reduces frost buildup. It's a direct-fit replacement for the factory cabinet insulation. What it does:

• Slows thermal transfer between the cabinet and ambient air to help maintain interior temperatures
• Helps reduce frost buildup on evaporator and interior surfaces
• Improves cooling efficiency by minimizing cold-air loss
• Quietly adds a layer of thermal and acoustic insulation behind the liner

• Disconnect power and remove food before starting any repair
• Access requires removing the interior liner or trim
• Handle gently and wear gloves; insulation can tear or shed fibers
• Follow OEM instructions for adhesive or fastener placement and secure fit

The Damper Control Assembly is an OEM part for Whirlpool refrigerators. This component regulates the flow of cold air from the freezer compartment to the refrigerator compartment, ensuring consistent and optimal temperatures throughout the appliance. It plays a critical role in maintaining the balance between freezer and refrigerator temperatures.

Common causes of a bad damper control assembly include electrical malfunctions, physical damage to the damper, or wear and tear from regular use. Over time, the motor or the damper flap can fail, leading to improper air regulation.

Symptoms of a bad damper control assembly include:

• Inconsistent temperatures between the freezer and refrigerator compartments
• The refrigerator being too warm or too cold
• Frost buildup in the refrigerator compartment
• The damper making unusual noises or not moving as it should

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Thermistor Kit is an OEM part for Whirlpool refrigerators and freezers. This component plays a role in monitoring and controlling the temperature within your appliance. A thermistor is a type of resistor whose resistance changes with temperature changes, allowing the refrigerator's control system to accurately maintain the desired cooling levels based on the readings it provides.

Causes of a bad thermistor can include wear and tear from constant use, exposure to extreme temperatures that can damage the component, or electrical issues such as short circuits.

Symptoms of a bad Thermistor Kit include:

• The refrigerator or freezer is too cold or not cold enough
• The appliance cycles on and off more frequently or for longer periods than normal
• Unexplained changes in temperature settings

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Water Line Union is an OEM part for Whirlpool refrigerators. It connects sections of the water line, ensuring a secure and leak-proof connection that facilitates the proper flow of water to the ice maker and water dispenser.

Causes of a bad water line union can include wear and tear from prolonged use, exposure to fluctuating temperatures, or physical damage from handling.

Symptoms of a bad water line union include:

• Leaks or water pooling around the refrigerator
• Reduced water flow to the dispenser or ice maker
• Water line disconnections
• Visible cracks or damage on the union

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This refrigerator water reservoir stores a small volume of water in the fresh food compartment so the dispenser delivers a steady, chilled flow. Replace a cracked or leaking tank to stop interior leaks and restore normal dispensing performance. What it does:

• Holds water for the in-door dispenser between uses
• Lets water cool to refrigerator temperature for consistent dispensing
• Helps maintain steady flow to reduce pulsing at the dispenser
• Common symptoms: leaks inside the fridge, slow or no water from the dispenser, visible cracks/bulges in the tank or connected tubing

• One water reservoir

• Unplug the refrigerator and shut off the household water supply
• Depressurize the line by dispensing water until the flow stops
• Remove shelves/drawers to access the reservoir (typically behind the crisper area)
• Capture residual water, reconnect fittings securely, then restore water/power and check for leaks; purge air by dispensing several glasses of water

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Cartridge Bypass is an OEM part for Whirlpool refrigerators. It is designed to replace the water filter cartridge when filtration is not desired or necessary. This allows the refrigerator to bypass the filter and provide unfiltered water to the dispenser and ice maker.

Common causes of failure include wear and tear, improper installation, or physical damage from mishandling.

Symptoms of a bad Cartridge Bypass include:

• Water leakage around the filter area
• Reduced water flow or no water flow from the dispenser
• Ice maker not producing ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Filter Backing Plate is an OEM part for Whirlpool refrigerators. It supports and secures the water filter, ensuring it stays in place and functions correctly to provide clean, filtered water.

Over time, the backing plate can become damaged due to regular use, exposure to moisture, or physical impact. A compromised backing plate can lead to improper positioning of the water filter, potentially causing leaks or reduced filtration efficiency.

Symptoms of a bad Water Filter Backing Plate include:

• Water filter not fitting securely or properly
• Leaks around the water filter area
• Reduced water flow or filtration issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool Refrigerator Water Filter Head is an OEM part for Whirlpool refrigerators. It serves as the connection point for the water filter, allowing clean, filtered water to flow to your refrigerator's dispenser and ice maker. This part ensures that your refrigerator delivers fresh and safe drinking water.

Causes of a bad water filter head can include wear and tear over time, mineral buildup from hard water, or damage due to improper installation or mishandling.

Symptoms of a bad water filter head include:

• Water leaks around the filter area
• Decreased water flow from the dispenser
• Ice maker not producing ice
• The filter not locking into place correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Filter Cover is an OEM part for Whirlpool refrigerators. This cover encases and protects the water filter, ensuring it remains secure and clean while also blending seamlessly with the refrigerator's interior design.

You should replace the water filter cover if it becomes damaged or fails to secure the filter properly. Common causes of a bad water filter cover include physical damage from accidental impact, wear and tear from regular use, or warping due to temperature fluctuations.

Symptoms of a bad water filter cover include:

• Cracks or visible damage to the cover
• Difficulty securing the water filter
• The cover not fitting properly or coming loose
• Leaks around the water filter area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This limit switch monitors a set condition and opens or closes its contacts when that limit is reached. Replacing a failed switch restores proper safety cutoff and consistent operation of the appliance's heating or movement system. What it does:

• Senses a limit condition at its mounting point (such as temperature or travel/position, depending on model)
• Changes state at a defined threshold to protect components and wiring
• Interrupts power to heat or motor circuits, or signals a control to respond
• Common failure signs: no heat or shuts down early, runs continuously, won't start, or intermittent operation

• 1 limit switch

• Disconnect power to the appliance before servicing
• Note wire positions; transfer connectors one at a time or take a photo for reference
• Reinstall in the original orientation so the actuator or sensing surface contacts the correct area
• Address root causes (blocked airflow, binding mechanisms, shorted components) to prevent repeat failures

This control wire harness connects the refrigerator control board to internal components, restoring proper signal and power routing so controls and functions communicate correctly. Designed as a direct-fit replacement for the OEM harness. What it does

• Transmits power and control signals between the main control board and appliance components.
• Replaces a damaged or chafed harness that can cause intermittent or no response from controls.
• Can resolve symptoms such as unresponsive control panel, inconsistent cooling, or certain components not operating.
• Routes connectors to match OEM locations for reliable, vibration-resistant connections.

• One control wire harness as shown

• Disconnect power before starting any repair to avoid shock or damage.
• Inspect connector ends and routing; replace only if the existing harness matches the replacement.
• Handle connectors by the plug housings—do not pull on wires. Re-seat each connector fully until it clicks.
• Some dashboard or interior panels may need removal; keep screws and fasteners organized for reassembly.
