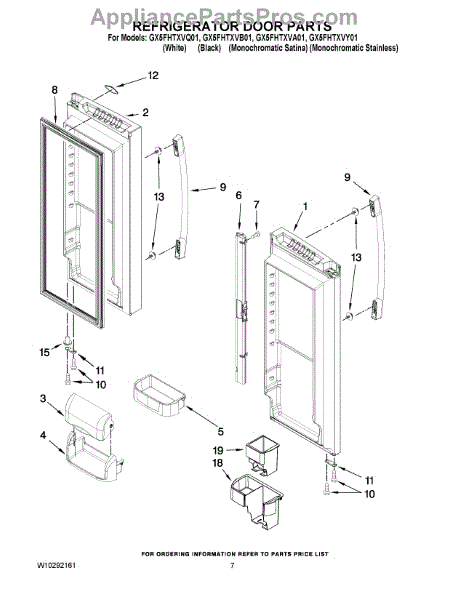

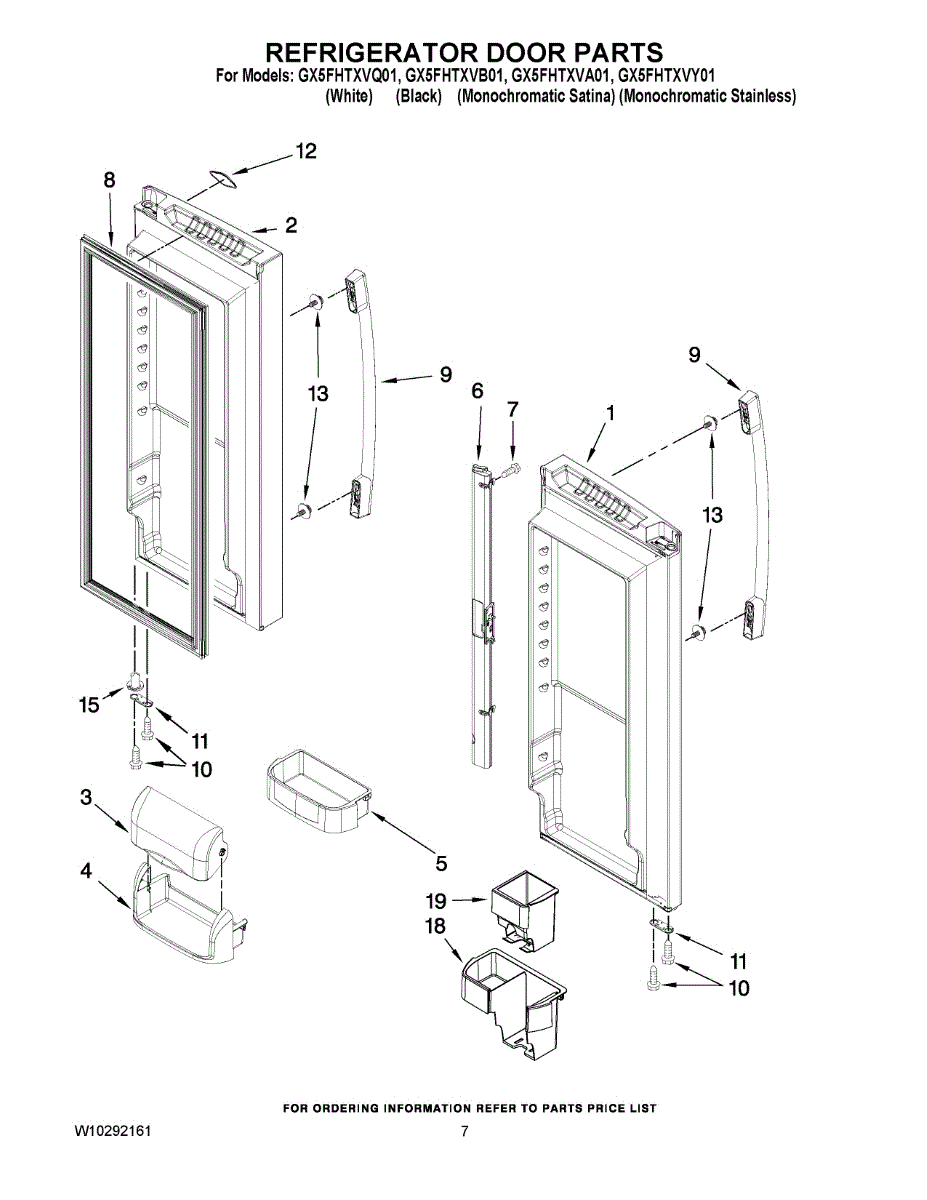

Parts for Whirlpool GX5FHTXVB01: 05 - Refrigerator Door Parts

Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked, broken, or missing dairy tray on your refrigerator door. This bin installs on the door to organize butter and small items in one spot.

Replacement door bin for refrigerator door storage. Installs on inner door to hold condiments, jars, and bottles. Replaces cracked or broken bins.

Gallon-size door bin for refrigerator door storage. Replaces cracked, broken, or missing bins. Holds milk jugs, bottles, and large containers.

White vertical mullion that divides French doors on bottom-mount refrigerators. Replace if cracked, broken, rusted, or fasteners are damaged.

Color: Grey

The Flapper Door with Mullion Heater is an OEM part for Whirlpool refrigerators. This part helps seal the gap between the refrigerator and freezer doors, preventing warm air from entering and cold air from escaping.

Causes of a bad flapper door with mullion heater can include wear and tear over time, electrical issues affecting the heater, physical damage from repeated opening and closing of the doors, or warping due to temperature fluctuations.

Symptoms of a bad flapper door with mullion heater include:

• Condensation or frost buildup around the door seal
• Increased energy consumption due to temperature inefficiency
• The refrigerator door not closing properly
• Visible damage or wear to the flapper door or heater

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The mullion rail is the vertical divider strip that separates the fresh food and freezer compartments in side-by-side refrigerators, often housing the water and ice dispenser controls. This part needs replacement if you notice cracks in the plastic, damaged dispenser components, or poor sealing between compartments that affects temperature control.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

Seals your refrigerator's right-hand door to prevent air leaks and maintain temperature. Replace if torn, cracked, or not sealing properly. Confirm fit.

Seals refrigerator door to prevent air leaks and maintain temperature. Replace if torn, warped, or letting warm air in. Confirm fit with model number.

Grey for Right Hand Door

The Refrigerator Door Gasket is an OEM replacement part for Whirlpool refrigerators. It creates an seal between the refrigerator doors and the body, helping to maintain proper temperatures inside. The gasket is a soft, pliable material designed to tightlen without allowing air or warm moisture to infiltrate the refrigerator. Measures approximately 39 by 16 inches

Causes of a bad door gasket include cracking, splitting, or compression from repeated opening and closing of the door over time. Deterioration leads to diminished sealing and temperature control performance.

Symptoms of a bad door gasket are:

• Difficulty keeping items cool or frozen
• Frost or moisture buildup between the door and refrigerator body
• Higher energy costs from the refrigerator working overtime
• Food odors transferring between compartments

This OEM Whirlpool gasket is also compatible with Maytag, Jenn-Air, Amana, Norge, Gibson, Kelvinator, and some Kenmore models.

Replaces cracked, broken, or worn refrigerator door handle. Installs on the door panel to restore secure grip and smooth opening on compatible units.

Replacement refrigerator door handle that restores secure grip and appearance. Needed when original handle is cracked, broken, or worn. Easy installation.

Replace your cracked, loose, or missing refrigerator door handle with this black handle. Installs on the door to restore a secure grip and refresh appearance.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

White door stop that limits how far your refrigerator door swings open. Replace if broken, cracked, or missing to prevent door overextension and damage.

Limits refrigerator door travel to prevent overextension and cabinet damage. Replace if cracked, broken, or worn to restore controlled door movement.

Color: For white, black and bisque models.

Black plastic cam that the refrigerator door rides on to open and close smoothly. Replace if cracked, worn, or broken causing door misalignment issues.

White plastic door closure cam installs at the bottom hinge of your refrigerator door. Replace if cracked, worn, or broken to restore proper alignment.

Gray door closer cam for bottom-mount refrigerators. Installs at the hinge to enable smooth closing and door stay-open function. Replace if cracked or worn.

Broken tab causing cans to fall out? This refrigerator can dispenser sleeve holds beverages securely in your door. Simple slide-in install takes seconds.

Broken or cracked beverage holder? This refrigerator can dispenser bucket restores door storage. Easy DIY installation in minutes—just snap into place.
