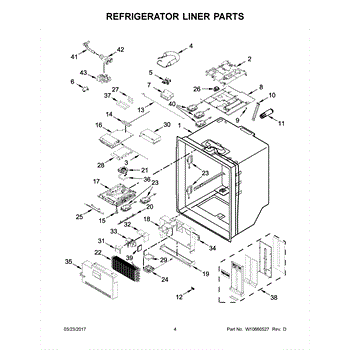

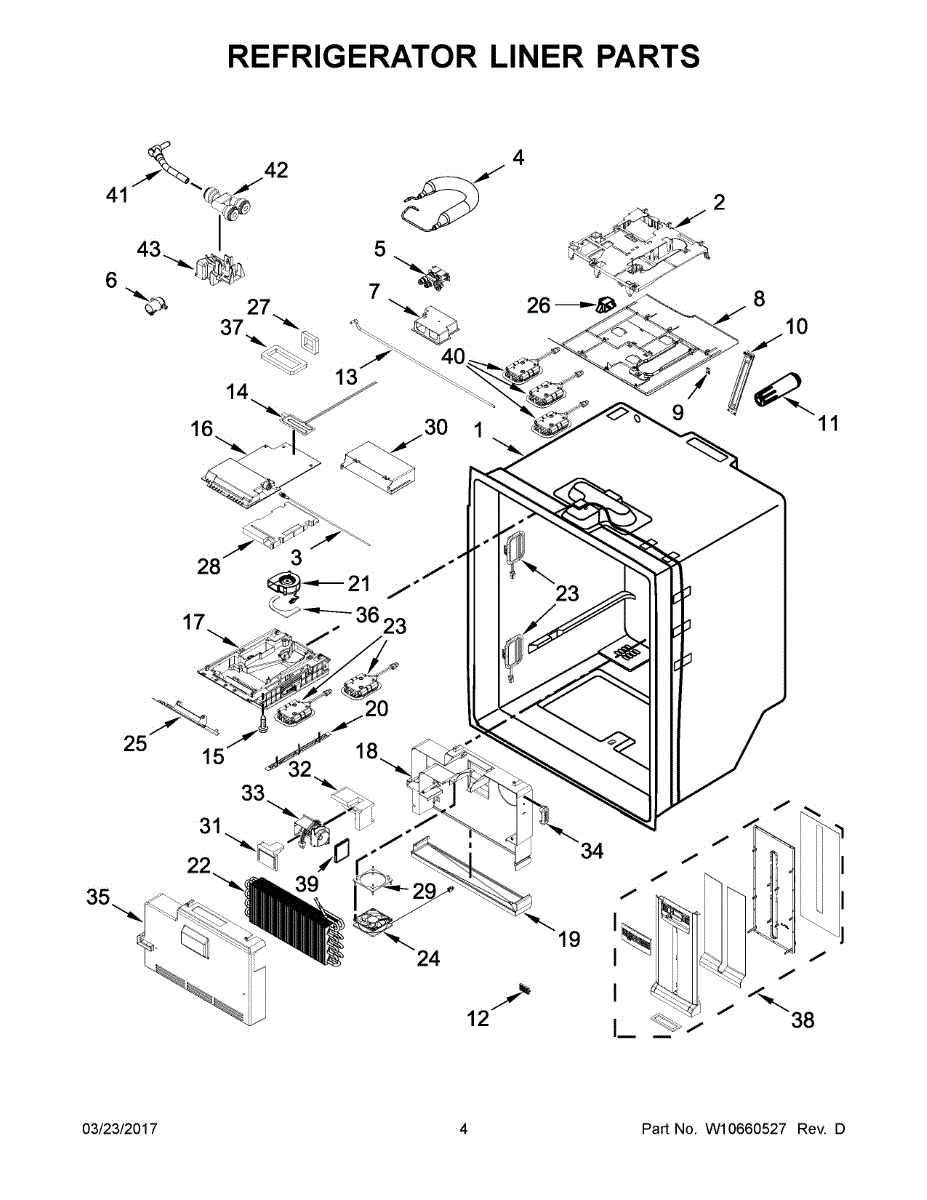

Parts for Kitchenaid KFIS29BBMS03: 03 - Refrigerator Liner Parts

The Refrigerator Water Filter is an OEM part for Whirlpool refrigerators. It delivers clean, filtered drinking water and ice by effectively reducing contaminants, including chlorine taste and odor, particulates, and various other harmful substances that may be present in the water supply.

Causes of a bad Refrigerator Water Filter can include regular wear and tear over time leading to reduced efficacy in filtering out contaminants, as well as accumulation of contaminants and sediment.

Symptoms of a bad Refrigerator Water Filter include:

• Noticeable decrease in water flow rate.
• Unpleasant taste or odor in the water or ice.
• Discoloration of water or ice.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Dishwasher Dispenser is an OEM part compatible with Whirlpool dishwashers. Located inside the dishwasher door, it is responsible for dispensing detergent at the proper time during cycle.

Causes of a bad dispenser can include leakage, blockages in the dispensing mechanism, door or latch issues that prevent proper opening.

Symptoms of a bad dispenser include:

• Improper or incomplete dispensing of detergent
• Dishes not getting fully clean due to insufficient detergent
• Leakage from the dispenser door or tub area
• Dispenser door remaining open or closed during cycles

This genuine Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models as well.

This water tube routes water from the supply to the refrigerator's dispenser/ice system, restoring proper water flow and reducing leaks where the line is damaged or cracked. It replaces a worn or broken factory water line. What it does

• Carries water from the household supply to the refrigerator dispenser/ice maker.
• Replaces cracked, split, or collapsed tubing that can cause leaks or reduced flow.
• Helps restore normal dispenser and ice-maker fill operations when the original tube is damaged.
• Prevents internal water damage caused by pinholes or separated fittings.

• One replacement water tube.

• Disconnect the refrigerator from power and shut off the water supply before starting.
• Use appropriate tools to remove clamps or fittings; avoid over-tightening new connections.
• Inspect and replace any worn clamps or fittings for a secure, leak-free seal.

The Reservoir is an OEM part for Whirlpool refrigerators. It is designed to store and dispense water within the refrigerator, typically connecting to the water dispenser and ice maker. This reservoir ensures a consistent supply of water, facilitating the production of ice and providing chilled water for consumption.

Causes of a bad reservoir can include mineral buildup from hard water, cracks or leaks due to wear and tear, or contamination from foreign particles.

Symptoms of a bad reservoir include:

• Water leaks inside the refrigerator
• Reduced or no water flow to the dispenser or ice maker
• Odd tastes or odors in the water
• Ice production issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Duel Water Valve Assembly is an OEM part for Whirlpool refrigerators. This component is responsible for controlling the flow of water to the ice maker and water dispenser, ensuring proper operation.

Causes of a bad water valve can include mineral buildup from hard water, electrical failure, or physical damage from freezing or kinking of the water line.

Symptoms of a bad valve assembly include:

• Leaks from the valve or water line
• No water flow to the ice maker or water dispenser
• The ice maker not producing ice
• Unusual noises when the water dispenser is activated

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This refrigerator water filter housing holds the filter and routes water through it to the dispenser and ice maker. Replace it if the housing is cracked, leaking, or won't engage the filter to help restore consistent water flow. What it does:

• Directs household water through the installed filter to the dispenser and ice maker
• Locks and seals the filter; opens/closes the internal shutoff when the filter is engaged
• Helps maintain proper flow and reduce leaks at the filter connection
• Common failure symptoms may include water dripping from the filter area, the filter not seating or popping out, low/no dispenser flow, or no ice production

• 1 water filter housing assembly

• Unplug the refrigerator and shut off the water supply; dispense water to relieve pressure
• Place a towel under the area to catch residual water
• Remove any cover/bracket as needed; disconnect tubing from quick-connect fittings and note routing/orientation
• Install the new housing, fully seat tubing in the fittings, restore water and power, check for leaks, and flush per your model's instructions

This cover is an access panel that protects internal components and restores the appliance's appearance. It provides a clean, finished surface while allowing service access when removed. What it does:

• Shields wiring and internal parts from dust, spills, and accidental contact
• Keeps controls and components secure and out of reach
• Restores a worn, damaged, or missing exterior surface for a finished look
• Allows access to internal assemblies when removed

• One cover/access panel

• Always disconnect power (unplug or switch off breaker) before servicing
• Remove mounting screws or clips to lift cover off; align tabs and fasteners to reinstall
• Use only parts and fasteners specified for your model; replace damaged clips or screws

This small, spring-action push latch mounts in trim or liner to secure a flip-down compartment door or cover. Replacing a worn latch restores a positive close and smooth push-to-open operation to the affected door or panel.

• Provides the push-to-latch/push-to-release catch for a small door or cover
• Helps prevent nuisance pop-opens and rattling
• Common symptoms: door/cover won't stay shut, latch feels loose, cracked or missing latch
• Restores proper engagement and closing feel

• Disconnect power to the appliance before starting
• Open the compartment; depress retaining tabs or gently pry the old latch straight out
• Match orientation and snap the new latch fully into the opening
• Test operation: close to latch, press to release

This is the door filter access cover that protects and secures the refrigerator's water/filter access opening, keeping the filter compartment closed and helping maintain a clean, finished door appearance. What it does

• Covers the water/filter access opening so the filter stays secured and concealed.
• Helps prevent debris from entering the filter compartment.
• Restores a proper door seal and fit when the original cover is cracked, broken, or missing.
• Common symptom: cover is loose, cracked, or won't latch, exposing the filter area.

• Turn off water supply and remove the filter per manufacturer instructions before replacing the cover.
• Typically installs with clips or screws—align the cover, press into clips or reinstall fasteners.
• Inspect surrounding trim and gasket for damage and replace if necessary to ensure proper fit.

The Whirlpool EveryDrop Ice and Water Refrigerator Filter 2 is an OEM replacement part for Whirlpool refrigerators. This advanced water filter is designed to provide superior filtration for both the ice maker and water dispenser. This water filter effectively reduces numerous contaminants, including lead, pesticides, and pharmaceuticals, ensuring that your drinking water and ice are not only clean but also taste great.

Regular replacement of the EveryDrop Filter is recommended to maintain optimal performance and water quality. Over time, filters can become clogged with particles and contaminants, leading to reduced water flow and a decline in the effectiveness of filtration.

Symptoms of a filter that needs to be replaced include:

• Noticeable decrease in water flow rate from the dispenser
• Unpleasant taste or odor in the water and ice
• The filter indicator light on the refrigerator turns on

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

This water tube directs water from the dispenser/water system to the appliance's internal components, restoring proper water flow and preventing leaks when the original tube is cracked or clogged. Durable replacement for wet or restricted lines. What it does:

• Routes water from the inlet/valve to the dispenser, icemaker, or internal plumbing.
• Replaces cracked, split, or collapsed tubing that can cause leaks or reduced water flow.
• Helps stop visible pooling or dripping under the cabinet or inside the fresh food section.
• Restores normal water delivery to the dispenser or icemaker when the original tube is obstructed or damaged.

• Disconnect power and shut off the water supply before beginning any repair.
• Inspect fittings and seals; replace any worn gaskets or clamps to ensure a leak-free connection.
• Tighten fittings by hand first, then snug with an appropriate tool—avoid overtightening plastic fittings.
• Test the system at low pressure after installation and check carefully for leaks before restoring full operation.

The Heater is an OEM component specifically designed for Whirlpool bottom-mount refrigerators. Located within the fresh food compartment walls, it prevents condensation by maintaining warm air circulation along interior surfaces.

Causes of a bad heater include deterioration of heating coils or electronic boards over many years, loose connections disrupting power delivery, or damage from moisture exposure.

Symptoms include:

• Foggy or frosted exterior walls need frequent drying
• Puddles of water collecting beneath vegetable drawers
• Musty odors developing within refrigerator shelves

This OEM replacement is also compatible with Kenmore, KitchenAid, and some GE models.

This replacement screw fastens trim, panels and small components to restore secure attachment and reduce rattling or movement. Use when a screw is missing, stripped, or damaged to keep parts aligned and operating quietly. What it does:

• Secures panels, brackets and trim to appliance assemblies
• Prevents vibration, rattling and misalignment caused by missing or damaged fasteners
• Replaces lost or stripped screws that can allow gaps or loose parts
• Helps maintain safe, stable operation by keeping components properly fastened

• Disconnect power (and water if applicable) before accessing interior panels
• Use the proper screwdriver or driver bit to avoid stripping the head
• Align parts before tightening and tighten until snug—do not overtighten
• Replace only with the correct OEM part to ensure proper fit and function

This foamed icebox assembly is the insulated inner cabinet section for the freezer compartment that restores proper insulation and airflow, helping the appliance hold temperature and reduce frost buildup. What it does:

• Replaces a damaged or cracked icebox liner to restore the sealed, insulated freezer cavity
• Helps maintain consistent cold temperatures by restoring the factory foam insulation
• Reduces excess frost and moisture caused by gaps or damaged cabinet parts
• Provides the structural inner shell for evaporator and shelving mounting points

• One foamed icebox assembly

• Disconnect power and, if applicable, water supply before starting; follow safety precautions
• Replacement typically requires partial disassembly of the freezer section and removal of components mounted to the icebox (evaporator, shelves, trim)
• Use appropriate fasteners and sealants as needed per OEM instructions; check alignment before reassembling

The Pan-Drip is an OEM part for Whirlpool refrigerators. It is designed to collect and manage condensation and any water that may drip inside the refrigerator, preventing it from pooling at the bottom of the appliance. This pan measures approximately 20 inches by 16 inches with a 2-inch depth.

Causes of a bad pan-drip can include wear and tear over time, cracks or breaks due to impact, and buildup of dirt or debris that can block proper drainage. When the pan-drip fails, it can lead to water accumulation and potential leaks.

Symptoms of a bad Pan-Drip include:

• Water pooling inside the refrigerator
• Leaks from the bottom of the refrigerator
• Visible cracks or damage to the pan
• Mold or mildew buildup due to improper drainage

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Evaporator fan that circulates cold air through the refrigerator to help maintain even temperatures and reduce frost build-up. Replacing a failed fan restores airflow so the appliance cools more consistently. What it does:

• Circulates cold air across evaporator coils and interior compartments to help maintain set temperatures.
• Helps prevent localized frost buildup by keeping air moving over the evaporator.
• A worn or failed fan may make whining or rattling noises or run intermittently.
• Loss of fan operation can cause warm spots or reduced cooling performance.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Access may require removing interior panels or evaporator cover—keep fasteners in a safe place.
• Handle sharp sheet-metal edges carefully and support the fan assembly to avoid dropping it.

The Dual Evaporator Assembly is an OEM part for Whirlpool refrigerators. Found within the refrigerator cabinet behind the sidewalls, these dual evaporator coils absorb heat from the refrigerated air and help maintain the optimal cold temperatures needed in each section.

Symptoms of a bad dual evaporator assembly include:

• Fluctuating or inadequate temperatures in both freezer and fresh food sections
• Frost or ice buildup inside cabinets
• Increased humidity levels allowing food to spoil faster

Causes can be normal component wear over time, damage to coils from falls/impacts within the refrigerator, or refrigerant leaks decreasing cooling ability.

This OEM replacement part is also compatible with refrigerator models from brands including Maytag, Jenn-Air, Amana, Magic Chef, and some Kenmore units.

The LED Module is an OEM part for Whirlpool refrigerators. This module plays a role in illuminating the inside of the refrigerator and freezer compartments. Properly functioning LED lights are necessary for visibility when accessing refrigerator contents.

Over time, exposure to temperature fluctuations and general use can cause LED modules to fail or burn out prematurely. Replacing this OEM Whirlpool part will restore full illumination inside your refrigerator.

Symptoms of a bad LED Module can include:

• Dim or flickering lights inside the refrigerator or freezer
• Partial lighting with some LEDs not working
• Lights that will not turn on at all

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Motor is an OEM part for Whirlpool refrigerators. This crucial component is responsible for circulating cool air throughout the refrigerator's evaporator coils, ensuring proper cooling and temperature regulation.

A faulty evaporator fan motor can be caused by various factors. Over time, the motor may experience wear and tear, leading to decreased performance or complete failure. Additionally, the accumulation of dust, debris, or ice on the fan blades can hinder its rotation and impact its functionality.

Symptoms of a bad evaporator fan motor may include:

• Inadequate cooling or inconsistent temperature inside the refrigerator.
• Unusual noises coming from the freezer or refrigerator compartment.
• The fan not spinning or operating at a slower speed than usual.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Heater is an OEM part for Whirlpool refrigerators. It is a thin heating element located behind the cover for the ice compartment inside the fresh food section that functions to prevent condensation from accumulating.

Causes of a bad heater can include failure of the heating element over many cycles of use, cracks or breaks due to normal wear and tear or repeated door opening/closing stress.

Symptoms of a bad heater include:

• Foggy or clouded refrigerator door panels
• Visible condensation building up inside refrigerator doors
• Potential for water droplets or leaks inside door panels

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


A replacement icebox rear gasket that seals the freezer compartment to help keep cold air in and reduce moisture intrusion. Restores the door seal to help maintain proper temperature and reduce frost buildup. What it does

• Seals the icebox/freezer door edge to maintain cold compartment temperature.
• Helps prevent warm air and moisture from entering, reducing frost and ice buildup.
• Can improve cooling consistency and help reduce excessive run time caused by a poor seal.
• Common symptom fix: visible gaps, torn or deformed seal, or recurring frost around the door.

• One icebox rear gasket.

• Disconnect power to the appliance before replacing the gasket.
• Remove the old gasket, clean the door/frame sealing surface, and align the new gasket evenly.
• Press the gasket into the channel firmly; some models may require gentle warming or minor adjustment for a snug fit.

The Support is an OEM part for Whirlpool refrigerators. This part holds the fan motor in place within the fresh food compartment, ensuring proper air circulation to maintain consistent temperatures and keep food fresh.

Causes of a bad fan motor support can include regular wear and tear, accidental impacts, or exposure to extreme temperatures.

Symptoms of a bad fan motor support include:

• Noisy or rattling fan motor
• Poor air circulation in the fresh food compartment
• Inconsistent temperatures or food spoilage
• Visible damage or warping of the support structure

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A small replacement retainer that secures internal components and trim pieces so they stay properly aligned and stable. Restoring a broken retainer helps stop rattling and keeps parts seated for reliable operation. What it does:

• Secures panels, trim, or small assemblies in place to prevent shifting
• Reduces vibration and rattling caused by a loose or broken clip
• Keeps wiring or hoses routed and held away from moving parts
• Helps maintain proper alignment of the part it supports

• Disconnect power to the appliance before servicing to avoid shock
• Use basic hand tools; inspect surrounding parts for damage before reinstalling
• Handle sharp sheet-metal edges carefully and wear gloves if needed
• Replace only the failed retainers; verify fit before final reassembly

This support is a replacement mounting bracket that secures internal components and panels so they stay properly aligned and stable. It restores correct fit and reduces movement from normal use. What it does:

• Provides a secure mounting point for internal panels or components to prevent sagging or rattling
• Restores alignment for panels that sit uneven or loose
• Helps stop vibration noise caused by worn or broken supports
• Protects connected parts from stress or damage due to improper support

• One support

• Disconnect power to the appliance before starting any repair
• Basic tools typically required; handle parts carefully to avoid scratching or bending
• Keep fasteners and hardware; replace any damaged screws or clips as needed
• Refer to the parts diagram for exact placement and torque specs

The Damper Control is an OEM replacement part for Whirlpool refrigerators. It is located inside the refrigerator, just above the evaporator cover, and controls the flow of cool air from the refrigerator compartment into the freezer. The damper control works with a bi-metal spring to open and close based on temperature levels, directing cold air where needed for balanced cooling.

Causes of a bad damper control can include damage or wear to the bi-metal spring over time, failure of electronic components, or blockage preventing proper movement.

Symptoms of a bad damper control include:

• Inability to maintain proper temperature levels in the refrigerator or freezer
• Frost or ice build-up in unexpected areas
• warmer temperatures in one compartment and colder in the other
• loud noises or vibrations coming from the damper area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement cover restores the appliance's exterior protection and appearance by shielding internal components from dust and damage. It fits in place of a cracked, broken, or missing panel to help keep parts secure and reduce debris entry. What it does

• Protects internal components and wiring by covering exposed areas
• Helps prevent dust, lint, and small object entry that can affect operation
• Restores cosmetic appearance when the original cover is cracked, warped, or missing
• Can reduce vibration noise caused by loose or damaged panels
• Keeps fastener locations secure so other components mount correctly

• Disconnect power (unplug or shut off breaker) before beginning any work
• Use basic hand tools to remove screws or clips holding the existing cover; save fasteners unless replacements are provided
• Handle edges carefully; replace only with the matching cover to ensure proper fit and clearance
• Inspect surrounding components for damage when removing the old cover and reassemble in reverse order

This fan gasket seals the fan housing to help direct airflow and maintain proper cooling performance. It replaces a worn or damaged seal to reduce air bypass and improve temperature consistency in the appliance. What it does:

• Seals the fan housing to keep airflow directed through the evaporator/condenser as designed
• Helps prevent air leaks that can cause uneven cooling or longer run cycles
• Reduces the chance of frost buildup or moisture intrusion around the fan area
• Can minimize wind noise from air escaping gaps at the fan assembly

• Disconnect power to the appliance before beginning any repair
• Remove access panels and the fan housing to reach and replace the gasket
• Ensure the gasket seats evenly around the fan housing; trim none unless specified by the OEM
• Inspect surrounding components (fan blade, housing) for damage and replace if needed

This rear icebox gasket seals the freezer/icebox compartment to help maintain proper temperature and reduce frost buildup. It restores the door seal so the appliance runs more efficiently and prevents moisture intrusion. What it does:

• Seals the icebox/freezer compartment to keep cold air in and warm, humid air out
• Helps prevent frost and ice buildup inside the icebox
• Reduces temperature fluctuations that can cause food spoilage
• Can stop condensation or water pooling caused by a failing door seal

• Unplug the appliance before attempting replacement
• Remove the old gasket fully and clean the mounting channel before installing the new seal
• Press the new gasket into the channel evenly; allow time for the gasket to form to the door

The LED Module is an OEM part for Whirlpool refrigerators. This module plays a role in illuminating the inside of the refrigerator and freezer compartments. Properly functioning LED lights are necessary for visibility when accessing refrigerator contents.

Over time, exposure to temperature fluctuations and general use can cause LED modules to fail or burn out prematurely. Replacing this OEM Whirlpool part will restore full illumination inside your refrigerator.

Symptoms of a bad LED Module can include:

• Dim or flickering lights inside the refrigerator or freezer
• Partial lighting with some LEDs not working
• Lights that will not turn on at all

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Tube-Water is an OEM part for Whirlpool bottom-mount refrigerators. Strategically routed behind panels, this tubing safely transports cool water from the door dispenser back to the reservoir. Constructed from durable, food-grade plastic, it prevents leaks through daily openings and closings.

Causes of tubing issues can include kinks or punctures developing over time due to door sagging or normal flexing putting stress on connections.

Symptoms of a bad Tube-Water include:

• Water dispenser malfunctions like inconsistent flow
• Damp corrosion traces forming inside fridge areas
• Cooler functions like icemaker ceasing due to low reservoir levels
• Pooling or leaking water inside the fridge from tubing splits

This OEM replacement ensures a closed-circuit water system. Compatible models include some Kenmore and select KitchenAid.

This wire harness connector restores a reliable electrical connection between appliance wiring and components, helping eliminate intermittent power or control issues. It's a direct-replacement style part used where a broken or loose connector prevents proper function. What it does:

• Provides a secure electrical mating point between wiring and a control, sensor, or component
• Re-establishes continuity when a cracked, corroded, or damaged connector causes intermittent operation
• Helps stop flickering lights, components that don't power on, or erratic control behavior when connection is the cause
• Matches the OEM connector shape and pin layout for a correct fit and electrical contact

• Disconnect power (unplug appliance or shut off breaker) before inspecting or replacing electrical connectors
• Verify connector orientation and pin engagement; do not force if alignment feels incorrect
• Inspect wiring and terminals for damage; replace or repair any frayed wires or corroded terminals before reinstalling

This genuine wire harness routes power and signals between electrical components to restore reliable operation and safe connectivity. It replaces damaged or worn wiring that can cause intermittent function or loss of power. What it does:

• Connects control, motor and sensor circuits so the appliance components communicate and receive power
• Replaces frayed, chafed or burnt wires that can cause intermittent operation or failure to start
• Restores secure connector fit to prevent arcing and erratic behavior
• Helps eliminate wiring-related faults that trigger error codes or safety cutouts

• Always disconnect power (unplug or switch off breaker) before starting work
• Note or photograph original routing and connector positions for correct reassembly
• Inspect nearby wiring, connectors and fasteners; secure harness away from heat and sharp edges

This refrigerator compartment wire harness restores reliable electrical connections to components in the fresh-food section. Replacing a damaged or heat-stressed harness helps resolve intermittent outages and ensures power and signals reach RC components as designed. What it does:

• Distributes power and control signals between the main wiring and refrigerator-compartment components
• Helps address issues like RC lights not working or intermittent/no power to fresh-food section components
• Replaces harnesses with broken conductors, overheated/browned insulation, corroded, or loose connectors
• Maintains correct routing to prevent pinched, shorted, or chafed wires

• 1 refrigerator compartment wire harness assembly

• Disconnect power before servicing; do not work on live circuits
• Note the original routing and take photos to match clip locations and connector paths
• Seat keyed connectors fully; do not force—verify pin alignment and locking tabs
• Avoid pinching the harness when reinstalling panels and covers; restore power and test operation
