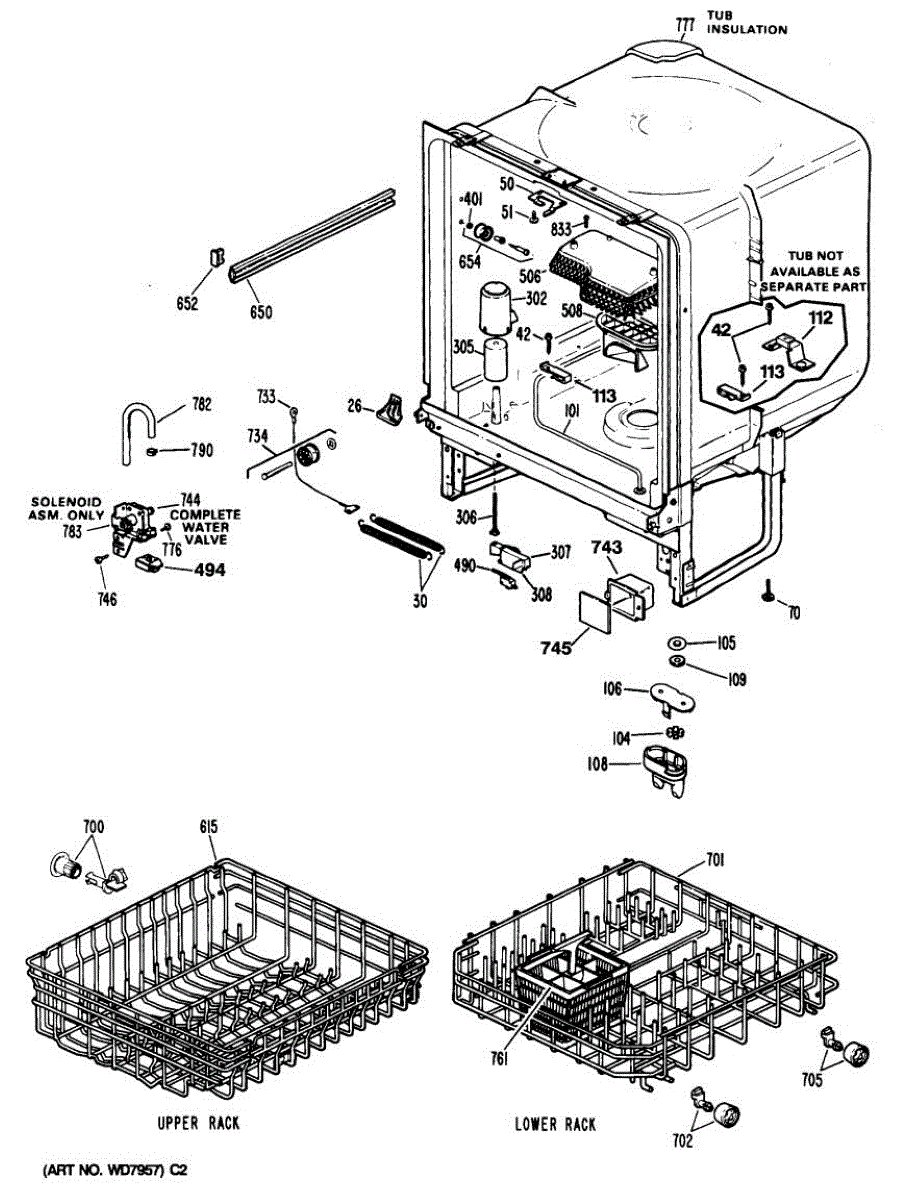

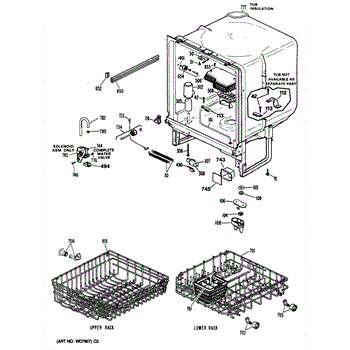

Parts for Ge HDA100S-55BA: 02 - Section2 Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Tub Corner Baffle is an OEM part for GE dishwashers. It is strategically placed at the corners of the dishwasher tub to prevent water from leaking out during operation.  For the left side use WD8X228. Color: Black.

Symptoms of a bad Tub Corner Baffle include:

• Water leaking from the corners of the dishwasher door.
• Pools of water forming near the dishwasher after operation.
• Decreased cleaning performance due to water escaping the wash cycle area.

Causes of a bad tub corner baffle can include wear and tear from regular use, improper installation leading to gaps or looseness, and degradation of the material over time due to exposure to detergents and high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Tub Corner Baffle is an OEM part for GE dishwashers. This rubber component is placed in the corners of the dishwasher tub to prevent water from leaking out during the wash cycle. It acts as a barrier, directing water back into the tub and ensuring efficient operation. This is the left side. For the right side, use WD8X227.

Causes of a bad part can include prolonged exposure to detergents and hot water, leading to material breakdown, or physical damage from loading and unloading dishes.

Symptoms of a bad Tub Corner Baffle include:

• Visible signs of wear or damage
• Water leakage from the corners of the dishwasher door
• Unusual noises during operation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Whirlpool screw is an OEM replacement part responsible for securely fastening various components and parts within Whirlpool appliances. These screws are essential for maintaining the structural integrity and safe operation of the appliance. These screws hold together critical components like panels, brackets, handles, and internal parts.

This part fixes the following symptoms:

• Loose or wobbly handles on refrigerators, ovens, or other appliances
• Vibrations or rattling noises during appliance operation
• Inability to assemble or disassemble parts during appliance repair or maintenance

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replacement latch keeper for the dryer door latch assembly that secures the latch and keeps the door closed during operation. Restores reliable door engagement to help the appliance start and complete cycles. What it does:

• Secures the door latch so the dryer door stays closed during operation.
• Aligns with the latch mechanism to maintain proper door engagement.
• Common symptom: dryer door won't latch or feels loose, causing the cycle to not start or stop unexpectedly.
• Replaces worn or broken keeper pieces that allow rattling or misalignment.

• Disconnect power (unplug electric or shut off gas and breaker) before servicing.
• Access with basic hand tools; remove the door or front panel as needed to reach the keeper.
• Install carefully to avoid cracking surrounding plastic; do not force parts into place.
• After installation, verify the door closes securely and the dryer starts through a test cycle.

Size: 10-24 x 1/2 inch.

This leveling screw adjusts your dishwasher's leveling leg so you can set the cabinet height and get the unit perfectly level. Proper leveling helps the door seal correctly, reduces rocking, and cuts excess vibration and noise.

• Threads into the leveling leg to raise or lower the dishwasher for accurate leveling and stability
• Helps prevent rocking or wobbling and supports proper door alignment and sealing
• Can reduce vibration/noise associated with an out-of-level installation
• Replaces a stripped, bent, or missing adjustment screw to restore adjustability

• Disconnect power and turn off the water supply; protect flooring before adjusting or replacing
• Remove the toe-kick/access panel to reach the adjuster; support the dishwasher's weight before turning the screw
• Start threads by hand to avoid cross-threading; do not overtighten
• After adjustment, verify level side-to-side and front-to-back with a level and recheck door operation

This is a replacement mounting nut that secures components to their mating studs or shafts, restoring proper fit and preventing looseness that can cause noise or misalignment. Use it to replace a worn, stripped, or missing nut. What it does:

• Fastens parts to studs or shafts to keep assemblies secure and aligned.
• Prevents wobbling, rattling, and reduced performance caused by a loose or missing nut.
• Restores reliable mechanical connection after thread damage or corrosion.
• Works where a standard hex-style fastening nut is required by the OEM design.

• One replacement mounting nut.

• Disconnect power and unplug the appliance before beginning work.
• Verify correct stud engagement and thread direction before tightening.
• Use the proper-sized wrench and tighten to the manufacturer's recommended torque; avoid over-tightening to prevent thread damage.
• If threads are damaged, replace the mating stud or use an approved repair kit—do not force a nut onto stripped threads.

This float dome positions and protects the float inside the tub so the appliance can sense water level correctly. Replacing a cracked or missing float dome helps restore reliable fill control and reduces overfill or erratic fill symptoms. What it does

• Houses and guides the float so the fill sensor detects water level accurately.
• Prevents the float from sticking or catching on the tub, which can cause overfilling.
• Helps stop intermittent or continuous fill problems caused by a broken or displaced float.
• Keeps debris away from the float area to reduce false water-level readings.

• Disconnect power and water supply before accessing the tub or removing panels.
• Remove the lower access panel or kickplate to reach the float area; handle plastic parts gently to avoid cracking.
• Inspect surrounding seals and the float itself; replace any damaged components for reliable operation.
• After installation, restore power and run a short fill/drain cycle to verify correct float movement and water-level control.

This dishwasher float rises with the water level to engage the float switch. It regulates filling and helps prevent overflows, protecting your kitchen from leaks and keeping wash cycles running properly. What it does:

• Rises with the tub's water level and actuates the float switch
• Signals the inlet valve to stop water flow at the correct level
• A stuck, worn, or broken float may cause overfilling or no-fill conditions
• Symptoms can include leaking from overfill or no water entering during fill

• 1 float

• Disconnect power and turn off the water supply before servicing
• Open the door; remove the lower rack for access
• Lift off any float cap/retainer, pull the old float straight up, and seat the new float
• Ensure the float moves freely; restore power/water and run a brief fill test

This float stem is part of the dishwasher's water-level/overfill system. It guides the tub float and actuates the float switch so the unit fills correctly and shuts off on time. Replace a worn or broken stem to restore reliable fill protection.

• Connects the float to the switch mechanism beneath the tub
• Provides smooth vertical travel of the float through the opening
• Triggers the float switch to stop filling at the proper level
• Causes symptoms such as no fill, continuous filling/overfilling, a stuck or wobbly float, or intermittent fill issues

• Disconnect power at the breaker and shut off the water supply before servicing
• Remove the lower rack; lift off the float cap from inside the tub
• On some models, release the retainer/clip from beneath the tub; pull out the old stem
• Guide the new stem through the opening and ensure it engages the float switch lever; confirm the float moves freely and actuates the switch before restoring power

Replacement bracket that secures the flood/leak detection switch inside the appliance, keeping the switch positioned to sense unwanted water and help the leak-detection system work as intended. What it does:

• Holds the flood/leak switch in the correct position so it can detect water accumulation.
• Ensures consistent switch activation when water pools under the cabinet or base pan.
• Common repair when you find water under the appliance, persistent leaks, or when leak detection isn't responding.
• Simple, passive mounting part—no electrical function.

• Disconnect power and shut off the water supply before accessing the appliance.
• Remove the appropriate access panels to reach the bracket location; note orientation of the switch before removing.
• Reinstall bracket using the original fasteners or equivalent screws; keep parts organized during disassembly.
• Restore power/water and test the appliance for proper leak-detection operation after reassembly.

This float switch detects rising water in the refrigerator drain pan or lower cabinet area and signals the appliance control to help prevent overflow and water damage. Use it to replace a failed or intermittent water-level sensor. What it does:

• Senses high water level in the drain pan or collection area and closes the circuit to alert the control.
• Helps identify causes of leaks and pooling under or behind the appliance.
• Commonly used when symptoms include water on the floor, drip pan overflow, or water-related error/alert conditions.
• Matches OEM function for refrigeration units that include a float-based water-detection circuit.

• Disconnect power to the appliance before starting any repairs; shut off the water supply if working near water lines.
• Access may require removing lower kick plate or back panel; handle plastic clips and fasteners carefully.
• Disconnect electrical connector gently and note orientation before installing the replacement; secure wiring and verify float moves freely.
• Restore power and run a short test cycle or simulate water level to ensure proper operation.

2 wire insulator.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This sump cover sits over the dishwasher's pump inlet, acting as a protective guard. It helps keep debris out of the pump, maintains proper water circulation, and protects internal components for consistent cleaning performance. What it does:

• Covers the pump/sump intake to screen larger food particles
• Helps prevent debris from entering the wash pump
• Aids proper water flow to support spray pressure and cleaning
• Common symptoms of a failed cover include poor cleaning, unusual pump noise, and visible damage or warping

• 1 sump cover

• Disconnect power and water supply before servicing; allow the unit to cool
• Remove the lower rack and spray arm or access parts as needed to reach the sump
• Release retaining screws or tabs; note the cover's orientation for reassembly
• Seat the new cover fully and secure it; hand-spin the spray arm and run a short test cycle to check operation

This sump cap seals the sump opening at the bottom of the dishwasher tub to contain wash water and protect the pump. Replace a cracked, loose, or missing cap to help prevent leaks and maintain proper wash performance. What it does:

• Seals the sump opening to keep water inside the tub and direct flow to the pump
• Helps keep debris out of the pump intake
• Restores a secure fit when the original cap is cracked, stripped, or warped
• Common symptoms: water leaking from the base, moisture under the dishwasher, visible damage, or a missing cap

• Disconnect power and turn off the water supply.
• Remove the lower rack and, if needed, the lower spray arm to access the sump.
• Remove the old cap and clean the sealing area; install the new cap and hand-tighten until snug—do not overtighten.
• Run a short cycle and check for leaks around the sump.

The Upper Rack is an OEM replacement part for GE dishwashers. It provides movable shelf space along the top of the dishwasher interior for washing plates, bowls, and other dishes. The shelves feature an adjustable design that accommodates various sizes and configurations of dishware.

Causes of failure include normal wear and tear, accidental impacts that damage shelves or cleaning chemicals stripping away protective coatings.

Symptoms of a bad upper rack can include:

• broken mounting clips
• shelves jammed in misaligned positions
• drawers that don't glide smoothly
• Over time, repeated usage and cleaning chemicals can degrade rack components.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement part is an upper rack slide, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. This upper rack slide is an important part of many appliances. This particular one is typically found in dishwashers and helps guide the upper rack in and out. This allows the user to have easy access to the rack in order to place and remove dishes before and after the cleaning process. A new upper slide rack might be needed if the current ones are broken or damaged in any way. It is possible that these slides become stripped over many years of use and need to be replaced. If the upper rack is tilted or not sturdy while being slid back inside the main tub, the upper rack slide might be the problem. Be sure the dishwasher is completely empty prior to replacing this part. This is a genuine OEM part and is sourced directly from the manufacturer. This upper arm rack slide is sold individually.

The Rack Slide End Cap is an OEM replacement part for GE dishwashers. This small but essential component is designed to secure the end of the rack slide rail, preventing the dish racks from sliding off the track or becoming misaligned.

Symptoms of needing to replace a rack slide end cap include:

• Dish racks sliding off the track or becoming dislodged
• Difficulty in smoothly sliding the racks in and out
• Visible wear, cracks, or damage to the end cap itself

Causes of a faulty rack slide end cap can include normal wear and tear over time, exposure to heat or moisture, or physical damage due to impact or mishandling.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore dishwasher models.

Includes screws.

The Roller and Stud Assembly - 4 Pack is an OEM part for GE dishwashers. This assembly includes four rollers and studs that are essential for the smooth operation of the dishwasher's lower rack. The rollers ensure that the rack glides in and out effortlessly, providing easy access for loading and unloading dishes.

Causes of a bad roller and stud assembly include regular wear and tear, accumulation of dirt and debris that can hinder movement, and damage from heavy loads or improper loading of dishes.

Symptoms of a bad roller and stud assembly include:

• Difficulty pulling the rack in and out
• Squeaking or grinding noises during rack movement
• The rack getting stuck or detaching from the guide rail

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes rollers.

The Lower Dishrack Roller is an OEM part for GE dishwashers. Good rollers allow the dishrack to slide in and out of the dishwasher smoothly. These rollers attach to the dishrack, providing mobility and convenience when loading or unloading dishes. Note: This kit includes one roller and one axle.

Causes of damage to the dishrack rollers often involve overloading the dishrack with heavy dishes, which can put excessive stress on the rollers, or normal wear and tear from repeated use.

Symptoms of a bad Lower Dishrack Roller Kit include:

• The lower dishrack sticking or struggling to slide in and out.
• Visible damage or wear on the rollers, such as cracks or flat spots.
• The dishrack sitting unevenly in the dishwasher, potentially due to missing rollers.
• Noise when moving the dishrack, indicating worn or damaged rollers.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lower Dishrack Roller Kit is an OEM part for GE dishwashers. This kit includes 8 wheels and 8 axles. It allows it to glide smoothly in and out of the dishwasher. Proper functioning of these rollers is crucial for the easy loading and unloading of dishes, ensuring that the dishrack moves efficiently along its tracks.

You should replace the lower dishrack roller kit if the rollers become worn out or damaged. Common causes of roller issues include wear and tear from frequent use, accumulation of debris, or breakage due to heavy loads or accidental impact.

Symptoms of a bad lower dishrack roller kit include:

• Difficulty sliding the lower dishrack in and out
• The dishrack derailing or not staying on its tracks
• Unusual noises when moving the dishrack
• Visible damage or wear to the rollers

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dishwasher Door Cable is an OEM replacement part for GE dishwashers. It works with the door latch assembly to ensure secure closure of the dishwasher door. The cable is responsible for connecting the door handle mechanism to the latch, allowing users to easily open and close the door with a gentle pull or push. Note: It is recommended to replace both at the same time.

Symptoms of a bad door cable include:

• The door not fully latching or staying closed securely
• Excessive movement or play of the door when closed
• The cable becoming worn, frayed, or detached

Causes of a bad cable can be frequent use that results in wear and fatigue of the internal wiring over time. Damage from harsh detergents or excess moisture can also compromise the cable.

This OEM GE replacement part is compatible with models from Hotpoint, RCA, and some Kenmore dishwashers as well.

This part has been discontinued and is no longer available.

The Dishwasher Water Inlet Valve is an OEM part for GE dishwashers. It controls the flow of water into the dishwasher during each cycle phase. The valve regulates water pressure and volume to provide the right amount for washing, rinsing, and adjusts flow based on cycle settings.

Causes of a bad water inlet valve include mineral buildup from water hardness inhibiting movement or damage allowing leaks.

Symptoms of a bad inlet valve are:

• Incomplete or inadequate washing
• Long cycle times or shutting off prematurely
• Water leaking or spraying inside machine

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement fastener screw used to secure panels and components on compatible appliances, restoring proper fit and reducing movement. It's a simple, direct replacement when an original screw is missing or damaged. What it does:

• Secures access panels, covers, or internal components to prevent rattling and movement
• Helps maintain proper alignment of parts so doors and panels close correctly
• Replaces missing, stripped, or broken screws that can cause loose parts or noise
• Restores the appliance's original fit where a matching OEM fastener is required

• One replacement screw

• Turn off and unplug the appliance before starting any repair
• Use the correct driver and avoid over-tightening to prevent stripping threads
• If the original screw was holding electrical components, ensure power is disconnected and follow OEM safety instructions

The Silverware Basket with Handle is an OEM part for GE dishwashers. It is designed to securely hold silverware and utensils during the washing cycle, ensuring they are effectively cleaned without damaging the dishwasher or other dishes. This basket features a handle, making it easy to remove and carry when loading or unloading cutlery. The silverware basket measures 8.5 inches in depth, 8.75 inches in height, and 7 inches in width.

Symptoms of a bad Silverware Basket include:

• Cracks or holes that allow silverware to slip out or get stuck,
• The handle breaking or detaching from the basket,
• Wear or damage that prevents the basket from fitting properly in its designated slot.

Causes of silverware basket damage often involve frequent use, exposure to intense heat and strong detergents, or overloading of the basket, which stresses the material.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Specs: 10 - 32 t hex 7/16 s

This genuine replacement fill hose routes incoming water from the inlet valve to the dishwasher tub, restoring proper water delivery for washing cycles. Replaces worn or cracked hoses to help stop leaks and ensure reliable fill performance. What it does:

• Carries water from the inlet valve to the dishwasher tub during fill cycles
• Restores proper water flow when original hose is leaking, split, or clogged
• Helps prevent water damage caused by deteriorated or cracked hose sections
• Works with the dishwasher's fill and wash functions to maintain normal operation

• Disconnect power and shut off the household water supply before starting
• Inspect clamps, grommets, and fittings and replace if damaged
• Route hose without kinks and secure with proper clamps to avoid leaks

The Dishwasher Water Inlet Valve is an OEM part for GE dishwashers. It controls the flow of water into the dishwasher during each cycle phase. The valve regulates water pressure and volume to provide the right amount for washing, rinsing, and adjusts flow based on cycle settings.

Causes of a bad water inlet valve include mineral buildup from water hardness inhibiting movement or damage allowing leaks.

Symptoms of a bad inlet valve are:

• Incomplete or inadequate washing
• Long cycle times or shutting off prematurely
• Water leaking or spraying inside machine

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

Size: 8-16 x 2 inch ss.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
