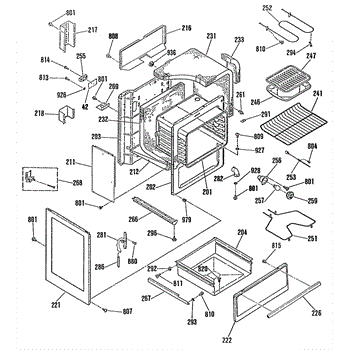

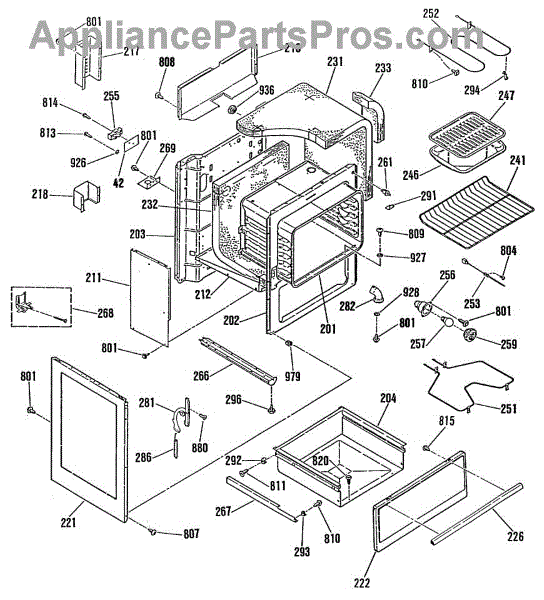

Parts for Ge JB570GM2: 03 - Section3 Parts

Replace worn or missing oven door insulation on your range. Installs around the door perimeter to seal heat inside. Order now if damaged or deteriorated.

Retainer secures glass panel in oven door. Replace if cracked, broken, or missing to properly hold door glass in place and restore door integrity.

Outer door glass panel for your range. Replaces cracked, broken, or damaged exterior glass on the oven door. Direct fit replacement part.

Intermediate glass panel for oven doors. Installs between inner and outer door glass. Replace if cracked, shattered, or broken to restore appearance.

Seals and cushions the inner glass pane inside your oven door to contain heat and prevent rattling. Replace when cracked or flattened. Confirm fit.

This replacement refrigerator door gasket creates an airtight seal on the door to help maintain correct cooling and reduce frost buildup. Restores sealing performance to keep food colder and prevent moisture intrusion. What it does:

• Seals the door edge to maintain a cold interior and efficient operation
• Helps prevent warm air leaks that can cause temperature fluctuation
• Reduces frost and ice buildup in the fresh-food or freezer compartment
• Can improve cooling consistency and help avoid compressor overwork

• Disconnect power to the appliance before starting any repair.
• Remove food and any door-mounted items; support the door during gasket removal/installation.
• Replace the gasket by loosening/removing the door inner panel or pulling out the old gasket per OEM instructions; avoid sharp tools that might damage the door finish.
• After installation, check for even seating and close the door repeatedly to help the gasket form a proper seal; some gaskets may require gentle heating or a short break-in period per OEM guidance.

Package of 12 washers for ranges and ovens. Replaces missing, worn, or damaged washers used in various mounting and assembly points throughout your appliance.

Plastic spacer that fits between range door panels to maintain proper spacing. Replace if cracked, broken, or missing to restore door alignment.

Replacement washer for oven door handles. Installs between handle and door surface. Order when original is cracked, worn, or missing to secure handle.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? A failed bake element is often the cause. Located at the bottom of the oven, this part is a straightforward DIY fix.

Broil element broken or not heating? This top heating element restores high-heat broiling in electric ovens. DIY-friendly repair, typically done in under 30 minutes.

Fix oven not reaching set temperature or F2/F3 error codes. This temperature sensor monitors internal heat for accurate cooking. Easy DIY repair.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

NOTICE: Part has been redesigned. Wire terminals are no longer straight off the the back they are from the side. Depending on your model you may have to make changes to make it fit.

Chain from floor to range design

Left side oven door hinge provides smooth opening and closing operation. Replace if cracked, seized, worn, or binding. Mounts to oven cavity interior.

Replaces a cracked, worn, or broken oven door hinge. Installs on the right side, allowing the door to open and close smoothly and securely.

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

ST10-16 X 7/16"

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

This replacement screw fastens panels, brackets, or trim inside your appliance. Swapping in a new screw restores a tight, secure fit and helps stop rattles, looseness, or misalignment caused by missing or damaged hardware.

• Secures panels, brackets, or trim to the appliance chassis
• Helps maintain proper alignment and spacing of components
• Replaces missing, rusted, or stripped hardware
• Helps resolve loose panels/handles, vibration, or rattling noises

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location; start threads by hand to avoid cross-threading
• Use the appropriate driver and tighten snugly without overtightening
• Inspect the mounting hole or clip for damage and address as needed before reassembly

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Replacement screw for securing components inside your range or oven. Needed when original fasteners are stripped, lost, or damaged during repairs.

A replacement 10-24 x 1/4 machine screw that secures panels and components in place, restoring proper fit and reducing rattles or loose parts. Small but essential for assembly and trim fastening on compatible appliances. What it does:

• Fastens appliance panels, brackets, and small components using a 10-24 threaded connection
• Stops loose or rattling trim, control panels, and internal brackets when the original screw is missing or damaged
• Matches OEM thread and length for correct fit where specified
• Used wherever a short 10-24 machine screw is required to secure parts

• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or crack plastic
• Replace with the same part number to ensure proper thread engagement and fit
• Disconnect power and follow appliance safety procedures before accessing internal areas

Package of 12

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Includes 12 washers.

Expansion nut spacer for electric ranges and ovens. Secures components and maintains proper spacing. Replace if cracked, stripped, or missing.
