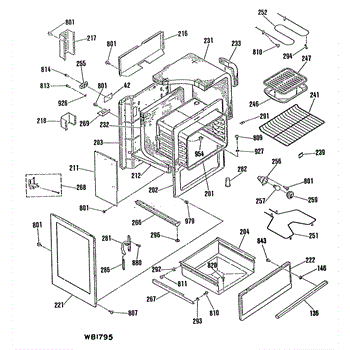

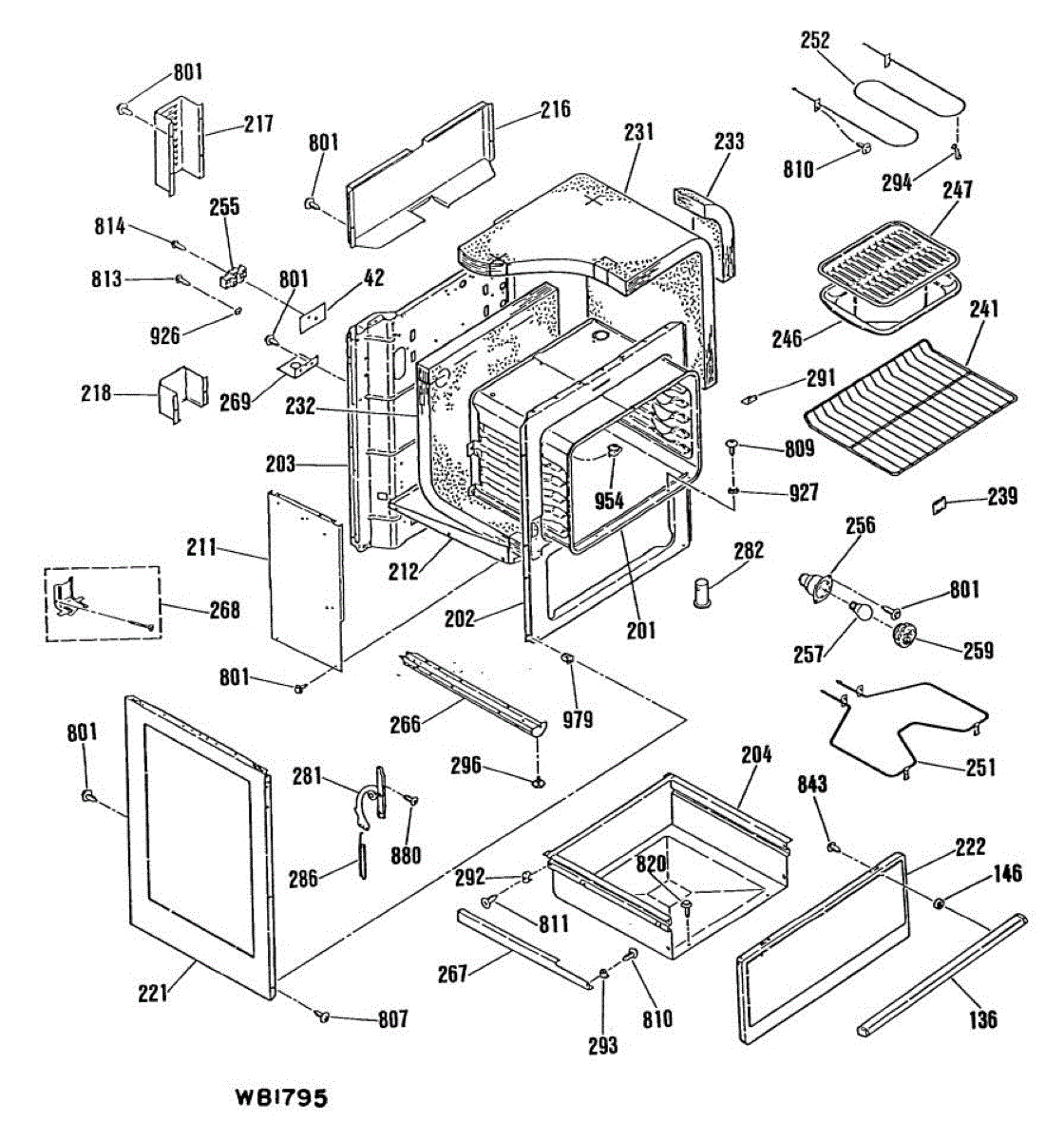

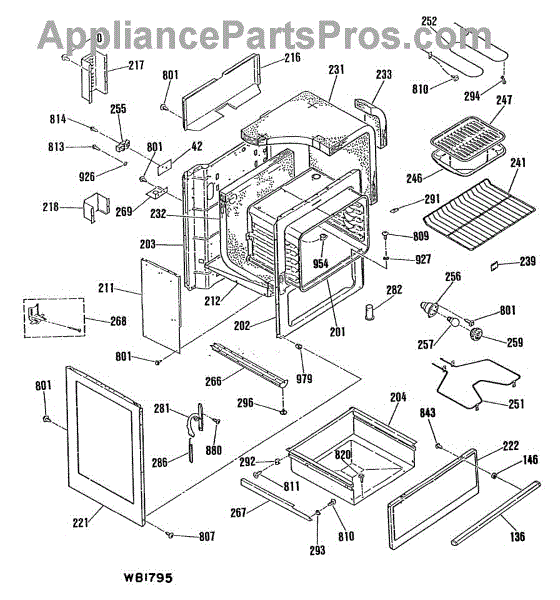

Parts for Ge L3B315GL1: 03 - Section3 Parts

This front frame assembly restores the oven's outer trim and support for the control area, returning a finished appearance and proper alignment. It's a direct-fit exterior trim component used when the front casing or bezel is dented, cracked, or warped. What it does

• Replaces damaged or bent front trim to improve the appliance's appearance and panel alignment
• Provides structural support for the control area and helps maintain a proper seal between the door and console
• Can stop rattling or misalignment caused by a warped or loose front frame
• Matches OEM fit and mounting points for a direct replacement where specified

• One front frame assembly as shown

• Basic removal of the oven/range front panel or trim is required; follow for specific disassembly steps
• Power off and disconnect the appliance before starting work to avoid electrical shock or injury
• Keep fasteners and small parts organized during disassembly to ensure proper reassembly
• If trim damage affected adjacent components (buttons, switches, or fascia), inspect and replace those parts separately as needed

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? A failed bake element is often the cause. Located at the bottom of the oven, this part is a straightforward DIY fix.

Broil element broken or not heating? This top heating element restores high-heat broiling in electric ovens. DIY-friendly repair, typically done in under 30 minutes.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is ess

NOTICE: Part has been redesigned. Wire terminals are no longer straight off the the back they are from the side. Depending on your model you may have to make changes to make it fit.

Chain from floor to range design

Left side oven door hinge provides smooth opening and closing operation. Replace if cracked, seized, worn, or binding. Mounts to oven cavity interior.

Replaces a cracked, worn, or broken oven door hinge. Installs on the right side, allowing the door to open and close smoothly and securely.

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distr

ST10-16 X 7/16"

This replacement screw fastens panels, brackets, or trim inside your appliance. Swapping in a new screw restores a tight, secure fit and helps stop rattles, looseness, or misalignment caused by missing or damaged hardware.

• Secures panels, bracke

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Replacement screw for securing components inside your range or oven. Needed when original fasteners are stripped, lost, or damaged during repairs.

Package of 12

Package of 12

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Includes 12 washers.
