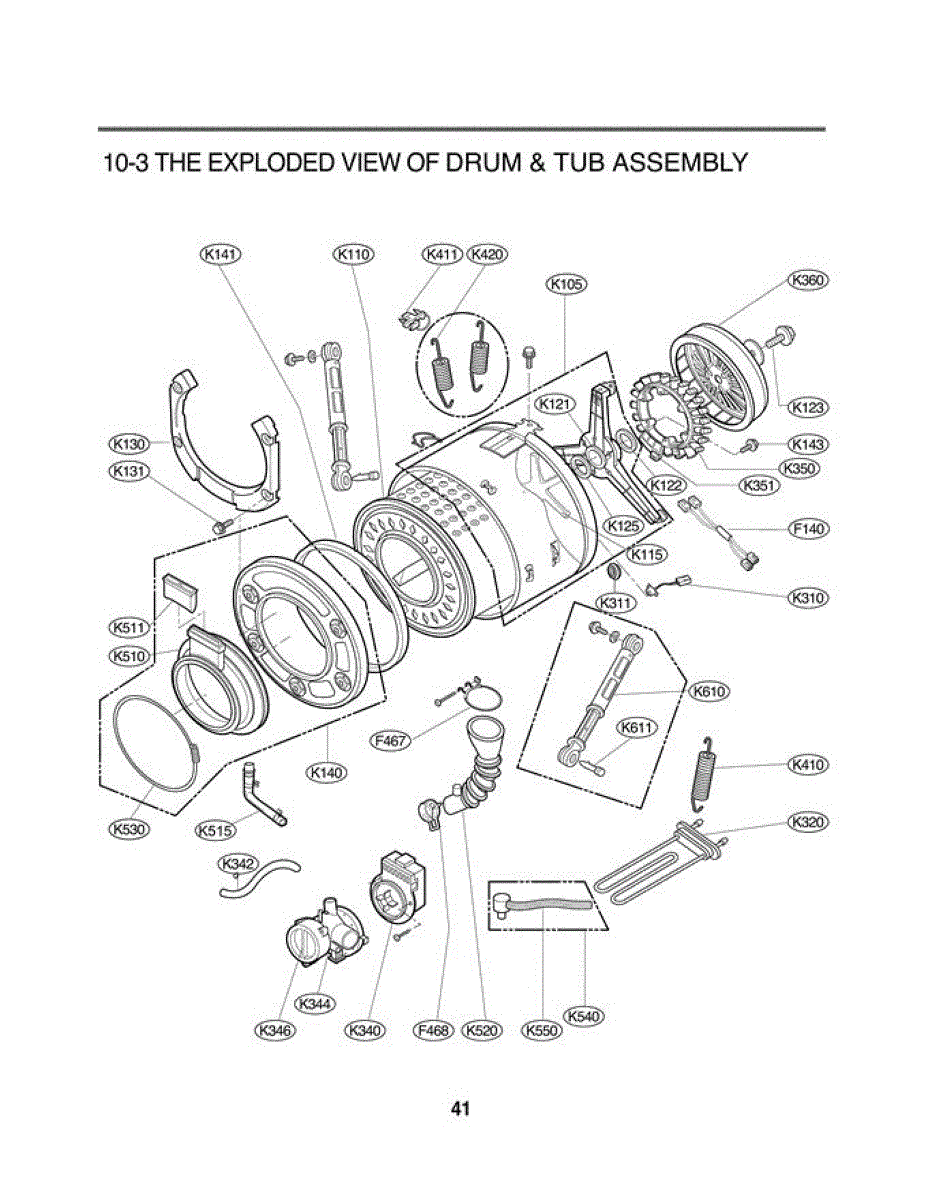

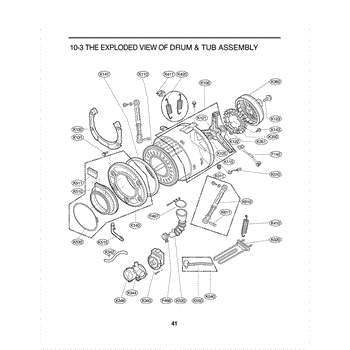

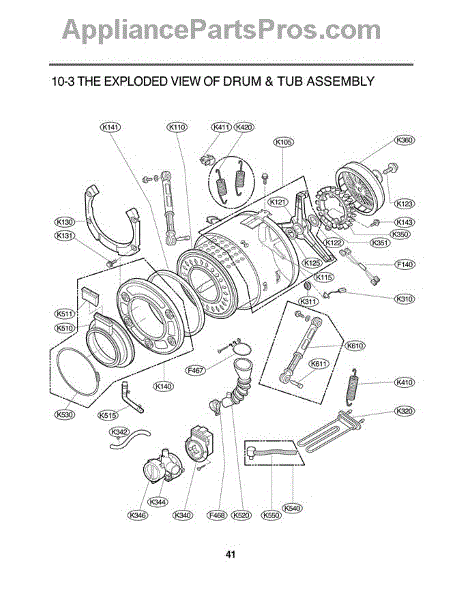

Parts for Lg WD-3274RHD / AOWEEUS: Section 3 Parts

The Ball Bearing is an OEM part for LG washing machines. It is designed to support the drum's rotation within the washer, ensuring smooth and quiet operation during the wash and spin cycles. This ball bearing helps reduce friction and wear, contributing to the overall efficiency and longevity of the appliance.

Causes of a bad Ball Bearing can include excessive wear due to heavy use, exposure to water or detergent leading to rust or corrosion, or damage from an unbalanced load. Over time, the bearing can degrade, leading to operational issues and increased noise.

Symptoms of a bad Ball Bearing include:

• Loud, unusual noises during the spin cycle
•  The drum not rotating smoothly
• Excessive vibration or shaking
• Leaking from the drum area

This OEM LG part is also compatible with select Sears/Kenmore models.

The Motor Rotor Bolt is an OEM part for LG washing machines. It secures the rotor to the motor shaft, playing a crucial role in the efficient functioning of the motor and ensuring the washer drum spins correctly during wash cycles.

Causes of a bad motor rotor bolt can include wear and tear from prolonged use, corrosion due to exposure to moisture, or damage from over-tightening or accidental impacts. A faulty motor rotor bolt can compromise the stability of the motor, leading to various operational issues.

Symptoms of a bad motor rotor bolt include:

• The washer drum not spinning or spinning irregularly
• Unusual noises during operation, such as banging or clunking
• The washer failing to complete cycles or stopping mid-cycle
• Visible wear or damage to the bolt or surrounding components

This OEM LG part is also compatible with Sears/Kenmore models.

The Thermistor Assembly is an OEM component specifically designed for front loading LG washing machines. It plays an important role in monitoring and regulating temperatures during heated wash cycles. The thermistor detects temperature changes within the wash drum and sends this information to the control board to ensure clothes are washed at the optimal temperature.

Causes of a bad thermistor assembly can include general wear and tear over time, exposure to extreme temperatures, or damage due to impact or mishandling during cycles.

Symptoms of a bad thermistor assembly include:

• Inability to reach or maintain set temperatures
• Fluctuating water temperatures
• Error codes related to temperature sensing

This OEM LG part is also compatible with Sears/Kenmore washers.

This thermistor seal is the grommet that seals the temperature sensor where it passes through the washing machine's outer tub. Replacing a worn seal restores a watertight fit and helps prevent leaks that can damage surrounding components. What it does

• Forms a watertight barrier around the tub temperature sensor (thermistor)
• Helps keep the sensor securely positioned in the mounting port
• Common failure symptoms: water leaking during cycles, puddles under the unit, visible cracking/hardening of the grommet, or a loose sensor fit

• 1 thermistor seal

• Disconnect power and water; drain any remaining water from the tub
• Access the thermistor on the outer tub, disconnect its harness, and remove the sensor
• Pull out the old seal, clean the opening, press in the new seal, and reinstall the sensor fully seated
• Run a brief test cycle and check for leaks before final reassembly

The Drain Pump and Motor is an original LG (OEM) replacement part for LG made washing machines that is responsible for removing water from the washer at the end of the wash cycle. The pump forces water out through the drain hose so that clothing comes out free of excess water, making the drying process faster.

Symptoms of a failing Drain Pump Motor include:

• Water not draining out of the washing machine
• Noisy or unusual sounds coming from the pump area during the drain cycle
• The washing machine stopping mid-cycle

Causes of a bad Drain Pump Motor can range from obstructions in the pump or hose, which can strain or damage the motor, to wear and tear from regular use leading to motor failure. Electrical issues can also affect the motor's performance, preventing it from operating correctly.

This OEM LG part can also be used on Kenmore/Sears appliances.

This hose connector joins washer plumbing lines to the appliance so water flows securely where it should. It replaces a worn or damaged connector to help stop leaks and restore proper water routing. What it does:

• Connects a washer hose to the appliance plumbing to maintain a watertight path
• Helps prevent leaks caused by cracked or split connectors
• Restores reliable water flow when a failed connector is the source of drips or poor sealing
• Works with existing hose clamps and fittings when in good condition

• Disconnect power and shut off the water supply before servicing
• Drain residual water from hoses to avoid spills during replacement
• Inspect hose ends and clamps; replace clamps if corroded or damaged

This stator assembly is the stationary motor coil that produces the magnetic field to drive the washer motor. Replaces a worn or damaged stator to restore magnetic coupling between the motor and rotor for normal drum movement. What it does:

• Generates the magnetic field the rotor uses to spin the drum
• Restores normal spin and agitation when a failed stator causes no-spin, weak spin, or humming
• Works with the washer's rotor/drive components as part of the motor assembly
• Handles the electrical and magnetic interface; must match motor/rotor configuration

• One stator assembly

• Disconnect power and water before servicing; use proper lockout procedures
• May require removal of the motor/rotor and housing to access the stator
• Inspect rotor magnets, bearings, and wiring for related damage while replacing

This rotor position sensor (Hall sensor) tracks the direct-drive motor's rotor position and speed so the control can commutate the washer motor accurately. Replacing a failed sensor can restore proper wash/agitate and spin performance. What it does:

• Detects rotor position and speed from the stator assembly
• Sends timing feedback to the control for correct motor start, direction, and speed
• Supports smooth agitation and spin ramp-up/ramp-down
• Failure may cause: no spin or agitation, cycle stalling/pausing, or an LE motor error code

• 1 rotor position sensor assembly

• Unplug the washer and shut off water; wear protective gloves
• Access the motor at the rear of the tub; remove the back panel if needed
• Remove the rotor and stator; support the stator to protect wiring, then unclip/unscrew and replace the sensor
• Align the sensor correctly and seat the connector fully before reassembly and testing

The Suspension Spring Holder is an OEM part for LG washing machines. This holder supports the suspension springs that help stabilize the washer drum during operation, reducing vibration and movement. It plays a critical role in ensuring smooth and quiet operation of the washing machine.

Over time, the suspension spring holder can become worn or damaged due to regular use, heavy loads, or accidental impacts. Causes of a bad suspension spring holder include wear and tear, physical damage, or corrosion from moisture exposure.

Symptoms of a bad suspension spring holder include:

• Excessive vibration or shaking during wash cycles
• Unusual noises, such as banging or clunking
• The washer drum appearing misaligned or sagging
• The washing machine moving or walking during operation

This OEM LG part is also compatible with Sears/Kenmore.

This replacement clamp secures flexible hoses and tubing to fittings to help prevent leaks and keep connections stable. It's a small but essential part for reliable water and drain line performance. What it does:

• Holds hoses or tubes firmly to barbs, fittings, or posts to prevent disconnection
• Helps reduce leaks and water seepage at hose connections
• Minimizes rattling or vibration from loose tubing
• Supports proper routing of lines to avoid kinks or wear

• Disconnect power and water supply before starting any repair
• Use appropriate hand tools (pliers or a screwdriver, depending on clamp type) and avoid over-tightening
• Inspect nearby hoses and fittings for wear and replace if damaged
