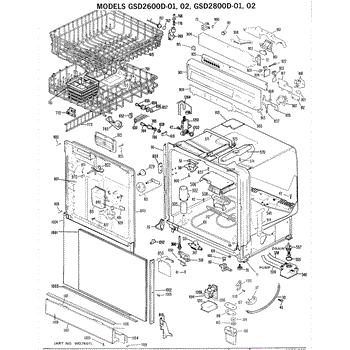

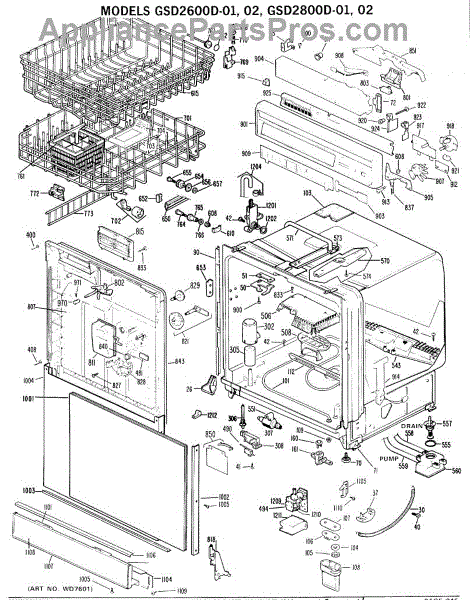

Parts for Ge GSD2800D-01: 01 - Section1 Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Tub Corner Baffle is an OEM part for GE dishwashers. It is strategically placed at the corners of the dishwasher tub to prevent water from leaking out during operation.  For the left side use WD8X228. Color: Black.

Symptoms of a bad Tub Corner Baffle include:

• Water leaking from the corners of the dishwasher door.
• Pools of water forming near the dishwasher after operation.
• Decreased cleaning performance due to water escaping the wash cycle area.

Causes of a bad tub corner baffle can include wear and tear from regular use, improper installation leading to gaps or looseness, and degradation of the material over time due to exposure to detergents and high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Tub Corner Baffle is an OEM part for GE dishwashers. This rubber component is placed in the corners of the dishwasher tub to prevent water from leaking out during the wash cycle. It acts as a barrier, directing water back into the tub and ensuring efficient operation. This is the left side. For the right side, use WD8X227.

Causes of a bad part can include prolonged exposure to detergents and hot water, leading to material breakdown, or physical damage from loading and unloading dishes.

Symptoms of a bad Tub Corner Baffle include:

• Visible signs of wear or damage
• Water leakage from the corners of the dishwasher door
• Unusual noises during operation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Whirlpool screw is an OEM replacement part responsible for securely fastening various components and parts within Whirlpool appliances. These screws are essential for maintaining the structural integrity and safe operation of the appliance. These screws hold together critical components like panels, brackets, handles, and internal parts.

This part fixes the following symptoms:

• Loose or wobbly handles on refrigerators, ovens, or other appliances
• Vibrations or rattling noises during appliance operation
• Inability to assemble or disassemble parts during appliance repair or maintenance

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement mounting nut that secures components to their mating studs or shafts, restoring proper fit and preventing looseness that can cause noise or misalignment. Use it to replace a worn, stripped, or missing nut. What it does:

• Fastens parts to studs or shafts to keep assemblies secure and aligned.
• Prevents wobbling, rattling, and reduced performance caused by a loose or missing nut.
• Restores reliable mechanical connection after thread damage or corrosion.
• Works where a standard hex-style fastening nut is required by the OEM design.

• One replacement mounting nut.

• Disconnect power and unplug the appliance before beginning work.
• Verify correct stud engagement and thread direction before tightening.
• Use the proper-sized wrench and tighten to the manufacturer's recommended torque; avoid over-tightening to prevent thread damage.
• If threads are damaged, replace the mating stud or use an approved repair kit—do not force a nut onto stripped threads.

This is a stainless steel hex washer-head screw used to fasten and secure components. Its integrated washer head provides a broad bearing surface for a tight, durable hold in appliance assemblies.

• Secures panels, brackets, and hardware to prevent looseness and vibration
• Restores proper fastening when originals are stripped, missing, or corroded
• Stainless construction helps resist rust in moisture-prone areas
• Common symptoms of a needed replacement include rattling, loose panels, or missing hardware

• Disconnect power and, if applicable, shut off water before servicing
• Use the correct nut driver or socket for the hex head to avoid stripping
• Replace any damaged or missing fasteners in matched pairs or sets for even clamping
• Do not overtighten; snug to manufacturer torque guidance when available

This float dome positions and protects the float inside the tub so the appliance can sense water level correctly. Replacing a cracked or missing float dome helps restore reliable fill control and reduces overfill or erratic fill symptoms. What it does

• Houses and guides the float so the fill sensor detects water level accurately.
• Prevents the float from sticking or catching on the tub, which can cause overfilling.
• Helps stop intermittent or continuous fill problems caused by a broken or displaced float.
• Keeps debris away from the float area to reduce false water-level readings.

• Disconnect power and water supply before accessing the tub or removing panels.
• Remove the lower access panel or kickplate to reach the float area; handle plastic parts gently to avoid cracking.
• Inspect surrounding seals and the float itself; replace any damaged components for reliable operation.
• After installation, restore power and run a short fill/drain cycle to verify correct float movement and water-level control.

This dishwasher float rises with the water level to engage the float switch. It regulates filling and helps prevent overflows, protecting your kitchen from leaks and keeping wash cycles running properly. What it does:

• Rises with the tub's water level and actuates the float switch
• Signals the inlet valve to stop water flow at the correct level
• A stuck, worn, or broken float may cause overfilling or no-fill conditions
• Symptoms can include leaking from overfill or no water entering during fill

• 1 float

• Disconnect power and turn off the water supply before servicing
• Open the door; remove the lower rack for access
• Lift off any float cap/retainer, pull the old float straight up, and seat the new float
• Ensure the float moves freely; restore power/water and run a brief fill test

This float stem is part of the dishwasher's water-level/overfill system. It guides the tub float and actuates the float switch so the unit fills correctly and shuts off on time. Replace a worn or broken stem to restore reliable fill protection.

• Connects the float to the switch mechanism beneath the tub
• Provides smooth vertical travel of the float through the opening
• Triggers the float switch to stop filling at the proper level
• Causes symptoms such as no fill, continuous filling/overfilling, a stuck or wobbly float, or intermittent fill issues

• Disconnect power at the breaker and shut off the water supply before servicing
• Remove the lower rack; lift off the float cap from inside the tub
• On some models, release the retainer/clip from beneath the tub; pull out the old stem
• Guide the new stem through the opening and ensure it engages the float switch lever; confirm the float moves freely and actuates the switch before restoring power

Replacement bracket that secures the flood/leak detection switch inside the appliance, keeping the switch positioned to sense unwanted water and help the leak-detection system work as intended. What it does:

• Holds the flood/leak switch in the correct position so it can detect water accumulation.
• Ensures consistent switch activation when water pools under the cabinet or base pan.
• Common repair when you find water under the appliance, persistent leaks, or when leak detection isn't responding.
• Simple, passive mounting part—no electrical function.

• Disconnect power and shut off the water supply before accessing the appliance.
• Remove the appropriate access panels to reach the bracket location; note orientation of the switch before removing.
• Reinstall bracket using the original fasteners or equivalent screws; keep parts organized during disassembly.
• Restore power/water and test the appliance for proper leak-detection operation after reassembly.

Package of 12

Size: 8-32 x 5/8 inch.

This float switch detects rising water in the refrigerator drain pan or lower cabinet area and signals the appliance control to help prevent overflow and water damage. Use it to replace a failed or intermittent water-level sensor. What it does:

• Senses high water level in the drain pan or collection area and closes the circuit to alert the control.
• Helps identify causes of leaks and pooling under or behind the appliance.
• Commonly used when symptoms include water on the floor, drip pan overflow, or water-related error/alert conditions.
• Matches OEM function for refrigeration units that include a float-based water-detection circuit.

• Disconnect power to the appliance before starting any repairs; shut off the water supply if working near water lines.
• Access may require removing lower kick plate or back panel; handle plastic clips and fasteners carefully.
• Disconnect electrical connector gently and note orientation before installing the replacement; secure wiring and verify float moves freely.
• Restore power and run a short test cycle or simulate water level to ensure proper operation.

This sump cover sits over the dishwasher's pump inlet, acting as a protective guard. It helps keep debris out of the pump, maintains proper water circulation, and protects internal components for consistent cleaning performance. What it does:

• Covers the pump/sump intake to screen larger food particles
• Helps prevent debris from entering the wash pump
• Aids proper water flow to support spray pressure and cleaning
• Common symptoms of a failed cover include poor cleaning, unusual pump noise, and visible damage or warping

• 1 sump cover

• Disconnect power and water supply before servicing; allow the unit to cool
• Remove the lower rack and spray arm or access parts as needed to reach the sump
• Release retaining screws or tabs; note the cover's orientation for reassembly
• Seat the new cover fully and secure it; hand-spin the spray arm and run a short test cycle to check operation

This sump cap seals the sump opening at the bottom of the dishwasher tub to contain wash water and protect the pump. Replace a cracked, loose, or missing cap to help prevent leaks and maintain proper wash performance. What it does:

• Seals the sump opening to keep water inside the tub and direct flow to the pump
• Helps keep debris out of the pump intake
• Restores a secure fit when the original cap is cracked, stripped, or warped
• Common symptoms: water leaking from the base, moisture under the dishwasher, visible damage, or a missing cap

• Disconnect power and turn off the water supply.
• Remove the lower rack and, if needed, the lower spray arm to access the sump.
• Remove the old cap and clean the sealing area; install the new cap and hand-tighten until snug—do not overtighten.
• Run a short cycle and check for leaks around the sump.

The Piston & Nut Assembly is an OEM part for GE dishwashers. It plays a critical role in the dishwasher’s water management system, helping to control water flow and ensuring proper drainage during the wash cycle.

You should replace this piston & nut assembly if it becomes worn out or damaged. Causes of a bad piston & nut assembly can include mineral buildup from hard water, general wear and tear from regular use, or physical damage due to debris or foreign objects in the dishwasher.

Symptoms of a bad piston & nut assembly include:

• Water not draining properly from the dishwasher
• Puddles of water at the bottom of the dishwasher after a cycle
• Unusual noises during the drain cycle
• Incomplete cleaning of dishes due to improper water flow

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 3rd level spray arm assembly restores targeted wash action from the top of the tub, improving coverage to the upper rack. Replace it if jets are clogged, the arm is damaged, or upper-rack cleaning performance has declined.

• Directs wash water from above to reach items on the upper rack and hard-to-hit areas
• Helps ensure even spray coverage when functioning properly
• Common symptoms of failure: upper-rack dishes still dirty, weak spray from the ceiling area, visible cracks or mineral buildup, rattling during cycles
• Restores intended water distribution for consistent cleaning results

• Disconnect power and turn off the water supply before servicing
• Open the door; remove the upper rack if needed for access
• Release the mounting clip/retainer or screw, remove the old assembly, and seat the new one until fully secured
• Ensure proper clearance/orientation; run a short test cycle to confirm spray and operation

The Upper Rack is an OEM replacement part for GE dishwashers. It provides movable shelf space along the top of the dishwasher interior for washing plates, bowls, and other dishes. The shelves feature an adjustable design that accommodates various sizes and configurations of dishware.

Causes of failure include normal wear and tear, accidental impacts that damage shelves or cleaning chemicals stripping away protective coatings.

Symptoms of a bad upper rack can include:

• broken mounting clips
• shelves jammed in misaligned positions
• drawers that don't glide smoothly
• Over time, repeated usage and cleaning chemicals can degrade rack components.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rack Slide End Cap is an OEM replacement part for GE dishwashers. This small but essential component is designed to secure the end of the rack slide rail, preventing the dish racks from sliding off the track or becoming misaligned.

Symptoms of needing to replace a rack slide end cap include:

• Dish racks sliding off the track or becoming dislodged
• Difficulty in smoothly sliding the racks in and out
• Visible wear, cracks, or damage to the end cap itself

Causes of a faulty rack slide end cap can include normal wear and tear over time, exposure to heat or moisture, or physical damage due to impact or mishandling.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore dishwasher models.

Includes rollers.

The Lower Dishrack Roller is an OEM part for GE dishwashers. Good rollers allow the dishrack to slide in and out of the dishwasher smoothly. These rollers attach to the dishrack, providing mobility and convenience when loading or unloading dishes. Note: This kit includes one roller and one axle.

Causes of damage to the dishrack rollers often involve overloading the dishrack with heavy dishes, which can put excessive stress on the rollers, or normal wear and tear from repeated use.

Symptoms of a bad Lower Dishrack Roller Kit include:

• The lower dishrack sticking or struggling to slide in and out.
• Visible damage or wear on the rollers, such as cracks or flat spots.
• The dishrack sitting unevenly in the dishwasher, potentially due to missing rollers.
• Noise when moving the dishrack, indicating worn or damaged rollers.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lower Dishrack Roller Kit is an OEM part for GE dishwashers. This kit includes 8 wheels and 8 axles. It allows it to glide smoothly in and out of the dishwasher. Proper functioning of these rollers is crucial for the easy loading and unloading of dishes, ensuring that the dishrack moves efficiently along its tracks.

You should replace the lower dishrack roller kit if the rollers become worn out or damaged. Common causes of roller issues include wear and tear from frequent use, accumulation of debris, or breakage due to heavy loads or accidental impact.

Symptoms of a bad lower dishrack roller kit include:

• Difficulty sliding the lower dishrack in and out
• The dishrack derailing or not staying on its tracks
• Unusual noises when moving the dishrack
• Visible damage or wear to the rollers

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Silverware Basket with Handle is an OEM part for GE dishwashers. It is designed to securely hold silverware and utensils during the washing cycle, ensuring they are effectively cleaned without damaging the dishwasher or other dishes. This basket features a handle, making it easy to remove and carry when loading or unloading cutlery. The silverware basket measures 8.5 inches in depth, 8.75 inches in height, and 7 inches in width.

Symptoms of a bad Silverware Basket include:

• Cracks or holes that allow silverware to slip out or get stuck,
• The handle breaking or detaching from the basket,
• Wear or damage that prevents the basket from fitting properly in its designated slot.

Causes of silverware basket damage often involve frequent use, exposure to intense heat and strong detergents, or overloading of the basket, which stresses the material.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Upper Rack is an OEM replacement part for GE dishwashers. It provides movable shelf space along the top of the dishwasher interior for washing plates, bowls, and other dishes. The shelves feature an adjustable design that accommodates various sizes and configurations of dishware.

Causes of failure include normal wear and tear, accidental impacts that damage shelves or cleaning chemicals stripping away protective coatings.

Symptoms of a bad upper rack can include:

• broken mounting clips
• shelves jammed in misaligned positions
• drawers that don't glide smoothly
• Over time, repeated usage and cleaning chemicals can degrade rack components.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rinse aid tank is the reservoir inside the dishwasher dispenser that holds liquid rinse agent and releases it during the final rinse. Replacing a damaged tank helps restore proper dispensing, reduce spotting, and prevent leaks at the dispenser.

• Stores rinse aid within the dispenser assembly
• Works with the dispenser to release a measured dose during the rinse cycle
• Failure signs: rinse aid not dispensing, dishes with spots/poor drying, rinse aid level dropping rapidly, or leaks near the dispenser area
• Visible cracks or damage to the reservoir indicate replacement is needed

• Disconnect power at the breaker and shut off water before servicing
• Remove the inner door panel to access the dispenser
• Transfer any reusable seals or clips from the original tank; seat and secure the tank per service instructions
• Reassemble, refill the reservoir with rinse aid, and run a test cycle to check for leaks

This replacement door vent directs humid air out of the dishwasher during the dry cycle. Restoring a damaged or missing vent helps maintain proper airflow and reduce unwanted moisture around the door area. What it does:

• Vents steam from the tub to help manage moisture during drying
• Routes airflow away from the door and control area
• Helps limit condensation and odor buildup inside the door
• Common signs of failure: visible cracks or broken louvers, steam/moisture escaping at the door top, water spots near the vent, or a loose/rattling vent

• 1 door vent

• Disconnect power at the breaker before servicing
• Open the door; remove screws or release tabs to remove the old vent (varies by model)
• Note orientation, seat the new vent fully, and secure without overtightening
• Reassemble and run a short cycle to check for proper sealing and airflow

Size: 10-12 x 1/2 inch.

The Fill Cap Assembly is an OEM part for GE dishwashers. This assembly includes the cap that covers the opening where rinse aid or other additives are poured into the dishwasher. It ensures that the additives are securely contained and properly dispensed during the wash cycles, contributing to effective cleaning and drying.

Over time, the fill cap assembly can become damaged due to regular use, exposure to cleaning agents, or accidental mishandling. A compromised fill cap can lead to leaks or improper dispensing of rinse aid, affecting the dishwasher's performance.

Symptoms of a bad fill cap assembly include:

• Rinse aid or additives leaking from the dispenser
• The cap not securing properly or coming off easily
• Improper dispensing of rinse aid
• Visible cracks or damage to the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-16 x 2 inch ss.

The Door Gasket is an OEM part for GE dishwashers. It forms a seal between the dishwasher door and tub which is critical for proper operation. The gasket ensures excess water and moisture do not leak from the dishwasher during active wash and rinse cycles. It also helps keep noise levels low by providing sound insulation. This gasket measures 3/8 x 89 inches.

Common causes of a bad door gasket include regular wear and tear, exposure to high temperatures and detergents, or physical damage. These factors can cause the gasket to lose its flexibility and sealing capability.

Symptoms of a bad Door Gasket include:

• Water leaking from the dishwasher door
• Visible cracks, tears, or deformation in the gasket
• The door not closing properly or securely
• Increased moisture around the dishwasher during or after cycles

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued and is no longer available.

This molded switch insulator protects and positions a control switch by keeping wiring and terminals electrically isolated from the appliance cabinet. It helps restore proper switch fit and prevents shorting or chafing of switch wiring. What it does:

• Keeps switch terminals and wiring insulated from metal chassis to prevent electrical contact
• Holds the switch securely in its mounting location for reliable operation
• Helps stop arcing, burning marks, or intermittent switch function caused by a damaged insulator
• Restores correct clearance between the switch and surrounding components

• One switch insulator

• Disconnect power to the appliance before starting any repair
• Typically presses or clips into place around the switch housing; no wiring changes required
• Inspect switch and wiring for damage while replacing the insulator; replace any damaged components

Color: Chrome

Includes 12 screws.

Reversible panel - black on one side, almond on the other.

Reversible panel - white on one side, almond on the other.

Specs: 10 - 32 t hex 7/16 s

The Dishwasher Water Inlet Valve is an OEM part for GE dishwashers. It controls the flow of water into the dishwasher during each cycle phase. The valve regulates water pressure and volume to provide the right amount for washing, rinsing, and adjusts flow based on cycle settings.

Causes of a bad water inlet valve include mineral buildup from water hardness inhibiting movement or damage allowing leaks.

Symptoms of a bad inlet valve are:

• Incomplete or inadequate washing
• Long cycle times or shutting off prematurely
• Water leaking or spraying inside machine

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-16 ab.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
