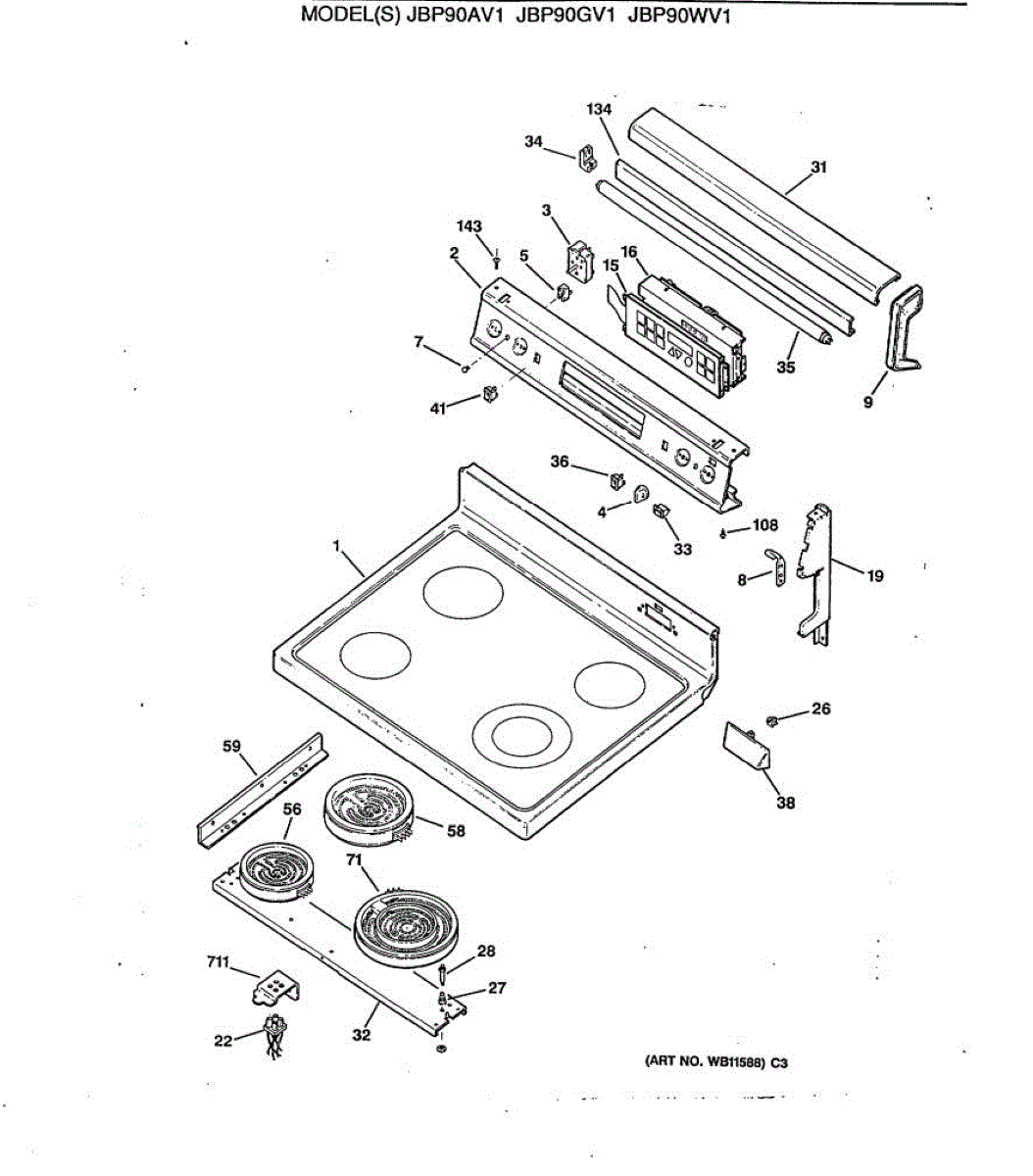

Parts for Ge JBP90AV1: 01 - Section1 Parts

This part has been discontinued and is no longer available.

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right side endcap in almond finish for range. Replaces cracked, broken, or missing trim pieces on the side of your range control panel or cooktop edge.

This part is no longer available.

Mounting spring that secures the heating element in electric ranges and cooktops. Replace if spring is stretched, broken, or missing to properly hold heater.

This support for a radiant heater secures the heating element under the cooktop so it stays correctly positioned for safe, even cooking. Replaces worn or broken supports that allow element movement. What it does:

• Holds the radiant/heating element steady and aligned under the cooktop
• Prevents element sagging or shifting that can cause uneven heating
• Reduces stress on element terminals and wiring by keeping the element supported
• Helps eliminate clicking, rubbing, or rubbing noises from a loose element

• Disconnect power to the appliance before beginning any service
• Handle radiant elements and ceramic/glass cooktops carefully to avoid breakage
• Use basic hand tools; do not force parts or overtighten fasteners

Color: Almond

The Medium Haliant Element is an OEM part for GE cooktops. This radiant heating element is located beneath the ceramic cooktop surface and provides a medium-sized heating area for cooking various dishes. This element measures 6 Inches.

Causes of a bad haliant element can include electrical issues such as short circuits, wear and tear from regular use, or physical damage from impacts or overheating.

Symptoms of a bad medium haliant element include:

• The element not heating up or only heating partially
• Inconsistent or uneven heating
• The cooktop displaying error codes related to the heating element
• Visible damage or discoloration on the element

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Large Haliant Element is an OEM replacement part for GE ranges/cooktops. This haliant burner element is 8 inches in diameter. The element lies underneath the stovetop and will need to be replaced if it stops heating. 8-inch 2100 watt. Includes limiter

Causes of a bad halogen element can include cracked or damaged ceramic material, broken support coils, or malfunctioning heating coils.

Symptoms of a bad halogen element include:

• Element not heating up properly or unexpectedly shutting off
• Burned-out coils or melting/warping of the protective, reflective dish

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

The Radiant Element is an OEM part for GE ranges and cooktops. This part provides efficient and even heating for cooking. This part uses electricity to heat up and transfer warmth directly to the cookware. The radiant element is encased under the glass surface of the cooktop, offering a sleek and easy-to-clean cooking area while ensuring optimal heat distribution and cooking performance.

Causes of failure might include a burnt-out heating coil, damage to the element's electrical connections, or a malfunction within the control system that regulates power to the element.

Symptoms of a bad Radiant Element include:

• The element not heating up, leading to insufficient cooking temperatures.
• Uneven heating, causing inconsistent cooking results.
• The cooktop surface not responding or only partially heating, indicating a possible failure in the element's circuit.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement mounting screw for electric ranges and wall ovens. Secures components and panels. Order a new screw if yours is stripped, missing, or damaged.

Secures wiring harness to prevent rubbing and loose connections. Replace if worn or broken to restore proper wire routing. Confirm fit with your model.

Mounting screw secures panels, trim, and brackets inside your oven. Replace if lost, stripped, or damaged during service to keep components aligned.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

The range latch screw is a small fastener used to secure the door latch mechanism or latch strike plate firmly to the range frame. It keeps the latch components from shifting or loosening over time with repeated use. Replace this screw when the original is stripped, missing, or corroded, causing the latch assembly to feel loose or the oven door to not close securely.

Black. 8-18 AB HXW 3/8

Replacement washer for ranges and ovens. Used to secure components and provide even fastening. Replace if cracked, worn, or missing during repairs.

Replace your dull, broken, or missing cooktop scraper blade. This cleaning tool blade removes baked-on food and residue from glass cooktop surfaces.

This male/female electrical terminal connects appliance wiring harnesses to components, restoring a secure, conductive connection for safe operation. Use when a bent, corroded, or loose terminal causes intermittent power or loss of function. What it does:

• Provides a stable male-to-female connection for wiring and component terminals
• Restores proper electrical contact to stop intermittent power, arcing, or poor connection
• Replaces damaged, corroded, or bent terminal ends to improve safety and reliability
• Works where a direct spade/quick-disconnect style mating is required

• One male/female terminal assembly

• Always disconnect power to the appliance before inspecting or replacing electrical parts
• Use proper crimping or fastening tools; avoid exposed wire or loose connections

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.

Specially formulated cleaner for ceramic glass and smooth cooktops. Removes cooked-on food, grease, and spills without scratching. Verify fit by model.
