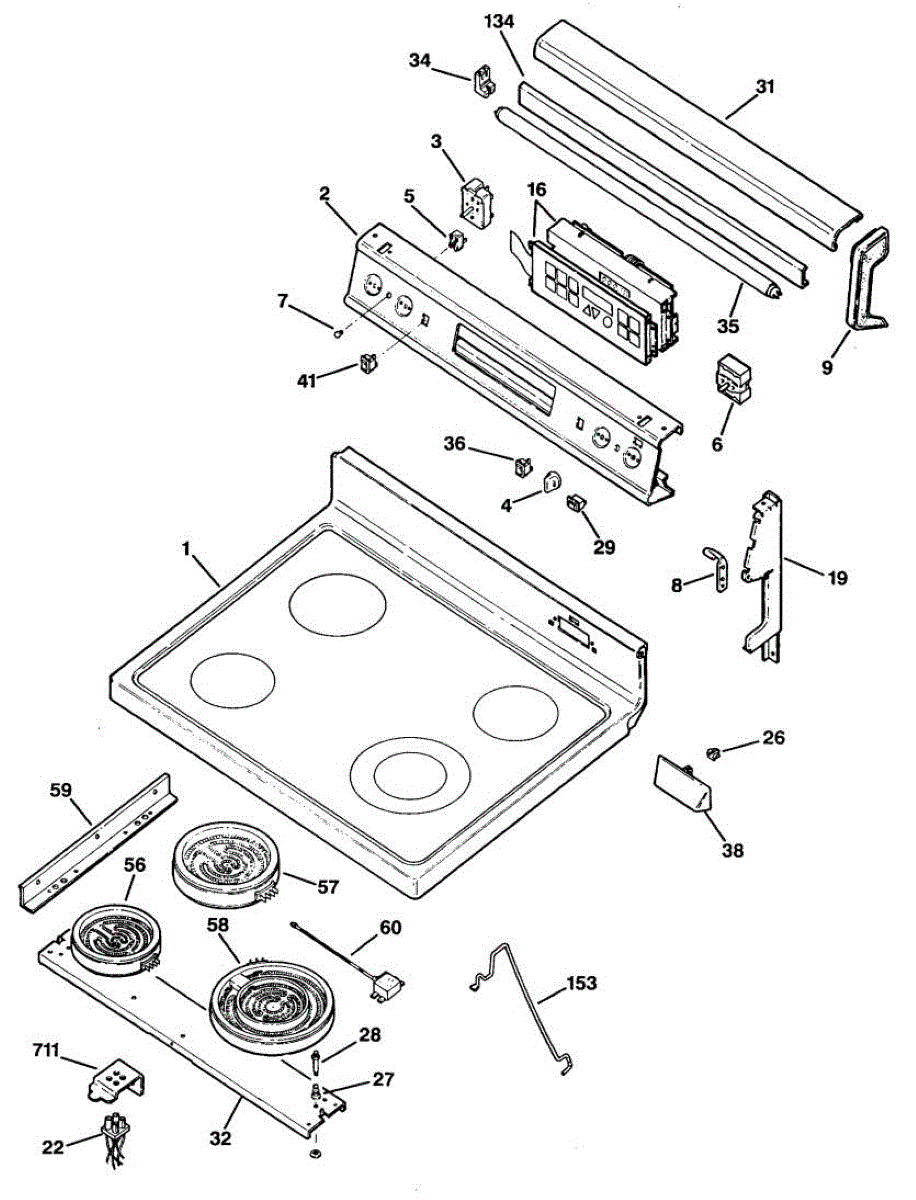

Parts for Ge JBP90WS1: 01 - Section1 Parts

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White. Mounting screw for end caps.

Restore reliable on/off control of your cooking surface. This surface element rocker switch features a white actuator and replaces a worn, loose, or heat-damaged switch that can cause no heat, stuck-on, or intermittent operation.

• Switches power to a surface element when toggled on; disconnects power when off
• Installs in the control panel; white rocker matches white control finishes
• Common symptoms: element won't turn on or won't turn off; intermittent heating; arcing/discoloration; loose or broken rocker
• Helps restore safe, consistent element control

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the control panel area; photograph wiring and transfer wires to the new switch one at a time
• Secure the switch in the panel, reassemble, and restore power
• Match each wire position to the same terminal layout

This support for a radiant heater secures the heating element under the cooktop so it stays correctly positioned for safe, even cooking. Replaces worn or broken supports that allow element movement. What it does:

• Holds the radiant/heating element steady and aligned under the cooktop
• Prevents element sagging or shifting that can cause uneven heating
• Reduces stress on element terminals and wiring by keeping the element supported
• Helps eliminate clicking, rubbing, or rubbing noises from a loose element

• Disconnect power to the appliance before beginning any service
• Handle radiant elements and ceramic/glass cooktops carefully to avoid breakage
• Use basic hand tools; do not force parts or overtighten fasteners

This part has been discontinued and is no longer available.

Color: White

This 9-inch dual radiant surface element kit replaces a failed burner on a smooth-top electric range or cooktop, restoring dependable, even heating and letting you choose a smaller or larger heating area to match your cookware.

• Provides two selectable heating zones (inner and outer rings) to match pot size
• Heats cookware evenly across the chosen zone on glass-ceramic cooktops
• Typical symptoms include no heat, only one ring working, slow or uneven heating, or intermittent operation
• Restores burner performance after internal failure of the element assembly

• Disconnect power at the circuit breaker before servicing; 240V shock risk
• Allow the cooktop to cool completely; protect the glass surface while working
• Photograph wiring and transfer leads one at a time to matching terminals on the new element
• Ensure the element seats correctly in its support brackets; test both inner and outer rings before final reassembly

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.
