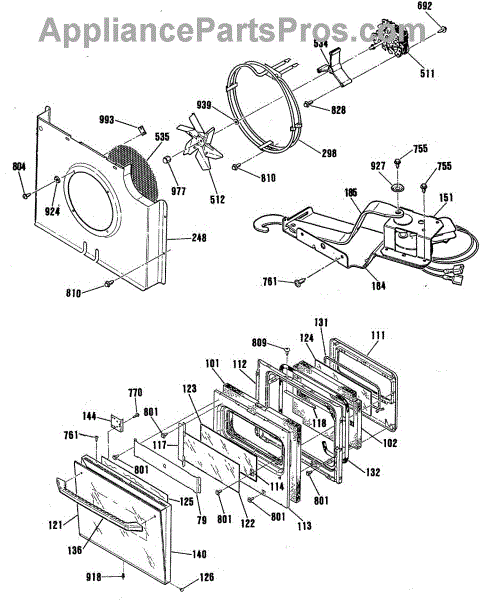

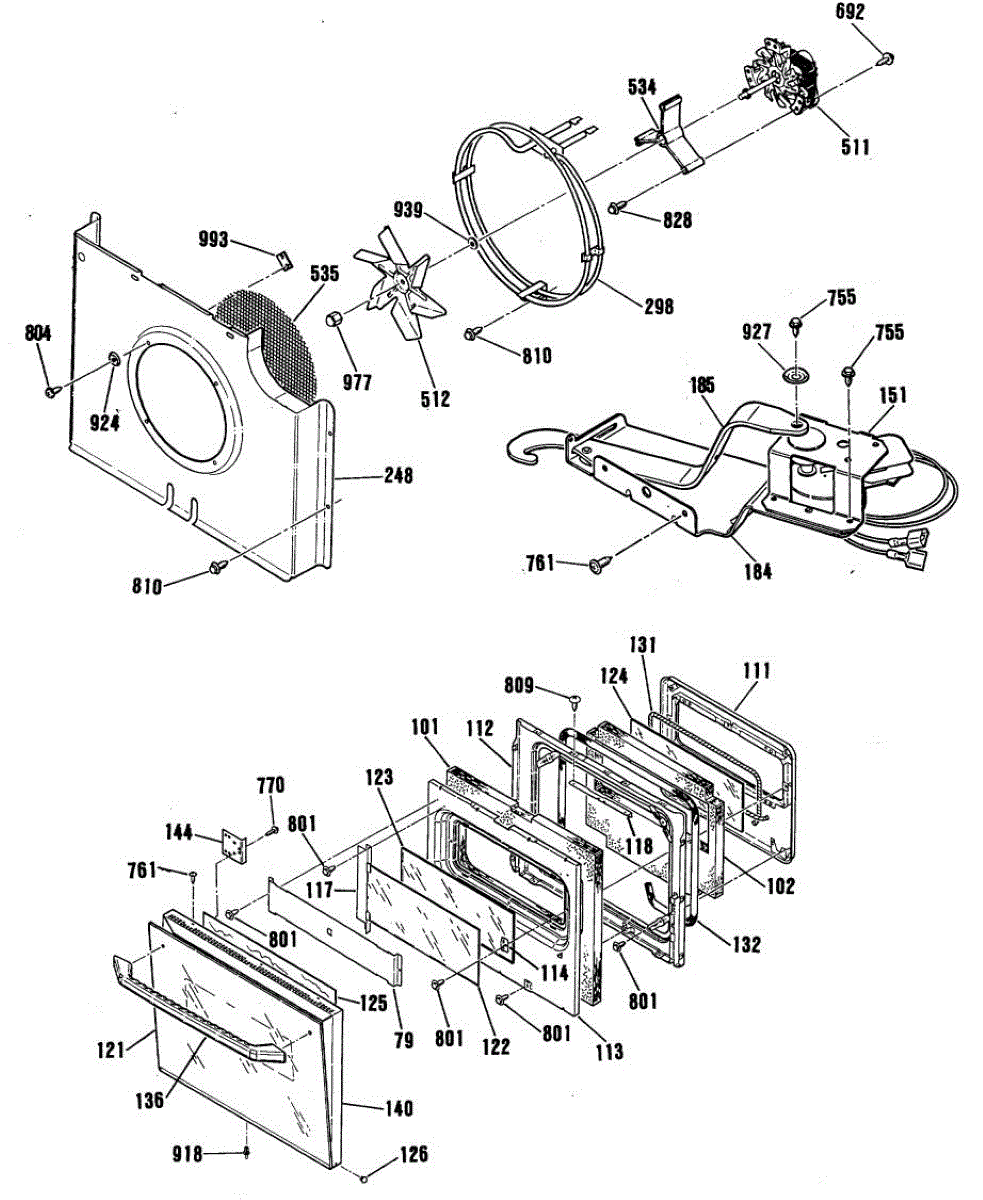

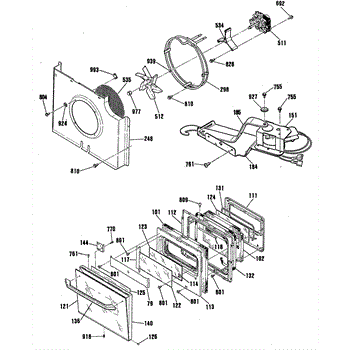

Parts for Ge JKP54GT2BB: 01 - Section1 Parts

Replaces worn, damaged, or missing insulation inside your oven door. Installs between inner and outer door panels to maintain heat efficiency.

Inner door panel lining for ovens and ranges. Replaces cracked, warped, or damaged interior door trim. Restores door appearance and structure.

Retainer secures glass panel in oven door. Replace if cracked, broken, or missing to properly hold door glass in place and restore door integrity.

Structural support plate that reinforces the oven door lining. Replace if bent, cracked, or causing door misalignment. Installs inside door cavity.

Intermediate glass panel for oven doors. Installs between inner and outer door glass. Replace if cracked, shattered, or broken to restore appearance.

Seals and cushions the inner glass pane inside your oven door to contain heat and prevent rattling. Replace when cracked or flattened. Confirm fit.

Seals the oven door to retain heat and maintain even temperatures. Replace when torn, worn, or heat escapes. Confirm fit with your model number.

Replacement door frame trim for ovens and ranges. Installs around the door perimeter to provide a finished look. Replace if cracked, rusted, or missing.

Oven door won't lock for self-clean cycle? This door latch assembly secures the door during cleaning and reports lock status. Moderate DIY repair.

Oven door won't close or latch stuck after self-clean cycle? This door lock plate secures the latch mechanism. Common DIY fix for stuck oven doors.

Replaces the latch arm that engages your oven door lock mechanism during self-clean cycles. Order a new lock lever if yours is broken or worn.

Fix a convection fan that won't turn or hums but doesn't spin. This motor restores proper convection cooking. Moderate DIY repair with basic tools.

Oven convection fan not working or making noise? This shaft-mount fan blade restores proper airflow and cooling. Easy DIY repair in under an hour.

Replace your oven's cavity support plate if the original is cracked, broken, or missing. This structural component installs inside the oven to support the cavity.

Stainless steel convection screen for wall ovens. Installs inside the convection fan housing. Replace if cracked, damaged, or missing for proper airflow.

Replacement mounting screw for securing panels, trim, and internal brackets. Needed when original fasteners are missing, stripped, or damaged.

Replacement mounting screw for securing panels, brackets, and components inside your appliance. Needed when original screws are stripped or missing.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

Replacement mounting screw for ranges and ovens. Secures panels, brackets, and internal components. Order when original screw is missing, stripped, or lost.

ST10-16 X 7/16"

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

Plastic push-in rivet fastener secures trim and panels on electric ranges and ovens. Replace if broken, missing, or worn to prevent loose rattling parts.

Includes 12 washers.

This is a flat metal washer used to secure fasteners and maintain proper spacing on the appliance. It provides a simple, durable spacer that helps keep components aligned and fasteners snug for reliable performance. What it does:

• Acts as a spacer to maintain correct clearance between parts
• Distributes load from a fastener to prevent pull-through or damage
• Helps keep bolts and screws from loosening under vibration
• Can reduce noise or vibration caused by loose or misaligned components

• Disconnect power (and water if applicable) before beginning any repair.
• Use the correct fastener and orientation for reassembly; replace any damaged hardware.
• Tighten fasteners snugly but avoid over-torquing;
• If the appliance shows continued vibration, noise, or instability after replacing the washer, further inspection of mounting hardware and suspension components is recommended.

Replacement mounting nut secures components and panels inside your electric range or wall oven. Replaces stripped, lost, or damaged nuts causing loose parts.

This wire harness connects the oven door lock motor to the appliance wiring, restoring electrical continuity for reliable door latch operation. It's a direct-fit replacement that helps resolve intermittent or failed lock motor function. What it does:

• Routes power and signal between the control board and the door lock motor so the latch can engage and release.
• Commonly used when a door won't lock, unlock, or shows intermittent lock operation.
• Replaces damaged, frayed, or burned wiring that can interrupt lock motor function.
• Helps restore proper oven or range door locking during self-clean or cook cycles.

• One lock motor wire harness

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Inspect connector ends and routing; replace only if the harness matches the original and connectors seat fully.
• Some models require partial disassembly of the door or console to access the lock motor; follow the OEM service instructions.
