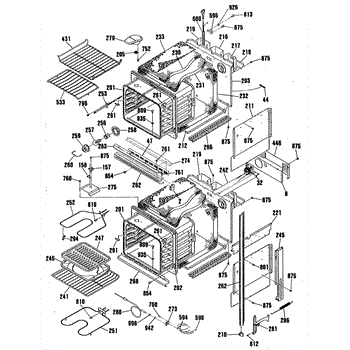

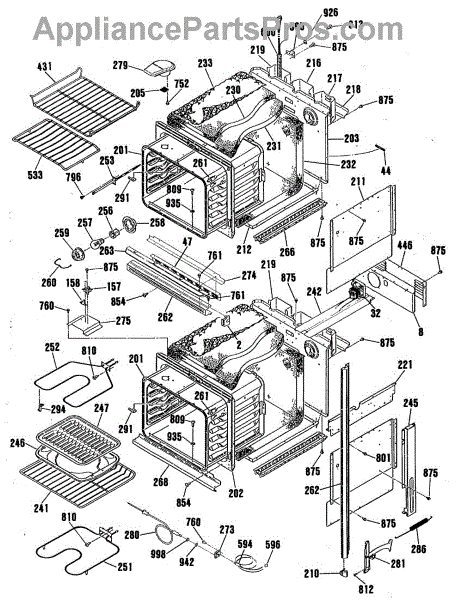

Parts for Ge JKP54GT2BB: 02 - Section2 Parts

Replace your cracked or missing oven door grommet strip. This seal strip installs along the door edge to provide cushioning and proper fit.

Oven won't heat or trips during self-clean? This limit switch cuts power when temperature exceeds safe limits. Simple plug-in installation in 30 minutes.

Oven won't heat after self-clean cycle? A faulty limit switch prevents operation when stuck open. Tests quickly with a multimeter for continuity.

This full oven cavity wrapper assembly replaces the metal liner that surrounds and supports the oven interior, restoring structural integrity and proper heat enclosure for baking and broiling. Fits as the oven's inner/outer cavity wrapper. What it does:

• Replaces a damaged, warped, or corroded oven cavity wrapper that can affect heat distribution and door alignment
• Restores the oven's sealed cooking cavity to help maintain even temperatures during use
• Provides the mounting surface for insulation and internal components that attach to the oven shell
• Helps prevent heat and grease from reaching external cabinet surfaces

• 1 oven wrapper cavity assembly

• Disconnect power (and gas if applicable) before starting any repair
• Handle the wrapper carefully — edges may be sharp and insulation may shift during removal
• Verify fastener locations and panel alignment during reassembly to ensure proper door fit and seal

Rear chassis panel for ovens. Supports internal components and protects wiring. Replace if your panel is cracked, corroded, damaged, or missing.

Smoke eliminator screen for wall ovens and ranges. Installs in the oven cavity to filter smoke. Replace if damaged, cracked, or missing.

This side cabinet is the outer refrigerator cabinet panel that restores the unit's exterior structure and appearance. It replaces a cracked, dented, or missing outer side panel to help protect internal components and improve cosmetic look. What it does

• Covers and protects the refrigerator's side area and internal components from damage and debris.
• Restores a smooth, finished exterior surface when the original panel is dented, cracked, or missing.
• Helps maintain proper airflow around sealed sections by keeping the cabinet enclosure intact.
• Common symptom: visible dents, cracks, holes, or loose/missing side panel affecting appearance and protection.

• One (1) side cabinet panel as pictured.

• Disconnect power and empty nearby shelves before beginning work.
• Removal/installation may require removing trim, doors, or adjacent panels—use proper tools and follow the service manual.
• Handle edges carefully; panels and sheet metal can be sharp.

Replacement bottom panel for oven cabinets. Restores structural integrity when original is damaged, rusted, or missing. Direct fit for select models.

Right hand side

Left hand side

Insulation panel that installs on the top and side of your oven cavity. Replace if cracked, compressed, missing, or damaged to restore heat retention.

Insulation panel that installs on the bottom or back of your oven cavity. Replace if cracked, torn, compressed, or missing to maintain proper heat retention.

Metal oven rack installs inside your oven cavity to hold cookware during baking and roasting. Replace if cracked, warped, rusted, or missing.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? The bake element generates heat at the bottom of your oven cavity. DIY-friendly repair, typically 30-40 minutes.

Broiler stopped heating or burned through? This top heating element replacement takes 10-30 minutes with basic tools. Disconnect power, remove brackets, and swap wires.

Fix oven not reaching set temperature or F2/F3 error codes. This temperature sensor monitors internal heat for accurate cooking. Easy DIY repair.

Heat-resistant socket that secures and powers your oven's interior light bulb. Replace if light fails or socket shows burn marks or bare wires. Verify fit.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Black decorative vent trim that covers the vent opening and restores a finished appearance. Replace if cracked, discolored, or missing to protect components.

This trim piece covers the exterior edges of your wall oven or range. Replace yours if it's cracked, broken, or missing to restore a finished look.

Rail base support plate for ovens and ranges. Mounts underneath oven racks to provide stable support. Replace if cracked, broken, or missing.

Oven meat probe not working or wire exposed? This thermistor monitors interior temperature for accurate cooking. Common DIY fix, installs in minutes.

Right hand side. For left hand use WB14K5007

Replace your oven's broken or worn door hinge with this left-hand side hinge. Fixes a sagging, misaligned, or damaged oven door that won't close properly.

Control panel overlay for electric and gas ranges. Replaces worn, faded, or damaged overlay labels. Adheres over existing control panel surface.

Secures the broiler element at the top of your oven for proper heat distribution. Replace if broken, missing, or failing to hold element in place.

Replacement roasting rack for ovens. Elevates roasts and pans above oven floor for better air circulation and even browning. Replaces broken or missing racks.

Replaces damaged or worn oven temperature probe receptacle housing. Installs in the oven cavity wall to secure the probe connection. Order when cracked or broken.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

Hex head mounting screw for ranges and ovens. Secures elements, panels, and internal components. Replace if stripped, missing, or damaged during repairs.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Range ground washer ensures proper electrical grounding. Prevents shock hazards and ensures safe operation. Quick 5-minute repair for most models.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

Replacement washer for ranges and ovens. Used to secure components and provide even fastening. Replace if cracked, worn, or missing during repairs.

Replacement mounting nut for ovens and ranges. Secures internal components and panels. Order a new nut if yours is stripped, missing, or damaged.
