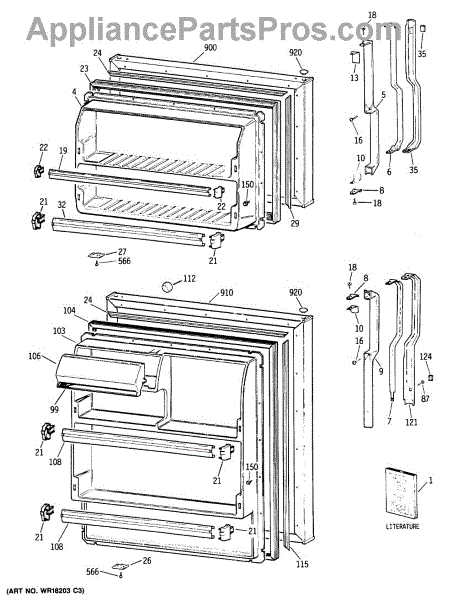

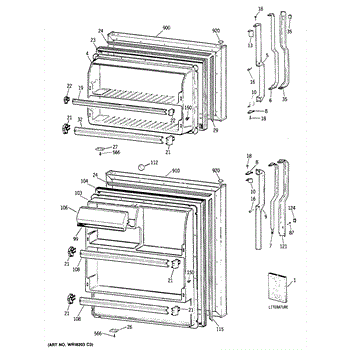

Parts for Ge TBX18NIYBRAD: 01 - Section1 Parts

The Screw Package is an OEM replacement part for GE refrigerators. It contains a pack of 12 identical screws for miscellaneous securing and assembly needs.

These screws play a supporting role, helping attach shelf tracks, cover panels, door hinges, and other interior parts. By maintaining components securely in place, they help ensure smooth operation and prevent rattling or other noises.

Symptoms of insufficiently secured parts include:

• Noises heard from loose shelves or door components
• Detaching handles, hinges, or panels
• Shelves shifting positions or becoming misaligned

Causes of needing replacement screws can include loss, stripping, or wear over time from repeated securement and removal of parts during cleaning or repairs.

This multipack of GE screws is perfect for minor refrigerator maintenance or to stock up on extras. They are also compatible with replacement hardware from Hotpoint, RCA, and certain Kenmore models.

The End Cap is an OEM part for GE refrigerators. It is designed to fit on the ends of refrigerator shelf supports, providing a finished look and helping to secure the shelf in place. This small but important component prevents the edges of the shelves from becoming damaged or causing injury by covering sharp ends and supporting the overall structure of the shelving system.

Symptoms of a bad End Cap include:

• Shelves becoming loose or falling down,
• Visible cracks or breaks in the end cap,
• Difficulty in securing the shelf properly.

Causes of end cap failure typically include physical stress from overloading shelves, accidental impacts during loading or unloading items, or material degradation over time due to the environmental conditions within the fridge.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The End Cap is an OEM replacement part for GE refrigerators. It is a small but essential component that serves to cover and protect the ends of various refrigerator parts, such as shelves or door bins.

Causes of a need to replace the end cap can include physical damage, such as cracks, chips, or breaks, as well as discoloration or fading over time due to exposure to moisture or cleaning products.

Symptoms of a faulty end cap:

• Cracks or breaks in the end cap material
• End cap becoming loose or detached from the shelf or bin
• Discoloration or fading, affecting the overall aesthetic appeal of the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Freezer Door Gasket is an OEM part for GE freezers. This gasket plays a crucial role in ensuring an airtight seal around the freezer door, preventing warm air from entering and cold air from escaping.

Over time, freezer door gaskets can wear out or become damaged due to frequent use, accidental damage, or exposure to extreme temperatures. It is essential to replace the gasket if you notice any of the symptoms mentioned above to ensure your freezer operates efficiently and to avoid unnecessary energy consumption.

Symptoms of a bad Freezer Door Gasket include:

• Visible tears, warps, or gaps in the gasket
• Condensation or frost buildup around the door edges
• Difficulty in maintaining consistent freezer temperatures
• An increase in energy consumption as the freezer works harder to maintain its internal temperature

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Due to manufacturer changes part will be longer than original and must be cut to size. It may also be redesigned in color.

Includes 12 screws. Size: 8-18 ab.

The Fresh Food Door Gasket is an OEM part for GE refrigerators. This gasket is crucial for creating a tight seal around the edge of the refrigerator door, ensuring that cold air stays inside and warm air stays out. By maintaining an airtight seal, this gasket helps to keep food fresh longer, prevents frost buildup, and enhances the overall energy efficiency of the refrigerator.

Symptoms of a failing fresh food door gasket include:

• Noticeable gaps between the gasket and the refrigerator frame
• Condensation or frost forming inside the refrigerator
• Increased energy consumption as the refrigerator works harder to maintain its internal temperature
• The door not closing properly or feeling loose

Causes of door gasket wear typically include normal aging, exposure to harsh cleaning chemicals, and frequent opening and closing of the refrigerator door, which can stretch and deform the gasket over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 21-1/4" - 2".

This is a snap-in plug button used to replace a missing or damaged control panel or trim cap on compatible GE appliances. It restores a finished look and helps keep the underlying fastener or opening covered. What it does:

• Covers and protects a small access hole or fastener opening on the appliance surface
• Snaps into place to hold trim panels or control overlays secure
• Replaces worn, cracked, or missing buttons that affect appearance or allow debris entry
• Common symptom: visible hole or loose/missing plug on control panel or exterior trim

• One plug button

• Snap-in installation; press firmly into the opening until fully seated
• No tools typically required; use a soft cloth to protect finish while pressing
• If the surrounding area is damaged or warped, part may not seat correctly
• Disconnect power to appliance before working near energized controls or panels

This vinyl sleeve fits over a rod, tube, or wire in the refrigerator to protect and cushion contact points. It reduces wear and vibration and helps keep components aligned for smooth, reliable operation.

• Provides a protective barrier at contact points to prevent abrasion or marring
• Helps maintain spacing and alignment for a snug, proper fit
• Cushions to damp vibration and reduce rattles or squeaks
• Replace if the sleeve is missing, cracked, hardened, or if components feel loose or make noise

• Disconnect power; turn off the water supply if working near water lines
• Note the sleeve's original location and orientation; take a photo for reference
• Remove the old sleeve and any debris; slide the new sleeve into the same position
• Check clearance and resecure related parts before restoring power

The Temperature Control Thermostat is an OEM part for GE refrigerators. It functions as the primary sensor and control for regulating the refrigerator and freezer temperatures, ensuring that the appliance maintains optimal cooling conditions. By monitoring the internal temperatures and triggering the cooling system when necessary, this thermostat helps preserve food freshness and consistency.

Symptoms of a bad Temperature Control Thermostat include:

• The refrigerator or freezer being too cold or too warm
• Frequent or continuous running of the refrigerator
• Unusual fluctuations in internal temperatures

Causes of a bad thermostat can include electrical issues such as faulty wiring or sensor malfunctions, wear and tear from normal use, or improper settings that prevent the thermostat from accurately gauging and controlling temperature.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control housing is the molded frame for the refrigerator's control area. It supports and protects the control components and trim. Replacing a damaged housing restores proper alignment and secure mounting so adjustments and buttons engage correctly.

• Provides the mounting structure for control components behind the panel
• Keeps buttons/switches aligned for reliable actuation
• Helps protect wiring and control parts from vibration and impact
• Symptoms of a failed housing can include cracked plastic, broken tabs, a loose or sagging control panel, or buttons that don't press cleanly

• Disconnect power to the refrigerator; shut off water if working near the dispenser area
• Remove trim/cover and mounting screws; release locking tabs to remove the old housing
• Transfer existing switches, boards, and hardware to the new housing
• Reinstall, restore power, and verify proper control operation

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Screw is an OEM replacement part for GE refrigerators. Countless screws are used throughout the refrigerator to securely hold parts in place.

Symptoms of a bad or missing screw can include:

• Rattling or vibration noises coming from inside the appliance
• Doors or other parts that are no longer properly aligned
• Increased frost or cold air leaks due to compromised seals

Causes may include normal wear and tear over time, accidental damage or loss of a screw during repairs, or improper assembly leaving crucial screws omitted.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This defrost heater and bracket assembly mounts at the evaporator and melts frost during the automatic defrost cycle. Restoring airflow across the coils helps bring temperatures back to normal and keeps your refrigerator cooling efficiently.

• Heats the evaporator during defrost to clear frost and ice buildup
• Helps prevent heavy frost on the freezer back wall and improves airflow
• Supports stable refrigerator and freezer temperatures
• Failure symptoms include thick frost on the evaporator cover, warmer fresh-food section, evaporator fan hitting ice, or frequent manual defrosting

• Disconnect power before servicing; use gloves and eye protection
• Remove the freezer's rear interior panel to access the evaporator
• Route wiring and position the heater and bracket exactly as the original; transfer any clips/shields
• After installation, inspect related defrost components (thermostat and control) if defrost issues persist

This refrigerator defrost thermostat monitors the evaporator temperature and shuts the defrost heater off once the ice has melted. Replacing a failed thermostat restores automatic defrost, reducing frost buildup and helping maintain steady, reliable cooling.

• Senses evaporator coil temperature during defrost cycles
• Opens to terminate the heater when the coil warms; closes when cold for the next cycle
• Helps prevent overheating during defrost and ice accumulation on the evaporator
• Helps if you notice heavy frost on the back wall/evaporator, poor airflow, warming temps, or prolonged/absent defrost cycles

• Disconnect power before servicing; wear appropriate safety gear
• Access the evaporator behind the freezer's rear panel; clear ice as needed
• Mount the thermostat in the same position on the evaporator tubing and make secure, insulated wire connections; route wires away from sharp edges and heat sources
• Restore power and monitor the next defrost cycle for proper operation

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

The Defrost Timer is an OEM part for GE refrigerators. This part manages the defrost cycle of the fridge and freezer compartments, ensuring that the evaporator coils do not build up excessive frost.

This cycling is crucial for maintaining optimal temperatures for food preservation and energy efficiency. Over time, the defrost timer can malfunction due to wear, electrical issues, or a buildup of dust and debris, leading to poor performance or failure.

Symptoms of a bad Defrost Timer include:

• Frost buildup in the freezer compartment
• The refrigerator or freezer is not maintaining the set temperature
• The fridge or freezer sections are too warm
• The defrost cycle does not activate, leading to reduced cooling efficiency

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Condenser Fan Motor is an OEM part for GE refrigerators. It is designed to circulate air through the condenser coils, helping to dissipate heat and keep the refrigerator's internal components cool. This ensures efficient operation and prevents the compressor from overheating, which is essential for maintaining the refrigerator's performance and longevity.

You should replace the condenser fan motor if it becomes faulty. Causes of a bad fan motor can include electrical failures, wear and tear from regular use, or blockages that cause the motor to overheat or burn out. A malfunctioning fan motor can lead to inadequate cooling, increased energy consumption, and potential damage to other refrigerator components.

Symptoms of a bad condenser fan motor include:

• The refrigerator not cooling properly
• Unusual noises coming from the back of the refrigerator
• The compressor running hot or cycling on and off frequently
• The condenser coils feeling excessively hot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-32 t. Includes 12 screws.

The Start Relay is an OEM part for GE refrigerators. It helps initiate the compressor by providing a temporary boost of power to start the cooling process.

Causes of a bad start relay can include electrical failures, overheating, or general wear and tear.

Symptoms of a bad start relay include:

• The compressor failing to start
• The refrigerator not cooling properly
• Clicking noises coming from the compressor area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
