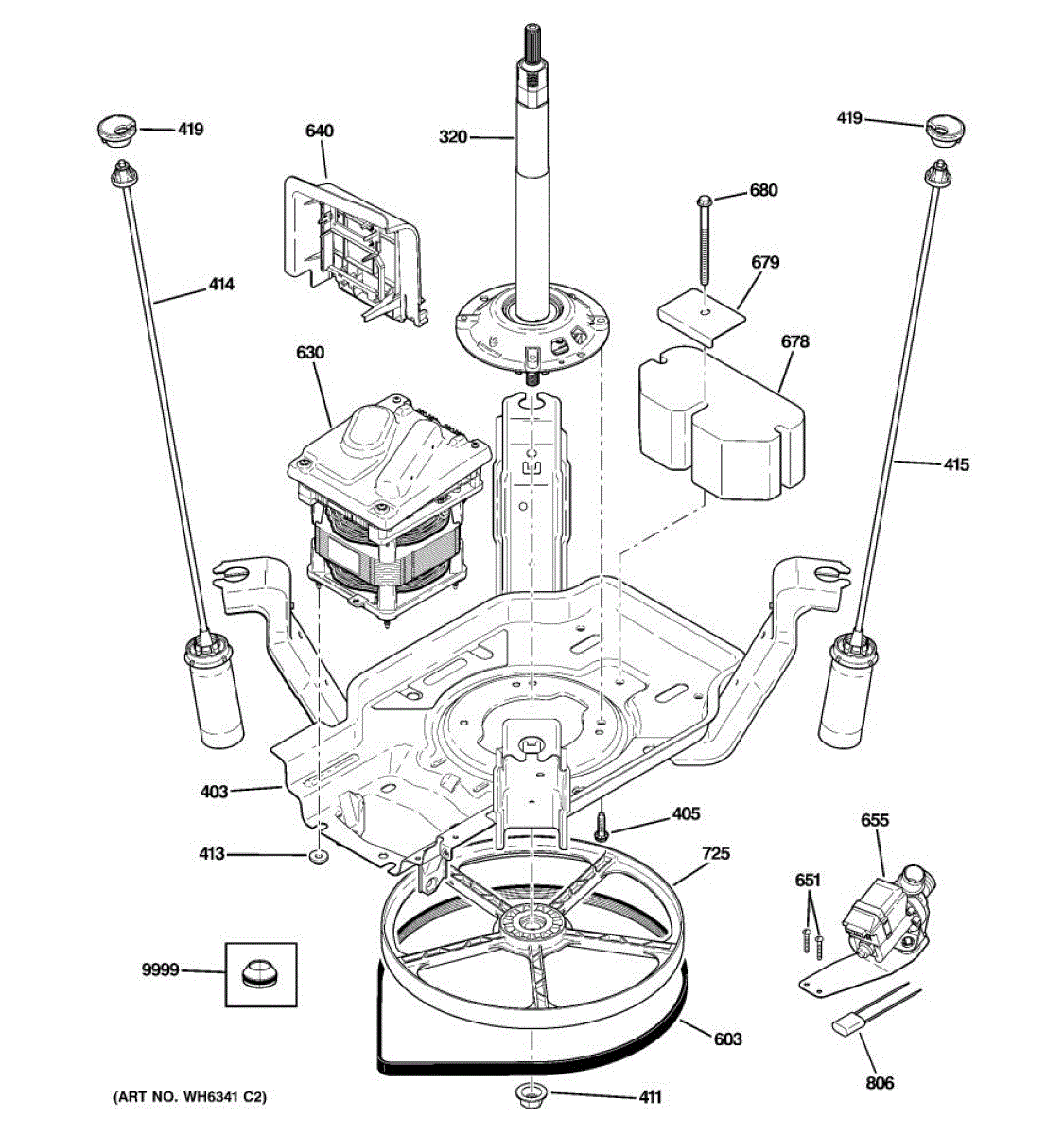

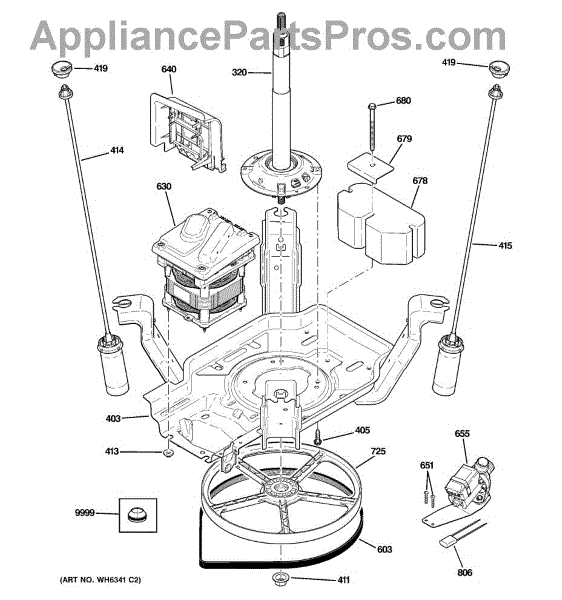

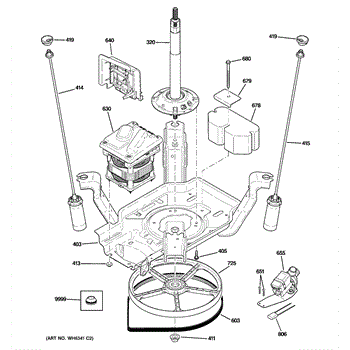

Parts for Ge WPRB9220DCCC: 04 - Suspension, Pump & Drive Components Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Mode Shifter & Shaft Assembly is an OEM replacement part for GE washing machines. It is a mechanical component located inside the washer tub that allows for shifting between agitation, spin, and other cycles. The mode shifter and shaft assembly receive input from the control system to precisely change the operational mode at designated points in the cycle.

Causes of a bad mode shifter & shaft assembly include worn out or damaged internal gears, stripped or broken shafts, or a loss of integrity in components that restrict smooth shifting between modes.

Symptoms of a bad mode shifter & shaft assembly include:

• Inability to start or change wash cycles
• The washer getting stuck in one mode of operation
• Grinding noises and vibrations during cycle shifts
• Premature ending of cycles

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 1/4 - 20 b.

Transmission drive pulley nut.

This hex nut overmold assembly secures appliance components while the molded sleeve protects surrounding surfaces and reduces vibration. It replaces worn or missing fasteners to restore a secure fit and help prevent rattling or movement. What it does:

• Provides a threaded fastening point for panels, trim, or internal brackets
• Molded overmold sleeve protects finishes and helps isolate vibration
• Restores secure mounting when a nut is stripped, missing, or loose
• Helps reduce rattling and movement of attached parts

• Disconnect power and follow appliance-specific safety procedures before starting
• Tighten by hand then snug with the appropriate wrench; avoid overtightening to prevent damaging the molded sleeve

The Suspension Rod and Spring Assembly is an OEM part for GE washing machines. This assembly is crucial for maintaining the stability of the washing machine drum during the wash and spin cycles by absorbing vibrations and reducing movement.

Over time, these components can wear out due to frequent use, heavy loads, or unbalanced loads that place excessive strain on the rods and springs. Replacing a faulty suspension rod and spring assembly ensures the washing machine operates smoothly and quietly.

Symptoms of a bad suspension rod and spring assembly include:

• Excessive shaking or vibrating during wash cycles
• Loud banging or knocking noises
• The washer moving or walking during operation
• Uneven or off-balance loads causing the drum to tilt

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Suspension Rod & Spring Assembly is an OEM part for GE washing machines. This assembly includes a rod and spring that supports the washer tub, helping to absorb shocks and reduce vibrations during the wash and spin cycles.

Causes of a bad suspension rod & spring assembly can include wear and tear from regular use, excessive loads that strain the components, or damage from impact or mishandling.

Symptoms of a bad suspension rod & spring assembly include:

• Excessive shaking or vibrating during the wash cycle
• Loud banging or thumping noises
• The washer tub being off-balance or tilted
• The washer moving or "walking"

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rod & Spring Assembly is an OEM part for GE washing machines. This assembly helps stabilize and support the washer tub during the spin cycle, reducing vibrations and maintaining balance to ensure smooth operation. Each assembly measures approximately 26.5 inches in length

Common causes of failure include wear and tear from frequent use, damage due to unbalanced loads, or weakening of the springs over time. A malfunctioning rod and spring assembly can lead to excessive movement and noise during the wash cycle.

Symptoms of a bad Rod & Spring Assembly include:

• Excessive shaking or vibrating during the spin cycle
• Loud banging noises
• Washer tub being off-balance or sagging
• Increased movement of the washer during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Suspension Rod & Spring Assembly is an OEM part for GE washing machines. This assembly helps support the washer tub, reducing vibrations and maintaining balance during the wash and spin cycles. It ensures that the washer operates smoothly and minimizes excessive movement.

Causes of a bad suspension rod & spring assembly can include wear and tear from regular use, damage from heavy or unbalanced loads, or corrosion over time. The springs can lose tension, and the rods can become bent or damaged, affecting the washer's stability.

Symptoms of a bad suspension rod & spring assembly include:

• Excessive shaking or vibrating during the wash or spin cycle
• Loud banging noises during operation
• The washer tub appearing unbalanced or leaning to one side
• Clothes not spinning dry effectively

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Suspension Rod Support is an OEM part for GE washing machines. This part maintains the stability of the washing machine's drum by supporting the suspension rods, which help absorb vibrations and shocks during operation.

Causes of a bad suspension rod support can include wear and tear from regular use, corrosion due to exposure to moisture, or physical damage from overloading the washer.

Symptoms of a bad suspension rod support include:

• Excessive shaking or vibrating during the wash cycle
• Loud banging noises
• The washer moving or "walking" during operation
• The drum being off-balance

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drive Belt is an OEM part for GE washing machines. This belt is responsible for connecting the motor to the drum, enabling the drum to spin during the wash and spin cycles. For the belt install tool, order part number WX05X20641.

Causes of a bad drive belt can include regular wear and tear from normal usage, overloading the washing machine, or exposure to harsh conditions that cause the belt to crack or fray. When the drive belt is compromised, it can affect the overall performance of the washing machine.

Symptoms of a bad drive belt include:

• The drum not spinning or spinning inconsistently
• A burning smell during operation
• Unusual noises such as squealing or thumping
• The washing machine stopping mid-cycle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This genuine OEM part is a drive motor for washers. The drive motor is the main engine that drives the washer tub allowing it to rotate and wash clothes effectively. If the washer is no longer spinning or the power has significantly decreased, it might be a sign that the drive motor needs to be replaced. Luckily, replacing this part is a relatively simple repair.To replace the drive motor, start by unplugging the washer. Once unplugged, move the washer away from the wall to gain access to the back panel. Uninstall the back panel by removing the screws that attach it. After removal, locate the drive motor and proceed to unthread the mounting screws holding it to the washer. Proceed to pull the old motor out of its place and install the new motor by threading the screws that secure it. This replacement part is sold individually and is compatible with GE, RCA, and Hotpoint brand washers.

The Drain Pump is an OEM part for GE washing machines. It is responsible for removing water from the washer's tub at the end of each wash cycle, ensuring that your laundry is properly drained before the spin cycle. This pump helps to prevent water from sitting in the tub, which can lead to mold and mildew.

Symptoms of a bad Drain Pump include:

• Water not draining out of the washer, leading to stagnant water pooling in the tub.
• Unusual noises during the drain cycle, indicating a struggle or failure to operate.
• The washing machine stopping abruptly before or during the drain phase.

Causes of a bad drain pump can include blockages from small garments or debris, mechanical failure from wear and tear, or electrical issues that affect the pump's power supply.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement hex-washer-head screw used to secure panels, brackets, or components on compatible appliances. It restores proper fastening where original mounting hardware is missing or damaged. What it does

• Fastens panels, trim, or internal brackets to maintain correct alignment and stability
• Helps prevent vibration, rattling, or loose parts caused by worn or missing fasteners
• Matches OEM head style for correct fit with corresponding driver/socket
• Used where a 1/4-20 threaded fastener is specified by the manufacturer

• Disconnect power to the appliance before servicing to avoid electrical shock or injury
• Use the correct driver/socket for the hex washer head to avoid stripping the fastener
• Hand-start the screw to ensure proper thread engagement; tighten securely but avoid over-torquing

This drive pulley mounts to the washer basket shaft and routes the belt from the motor to spin the drum. Replacing a worn pulley can stop squeal and belt slippage and help restore smooth, reliable spin performance.

• Transfers motor power via the belt to rotate the wash basket during spin
• Keeps the belt tracking correctly; damage can cause squealing, fraying, or slippage
• Typical symptoms: no or slow spin, belt repeatedly coming off, grinding/squealing noises, burning rubber smell, or visible pulley wobble

• Disconnect power and water before servicing; pull the unit forward for access
• Remove the rear panel to access the belt and pulley
• Slip off the belt, remove the center fastener, and replace the pulley
• Reinstall the belt on the grooves; verify alignment by hand-rotating the drum before testing

The Belt Installation Tool is an OEM replacement part for GE washers. It provides the necessary leverage and positioning for hassle-free belt replacement.

Causes of needing this tool include belts that become cracked or loose over repeated use. Proper belt tension is critical for efficient spinning and drying cycles.

Symptoms of needing this tool include:

• Vibration or off-center loads during wash or spin cycles
• Slow or ineffective drying
• Belt slippage that produces a squealing noise

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
