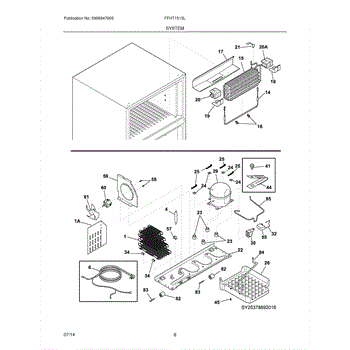

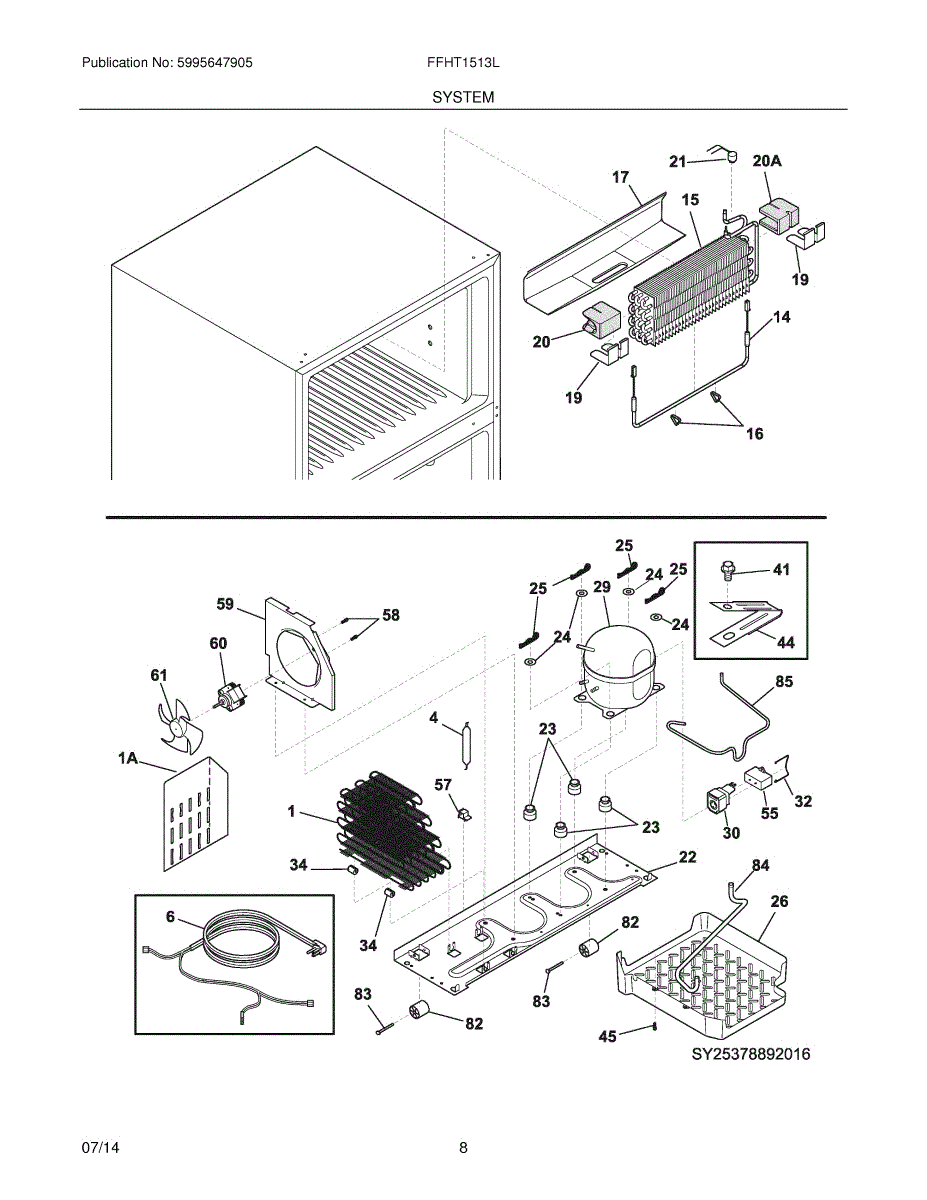

Parts for Frigidaire FFHT1513LBB: 09 - System Parts

Refrigerator not cooling or running constantly? A faulty condenser coil prevents heat release. This repair requires moderate skill and 1-2 hours to complete.

Fix uneven cooling or warm spots in your refrigerator with this evaporator air deflector. Guides cold air from the evaporator coil for consistent temps.

Includes service line.

The Power Cord is an OEM replacement part for Frigidaire refrigerators. As the lifeline connecting the appliance to a wall outlet, this cord safely delivers necessary voltage to operate refrigerator systems.

Potential causes for needing a

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Molded drain channel that guides defrost and condensation water to the drain system. Replace if cracked, broken, or leaking to prevent water damage.

Protective shield that covers internal refrigerator components. Installs inside the cabinet to prevent debris buildup and contact damage. Replace if cracked or broken.

Fix a refrigerator that won't power on or has electrical issues with this terminal block. Common repair for connection problems. Moderate DIY repair.

Fix excessive vibration or loose panels with this refrigerator mounting block. Secures components in place and restores proper alignment for quiet operation.

Fixes excessive ice buildup on evaporator coils and freezer not defrosting properly. This defrost thermostat kit restores proper defrost cycles.

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures the compressor to the mounting bracket in your refrigerator. Replace if washer is missing, cracked, or worn to restore proper support.

Secures the compressor to the chassis, reducing movement and noise. Replace if your compressor shifts or rattles during operation. Confirm fit with model.

Fix floor puddles and musty odors caused by a cracked defrost drain pan. This pan collects defrost water and allows it to evaporate. Easy DIY fix.

Refrigerator not cooling or running constantly? The compressor circulates refrigerant to maintain temperature. Advanced repair, 2-4 hours required.

Fix a compressor that buzzes but won't start or runs only a few seconds then shuts off. This start relay initiates compressor operation. DIY repair.

Black rubber mounting grommet that secures tubes and wires in your refrigerator. Replace if cracked, worn, or missing to properly hold components in place.

Mounting screw for refrigerators and freezers. Secures panels, brackets, and internal components. Replace when stripped, missing, or damaged.

Secures wire harnesses and ground wires to your refrigerator cabinet. Replace if broken or missing to prevent wire damage. Verify fit with your model.

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

Compressor clicks and won't start? Run capacitor helps start and run the compressor motor. Most DIYers replace in under 15 minutes with basic tools.

Secures and organizes wiring harnesses in your refrigerator. Replace if broken, cracked, or wires are loose. Confirm fit with your model number.

Replacement mounting screw secures panels, brackets, and trim inside refrigerators and freezers. Restores factory assembly when original fasteners are missing.

Replacement evaporator shroud for refrigerators. Directs airflow around the evaporator and fan assembly. Needed when original is cracked or damaged.

Refrigerator not cooling or making loud grinding noise? The condenser fan motor drives airflow to cool refrigerant. DIY repair in 30-60 minutes.

Refrigerator not cooling properly? A damaged condenser fan blade prevents airflow over the condenser coils. Quick DIY fix—simply push into place.

Supports the compressor on the refrigerator's rear base. Replace if cracked, broken, or worn to keep compressor properly seated and reduce vibration damage.

Metal rivet fastener permanently secures panels, brackets, and internal components in refrigerators. Replace damaged, missing, or worn rivets to restore fit.

Routes defrost and condensation water from freezer to drain pan. Replace if cracked, clogged, disconnected, or causing water pooling in compartments.

Secures the evaporator or condenser fan shroud to the refrigerator cabinet. Replace this mounting screw if stripped, missing, or broken during repair.

This heat exchanger suction line kit replaces a damaged or corroded suction line assembly to restore proper refrigerant flow and heat transfer in the cooling system. It helps maintain consistent compartment temperatures and system efficiency. What it doe

Foam seal tape creates airtight barriers around refrigerator components. Replace when worn, compressed, or damaged to restore proper sealing and efficiency.

Secures tubes and wiring in your refrigerator. Replace if clips are broken or connections are loose. Confirm fit with your model number.

Secures refrigerator grille or trim to cabinet, preventing rattles and gaps. Replace when broken or missing to restore proper panel alignment. Verify fit with your model number before ordering.

Control box wiring harness assembly for refrigerators. Connects control board to components. Replace if wires are damaged, connector is cracked, or harness is worn.

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

Replacement mounting screw for refrigerator panels, handles, brackets, and internal fixtures. Order when original screws are stripped, lost, or damaged.
