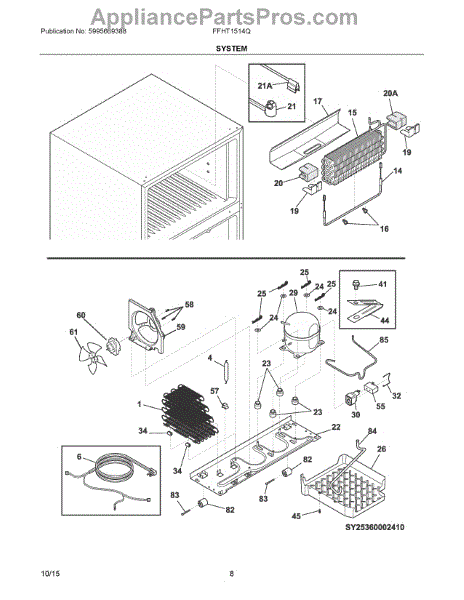

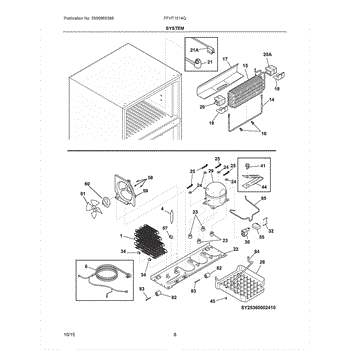

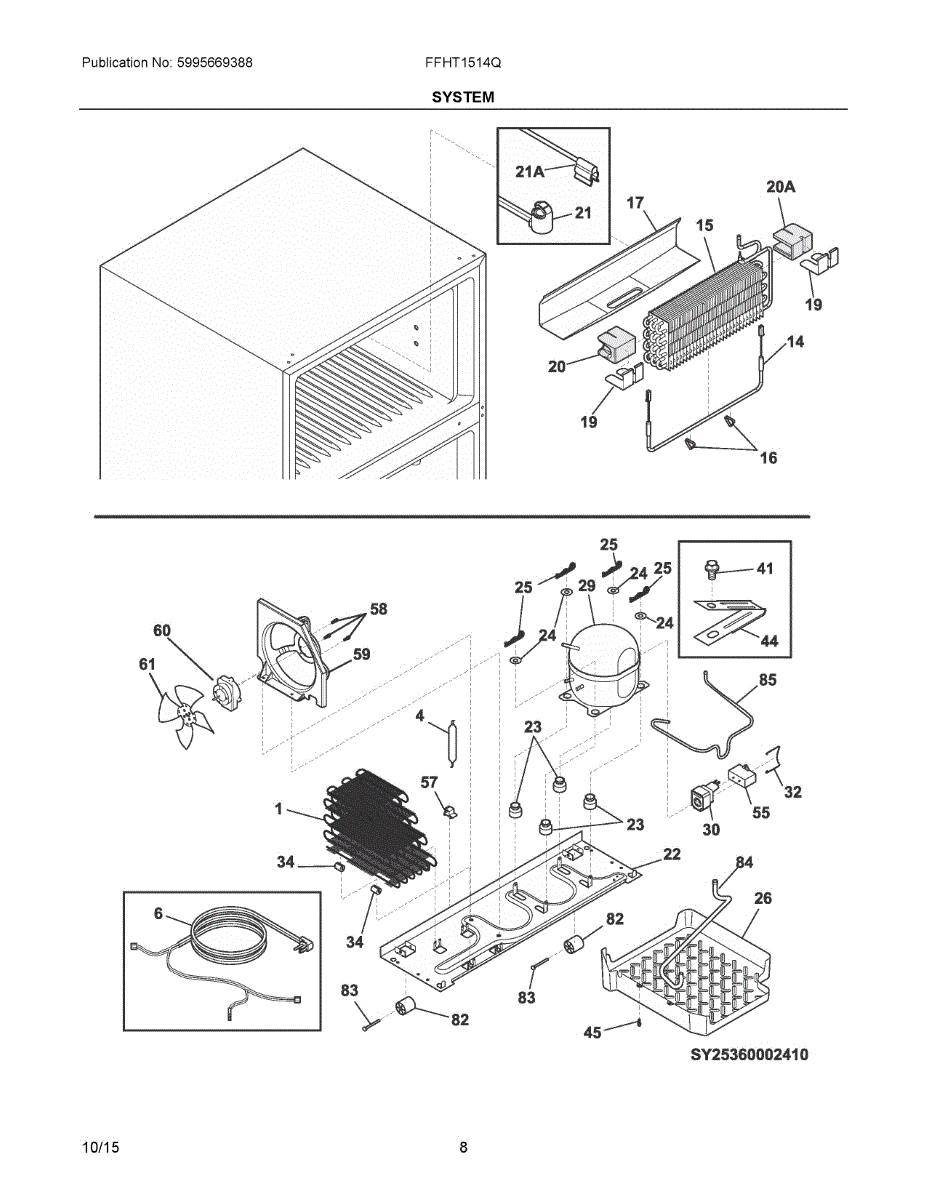

Parts for Frigidaire FFHT1514QS3: 05 - System Parts

Refrigerator not cooling or running constantly? A faulty condenser coil prevents heat release. This repair requires moderate skill and 1-2 hours to complete.

Fix uneven cooling or warm spots in your refrigerator with this evaporator air deflector. Guides cold air from the evaporator coil for consistent temps.

Includes service line.

The Power Cord is an OEM replacement part for Frigidaire refrigerators. As the lifeline connecting the appliance to a wall outlet, this cord safely delivers necessary voltage to operate refrigerator systems.

Potential causes for needing a

Refrigerator not cooling or freezing properly? This evaporator coil kit restores cooling performance. Moderate DIY repair with basic tools required.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Molded drain channel that guides defrost and condensation water to the drain system. Replace if cracked, broken, or leaking to prevent water damage.

Protective shield that covers internal refrigerator components. Installs inside the cabinet to prevent debris buildup and contact damage. Replace if cracked or broken.

Fix a refrigerator that won't power on or has electrical issues with this terminal block. Common repair for connection problems. Moderate DIY repair.

Fix excessive vibration or loose panels with this refrigerator mounting block. Secures components in place and restores proper alignment for quiet operation.

Freezer coils icing up or not defrosting properly? This defrost thermostat monitors evaporator temperature to control defrost cycles. Moderate DIY repair.

Secures the compressor to the mounting bracket in your refrigerator. Replace if washer is missing, cracked, or worn to restore proper support.

Secures the compressor to the chassis, reducing movement and noise. Replace if your compressor shifts or rattles during operation. Confirm fit with model.

Fix floor puddles and musty odors caused by a cracked defrost drain pan. This pan collects defrost water and allows it to evaporate. Easy DIY fix.

Refrigerator not cooling or running constantly? The compressor circulates refrigerant to maintain temperature. Advanced repair, 2-4 hours required.

Fix a freezer that clicks but won't start with this compressor start relay. Engages start windings so the compressor runs. Moderately easy repair.

Replacement mounting clip for freezers and refrigerators. Secures interior panels and trim to prevent rattling. Replaces broken or missing clips.

Black rubber mounting grommet that secures tubes and wires in your refrigerator. Replace if cracked, worn, or missing to properly hold components in place.

Mounting screw for refrigerators and freezers. Secures panels, brackets, and internal components. Replace when stripped, missing, or damaged.

Secures wire harnesses and ground wires to your refrigerator cabinet. Replace if broken or missing to prevent wire damage. Verify fit with your model.

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

Compressor clicks and won't start? Run capacitor helps start and run the compressor motor. Most DIYers replace in under 15 minutes with basic tools.

Secures and organizes wiring harnesses in your refrigerator. Replace if broken, cracked, or wires are loose. Confirm fit with your model number.

Replacement mounting screw secures panels, brackets, and trim inside refrigerators and freezers. Restores factory assembly when original fasteners are missing.

Replacement evaporator shroud for refrigerators. Directs airflow around the evaporator and fan assembly. Needed when original is cracked or damaged.

Refrigerator not cooling or making loud grinding noise? The condenser fan motor drives airflow to cool refrigerant. DIY repair in 30-60 minutes.

Refrigerator not cooling properly? A damaged condenser fan blade prevents airflow over the condenser coils. Quick DIY fix—simply push into place.

Specs: 10-16 X 0.500

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

Supports the compressor on the refrigerator's rear base. Replace if cracked, broken, or worn to keep compressor properly seated and reduce vibration damage.

Metal rivet fastener permanently secures panels, brackets, and internal components in refrigerators. Replace damaged, missing, or worn rivets to restore fit.

Routes defrost and condensation water from freezer to drain pan. Replace if cracked, clogged, disconnected, or causing water pooling in compartments.

Fixes incorrect temperature readings and short cycling. This thermistor monitors fridge temps and signals the control board. Moderate DIY repair.

Foam seal tape creates airtight barriers around refrigerator components. Replace when worn, compressed, or damaged to restore proper sealing and efficiency.

Secures tubes and wiring in your refrigerator. Replace if clips are broken or connections are loose. Confirm fit with your model number.

Secures the evaporator or condenser fan shroud to the refrigerator cabinet. Replace this mounting screw if stripped, missing, or broken during repair.

The Harness Assembly is an OEM part for Frigidaire freezers. It is a bundle of color-coded wires that connect electronic and mechanical components inside the freezer, allowing them to communicate and function as intended. The harness assembly reliably

Replacement mounting screw for refrigerator panels, handles, brackets, and internal fixtures. Order when original screws are stripped, lost, or damaged.
