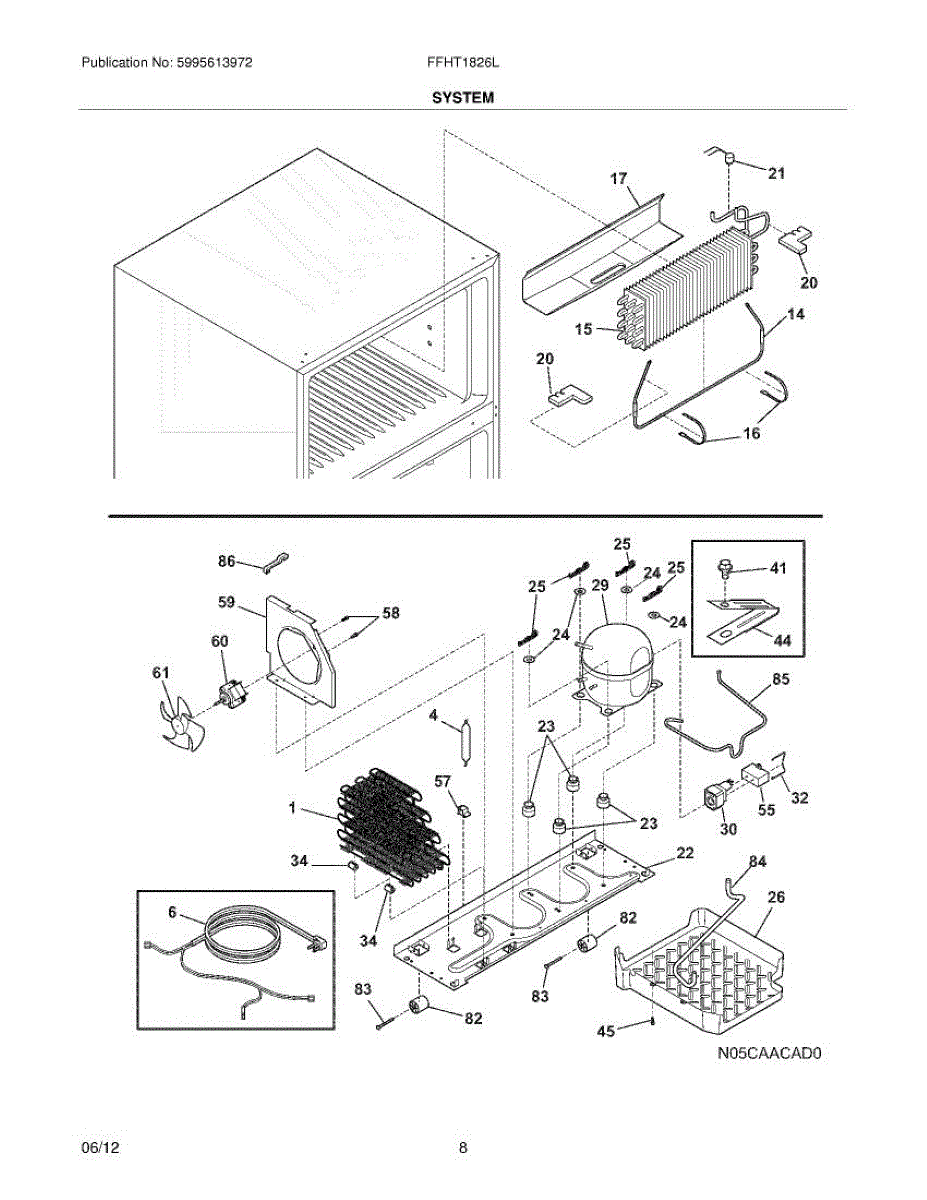

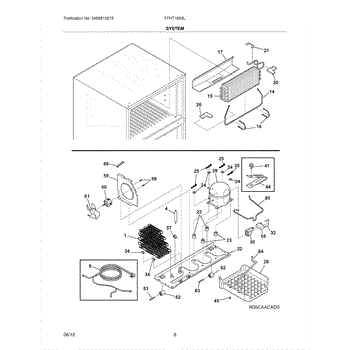

Parts for Frigidaire FFHT1826LS9: 09 - System Parts

Includes service line.

The Power Cord is an OEM replacement part for Frigidaire refrigerators. As the lifeline connecting the appliance to a wall outlet, this cord safely delivers necessary voltage to operate refrigerator systems.

Potential causes for needing a new power cord include exposure to cuts, abrasions or rodent damage over time in the storage area. Repeated bending stress during installation or removal can also wear out plastic insulation faster.

Symptoms of a faulty power cord include:

• Refrigerator fails to power on at all
• Flickering lights or inconsistent runs of the compressor
• Shock, buzzing or humming sounds coming from the cord
• Bare copper wire showing through damaged insulation

This power cord also fits some Electrolux and Gibson refrigerators.

Replaces a failed defrost heater in the freezer section to clear frost from the evaporator coils. Restores normal airflow and temperature recovery when ice buildup causes warm spots, poor cooling, or fan noise from blades hitting frost.

What it does

• Heats the evaporator during defrost to melt accumulated ice.
• Helps prevent airflow blockages that lead to warm fridge temps.
• Reduces heavy frost on coils and around the fan shroud.
• Addresses symptoms like rapid frost return, ice-bound coils, or noisy fan contact.

What’s included
One defrost heater assembly.

Install notes

• Unplug the refrigerator before servicing.
• Access the evaporator cover in the freezer; carefully remove ice as needed to avoid damaging fins.
• Note wire routing/terminal orientation; transfer to the new heater one-for-one.
• After reassembly, run a test cycle and monitor temps once the unit completes a full defrost.

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

This drain trough directs defrost water from the evaporator to the refrigerator drain, helping prevent pooling, leaks and ice build-up in the fresh-food compartment. A correct trough keeps defrost water flowing and reduces odors or floor damage. What it does:

• Channels defrost/condensate water from the evaporator to the drain system
• Prevents water pooling under shelves or in the crisper area
• Reduces ice buildup and attendant leaks when the drain path is clear
• Replace if cracked, warped, or if water is collecting where it shouldn't

• Disconnect power to the appliance before servicing
• Remove interior shelves/drawers as needed to access the trough
• Clean the drain channel and clear any debris before installing the new trough
• Make sure the trough is fully seated and aligned so water drains properly; follow OEM fastener/placement points

This foam insulation block helps fill gaps and reduce heat transfer inside the refrigerator cabinet to maintain proper cooling and reduce frost/condensation. It restores the designed insulation barrier where the original piece is damaged or missing. What it does:

• Replaces a damaged or missing foam block that seals internal gaps in the cabinet or behind panels
• Helps prevent warm air infiltration that can cause poor cooling or excess frost
• Reduces condensation and moisture buildup around the evaporator area or panel seams
• Supports consistent temperature performance by restoring insulation continuity

• One foam insulation block

• Disconnect power to the appliance before beginning any repair
• Access location may require removing interior panels or shelves; handle panels and clips carefully
• Install in the exact position and orientation of the original part; use any existing adhesive or fasteners as required
• If adhesive is needed, use only appliance-safe adhesives compatible with foam and follow manufacturer guidance

The Defrost Thermostat is an OEM replacement part for Frigidaire refrigerators. This component plays a crucial role in regulating the defrost cycle, which is responsible for removing any built-up frost or ice from the freezer compartment.

Symptoms that may indicate the need to replace the defrost thermostat include:

• Excessive frost or ice buildup in the freezer
• The refrigerator not maintaining proper temperature levels
• The defrost cycle failing to initiate or complete properly

Causes of a faulty defrost thermostat can include normal wear and tear over time, electrical malfunctions, or exposure to extreme temperatures or moisture.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This rubber compressor mounting grommet cushions and isolates the compressor to reduce vibration and noise that can transfer to the cabinet. It helps maintain stable compressor positioning for quieter, smoother operation. What it does:

• Absorbs compressor vibration to lower noise and rattling
• Dampens movement that can cause abrasion or wear on mounting hardware
• Helps maintain proper alignment of the compressor assembly
• Common symptom: excessive buzzing, vibration, or rattling from the back of the appliance

• Always disconnect power to the appliance before servicing.
• Support the compressor before removing mounts to prevent shifting or damage.
• Inspect surrounding mounts and hardware; replace any worn or damaged pieces.

This compressor mounting clip secures the compressor to its chassis to reduce movement and noise for reliable operation. It replaces worn or broken clips that allow the compressor to shift during use. What it does:

• Holds the compressor in place on the mounting bracket to prevent shifting
• Reduces vibration and rattling noises caused by a loose mount
• Helps maintain proper compressor alignment for steady operation
• Useful when a cracked or bent clip no longer secures the compressor

• Disconnect power to the appliance before accessing compressor area
• Inspect surrounding mounts and rubber isolators; replace if damaged
• Secure clip fully so compressor is held without forcing or misaligning components

This defrost pan collects water from the refrigerator's automatic defrost cycle and sits over warm components so it can evaporate safely. Replace a cracked or deformed pan to help prevent floor puddles and musty odors. What it does:

• Collects defrost condensate and allows it to evaporate in the machine compartment
• Helps keep floors dry by managing defrost water
• Replace if the pan is cracked, warped, leaking, or missing
• Common symptoms include water under the refrigerator, recurring puddles, or musty odors

• 1 defrost drain pan

• Disconnect power and pull the refrigerator away from the wall before servicing
• Remove the rear access panel to reach the drain pan
• Slide out the old pan carefully and empty any water; reuse any original supports/brackets if present
• Set the new pan on its supports, ensure the drain outlet/tube drips into the pan, reinstall the panel, restore power, and check for leaks

The Compressor Start Device is an OEM part for Frigidaire refrigerators. This component is crucial for initiating the operation of the compressor, which is essential for the cooling cycle of the refrigerator. The start device provides the necessary power boost to get the compressor running.

Causes of a bad start device can include electrical failures, wear and tear, or power surges. A malfunctioning start device can prevent the compressor from starting, affecting the refrigerator's ability to maintain the desired temperature.

Symptoms of a bad compressor start device include:

• The refrigerator not cooling properly or not cooling at all
• The compressor not running or starting intermittently
• Clicking noises coming from the compressor area
• The refrigerator frequently cycling on and off

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Color: Black. Rubber. Holds tube/wire

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

The Run Capacitor is an OEM replacement part for Frigidaire refrigerators. This electrical component plays a crucial role in providing the initial torque needed to start and run the compressor motor, ensuring efficient and reliable operation of your refrigerator's cooling system.

Causes of needing to replace the run capacitor can include normal wear and tear over time, exposure to high temperatures or electrical surges, or physical damage to the capacitor itself.

Symptoms that may indicate a failing run capacitor include:

• The refrigerator not running or cooling properly
• The compressor failing to start or running intermittently
• Humming or buzzing noises coming from the compressor area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This replacement mounting screw fastens panels and components in compatible Frigidaire appliances to restore secure assembly and reduce rattling or loose parts. Simple fastener sized for the original factory location. What it does:

• Secures panels, brackets, or trim to keep parts aligned and stable
• Prevents vibration and noise caused by loose fittings
• Restores proper attachment after repair or disassembly
• Matches the OEM thread and length for a correct fit when specified

• Use the correct screw hole and do not force; cross-threading can damage components
• Tighten to a snug fit—do not overtighten to avoid stripping threads or cracking plastic
• Power tools can be used with care; slow speed and proper bit help prevent slippage
• Turn off power and disconnect the appliance before accessing internal parts

This replacement evaporator shroud directs airflow around the evaporator/fan assembly and protects internal components for more consistent cooling. Installing a sound shroud helps restore even temperatures and reduces frost buildup or fan contact. What it does:

• Directs cooled air from the evaporator for even temperature distribution throughout the compartment
• Shields the evaporator and fan motor from loose items and debris
• Helps reduce frost buildup and airflow obstructions that can cause uneven cooling
• Minimizes fan vibration and contact noise when correctly installed

• Disconnect power to the appliance before starting any repair.
• Remove interior panels, shelves, and any food before accessing the evaporator area.
• Handle edges carefully; plastic panels and sheet-metal openings can be sharp.
• Verify correct orientation and secure with the original fasteners; service diagram if fitment or mounting holes differ.

The Condenser Fan Motor is an OEM part for Frigidaire refrigerators. It serves a critical role in the refrigerator's cooling system by driving the condenser fan, which cools the refrigerant as it passes through the condenser coils. This cooling process is essential for the refrigerant's efficient circulation throughout the system, ensuring that the refrigerator maintains the proper temperature for preserving food.

Causes of failure can include dust and debris accumulation blocking the fan, electrical issues such as worn or shorted wiring, or the motor wearing out over time due to continuous use.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator runs warmer than usual, leading to spoiled food.
• Unusual noises coming from the back of the refrigerator where the motor is located.
• The fan stops running, causing the refrigerator's compressor to overheat and cycle off too frequently.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Condenser Fan Motor Blade is an OEM replacement part for Frigidaire refrigerators. This part attaches to the condenser fan motor and works by drawing air through the condenser coils and over the compressor, dissipating heat and allowing the refrigerant to cool effectively.

Causes of damage to the Condenser Fan Motor Blade can include physical damage from moving or cleaning the refrigerator, obstruction from debris that impedes the blade's rotation, or wear and tear over time that can lead to cracks or the blade becoming loose.

Symptoms of a bad Condenser Fan Motor Blade include:

• The refrigerator running hotter than usual
• Unusual noises coming from the back of the refrigerator where the condenser fan is located
• The refrigerator compressor running for longer periods than normal or cycling on and off more frequently

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement rear compressor base roller supports the refrigerator compressor on the cabinet rear base, helping keep the compressor properly seated and reducing wear from vibration and movement. What it does

• Provides a rolling support under the compressor to keep it aligned and off the cabinet floor
• Helps reduce vibration and rattling that can occur from a loose or worn compressor mount
• Prevents compressor body from dragging or scraping the cabinet base
• Commonly replaced when the roller is cracked, worn flat, missing, or causing noise

• Disconnect power to the appliance before starting any work
• Support or secure the compressor and cabinet before removing the old roller to avoid sudden movement
• Basic hand tools usually required; inspect mounting hardware and replace any damaged fasteners
• Do not attempt sealed-system repairs.

This rivet is a metal fastener used to permanently secure panels, brackets, or internal components in your appliance. Replacing a damaged or missing rivet restores a tight fit and helps prevent vibration, rattles, and looseness.

• Permanently joins thin metal parts where screws or nuts aren't used
• Maintains alignment and structural integrity of housings and frames
• Helpful when panels or components are loose, rattling, or won't stay secured
• Direct replacement for a worn, broken, corroded, or drilled-out factory rivet

• Disconnect power and shut off gas/water (as applicable) before servicing
• Support the part being fastened; drill out the old rivet head if needed
• A hand riveter/rivet tool may be required to set the new rivet
• Wear eye and hand protection during drilling/riveting

This drain tube routes defrost and condensation water from the freezer compartment to the drain pan so moisture drains away cleanly and prevents pooling. Replaces a cracked, clogged or disconnected drain line. What it does:

• Channels defrost and condensation water out of the freezer to the drain system
• Prevents water pooling inside the freezer or refrigerator compartment
• Helps avoid leaks onto the floor when the original tube is cracked, pinched or disconnected
• Works with the appliance's drain trough and drain pan to maintain normal defrost drainage

• One drain tube

• Disconnect power before servicing and work with a cooled appliance to avoid burns
• Access may require removing interior panels or kickplate; handle panels and clips carefully
• Inspect and clear any debris or ice from the drain trough before installing the new tube
• Ensure the tube is routed without sharp bends or kinks and is securely seated at both ends

This condenser tube spacer positions and secures the refrigerator's condenser tubing to maintain proper tube spacing and airflow. Replacing a worn or broken spacer helps reduce vibration, rattling, and rubbing that can damage tubing over time. What it does:

• Holds condenser tubing in the correct position to preserve airflow and cooling efficiency
• Cushions tubing to limit vibration and reduce rattling noises
• Prevents tubing from rubbing against the cabinet or other components, lowering wear risk
• Helps reduce the chance of tubing fatigue that can lead to damage

• Disconnect power to the appliance before accessing rear panels or condenser components.
• Handle condenser tubing gently; avoid kinking, bending, or putting stress on lines during installation.
• Installation may require removing the back or lower access panel to reach the condenser assembly.

This heat exchanger suction line kit replaces a damaged or corroded suction line assembly to restore proper refrigerant flow and heat transfer in the cooling system. It helps maintain consistent compartment temperatures and system efficiency. What it does:

• Transfers heat from the refrigerant suction line so the compressor and evaporator operate correctly
• Replaces cracked, kinked, or corroded tubing that can cause refrigerant loss or reduced cooling
• Helps address symptoms such as warm or inconsistent temperatures, visible oil or residue at fittings, or abnormal frost/ice patterns
• Restores a sealed refrigerant path after tubing damage or when corrosion has compromised the line

• Intended for qualified service technicians only; system access requires certified refrigerant handling
• Disconnect power to the appliance before servicing and follow all safety precautions
• Installation may require brazing, flare fittings, or specialty tools; verify leak-tight connections and pressure-test per OEM procedures
• Evacuate and recharge the refrigerant system to OEM specifications after installation

Color: Black/natural. Nylon

This replacement fan shroud screw secures the evaporator/condenser fan shroud to the appliance, helping keep the fan assembly stable for proper airflow and quiet operation. Use it to replace stripped or missing mounting hardware. What it does:

• Secures the fan shroud or mounting bracket to the appliance cabinet or fan assembly
• Helps prevent fan wobble, rubbing, and airflow disruption caused by a loose shroud
• Restores proper clearance between fan blades and shroud to reduce noise and wear

• High-level replacement—remove power to the appliance before starting work
• Use appropriate-size driver to avoid stripping the screw head
• Inspect surrounding hardware and shroud for damage; replace any damaged parts before reassembly

This control box wiring harness routes power and signals between the appliance control board and other components to restore reliable control operation and electrical connectivity. It helps resolve intermittent controls and lost function caused by damaged wiring. What it does:

• Connects the control board to switches, sensors and motors to enable normal control functions.
• Replaces damaged or frayed wiring that can cause intermittent operation or unresponsive controls.
• Addresses symptoms such as control panel not responding, random shutdowns, or error codes tied to wiring faults.
• Restores proper signal and power routing when connector damage or wire breaks interrupt circuits.

• Disconnect all power to the appliance before beginning any service.
• Compare the new harness to the original and follow factory connector positions and routing to avoid pin miswiring or chafing.
• Handle connectors gently and ensure all terminals fully seat; inspect mating connectors for damage before reconnecting.

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
