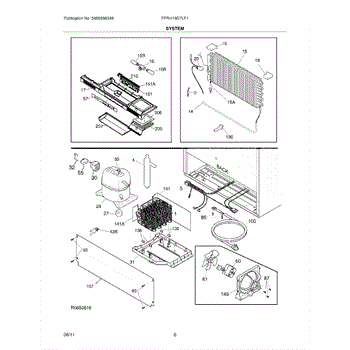

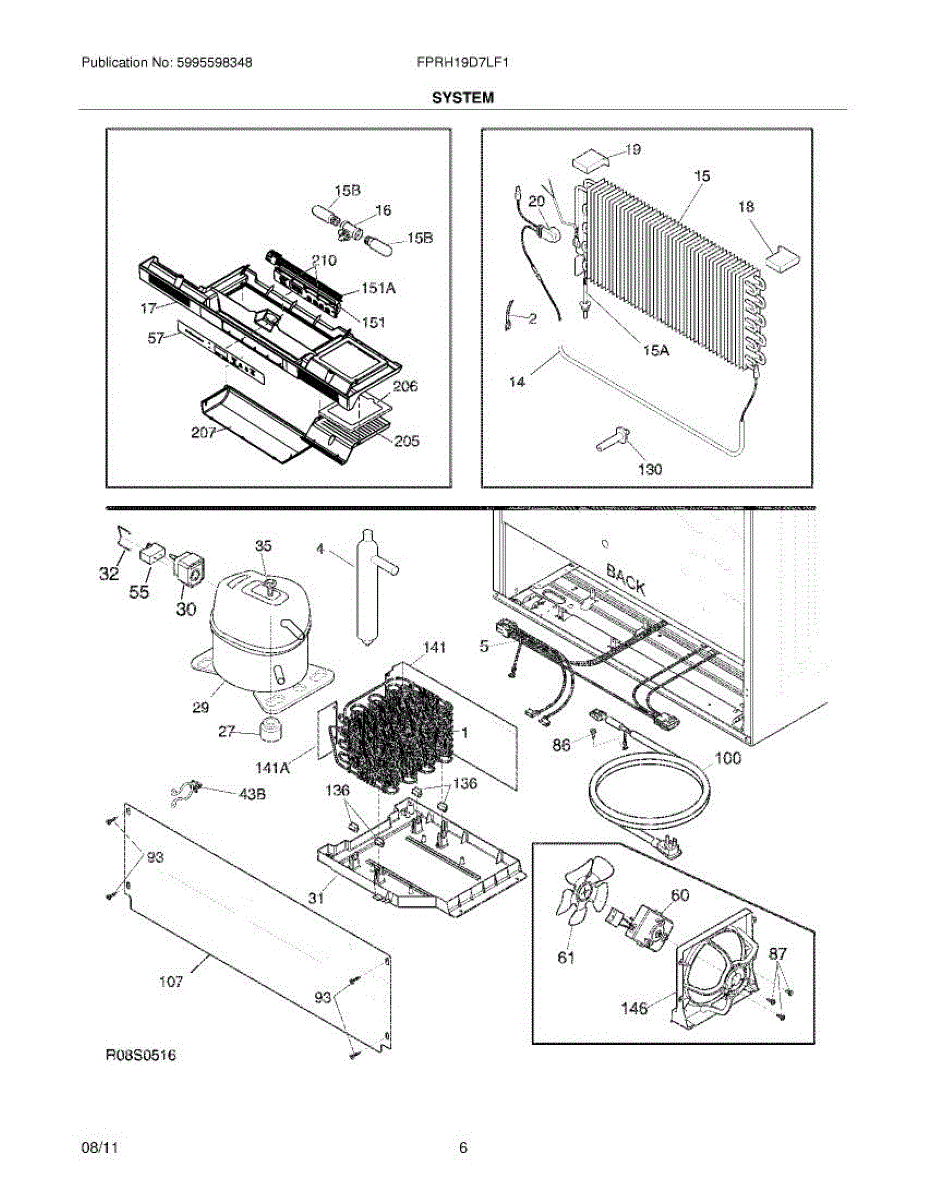

Parts for Frigidaire FPRH19D7LF1: 07 - System Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The CONDENSER COIL is an OEM part for Frigidaire refrigerators. It is a refrigerant-cooled heat exchanger located in the refrigerator's condenser housing or outlet grille area. The condenser coil works to liquefy hot refrigerant gas into liquid form during the compressor's condensing process, dissipating heat from the refrigeration system.

Symptoms of a bad condenser coil can include:

• Inadequate or inconsistent cooling, with warm or lukewarm refrigerator temperatures
• The compressor running frequently or continuously even when doors are closed
• Old or strange odors coming from the condenser area
• Frost or ice buildup around the condenser coil

Causes of a bad condenser coil may include mineral or dirt buildup inhibiting heat transfer, physical damage to coil fins or tubing, or failure of the condenser fan that aids in heat removal.

This OEM Frigidaire replacement is compatible with Electrolux, Gibson, Kelvinator, and select Kenmore designs.

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

Includes service line.

The Defrost Heater is an OEM part for Frigidaire refrigerators, playing a critical role in the appliance's defrost system. This component is designed to melt away frost and ice that accumulate on the evaporator coils, ensuring that air can flow freely and the appliance maintains optimal cooling efficiency.

Causes of failure might include a burnt-out heating element, damage to the heater's electrical connections, or a malfunction in the control system that fails to activate the heater during the defrost cycle.

Symptoms of a bad Defrost Heater include:

• Frost build-up on the evaporator coils, leading to reduced cooling efficiency.
• The freezer or refrigerator compartment is too warm.
• The appliance is constantly running in an attempt to maintain the set temperature.
• Pools of water or ice on the floor of the freezer compartment due to incomplete defrosting.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The LED Light Bulb is an OEM part for Frigidaire refrigerators. It provides illumination inside the refrigerator, making it easier to see and access food items.

Causes of a bad LED light bulb can include burnout from prolonged use, electrical surges, or damage from physical impact. Additionally, issues with the bulb's connection or internal circuitry can result in malfunction.

Symptoms of a bad LED light bulb include:

• The refrigerator interior remaining dark when the door is opened
• Flickering or dim light
• Intermittent lighting
• Complete failure to light up

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This receptacle is the mating socket for a plug-in refrigerator component, providing a secure connection for reliable operation. Replacing a worn or heat-damaged socket restores solid contact and helps prevent intermittent performance.

• Serves as the socket/interface for a plug-in component inside the appliance
• Maintains tight contact for consistent operation and safe connectivity
• Replaces loose, burned, or broken sockets that can cause heat or arcing
• Common symptoms: connected part won't run or is intermittent; loose fit; visible discoloration or melting at the socket

• Disconnect power to the appliance before servicing
• Access the socket location and note/photograph wire orientation
• Transfer wires/terminals one at a time to the new receptacle; ensure full seating
• Inspect the mating plug/harness for heat damage and replace if necessary

The EVAPORATOR INSULATOR is an OEM part for Frigidaire refrigerators. It is a heat-resistant insulating pad or wrap that surrounds the evaporator coils. The insulator works to retain cool air and prevent warmer air from entering the refrigerated compartment.

Causes of a bad insulator can include deterioration or breakdown of insulating properties over time due to aging materials. Cracks, holes, or compressed sections of the insulator result in reduced insulation performance.

Symptoms of a bad evaporator insulator include:

• Inconsistently cool or warmer fridge temperatures
• Frost or ice buildup on evaporator coils or surrounding areas
• Higher than normal electric bills from inefficient cooling
• Warm or cold spots inside refrigerator shelves and compartments

This OEM Frigidaire replacement insulator is compatible with some Kitchenaid, Electrolux, Gibson, Kelvinator, and Kenmore side-by-side refrigerator models.

The Defrost Thermostat is an OEM part for Frigidaire refrigerators and freezers. This part senses the temperature of the evaporator coil and triggers the defrost heater to melt away any accumulated frost. This process ensures that air can flow freely over the coils, keeping the refrigerator or freezer at the correct temperature and preventing overcooling or temperature fluctuations that can spoil food.

Causes of a bad defrost thermostat can include a failure to open or close properly, leading to an overaccumulation of frost on the evaporator coils, or physical damage that prevents it from sensing the correct temperature.

Symptoms of a bad Defrost Thermostat include:

• Frost build-up in the freezer compartment
• The refrigerator or freezer is too warm
• The compressor running longer than usual
• Fresh food compartment becoming too warm

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The product featured is a Frigidaire refrigerator compressor. The compressor is a vital component for the cooling and freezing process of a refrigerator. A compressor works together with the evaporator in providing the cold air needed to keep everything at the desired temperature. When a compressor fails, this could have an effect that calls for an emergency repair. Losing the compressor function means the refrigerator stops getting cold in both compartments. Prolonging the repair could mean the loss of all the food items stored inside. A faulty compressor may become very loud when it operates. Users may hear a slight clicking sound on a compressor that's entirely out of commission. This is the relay clicking in an attempt to power the compressor. If a compressor does go out, keep the doors of the freezer and refrigerator shut. There's a chance the food can be salvaged if repairs take place fast enough. This compressor is a genuine OEM product and is sourced directly from the manufacturer and is only available as an individual component. Frigidaire, Kenmore, and Maytag refrigerators can be repaired with this component.

This drain pan collects and channels defrost water from the evaporator to the refrigerator's drain system, preventing water buildup and keeping the cabinet dry. It restores normal drainage and helps avoid interior leaks and ice buildup. What it does:

• Catches defrost melt and funnels condensate to the drain line
• Prevents water pooling under or inside the refrigerator cabinet
• Helps reduce ice formation around the evaporator area when drainage is restored
• Limits odors caused by trapped standing water

• One drain pan

• Disconnect power before starting and remove food from affected compartments
• Remove access panels to reach the evaporator area; some models require partial disassembly
• Clear any clogged drain lines and verify pan is seated and aligned before reassembly

The Run Capacitor is an OEM replacement part for Frigidaire refrigerators. This electrical component plays a crucial role in providing the initial torque needed to start and run the compressor motor, ensuring efficient and reliable operation of your refrigerator's cooling system.

Causes of needing to replace the run capacitor can include normal wear and tear over time, exposure to high temperatures or electrical surges, or physical damage to the capacitor itself.

Symptoms that may indicate a failing run capacitor include:

• The refrigerator not running or cooling properly
• The compressor failing to start or running intermittently
• Humming or buzzing noises coming from the compressor area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

The Condenser Fan Motor is an OEM replacement part for Frigidaire refrigerators. It is a component responsible for drawing heat away from the refrigerator's cooling system. By rapidly spinning the condenser fan blades, the motor works to dissipate heat buildup and ensure optimal cooling performance.

Causes of a bad condenser fan motor include bearing wear over time, damage from moisture or dirt infiltration, or failure of electronic motor components.

Symptoms of a bad condenser fan motor include:

• Inadequate or inconsistent cooling within the refrigerator
• Loud buzzing or rattling noises emanating from the rear
• Slow or failed rotation of the condenser fan blades

This OEM Frigidaire replacement condenser fan motor is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore-branded refrigerators.

The Condenser Fan Motor Blade is an OEM replacement part for Frigidaire refrigerators. This part attaches to the condenser fan motor and works by drawing air through the condenser coils and over the compressor, dissipating heat and allowing the refrigerant to cool effectively.

Causes of damage to the Condenser Fan Motor Blade can include physical damage from moving or cleaning the refrigerator, obstruction from debris that impedes the blade's rotation, or wear and tear over time that can lead to cracks or the blade becoming loose.

Symptoms of a bad Condenser Fan Motor Blade include:

• The refrigerator running hotter than usual
• Unusual noises coming from the back of the refrigerator where the condenser fan is located
• The refrigerator compressor running for longer periods than normal or cycling on and off more frequently

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This replacement power cord delivers household electricity from the outlet to your appliance. Installing a new cord restores safe, reliable power when the original is damaged, worn, or causing intermittent operation.

• Supplies AC power from a household outlet to the unit
• Common fix for no power, flickering lights, or power loss when the cord is moved
• Replaces cords with cuts, cracks, burn marks, or melted areas
• Restores a secure electrical connection for safe, consistent operation

• Unplug the appliance and verify the wall outlet is working before replacing parts
• Access the cord routing and internal connections; note wire positions and routing before removal
• Transfer and secure any strain relief/clamp; keep wiring clear of sharp edges and hot surfaces
• After installation, ensure the cord isn't pinched and the plug seats fully in the outlet

This support is a small mounting bracket used inside the appliance to hold an interior component, such as a shelf or basket. Replacing a cracked or missing support restores a secure, level fit and helps prevent wobbling or dropping.

• Provides a stable mounting point for a shelf, basket, rail, or panel
• Keeps interior components aligned and level
• Common symptoms: shelf/basket tilts, won't seat, or falls; visible cracks or missing support
• Replace if broken, deformed, or worn to restore proper fit

• Disconnect power and clear the work area before starting
• Remove the affected shelf/basket/panel to access the mounting point
• Release the damaged support (snap tabs or remove screw), align, and install the new support
• Reinstall the component and verify it sits level and secure

Color: Black. Rubber. Holds tube/wire

This is a refrigerator control board. It makes sure all the appliance processes run as expected. It links up with other internal parts to ensure the correct level of cooling. The part is made of durable materials and includes a small display. This offers information to users about the current temperature inside the refrigerator. The screen can crack or internal parts of the control board can become damaged. This can cause the refrigerator to stop cooling or running entirely.If the control board is damaged or not working correctly, it should be replaced. First, access the back of the appliance and unplug it from the wall. Remove the screws that hold on the cover to work with the control board. Make notes about where the wires are connected before removing the board. The new replacement part should have the wires reconnected in the same locations. Replace the cover and turn the power back on.The control board is compatible with several refrigerators made by Frigidaire. It is sold on an individual basis and sourced directly from the manufacturer. This is a genuine OEM replacement component.

This replacement holder is a small mounting bracket that secures internal components in place to keep your appliance operating quietly and reliably. Restores proper alignment and prevents vibration or movement-related issues. What it does:

• Secures an internal component or assembly to the appliance cabinet or frame
• Prevents rattling, vibration, or shifting that can cause noise or wear
• Keeps parts aligned so electrical or mechanical connections remain stable
• Helps maintain proper operation of the related subsystem

• One holder/mounting bracket

• Disconnect power before accessing internal components to avoid shock
• Access and removal may require basic hand tools (screwdriver, nut driver)
• Inspect surrounding fasteners and mounting surfaces; replace any damaged hardware

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

The Thermistor is an OEM replacement part for Frigidaire refrigerators. It senses and monitors interior temperatures, which allows the compressor and evaporator fan to operate efficiently based on temperature conditions. Proper thermistor function maintains consistent cooling and humidity levels. At room temperature, it should measure 5k ohms of resistance when testing with a multimeter.

Causes of a bad thermistor can include failure over time due to constant exposure to changes in temperature. Physical damage to the thermistor head or wiring connectors can lead to breakdowns in communication.

Symptoms of a bad thermistor include:

• Fluctuating or unregulated interior temperatures
• The refrigerator or freezer running constantly
• Error codes or blinking lights denoting temperature control issues

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
