Tappan Range Valve

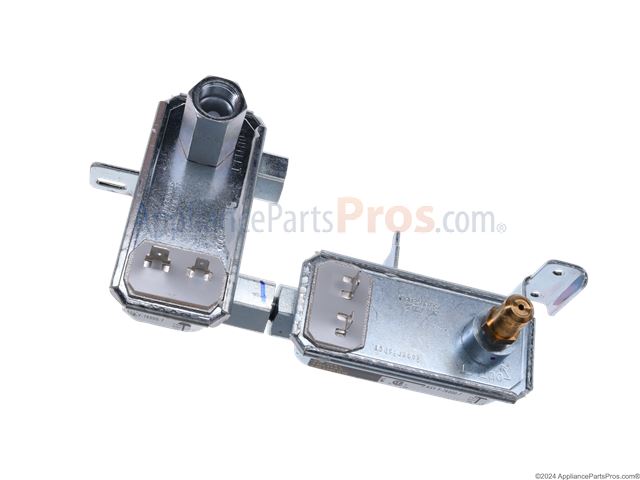

The Oven Safety Valve is an OEM replacement part for Frigidaire gas ranges. This valve controls gas flow to the oven burner.

Causes of a faulty oven safety valve can include wear of sealing surfaces due to prolonged heating and cooling during cooking cycles. Exposure to food or liquid residues over time may also affect valve function.

Symptoms of a bad oven safety valve include:

• The oven not heating up despite the igniter working correctly
• A smell of gas indicates a leak or uncontrolled release
• Inconsistent oven temperatures or heating patterns
• The oven failed to maintain the set temperature

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This valve controls gas flow to a range/cooktop surface burner for smooth ignition and precise flame adjustment. Replacing a worn valve helps restore reliable burner lighting, accurate heat control, and safer shutoff.

• Regulates gas to a surface burner for ignition and flame size control
• Sticking or worn internal seals can cause hard-to-turn operation or gas odor
• Failure may prevent the burner from lighting or shutting off completely
• Inconsistent or unresponsive flame adjustment can indicate a failing valve

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; access the valve/manifold per your model's instructions
• Mark and disconnect tubing and any wires; transfer fittings or a separate spark switch from the old valve if applicable
• After installation, restore gas and check all joints with an approved leak-detection solution; verify proper burner operation

This is the gas control valve for a surface burner. It regulates gas flow to the burner head so you can ignite the flame and adjust heat output safely and smoothly.

• Controls and meters gas to an individual cooktop/range burner
• Worn or leaking valves can cause hard-to-adjust flames, no flame, or gas odor
• A sticking or stripped valve stem can make the knob hard to turn or fail to shut off fully
• Helps restore precise flame control and reliable ignition

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; work in a well-ventilated area
• Transfer any mounting hardware or orifice components from the old valve
• Check for leaks with an approved leak-detection method after reassembly and gas restoration

Made by Frigidaire. This is a dual oven valve for bake and broil.

This surface burner gas valve regulates the flow of gas to the burner on your range or cooktop, enabling proper ignition and flame control. Replacing a worn valve restores safe operation and consistent flame performance.

• Meters gas to the burner in response to the control knob
• Supports reliable ignition and maintains a stable, adjustable flame
• Typical symptoms: burner won't light, flame won't adjust or goes out, knob stiff or difficult to turn
• Can help correct uneven heat on the affected burner

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; remove panels as directed by your model's service information
• Note valve orientation; transfer any model-specific brackets or fittings from the old valve if required
• After reassembly, check all connections for leaks with a soap-and-water solution

This top burner gas valve controls and shuts off gas to a single surface burner so you can ignite and adjust flame height safely. Replace a worn valve to restore precise burner control and dependable lighting.

• Regulates gas flow to one surface burner for reliable ignition and flame adjustment
• Acts as the on/off shutoff for that burner via the control knob
• Helps when a burner won't light even though the igniter clicks
• Helps when flame won't adjust smoothly or the knob binds/feels stripped

• Disconnect power and shut off gas supply before servicing
• Remove knob and access the control/manifold area to reach the valve; note tubing and mounting orientation
• Transfer any model-specific brackets or fittings from the old valve if required
• After reassembly, check all connections with an approved gas leak-detection solution before restoring service and testing burner operation

This is a replacement surface burner gas valve. It controls gas flow to a cooktop/range burner so you can safely turn the flame on/off and adjust heat. Replacing a worn or leaking valve restores precise flame control and safe shutoff. What it does:

• Opens and closes to supply gas to a surface burner
• Provides smooth flame modulation from low to high
• Helps ensure a complete shutoff in the Off position
• Common symptoms: knob hard to turn or loose, gas odor at the control area, flame won't adjust or won't shut off completely

• 1 gas valve

• Disconnect power and shut off the gas supply before servicing
• Note valve orientation and tubing layout before removal
• Use an approved gas-rated thread sealant on male pipe threads; do not overtighten
• After installation, leak-test all connections and verify proper burner operation

This water inlet valve controls water flow to the refrigerator dispenser and ice maker, restoring proper dispensing and ice production. It replaces a failed or leaking valve to stop drips and ensure steady water fill. What it does:

• Opens and closes water supply to the dispenser and ice maker when activated
• Stops water flow to prevent leaks when the valve is closed
• Helps restore normal dispenser flow and consistent ice maker fills
• Commonly replaced for leaking, no water dispensed, or weak dispenser flow

• Disconnect power and shut off the water supply before starting any work
• Drain lines and have towels ready; valve replacements can release trapped water
• Basic hand tools required; avoid overtightening fittings to prevent damage

This water inlet valve controls water flow to the refrigerator's ice maker and dispenser so ice production and water dispensing work reliably. Replaces a worn or failed valve to restore proper filling and water delivery. What it does:

• Opens and closes water flow to the ice maker and dispenser when signaled
• Can stop water flow when the valve or solenoid fails, causing no water or no ice
• A worn valve may cause weak/no water dispensing or slow/fail ice production
• May leak if seals or valve body fail, so replacement stops persistent leaks from the inlet area

• Disconnect power and shut off the water supply before starting any work
• Install in the same orientation and secure inlet/outlet fittings per OEM instructions
• Inspect tubing and fittings for damage and replace any compromised parts to prevent leaks

This top-burner gas valve controls gas flow to a single surface burner, restoring proper heat adjustment and safe burner operation. It's a direct-replacement style part used on compatible ranges and cooktops. What it does:

• Regulates gas flow to a single top/surface burner so you can adjust flame intensity
• Enables ignition and consistent burner flame when operating normally
• Commonly replaces valves when a burner won't light, has no gas flow, or will not hold a steady flame
• Helps restore safe, controllable heating when the original valve is faulty

• One (1) top burner gas valve

• Turn off gas supply and disconnect power before starting work
• Inspect seals and fittings for leaks after installation; use a leak-detection solution or follow OEM leak-check procedures
• Follow OEM service instructions and local codes for safe installation

This thermal cutoff is a temperature-sensing safety thermostat that helps prevent overheating by interrupting power when excessive heat is detected. Use it to restore proper safety protection in affected appliance heater or control circuits. What it does:

• Monitors temperature and opens the circuit if heat rises above the designed threshold
• Helps prevent overheating-related damage or fire risk in heating systems
• Stops power to heating elements when a fault causes unsafe temperatures
• Commonly used with ovens, dryers, and other heater-equipped appliances as a fail-safe

• One thermal cutoff

• Power must be disconnected before inspection or replacement to avoid shock or injury
• Handle the part carefully and observe wire connection orientation; replace with same type only
• If other components show heat damage, inspect the whole heating circuit and controls
