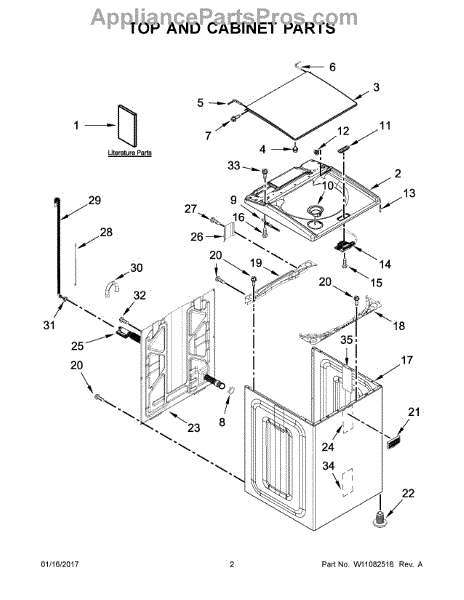

Parts for Maytag MVWB835DC0: 02 - Top And Cabinet Parts

Color: Chrome Shadow

The Top Panel is an OEM component specifically designed for Whirlpool washing machines. It is the decorative outer panel that forms the top surface of the washer. The panel serves an important protective role, shielding internal components from dust, moisture exposure and physical impact.

Symptoms of a damaged top panel include:

• Cracks, gouges or breaks in the panel material
• Loose or misaligned fit over internal structures
• Discoloration from household element exposure

Causes of failure could be normal wear over time from daily use, as well as direct impact or pressure damage. Protecting the life of this panel ensures an attractive appliance exterior.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Lid is an OEM part for Whirlpool washing machines. As the primary cover on top of the washer tub, the lid protects interior components while also serving an important functional purpose. During the wash cycle, the lid assists in retaining water and generating agitation within the tub to thoroughly clean clothes.

Causes of a faulty lid can include warping, cracks, or breaks in the material over extended use. Prolonged exposure to moisture and chemicals may degrade its structural integrity.

Symptoms of a bad lid include:

• Inability to fully latch or seal closed
• Loss of water retention ability during cycles
• Excessive leaks or standing water outside the tub
• Reduced agitation levels for inefficient cleaning

This is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, and Admiral models.


This lid bumper cushions the top-load washer lid as it closes, reducing noise and preventing direct contact between the lid and cabinet. Replace a missing or worn bumper to help protect the lid finish and ensure a smoother close.

• Provides a soft stop at the lid's contact point to absorb impact
• Helps reduce closing noise and lid rattle
• Helps prevent scuffs or chips on the lid edge or cabinet top
• Common signs of failure: bumper missing, flattened, cracked, or louder slam when closing

• Disconnect power before servicing the appliance
• Open the lid and locate the factory bumper position(s) per your parts diagram
• Remove the old bumper and any debris; seat the new bumper firmly in the designated location
• Close the lid gently to verify proper contact and alignment

The Lid Hinge is an OEM part for Whirlpool washing machines. It connects the lid to the washing machine body, allowing the lid to open and close smoothly. This hinge ensures the lid remains securely attached while providing the necessary movement for easy access to the washer drum.

Common causes of a bad lid hinge include repeated use over time, accidental impact, or corrosion from exposure to moisture. These factors can cause the hinge to become loose, stiff, or broken.

Symptoms of a bad Lid Hinge include:

• Difficulty opening or closing the lid
• The lid not staying open or falling shut unexpectedly
• Unusual noises when moving the lid
• Visible damage or rust on the hinge

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hinge is an OEM part for Whirlpool washing machines. This component is essential for the proper function of the washing machine door, allowing it to open and close smoothly. The hinge ensures that the door stays aligned and securely closed during the wash cycle, preventing leaks and maintaining the safety of the machine's operation.

Causes of a bad hinge can include repeated use over time, accidental force or impact, or corrosion from exposure to moisture.

Symptoms of a bad hinge include:

• Difficulty opening or closing the washing machine door
• A door that does not stay closed properly
• Unusual noises when the door is moved
• Visible damage or misalignment of the hinge

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for fastening and securing different components in the washer. This screw is used in various locations throughout the appliance, such as attaching panels, brackets, and other parts together. Its main function is to provide a tight and reliable connection, preventing any loose or unstable components that could disrupt the washer's operation.

This part fixes the following symptoms:

• Loose or unstable components in the washer
• Visible signs of wear, rust, or damage on the screw
• Unusual noises or rattling sounds during washer operation

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Lid Hinge is an OEM component specifically designed for Whirlpool washing machines. It provides the mechanism that allows the washer lid to properly open and close.

Causes can include normal wear and tear over time, as well as damage from accidental impacts or overloading of clothes into the washer. The constant motion of the lid puts stress on the hinge, and failure is likely if it becomes worn.

Signs of a bad lid hinge include:

• Excessive noise emanating from the lid area
• Scratches or damage visible on the hinge arms
• Inability to latch the lid securely in the closed position
• Uneven gaps around the lid frame when shut

This OEM Whirlpool replacement hinge ensures smooth, dependable opening and closing of your washer lid for years to come. It is also compatible with some Maytag, Amana, Jenn-Air, and select Kenmore models.

The Lid Hinge is an OEM part for Whirlpool washers. It is specifically designed to be the left-side hinge for the washer lid, allowing for smooth opening and closing of the lid. The lid hinge ensures proper alignment and stability of the lid, providing easy access to the washer drum.

A bad lid hinge can occur due to regular wear and tear, accidental damage, or mishandling. If you notice symptoms such as the lid not closing properly, difficulty in opening or closing the lid, or excessive movement or wobbling of the lid, it may be time to replace this part.

Symptoms of a bad lid hinge include:

• Lid not closing properly
• Difficulty in opening or closing the lid
• Damaged spring

Restore your Whirlpool washer's lid by replacing the worn or damaged lid hinge with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This bezel is a trim piece that finishes and protects the opening around a control or feature on the appliance's panel. Replacing a cracked or missing bezel restores a clean look and helps the mating control sit securely and operate properly.

• Frames the control or opening and covers raw edges for a finished appearance
• Helps keep the associated knob/button or trim aligned and seated
• Shields internal components from dust, splashes, and minor impacts
• Replace if cracked, warped, loose, or missing; symptoms can include a wobbly control, visible gaps, or cosmetic damage

• Disconnect power at the breaker before servicing; allow any hot surfaces to cool
• If applicable, pull off the knob or remove adjacent trim to access the bezel
• Release locking tabs or remove mounting screws carefully to avoid scratching the panel
• Align the new bezel with tabs/orientation marks and snap or fasten into place; reinstall parts and test

This bearing supports a rotating component inside the appliance so it turns smoothly with minimal friction. Replacing a worn bearing helps quiet operation, improves alignment, and prevents premature wear of related parts. What it does:

• Provides a low-friction surface for a shaft or hub to rotate smoothly
• Helps maintain alignment to reduce wobble and uneven wear
• Contributes to quieter, more reliable operation
• Common signs of failure: grinding or squealing noises, rough/stiff rotation, noticeable play/wobble, or visible wear/damage on the old bearing

• 1 bearing

• Disconnect power to the appliance before servicing
• Access the bearing location and remove any retaining screws, clips, or fasteners; note the original orientation
• Clean mating surfaces; transfer any spacers/washers from the old part if present, and seat the new bearing fully
• Spin-test the component by hand to ensure smooth, wobble-free movement before reassembly and test

Used from harness to top.

The Latch is an OEM part for Whirlpool dishwashers. It secures the dishwasher door during operation, ensuring it remains closed to prevent water leaks and maintain optimal washing performance.

Causes of a bad latch can include wear and tear from regular use, physical damage from forceful closing, or corrosion from exposure to moisture. A faulty latch can compromise the dishwasher's ability to seal properly, leading to potential leaks and operational issues.

Symptoms of a bad latch include:

• The dishwasher door not closing or latching properly
• Water leaking from the door during cycles
• The dishwasher not starting or stopping mid-cycle
•  A loose or misaligned door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures panels, brackets, and other components in your appliance. Replace a missing, stripped, or corroded fastener to restore a tight fit and keep parts properly aligned and rattle-free.

• Secures appliance components and panels in their mounting points
• Replaces damaged, stripped, or missing hardware
• Helps reduce rattling or vibration from loose parts

• Disconnect power; shut off water or gas supplies if applicable
• Match location with the original screw; start threads by hand to avoid cross-threading
• Tighten until snug; do not over-torque, especially into plastic or thin metal
• Reinstall any covers or panels and test for secure fit

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

Color: Grey (Chrome Shadow)

This replacement brace reinforces appliance cabinet structure to restore proper alignment and reduce vibration. It helps maintain secure mounting of adjacent panels so doors and controls operate smoothly. What it does:

• Provides structural support for the appliance cabinet and connected panels
• Reduces rattling or vibration caused by loose or bent cabinet components
• Helps realign panels that are pulling away or not closing flush
• Useful when visible damage, bending, or missing support causes fitment issues

• Disconnect power and, if applicable, gas supply before starting any repair
• Remove outer cabinet panels or access panels to reach the brace mounting points
• Retain original fasteners when possible; replace damaged screws or clips as needed

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This replacement name plate restores the appliance's identification label so model and serial information is legible and the exterior looks complete. It's a simple cosmetic and identification part that helps owners read key appliance info. What it does

• Replaces a faded, damaged, or missing identification label
• Restores readable model/serial/manufacturer details for service and registration
• Improves cosmetic appearance where the original label is worn or peeled
• Helps prevent confusion when ordering parts or scheduling repairs

• One replacement name plate

• Clean and dry the mounting surface thoroughly before installing
• Align carefully and press firmly if adhesive-backed; use the original fasteners if applicable
• Handle by the edges to avoid transferring oils or smudges to the label

This leveling foot threads into the base of your appliance to support and stabilize it. Adjusting the foot helps level the cabinet, reduce wobble and vibration, and keep doors aligned for smooth, reliable operation. Also called a leveling leg. What it does:

• Provides an adjustable contact point to stabilize the unit on the floor
• Helps level the cabinet so doors align and seal properly
• Reduces rocking, rattling, or excessive vibration on uneven surfaces
• Replaces a cracked, stripped, or missing leveling leg

• 1 leveling foot

• Unplug the appliance and turn off water supply if applicable
• Use a helper to carefully move or tilt the unit; support it securely
• Unthread the damaged foot; thread in the new foot by hand, then fine-adjust with a wrench
• Level side-to-side and front-to-back; ensure all feet make firm floor contact

This sound absorber is an OEM-style insulation pad designed to reduce washer cabinet noise and rattling for a quieter cycle. It mounts inside the appliance cabinet to help dampen vibration and airborne sound. What it does:

• Dampens vibration and reduces cabinet noise during spin and agitation
• Helps minimize rattling from internal components for a quieter operation
• Supports stable operation by providing a cushioned barrier between parts and the cabinet
• Commonly replaced when padding is torn, missing, or compressed

• One sound absorber insulation pad

• Disconnect power and water supply before starting any repair
• Access may require removing outer cabinet or panels; follow your model's service manual
• Use proper fasteners and placement as shown in OEM diagram; avoid altering material

The Hose is an OEM part for Whirlpool washing machines. This hose connects the drain pump to the outer drain hose, allowing water to empty from the washer.

Flexible yet durable, the drain hose withstands pressure during spin cycles without risk of bursting or kinking. Consistent drainage is vital for fully removing water after each cycle.

Causes of a bad hose can include cracks from extended use, mineral or soap buildup restricting flow, or stressed connections that have weakened over time.

Symptoms of a bad drain hose include:

• Incomplete drainage of water at the end of cycles
• Puddles or leaks near the pump or drain area
• Sloshing sounds of retained water inside the machine
• Enlarged hose diameter from constant pressure

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wire shield is a molded protective cover that helps keep wiring routed and protected from heat, abrasion and moving parts. It prevents chafing and reduces the risk of shorts for a safer appliance operation. What it does:

• Covers and routes wiring to protect insulation from heat and friction
• Prevents wires from contacting sharp edges or moving components
• Helps stop intermittent shorts, arcing, or wiring damage that can cause odor or failures
• Maintains proper wire position to support consistent electrical connections

• One wire shield

• Disconnect power to the appliance before beginning any work
• Secure with existing clips or fasteners; do not force or modify the part
• If wiring insulation is melted or damaged, replace wiring/harness before reassembly

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose is an OEM replacement part for Whirlpool washing machines. It is a flexible tube responsible for draining and expelling the used water from the washer tub after each wash cycle.

Symptoms of a faulty drain hose include:

• Water leaks around the hose connections or along its length
• Slow draining or improper drainage of the tub
• Visible cracks, bulges, or damage to the hose material

Causes of a bad washer drain hose can include normal wear and tear over time, exposure to high water pressure or temperatures, physical damage from kinks or pinches, or improper installation or connections.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

A U-bend retainer designed to secure a U-shaped heating element or tubing in place, preventing movement and vibration for reliable operation. Fits as the replacement hold-down clip used on compatible Whirlpool HVAC and appliance assemblies. What it does:

• Secures U-shaped element or tubing to the appliance frame or mounting bracket
• Prevents rubbing or vibration that can lead to wear or noisy operation
• Helps maintain proper spacing and alignment of the element for consistent performance
• Used where a compact, U-shaped clamp is required to hold components safely

• One U-bend retainer clip as shown

• Inspect the surrounding area and replaced part for damage before installing
• Use basic hand tools; align clip over the U-bend and fasten to the designated mounting point
• Disconnect power and allow components to cool before attempting repair
• Replace with the exact OEM fasteners

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 6-32 x 9/32 inch.

The Sound Shield is an OEM replacement part for Whirlpool washers. It is a sheet metal panel installed behind the tub that helps reduce noise and vibration during spin cycles. With absorptive insulation, the sound shield dampens noise produced internally.

Symptoms of a damaged sound shield include:

• Excessively loud operation, especially during high-speed spins
• Rattles, clanks, or resonant noises from inside the washer
• Potentially weakened structure allowing tub movement
• Causes of a damaged sound shield can include tears or dents sustained over many high-speed spin cycles. Constant vibration may cause stress cracks or loose rivets.

 It is also compatible with some  Whirlpool, Maytag, Amana, and Kenmore brands.

The Absorber is an OEM part for Whirlpool washing machines. It plays a role in minimizing vibrations and noise during operation by damping the mechanical movements within the machine.

Causes of a bad Absorber can include the natural wear and tear from continuous use, degradation due to exposure to harsh chemicals or extreme temperatures, and mechanical failure from excessive loads or unbalanced cycles.

Symptoms of a bad Absorber include:

• Increased vibration or shaking during operation.
• Unusual noises like thumping or banging during the spin cycle.
• The washing machine moving excessively or "walking" across the floor.
• Uneven wear and tear on other washing machine components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
