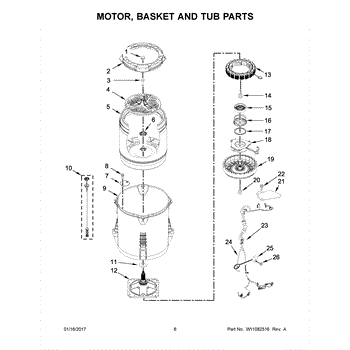

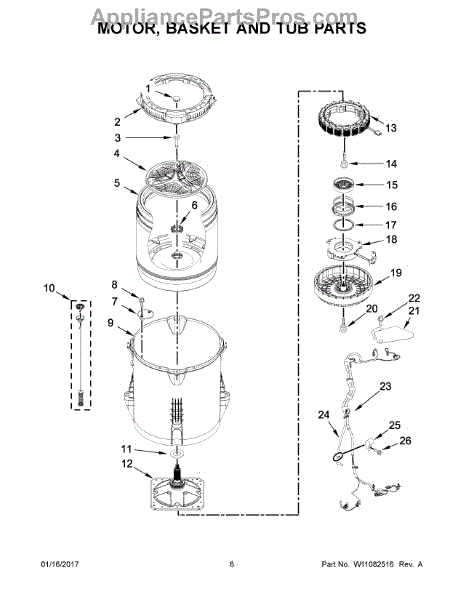

Parts for Maytag MVWB835DC0: 04 - Motor, Basket And Tub Parts

The Washplate Cap is an OEM part for Whirlpool washing machines. It serves as a protective cover for the central washplate, helping to keep debris and clothes from getting trapped in the washplate mechanism.

Causes of a bad washplate cap can include normal wear and tear, exposure to harsh laundry chemicals, or damage from heavy or unbalanced loads.

Symptoms of a bad washplate cap include:

• The cap not fitting securely on the washplate
• Visible cracks or damage
• Clothes getting snagged or trapped under the washplate

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The RING-TUB Top Loading Washer is an OEM component specifically designed for Whirlpool top-loading washers. The ring tub is cylindrical and houses the inner tub that holds water during the wash cycle. It allows for proper spinning of the tub during the drain and spin cycles to remove water from fabrics.

The ring-tub is subjected to rotational forces and vibrations during each cycle. Causes of a bad ring-tub include cracks, chips, or other damage due to stress and wear over time. Loose fasteners, broken mounting tabs, or a misshapen structure are also signs it needs replacement.

Symptoms of a bad ring-tub include:

• Water leaking from the tub during spin cycles
• Excessive noise or vibration
• Slow or inadequate draining of water
• The washer becomes imbalanced and off-center when spinning

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool washing machines. This screw is used to securely attach the wash plate or agitator to the bottom of the washer's drum. This screw ensures that the wash plate remains firmly in place during the washer's operation, preventing movement that could lead to inefficient washing or damage to the machine.

Causes of damage to the screw can include corrosion over time, overloading of the washing machine which puts excess stress on the wash plate, or wear and tear from regular use.

Symptoms of a bad Screw include:

• The wash plate becoming loose or detached
• Unusual noises during the wash cycle, such as rattling or banging
• The washer failing to agitate properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Spanner Nut is an OEM part for Whirlpool washing machines. This spanner nut secures the tub in place, ensuring it operates smoothly and without excessive vibration.

Causes of a bad washer nut-spanner can include wear and tear from extended use, over-tightening, or damage from improper handling during repairs.

Symptoms of a bad washer nut-spanner include:

• Excessive vibration or movement of the tub during operation
• Unusual noises such as banging or clanking
• The tub becoming loose or misaligned
• Difficulty in tightening or loosening the nut during maintenance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This pump drain filter helps protect the appliance's drain pump by screening out debris before it enters the pump. A clean, intact filter supports proper draining and helps prevent clogs and pump damage.

• Screens debris before it reaches the drain pump
• Helps maintain proper draining performance
• May resolve issues like slow or incomplete draining, standing water, or drain-related noises
• Replacing a damaged or missing filter can reduce repeat clogs

• Unplug power and shut off water supply before service
• Access location varies by model; have towels ready for any residual water
• Note orientation of the old filter for correct placement
• After installation, check for leaks and run a brief drain cycle to verify operation

This machine screw secures components in place to maintain proper alignment and stability during appliance operation. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, noise, or loosening parts.

• Provides a secure mechanical fasten for panels, brackets, or internal assemblies
• Helps correct rattling, vibration, or loose-fitting parts
• Useful when an original screw is stripped, corroded, or lost
• Sized to match 8-18 thread applications in compatible units

• Disconnect power and shut off water or gas before servicing
• Note original screw location and orientation for correct reassembly
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace any damaged clips or mounts the screw engages

This outer washer tub is the main exterior tub that surrounds the inner wash basket, helping contain water and support the tub assembly for dependable washing performance. It restores the washer's water-sealing and structural support. What it does:

• Houses the inner tub and helps contain wash water to prevent leaks
• Provides structural support for the tub assembly and associated seals/bearings
• Works with the inner basket, seals, and suspension to maintain proper wash action
• Can address symptoms such as visible leaks from the tub area or excessive tub movement/noise

• One outer tub (single piece as shown)

• Refer to your model's service manual for step-by-step removal and reassembly and follow OEM torque and seal replacement guidance
• Replace any worn seals, gaskets, or mounting hardware during installation to ensure a proper water-tight fit
• Disconnect power and water supply before beginning service to avoid shock or flooding
• Inspect those components and replace as needed

The Washer is an OEM part for Whirlpool washing machines. It is a critical component that secures the agitator shaft or impeller to the transmission, allowing for the proper rotation and movement during the wash cycles.

Causes of a bad washer include general wear and tear, physical damage from impact or excessive force, or issues with the transmission or related components.

Symptoms of a faulty washer:

• Loud grinding or squeaking noises during operation
• The agitator or impeller not spinning or rotating properly
• Excessive vibration or shaking during wash cycles
• Potential leaks or damage to the tub due to improper rotation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

This is the stator for the washer's direct-drive motor. The stationary coil generates the magnetic field the rotor uses to spin and agitate the basket, restoring smooth, reliable drive performance when the original windings fail.

• Creates the electromagnetic field that powers the direct-drive motor
• Works with the rotor to spin the basket and drive agitation
• Failure symptoms can include no spin, no agitation, or the basket not turning
• Intermittent or weak spin performance can also indicate a failing stator

• Disconnect power and turn off water before servicing; allow components to stop moving
• Access from the bottom of the washer; remove the rotor cover and center bolt, then lift off the rotor (strong magnets—handle carefully)
• Unplug the motor harness, remove stator mounting bolts, and note wire routing/orientation
• Install the new stator evenly, tighten bolts in a crisscross pattern, reconnect the harness, then reinstall the rotor and cover

This factory fastener secures appliance components so panels, brackets, and trim stay tight and aligned. Replace a missing or stripped screw to stop rattles, restore a secure fit, and keep parts mounted as designed.

• Fastens panels, brackets, covers, and trim to the chassis
• Restores proper alignment and reduces vibration or rattling
• Replaces missing, rusted, or stripped hardware
• Helps maintain a solid, factory-style fit after service

• Disconnect power (and water, if applicable) before servicing
• Match the original screw location and orientation; start threads by hand to avoid cross-threading
• Use the correct driver for the head type; tighten snugly without overtightening
• Reuse any original washers or clips if present

The Clutch is an OEM part for Whirlpool washing machines. It engages the transmission that drives the wash basket's rotation during agitation and spinning cycles. Without a functioning clutch, the washer cannot transition effectively between wash and rinse operations. The clutch measures 4-7/8 inches in diameter

Causes of a bad clutch can include wear from repetitive use over many years or damage to the clutch coil that triggers engagement. Parts may have weakened to a point where they no longer make full contact needed for proper shifting.

Symptoms of a bad clutch include:

• The washer basket not spinning or turning at all
• Agitation but no transition to spin or vice versa
• Loud grinding noises coming from the transmission area

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Motor Rotor is an OEM replacement part for Whirlpool washing machines. Situated within the transmission housing, this specialized metal component physically connects the drive motor to the outer brake housing that controls the drive shaft and wash basket movements during all cycles.

Causes of failure involve the wearing of motor bearings or cracking of cast magnesium surfaces from repeated rotations over extended usage periods.

Symptoms requiring replacement include:

• Vibration or shaking noises heard from inside cabinetry
• Cycles displaying mechanical faults or not advancing properly
• Grinding sounds impeding smooth motor operations
• Drive failure troubles identified through diagnostic codes

This Whirlpool replacement is also compatible with Maytag, KitchenAid, and select other brands utilizing common Whirlpool motor designs.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Lower Harness is an OEM part for Whirlpool washers. This harness provides a secure and reliable connection for internal parts, allowing for seamless operation of your washer's electrical systems. It is responsible for transmitting power and signals to components such as the motor, control board, and sensors.

A bad lower wire harness can occur due to wear and tear over time, exposure to moisture or heat, or accidental damage. If you notice symptoms such as error codes on the display, intermittent power loss, or malfunctioning of certain washer functions, it may be time to replace this part.

Symptoms of a bad lower wire harness include:

• Error codes on the display
• Intermittent power loss
• Malfunctioning washer functions

Restore your Whirlpool washer by replacing the worn or damaged lower wire harness with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This clamp secures a washer or dryer hose to its connection to prevent leaks and keep the hose firmly in place during operation. It replaces worn or loose clamps that allow water to escape or hoses to detach. What it does:

• Holds a washer/dryer hose to a nipple, collar or fitting to maintain a sealed connection
• Prevents water leaks caused by loose or corroded clamps
• Stops hoses from slipping off during drain or fill cycles
• Restores proper hose retention and reduces risk of water damage

• Disconnect power and turn off the water supply before starting any repair
• Inspect hose and fitting for damage; replace hose if cracked or frayed
• Use appropriate pliers or a screwdriver for the clamp style; avoid overtightening to prevent hose damage
• Verify a leak-free connection after restoring power and water

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal
