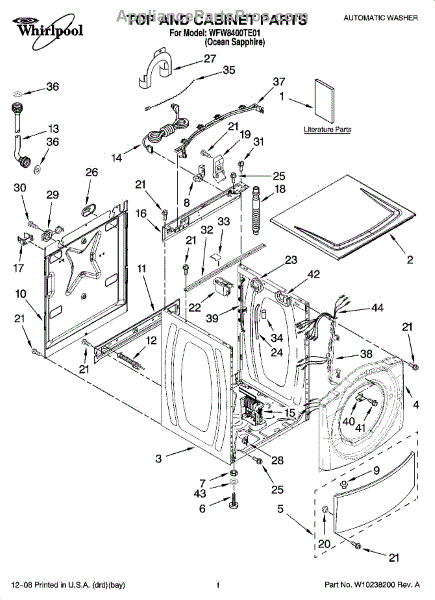

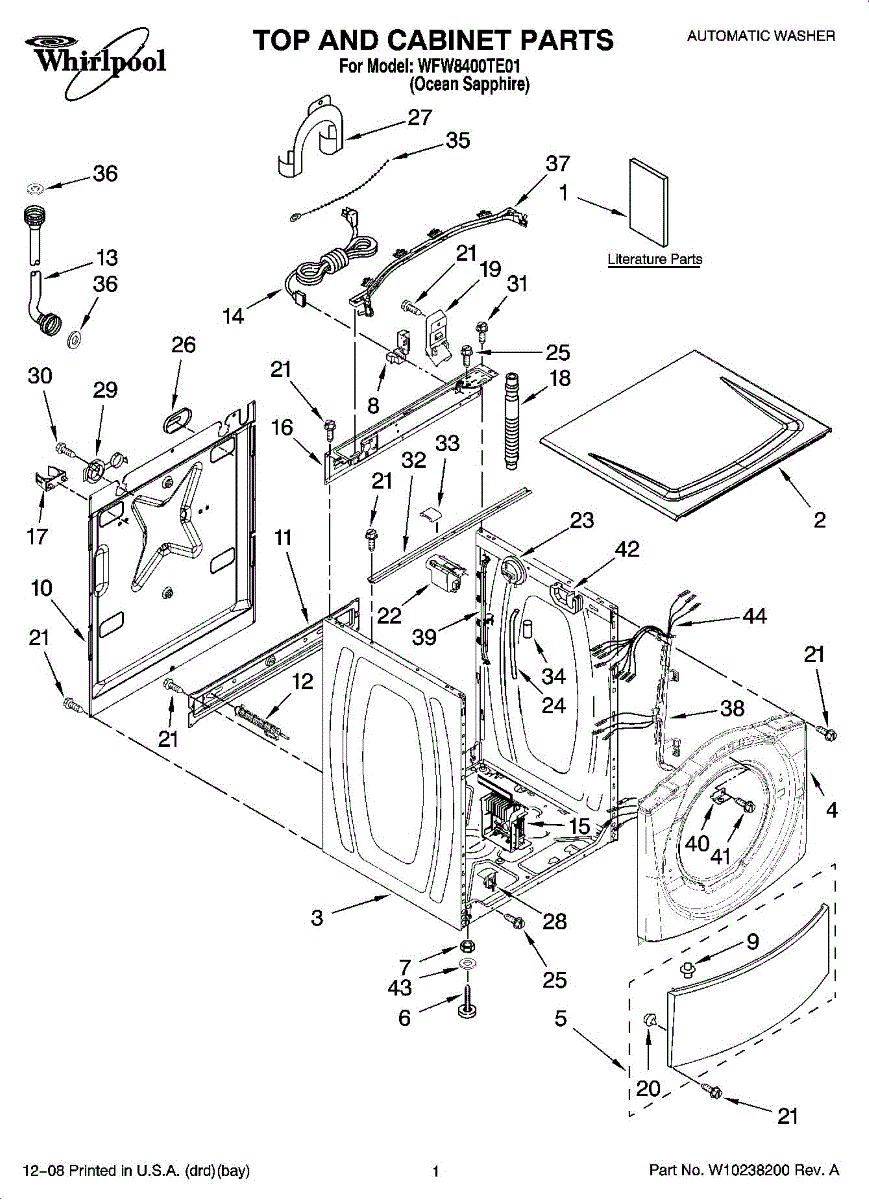

Parts for Whirlpool WFW8400TE01: 01 - Top And Cabinet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This leveling foot threads into the base of the appliance to support and stabilize it. Proper adjustment keeps the unit level on uneven floors, reducing rocking, vibration, and noise for smoother, more reliable operation.

• Provides height adjustment to level and stabilize the appliance
• Helps reduce rocking, vibration, and rattling during use
• Restores support when an original foot is worn, stripped, or missing
• Can improve door/tub alignment once the unit is properly leveled

• Disconnect power and, if applicable, turn off water/gas before servicing
• Carefully tip or raise the unit to access the foot; use a helper to prevent tipping
• Thread the new foot by hand to avoid cross-threading; use a wrench for final adjustment
• Level the appliance front-to-back and side-to-side; ensure all feet firmly contact the floor

This locking nut is used for many purposes on a range of machines including household appliances. This nut is often used for leg leveling for machines. It will help with vibrations from washers and dryers. If the nut is used for this purpose and goes missing or becomes damaged, it could cause the machine to vibrate more and seem louder.Nuts are made from metal and are built to last a long time. However, there can still be issues that arise. In some cases, the nuts might go missing if they become loose and the machine is moved. They could also corrode over time and need to be replaced. The replacement of the nut is typically a fast and simple repair.The nut is a genuine OEM replacement part sourced from the manufacturer. It can work with washers, dryers, and combo machines, and is compatible with models from Whirlpool, Kenmore, Maytag, and Roper. The part is sold individually. Owners may want to have several on hand.

This rivet secures panels, trim, or small components on compatible Whirlpool appliances to restore proper fit and reduce noise. It's a simple replacement for worn, loose, or missing fasteners so parts stay firmly in place. What it does:

• Holds appliance panels, brackets or trim pieces together for a secure fit
• Stops rattling or vibration caused by loose or missing fasteners
• Restores proper alignment of parts that rely on a permanent fastener
• Provides a durable, low-profile connection where a rivet was originally used

• Turn off and unplug the appliance before working on it to avoid shock or injury
• Remove the damaged rivet by drilling or cutting; install new rivet with the proper rivet tool or replacement method for the original rivet type
• Wear eye protection and follow basic hand-tool safety

Note: This is a kit of 4 shipping bolts.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

This motor control board regulates and powers the washer's drive motor, coordinating speed, direction, and spin. Replacing a failed module can restore proper tumbling/spinning performance and resolve common motor-related faults.

• Supplies variable-speed power to the drive motor for wash and spin
• Monitors motor feedback to maintain correct speed and direction
• Communicates with the main control to carry out cycle commands
• Common symptoms: no tumble or spin, erratic/incomplete spin, cycle stops with motor/communication errors

• Disconnect power before servicing; verify power is off
• Use ESD protection and handle the board by the edges
• Access the board inside the cabinet; move connectors one at a time and seat them fully
• Inspect the motor and wiring harness for shorts or damage before restoring power

The Drain Hose is an OEM replacement part for Whirlpool washing machines. It connects the washer tub to the drain pipe, facilitating the drainage of water after a wash cycle is complete.

Causes of a bad drain hose can include regular wear and tear, blockages from debris or lint, cracks or splits due to aging, or damage from improper installation or handling. A compromised drain hose can lead to water leaks and drainage issues.

Symptoms of a bad drain hose include:

• Incomplete water drainage after cycles
• Puddles or leaks near the base of the washer
• A blocked or restricted flow through the hose
• Detached or disconnected hose ends

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Rubber bumper. Color: Grey.

Size: 8-18 x 1/2 inch.

This RFI noise filter conditions the AC power entering your microwave, reducing electrical interference and helping protect and stabilize the control and power circuits. Replace it if the unit is dead or trips a breaker when starting.

• Filters radio-frequency/electromagnetic noise on the incoming AC line
• Helps stabilize power to the control, relays, lights, and fans
• Failure may cause no display or intermittent loss of power
• A shorted filter may blow the line fuse or trip the household breaker when plugged in or when Start is pressed

• Disconnect power by unplugging the microwave or switching off the dedicated circuit breaker
• For over-the-range units, remove the microwave from the wall to safely access internal components
• Label and transfer wires to matching terminals; mount the filter securely and route wiring away from sharp edges

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This water level pressure switch senses air pressure from the tub and signals the control to stop filling at the correct level. Replacing a weak or failed switch restores proper filling, helps prevent over/underfilling, and allows cycles to advance.

• Monitors tub water level via the pressure hose and sends the level signal to the control
• Stops water flow at the target level so wash, rinse, and spin can begin
• Common symptoms of a failing switch: continuous filling, overfilling or underfilling, cycle won't advance past fill/sensing, or stops with water still in the tub
• A cracked, kinked, or blocked pressure hose can mimic switch failure—inspect during diagnosis

• Disconnect power and turn off water supply before servicing
• Access the switch from the console/top or rear panel per your model; note wire orientation
• Transfer and firmly seat the pressure hose; inspect it for kinks, cracks, or blockages and replace if damaged
• After installation, run a fill test; some models may require a diagnostic calibration—see the tech sheet or user manual

This replacement hose restores a secure, leak-resistant path for water inside your appliance. Replacing it helps stop leaks and keeps cycles running as intended.

• Carries water between internal components during operation
• Maintains a sealed path to help prevent leaks
• Helps ensure proper filling, circulation, or draining as designed
• Common symptoms include water leaking under/inside the unit, standing water, or slow/incomplete fill or drain

• Disconnect power and shut off the water supply before servicing
• Keep towels or a shallow pan ready to catch residual water
• Note hose routing and clamp positions; transfer existing clamps if they're reusable
• After installation, run a test cycle and check carefully for leaks

This is a replacement mounting screw used to secure panels and internal components on compatible Whirlpool appliances. It restores proper fastening where the original screw is missing, stripped, or damaged for a safe, snug fit. What it does:

• Secures panels, brackets, or small components to the appliance chassis
• Restores lost or damaged fasteners that cause rattling or looseness
• Helps maintain correct alignment of parts that rely on threaded fastening
• Prevents further wear by replacing stripped or corroded screws

• Use the matching screw length and thread engagement; do not force if resistance is encountered
• Tighten firmly but avoid over-torquing which can strip threads or crack plastic
• Disconnect power and follow manufacturer safety instructions before servicing
• Consider replacing all matching fasteners for uniform fit

This transport cover secures internal components during shipping and service to prevent movement and damage. It helps keep parts aligned and reduces noise caused by loose components while the appliance is being moved. What it does:

• Holds internal components in place during transport to prevent shifting or impact damage
• Reduces rattles and vibration caused by unsecured parts
• Protects delicate assemblies from knocks during delivery or handling
• Helps maintain alignment of components until the appliance is installed

• One transport cover

• Disconnect power and water before servicing the appliance
• Remove all shipping brackets and covers per the owner's manual before normal operation
• Use manufacturer-specified fasteners and torque; do not force or modify the part

A U-bend retainer designed to secure a U-shaped heating element or tubing in place, preventing movement and vibration for reliable operation. Fits as the replacement hold-down clip used on compatible Whirlpool HVAC and appliance assemblies. What it does:

• Secures U-shaped element or tubing to the appliance frame or mounting bracket
• Prevents rubbing or vibration that can lead to wear or noisy operation
• Helps maintain proper spacing and alignment of the element for consistent performance
• Used where a compact, U-shaped clamp is required to hold components safely

• One U-bend retainer clip as shown

• Inspect the surrounding area and replaced part for damage before installing
• Use basic hand tools; align clip over the U-bend and fasten to the designated mounting point
• Disconnect power and allow components to cool before attempting repair
• Replace with the exact OEM fasteners

This Marquardt ground switch completes the appliance's ground connection so controls and safety systems have a proper reference. Replace a failed ground switch to restore reliable grounding and help eliminate related electrical faults. What it does:

• Provides the ground connection path used by controls and safety circuits.
• Replaced when continuity tests fail or when appliances have intermittent power, control errors, or nuisance breaker trips.
• Restores correct electrical grounding to help reduce fault conditions and erratic control behavior.
• Matches the original switch form and electrical connector layout for a direct replacement.

• Disconnect all power (unplug appliance and/or shut off breaker) before beginning service.
• Photograph or label wiring and connector positions before removal; transfer connectors to the new switch exactly.
• Inspect connectors and wiring for damage; replace any frayed or heat-damaged wiring.

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A

Note: This part is one screw, order quantity needed.

The Hinge Washer is an OEM part for Whirlpool refrigerators. This part ensures smooth opening and closing by reducing friction between the door hinge and the refrigerator body.

Causes of a bad hinge washer can include normal wear and tear from frequent use, accumulation of dirt or debris, and exposure to moisture, which can lead to rust and corrosion.

Symptoms of a bad hinge washer include:

• Difficulty in opening or closing the refrigerator door
• A door that does not stay in place
• Squeaking or grinding noises when the door is moved
• Visible wear or deformation on the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
