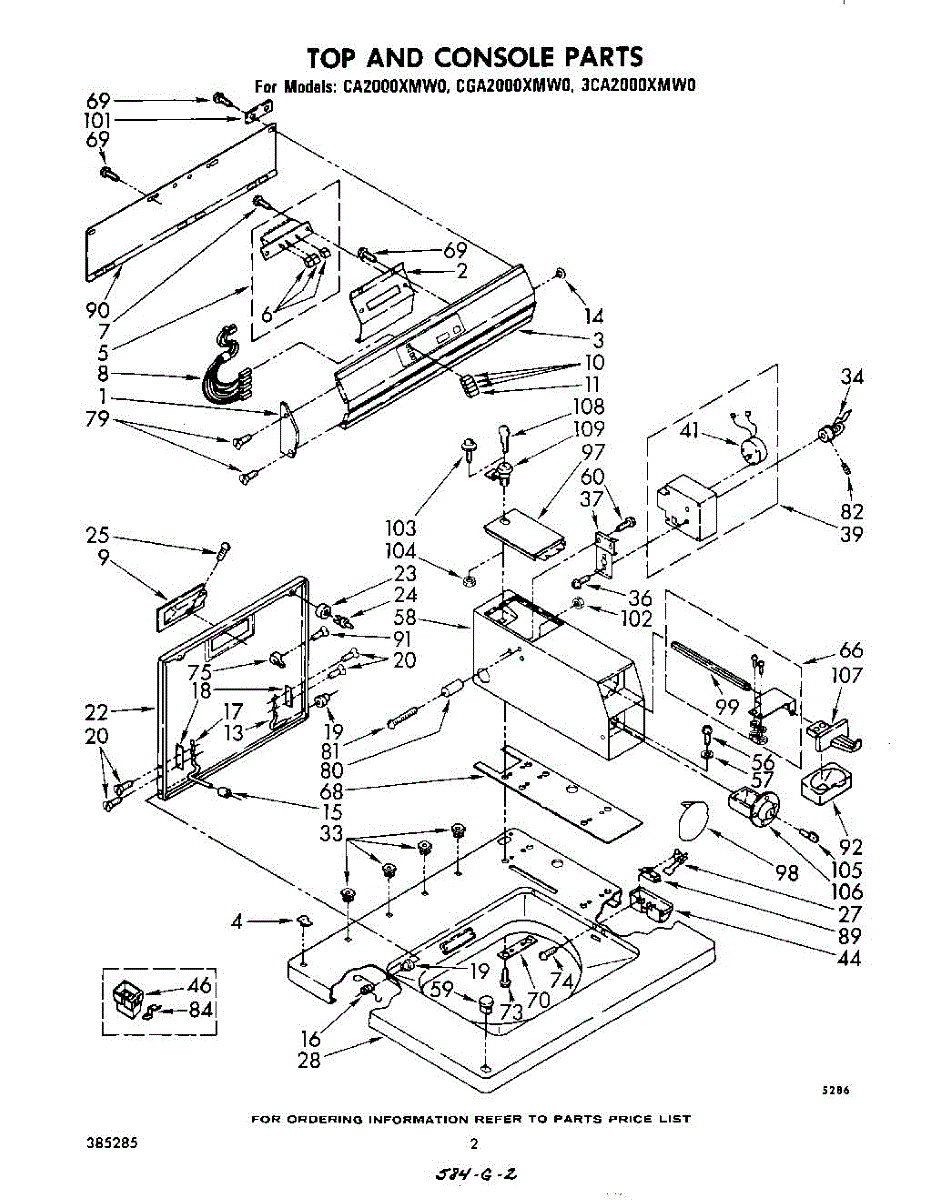

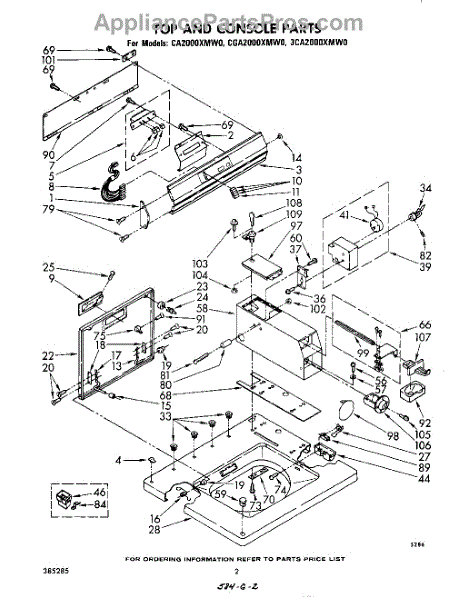

Parts for Whirlpool 3CA2000XMW0: 02 - Top And Console Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

Right hand side

This lid hinge pad fits between the washer lid hinge and the cabinet. It cushions the joint to reduce squeaks and metal wear, helping keep the lid aligned and operating smoothly.

• Provides a protective wear surface between the hinge and cabinet/lid
• Reduces squeaks, creaks, and rattling when opening or closing the lid
• Helps maintain proper lid alignment and smooth movement
• Common signs it's worn or missing: squeaking lid, rubbing/scuff marks at the hinge, loose or wobbly lid

• Disconnect power to the washer before servicing
• Support the lid to relieve hinge tension and access the hinge area per your model
• Remove the worn pad and press the new pad fully into the hinge location
• Test lid operation; inspect the opposite hinge and replace its pad as needed if your model uses two

The lid hinge bearing is used for the lid hinges on washers and dryers. When functioning properly, it allows the lid to open and close properly. If this is a problem with the bearing, it could make the lid difficult to move. In some cases, when the lid will not close, it means that the machine will not function correctly. Damaged lid hinge bearings should be replaced as soon as possible.The lid hinge bearings see a lot of work since they are in use whenever the lid of the washer or dryer opens and closes. They could become cracked and broken over time. Replacing the bearings is a relatively simple repair that owners can make on their own.This lid hinge bearing is for use with many models of washers and dryers from Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Admiral, Amana, Crosley, and Magic Chef. This is a genuine OEM replacement part that has been sourced from the manufacturer. The piece is sold individually, so if owners need to replace more than one hinge, they will need to buy multiples.

The Washer Lid Screw is an OEM part for Whirlpool washing machines. This 6-32 x .340 screw secures the washer lid to the hinge assembly, ensuring the lid opens and closes smoothly and stays securely in place during operation.

Causes of a bad washer lid screw can include wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or mishandling. A compromised screw can lead to issues with the lid's stability and functionality.

Symptoms of a bad washer lid screw include:

• The washer lid feeling loose or wobbling
• Difficulty in opening or closing the lid
• Visible rust or corrosion on the screw
• The lid not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Part# is one rivet.

This part has been discontinued by the manufacturer and is no longer available.

This screw-washer assembly secures panels, brackets, and other appliance components. The integrated washer spreads load and resists loosening, so replacing a worn or missing fastener restores a tight, reliable fit and helps eliminate rattles.

• Provides fastening with a built-in washer for even clamping and retention
• Replaces missing, stripped, or corroded hardware
• Helps address loose panels/handles and vibration or rattle noises
• Supports proper alignment of covers, brackets, and trim

• Disconnect power and shut off water or gas (as applicable) before servicing
• Match to the original fastener; location and quantity in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten; replace other severely rusted or damaged fasteners in the same area

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This part has been discontinued and is no longer avaialble.

This part has been discontinued and is no longer avaialble.

This protective cover for the washer's lid switch area guards the switch and wiring from water, detergent, and snagging inside the top panel, supporting reliable lid-closed detection and long-term safety interlock performance.

• Shields the lid switch and wiring from splashes, detergent, and debris under the top panel
• Helps prevent snagging or accidental contact with the switch mechanism
• Supports consistent lid-closed sensing by keeping the switch area protected and in position
• If the shield is damaged or missing, you may notice exposed switch/wiring or intermittent starting/spinning that improves when the lid is pressed

• Disconnect power before servicing; turn off water if moving the appliance
• Access the lid switch area by raising the top or opening the console per the service procedure
• Install the shield in the original orientation and secure with the existing fasteners
• After reassembly, verify the lid closes properly and the washer starts/spins as expected

For terminal use WP596797.

This locking plug secures a mating connector or wire harness to prevent accidental disconnection and keep the connection stable during normal use. It's a small replacement part that restores proper retention where the original plug has broken or worn. What it does:

• Clips into place to hold a connector or cord securely and reduce movement
• Helps prevent intermittent electrical or signal loss caused by loose connections
• Stops connectors from working free during vibration or normal appliance operation
• Often used where a secured plug connection is required for reliable function

• One locking plug

• Disconnect power to the appliance before beginning any repair
• Verify the part number and connector orientation before installation
• Typically installs by snapping into the connector/housing; basic tools may be helpful

Specs: 10-16 x 1/2 inch.

Self-locking, phillips screw.

Used from harness to top.

The Washer Door Switch is an OEM part for Whirlpool washing machines. This component is crucial for ensuring the washer operates safely by detecting whether the door is open or closed. The door switch prevents the washer from starting or continuing its cycle when the door is open, and it allows the machine to function only when the door is securely closed.

Symptoms of a failing Washer Door Switch include:

• The washer not starting or stopping unexpectedly during a cycle
• Error codes related to door closure issues displayed on the washer's control panel
• The washer door not locking properly or the lock mechanism not engaging
• The washer continuing to operate with the door open

Causes of a bad door switch can include wear and tear from frequent use, damage from repeated opening and closing of the door, electrical faults such as short circuits, or physical damage from mishandling or impact.

This OEM Whirlpool part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

This coin funnel channels coins from the coin slide/drop into the collection box on coin-operated laundry equipment. Replacing a damaged or missing funnel restores smooth coin flow and helps prevent jams and lost coins inside the cabinet.

• Guides coins from the slide/drop into the collection/coin box
• Helps prevent coins from spilling into the cabinet and causing jams
• Cracks, warping, or misalignment can cause coin back-ups or coins showing up inside the machine
• Visible damage or frequent coin jams indicate the funnel should be replaced

• Disconnect electrical power before servicing; for gas dryers, also shut off gas supply
• Remove coin box and open the meter case/console to access the funnel
• Reuse existing mounting hardware; install the new funnel in the same orientation
• Clear debris and test coin travel by hand before reassembly and returning to service

This is the factory replacement microwave door assembly. It restores a smooth, secure door closure and proper operation so the unit can open and close reliably and look like new. What it does:

• Provides a complete, aligned door to open/close the cavity smoothly
• Ensures latch hooks engage properly so the appliance can operate
• Replaces doors that are cracked, warped, or have broken handle mounts
• Addresses issues like the unit not starting unless the door is pressed, or stopping when the door is moved
• Helps resolve sparking/arcing around the door opening caused by a damaged door choke or screen

• One door assembly

• Disconnect power at the breaker before servicing; microwaves contain high-voltage components
• For over-the-range units, support or remove the microwave from the wall to safely access and handle the door
• Transfer any reusable hardware/hinge pins/trim from the original door as needed
• Align the hinges and verify the door closes, latches, and opens smoothly before remounting

This 1/4-20 bolt secures appliance panels, brackets, and components to keep assemblies stable and aligned. It's a direct-fit fastener used where a standard 1/4-20 machine screw is required. What it does:

• Fastens panels, mounting brackets, and internal components to the appliance frame
• Prevents parts from shifting, vibrating, or producing rattling noises
• Restores proper alignment for components that won't sit flush or move under load
• Replaces corroded, stripped, or missing hardware that can cause loose assemblies

• One 1/4-20 bolt

• Disconnect power to the appliance before performing any repairs
• Use the correct socket or wrench for a secure fit; avoid rounded fasteners
• Tighten snugly but avoid over-torquing to prevent thread damage or stripped holes
• Ensure mating threads are clean and free of debris

This cage nut has 5/16-18 threads and clips into a panel or frame opening to create a durable, replaceable threaded anchor. It restores a solid mounting point so screws can securely fasten panels, brackets, or hardware.

• Provides a 5/16-18 threaded anchor in thin sheet metal or chassis openings
• Secures panels, brackets, and components where factory threads are not possible or have stripped
• Helps eliminate looseness, rattling, or misalignment when a mounting point fails
• Symptoms of a failed/missing cage nut include a screw that won't tighten or hold, loose panels, and vibration noises

• Disconnect power and allow moving parts to stop before servicing
• Remove the screw and old cage nut; compress the new nut's tabs and snap it fully into the opening
• Align threads and start the screw by hand to avoid cross-threading
• Tighten the screw until snug; do not overtighten into sheet metal
