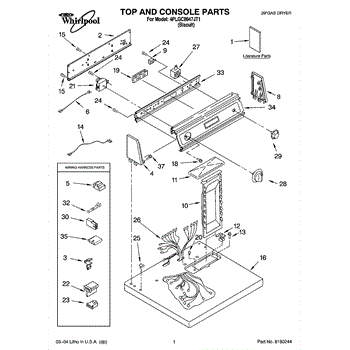

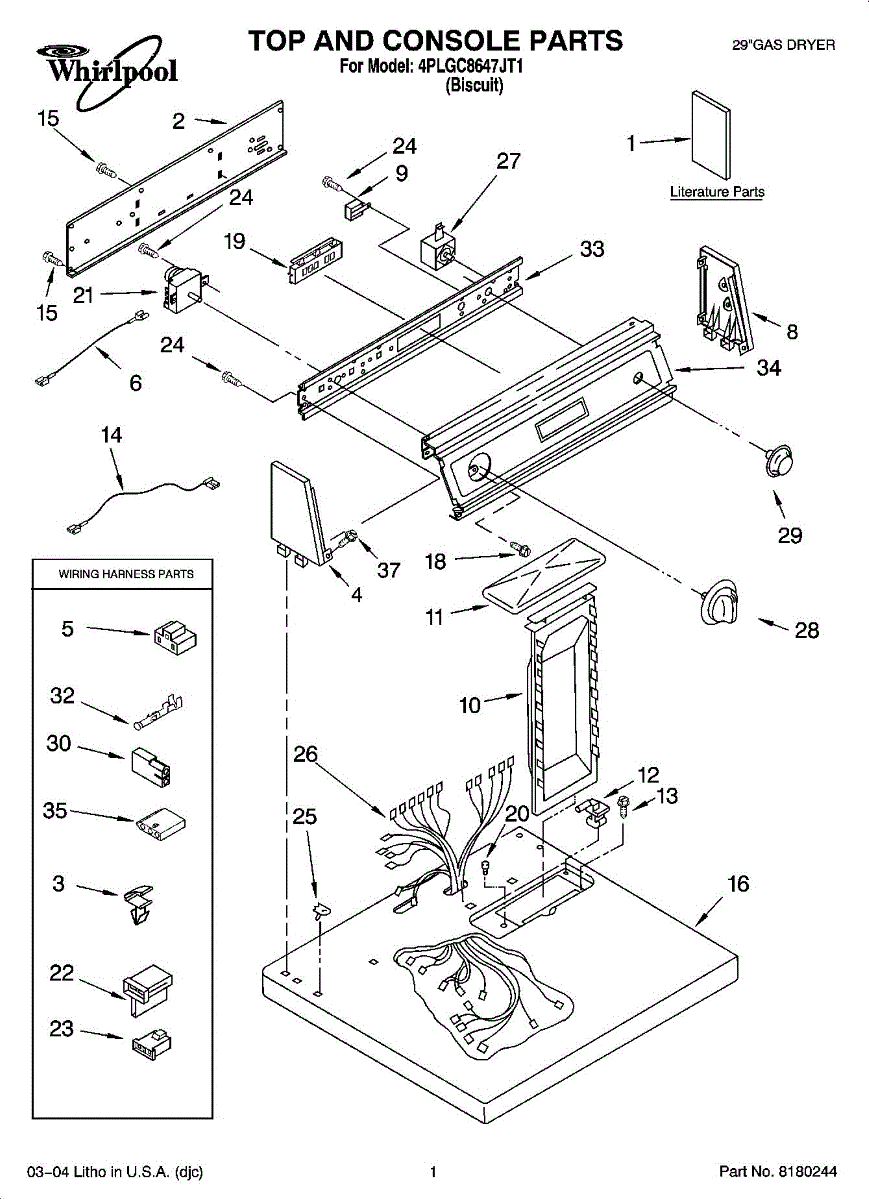

Parts for Whirlpool 4PLGC8647JT1: 01 - Top And Console Parts

Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

This connector buzzer wire harness links the appliance control to the buzzer/alert so the unit can emit audible tones for cycle completion and error warnings. Replaces a damaged or corroded buzzer connector to restore alert sounds. What it does:

• Provides the electrical connection between the control board and the buzzer/alert assembly.
• Restores audible beeps or tones when the original connector is loose, broken, or corroded.
• Helps prevent intermittent or no-sound conditions caused by poor connector contact.
• Fits into the existing harness and plugs into the buzzer/board mating connector.

• One connector buzzer wire harness (1 piece).

• Disconnect power to the appliance before inspecting or replacing the connector.
• Unplug the old connector from the buzzer/control; note orientation and routing before removing.
• Plug the replacement connector into the matching buzzer/control socket until it snaps into place.

The Lint Screen is an OEM part for Whirlpool dryers. It is crucial for trapping lint and debris from clothes during the drying process, helping to prevent these materials from clogging the dryer vent or causing potential fire hazards. This lint screen measures approximately 20 1/2" x 7 1/2".

Symptoms of a bad Lint Screen include:

• Tearing or holes in the screen that allow lint to pass through
• Excessive lint accumulation in the dryer or vent
• The dryer taking longer than usual to dry clothes

Causes of a bad lint screen can stem from normal wear and tear, improper cleaning practices that lead to build-up and degradation, or accidental damage during handling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the 19 inch long filter order 339392V.

Right handed Hinge

This lint screen lid hinge connects the dryer's lint lid to its mounting point, allowing smooth, aligned opening and secure closing. Replacing a bent or broken hinge restores proper lid operation and helps keep lint contained in the trap.

• Provides the pivot point for the lint screen lid/cover
• Helps the lid sit flush and stay aligned when closed
• Symptoms of a failed hinge can include a loose or misaligned lid, difficulty opening/closing, or squeaking/binding at the hinge
• Replace when the hinge is bent, cracked, or missing

• Disconnect power before servicing; sharp cabinet edges—wear cut-resistant gloves
• Support the lint lid to avoid bending or scratching
• Remove the mounting screws, note the hinge orientation, and transfer the new hinge in the same position
• After reassembly, cycle the lid open/closed to ensure smooth operation before restoring power

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This is a replacement 8-18 x 7/32 machine screw used to secure panels and small components in compatible Whirlpool appliances. It restores proper fastening where a screw is missing, stripped, or damaged. What it does:

• Secures panels, trim pieces, brackets or small components to prevent movement
• Helps stop rattling, vibration noise, or loose-fitting parts
• Replaces missing or damaged screws to restore proper alignment of panels or controls
• Used wherever an 8-18 x 7/32 machine screw is specified by the manufacturer

• Unplug the appliance or turn off power before servicing.
• Use the correct screwdriver or bit to avoid stripping the head; tighten snugly but do not over-torque.
• Replace any stripped inserts or mating hardware if threads are damaged.

This rubber bumper cushions and protects moving parts and panels, reducing noise and preventing metal-to-metal contact. It restores proper spacing and stops rattles so doors, drawers or panels close smoothly and quietly. What it does:

• Acts as a shock-absorbing cushion to prevent damage from impact or slamming
• Reduces vibration and rattling noise from doors, drawers or panels
• Maintains proper clearance and helps parts align during operation
• Commonly replaced when worn, flattened, missing or causing noise

• One rubber bumper

• Typically press-fits into a hole or onto a mounting post
• Clean the mounting surface of dirt and old adhesive or debris for best retention
• No special tools required for most installs; use gentle pressure or a blunt tool to seat the bumper
• Unplug the appliance or disconnect power before servicing

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

Push-in.

This timer knob assembly replaces a cracked, worn, or missing control knob to restore positive detents and clear user control of the timer/function selector. Finished in biscuit to match light-colored control panels. What it does:

• Provides a replaceable control knob for the timer or function selector so settings can be selected reliably.
• Reestablishes firm detents and grip when the original knob is loose, stripped, or broken.
• Improves control-panel appearance by replacing a faded or chipped knob.
• Useful when the knob is missing, spins without engaging the shaft, or is cracked.

• Disconnect power to the appliance before beginning any service.
• Most installations are tool-free: pull the old knob straight off the control shaft and push the new assembly onto the shaft until seated.
• If the knob uses a retaining screw or clip, reuse the original fastener; do not overtighten.

This push-to-start knob replaces a worn or broken control knob on compatible top-load washers and makes starting cycles simple again with a clean, color-matched finish. Restores tactile control for reliable cycle selection. What it does:

• Replaces a damaged or faded push-to-start knob so you can engage the washer's start function easily.
• Provides a secure grip and clear tactile feedback when pressing to start a cycle.
• Helps resolve symptoms such as a loose, cracked, or non-responsive start knob.
• Matches biscuit (light tan) control panels for a cohesive appearance.

• Disconnect power to the appliance before beginning any repair.
• Most installs are simple push-fit replacements; pull the old knob straight off and press the new knob onto the shaft until it seats.
• If knob removal is difficult, access any retaining clips or fasteners.

For mating terminal use [AP31136300].

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Color: Biscuit. Size: 13 oz. can. Enamel spray paint.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Dryer Vent Test Kit ensures your dryer's vent system is operating properly. Kit includes two tests depending on the location of your dryer's lint screen: One for the lint screen in the top of your dryer, and one for the lint screen in the front of your dryer. Instructions included.

Bottle with brush. Color: Biscuit paint. It's point-six fluid ounces.

This stationary drying rack sits inside the dryer drum to dry items flat without tumbling. It replaces a missing or damaged rack so you can properly dry sweaters, shoes, and other items that shouldn't rotate in the drum. What it does:

• Provides a stable, non-rotating surface inside the drum for flat-drying
• Allows airflow to dry items that should not tumble (e.g., sweaters or shoes)
• Restores the dryer's rack-dry capability when the original rack is missing or broken
• Typical symptoms: rack is cracked/warped, won't sit securely, or you need to dry items flat

• 1 drying rack

• Unplug the dryer before installing
• Open the door and position the rack so the rear support engages at the back of the drum and the front rests in the door opening
• Ensure the rack is level and secure before loading items evenly
• Do not run standard tumbling cycles with the rack installed; remove it when finished

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

The Dryer Repair Kit is an OEM replacement part for Whirlpool 29-inch large capacity dryer models. It is a kit designed to provide various essential components and hardware needed for common dryer repairs or maintenance tasks.

The kit includes:

• One Dryer belt (341241)
• Drum support roller kit (349241T)
• One idler pulley (WP691366)
• Instructions.

Please note: Some parts in this kit may not fit your specific model. Use your model number to check for your specific parts.

Causes of needing a dryer repair kit can include worn-out or damaged components due to normal wear and tear, accidental impact or mishandling, or maintenance requirements after a certain period of use.

Symptoms that may indicate the need for a dryer repair kit include:

• Excessive noise or vibrations during operation
• Difficulty in opening or closing the dryer door
• Clothes becoming tangled or wrapped around the drum
• Leaks or air drafts affecting drying performance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.
