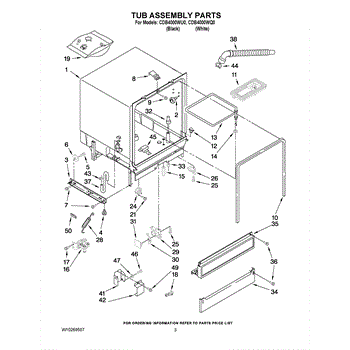

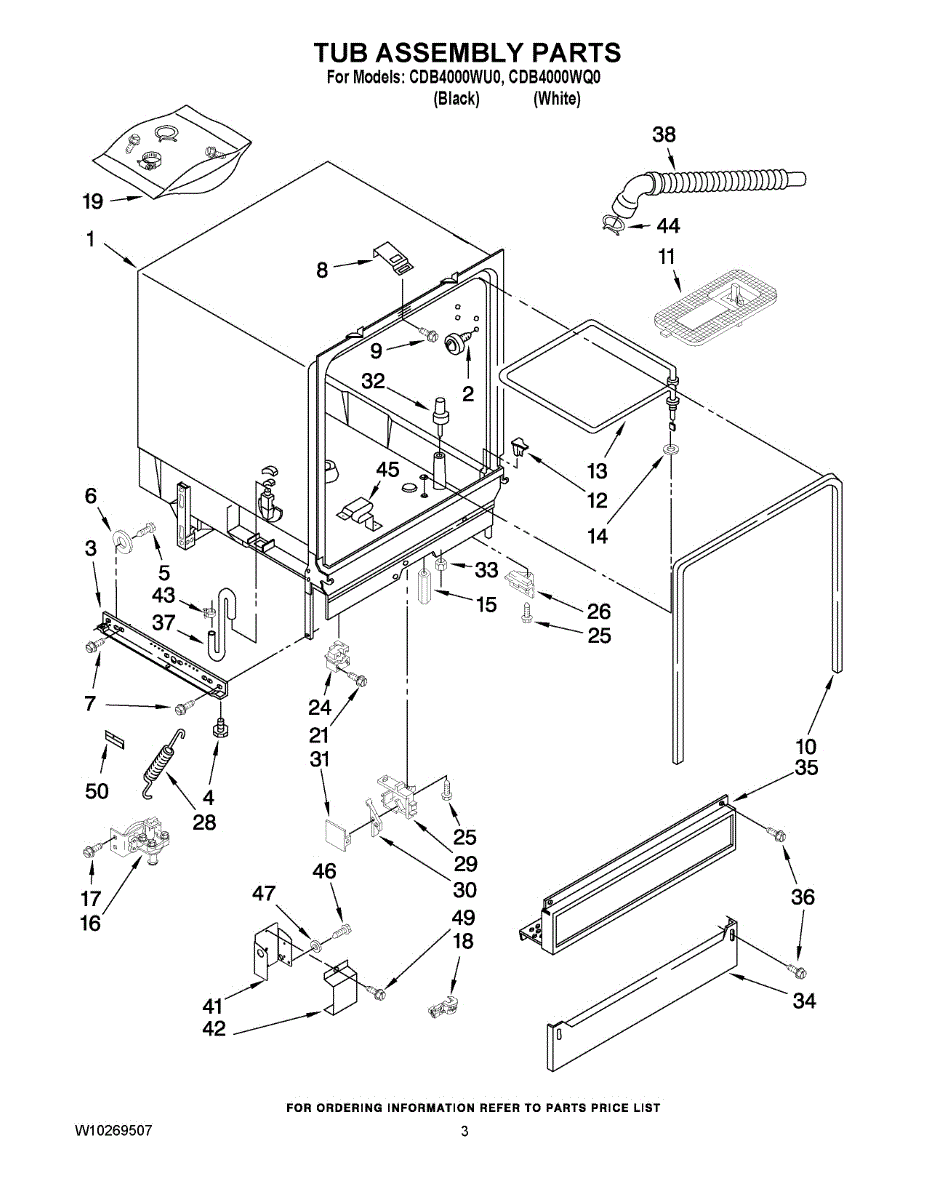

Parts for Magic Chef CDB4000WQ0: 03 - Tub Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dishwasher tub assembly forms the main interior basin where dishes are washed. Replace if cracked, warped, or leaking at seams. Complete tub structure.

Door balance link kit for dishwashers. Connects door springs to control door movement. Replace if rope is frayed, broken, or plastic clips are cracked or worn.

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

Size: 10-32 x 15/16 inch.

This is a small rolling caster wheel designed to support and allow easy movement of the appliance during installation or repositioning. It mounts to the underside of the unit to enable smooth transport across floors. Replace this wheel if it is broken, seized, or missing, which can make the appliance difficult to move and may cause floor damage.

Replacement mounting screw for securing panels, brackets, and components to your appliance chassis. Needed when original screws are stripped or missing.

This small clip secures your dishwasher door latch mechanism in the proper position. It ensures the door latch assembly stays aligned and functions correctly. If your dishwasher door won't latch properly or feels loose when closing, this clip may be missing or damaged.

Size: 8-32.

The Door Gasket is an OEM part for Whirlpool dishwashers. This gasket is designed to create a watertight seal around the dishwasher door, preventing water from leaking out during wash cycles. It ensures that the dishwasher operates efficiently by keeping water inside the unit, maintaining optimal cleaning performance, and protecting your kitchen from water damage.

Causes of a bad door gasket can include regular wear and tear from frequent use, exposure to high temperatures and harsh detergents, or damage from debris and foreign objects. Over time, these factors can lead to the gasket becoming brittle, cracked, or deformed, compromising its sealing ability.

Symptoms of a bad door gasket include:

• Water leaking from the dishwasher door during or after a cycle
• Visible cracks, tears, or deformities in the gasket
• The dishwasher door not closing properly or requiring extra force to close
• Mold or mildew buildup on the gasket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Bottom grate that captures heavy soils and debris in the dishwasher tub. Replace if cracked, broken, or missing to restore proper filtration.

This is a water deflector or baffle that mounts inside the dishwasher tub, typically at a corner, to direct water flow during the wash and rinse cycles. It helps ensure water is properly channeled for effective cleaning and prevents leaks at the door seal area. Replace this part if it is cracked, missing, or if you notice water leaking from the dishwasher door during operation.

If your dishwasher won't dry dishes or heat water, the heating element may have failed. This part restores heated dry and proper water temperature.

The Rubber Washer is an OEM part for Whirlpool dishwashers. This washer plays a role in ensuring a leak-proof seal at various connection points within the dishwasher, such as at the water inlet valve or hose connections. Its primary function is to prevent water from leaking out of the dishwasher during operation, thereby ensuring efficient and safe use of the appliance.

Over time, rubber washers can deteriorate due to the constant exposure to water and chemicals found in dishwasher detergents.

Symptoms of a bad Rubber Washer in a dishwasher include:

• Visible signs of wear or damage to the washer, such as cracks, brittleness, or deformation.
• Water leaking from the dishwasher, particularly around areas where hoses and valves connect.
• A decrease in dishwasher performance due to water not being contained properly during cycles.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Dishwasher plastic heating element nut. Used to hold down the heating element.

Dishwasher won't fill or overfills with water? The water inlet valve controls fill cycles. Most DIYers complete this repair in under 60 minutes.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This is a small plastic or rubber fitting that secures the power cord where it enters the dishwasher's junction box or base. It prevents the electrical wiring from being pulled, kinked, or damaged by absorbing tension on the cord. Replace this part if it is cracked or missing, which can leave wiring exposed and vulnerable to damage during installation or use.

Includes 2 screws and 2 hose clamps.

Fix a dishwasher motor that hums but won't start or shuts down from overheating. This motor relay switch resolves intermittent pump operation issues.

Size: 8-18 x 1/2 inch.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dishwasher won't heat or dry dishes? A blown thermal fuse cuts power to the heating circuit. Easy plug-and-play fix—most DIYers replace in minutes.

Provides tension for smooth dishwasher door operation. Replace if your original spring is broken, worn, or missing to restore proper door alignment.

Fix dishwasher overflows or won't fill issues. This water level float detects proper fill levels. Replaces broken or stuck floats causing drainage problems.

Color: Black. Includes insulation. Other colors: For almond use WP3384157, for biscuit use WP3384157, for white use WP3379921.

Color: Black. Screw for lower toe panel. For Biscuit screw use 3400865, for white screw use WP3400836.

Size: 7 foot long.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Secures the heater assembly in place to maintain proper alignment and stability. Replace if your bracket is cracked, broken, or missing to restore support.

Size: 8-32 x 1/2 inch.

Pronged cup washer for securing internal dishwasher components. Provides reliable retaining force for assembly hardware.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.
