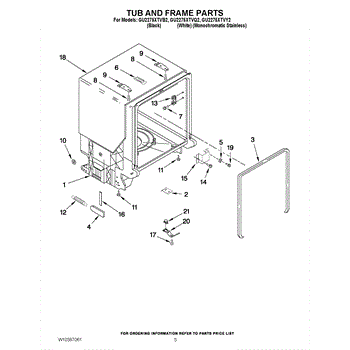

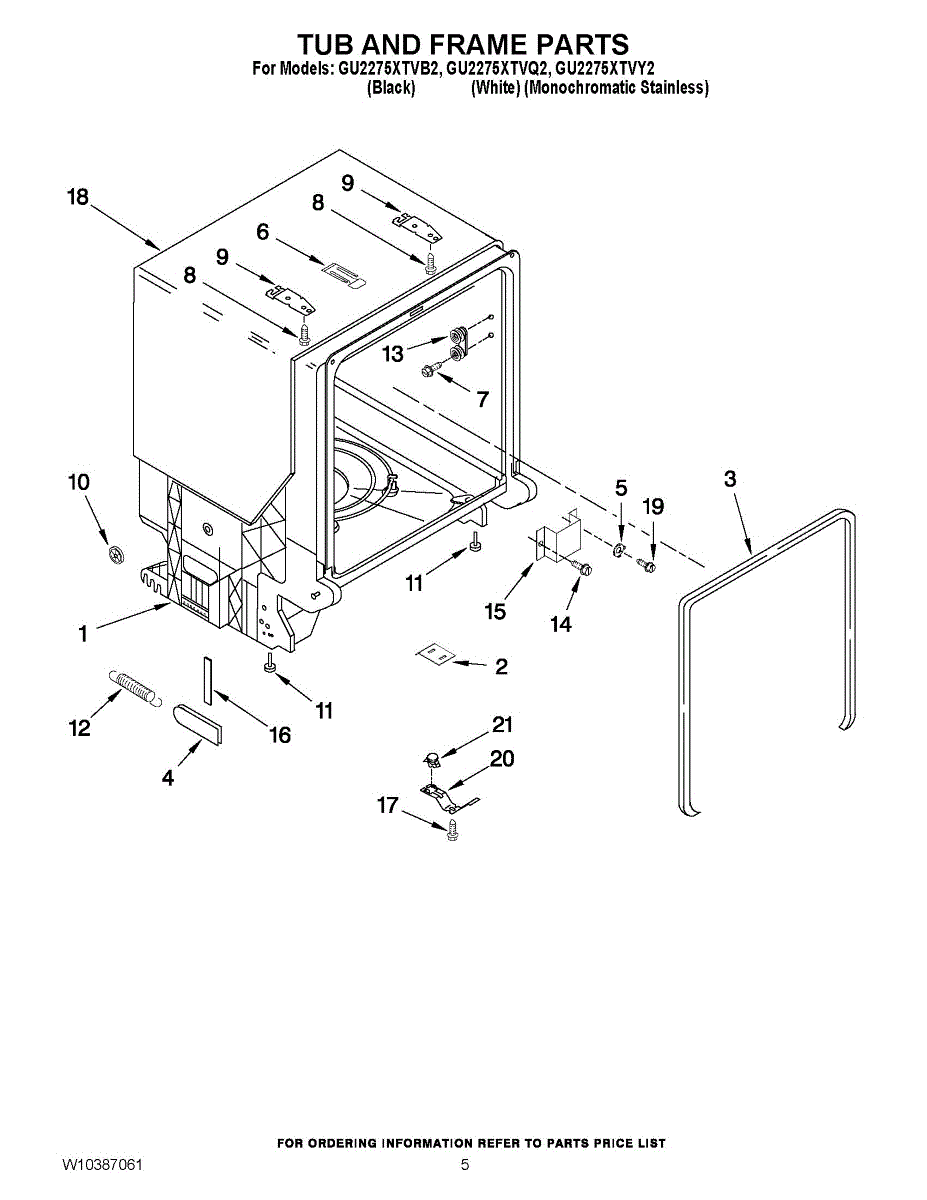

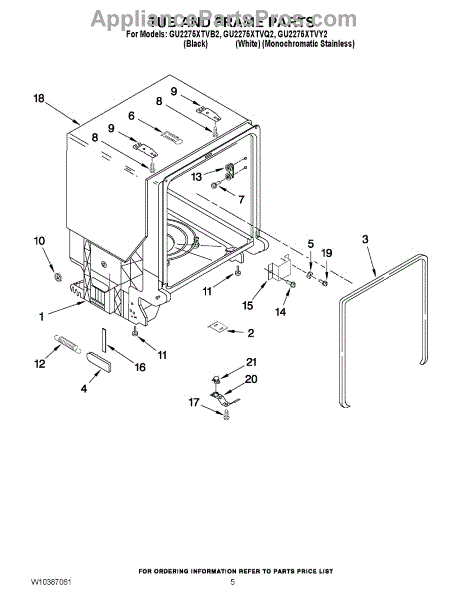

Parts for Whirlpool GU2275XTVB2: 05 - Tub And Frame Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Gasket and Strike Kit is an OEM part for Whirlpool dishwashers, designed to ensure a tight and leak-proof seal around the dishwasher door. This kit includes a door gasket and a door strike, both crucial components in preventing water from leaking out during the wash cycle.

Causes of a bad Gasket and Strike Kit can include normal wear and tear from regular use, leading to a loss of elasticity in the gasket.

Symptoms of a bad Gasket and Strike Kit include:

• Water leaking from around the dishwasher door.
• Difficulty closing the dishwasher door or ensuring it stays latched during operation.
• Visible signs of wear, such as cracks or hardening on the gasket, or bending or damage to the strike.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Bushing, Door spring

A pronged cup washer that secures and cushions mating parts on appliances, restoring proper fit and reducing wobble. Replaces worn or damaged cup-style washers to help maintain stable component alignment and reliable operation. What it does:

• Fits into a cup or socket to hold shafts, knobs, or trim pieces in place
• Pronged design grips the mounting surface to prevent rotation and slippage
• Helps reduce vibration and noise caused by loose or worn washers
• Commonly used when a knob, shaft, or trim feels loose or wobbly

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove the related knob or trim carefully to access the washer; note orientation for correct reassembly
• Press the washer fully into the cup or socket so the prongs engage the mounting surface
• Inspect the surrounding components for wear and replace any damaged parts

This factory-spec screw secures panels and components in your appliance. Replacing a missing or stripped fastener restores a tight, rattle-free fit so parts stay aligned and operate as designed.

• Fastens brackets, panels, and internal components to their mounting points
• Maintains alignment and reduces vibration during operation
• Replaces missing, worn, rusted, or stripped hardware
• Helpful when you notice rattling, loose panels, gaps, or parts shifting out of position

• Disconnect power; shut off water or gas supply if applicable
• Align the part being secured and remove any damaged hardware
• Hand-start threads to avoid cross-threading; tighten with the correct driver
• Do not overtighten; verify the assembly is secure and operates freely

This is a genuine replacement screw used to secure components and panels on compatible Whirlpool appliances, restoring a firm, vibration-free fit. It replaces worn or missing fasteners to help keep parts aligned and stable. What it does

• Secures panels, brackets, or internal components to prevent shifting or rattling
• Replaces stripped, rusted, or missing screws that cause loose parts or noise
• Helps maintain proper alignment of mounted components for safe operation
• Useful when reassembling repair work or after removing parts for service

• One replacement screw

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread damage
• Disconnect power before servicing electrical appliances; follow OEM safety guidance
• If screw threads or holes are damaged, replace both screw and mating hardware as needed

The Undercounter Bracket is an OEM replacement part for Whirlpool dishwashers. It is a sturdy mounting component that secures the dishwasher in place under the kitchen counter, ensuring a stable and secure installation.

Symptoms of a damaged or missing undercounter bracket include:

• The dishwasher shifting or moving during operation
• Difficulty in opening or closing the dishwasher door
• Potential for leaks or water damage due to an unstable installation

Causes of a faulty undercounter bracket can include improper installation, physical damage from impact or mishandling, or wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement wheel installation leg restores mobility and stable support for appliances that use a leg-mounted rolling wheel. It provides a direct-fit restore of worn or damaged legs to help move and position the appliance safely. What it does

• Replaces a damaged or worn wheel-style leg that supports and helps roll the appliance
• Restores smooth rolling and stabilizes appliance during movement
• Helps resolve symptoms like a broken/collapsed leg, stuck wheel, or uneven appliance height
• Matches OEM form and fit for direct replacement when the original leg/wheel is worn

• One wheel installation leg

• Turn off and unplug the appliance and remove contents or shelves as needed before working underneath
• Use basic hand tools; avoid forcing components—reuse existing fasteners

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Spring is an OEM replacement part for Whirlpool dishwashers. It assists in balancing and supporting the door during opening and closing motions.

Causes of a bad door spring can include metal fatigue from years of compression and extension during cycles. The spring can also become misshaped if over-tightened during maintenance or installation.

Symptoms of a bad door spring for a dishwasher include:

• Doors that slam shut too forcefully or rapidly
• Difficulty smoothly opening or closing the door
• An imbalanced feeling when lifting or lowering the door

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper built-in dishwashers.

This wheel mount assembly fits the dishwasher's upper rack track and provides the roller that lets the rack glide in and out. Replacing a worn or broken mount restores smooth movement and keeps the rack aligned on the rails. What it does:

• Supports and guides the upper rack along the side rails
• Replaces cracked, missing, or seized rollers that make the rack hard to slide
• Helps prevent the rack from popping off the track or sitting unevenly
• Can reduce scraping or squeaking noises when moving the rack

• One upper rack wheel mount assembly

• Disconnect power to the dishwasher before servicing
• Open the door and remove the upper rack by releasing the rail stops
• Depress the locking tab to remove the old wheel mount from the rail; align and snap the new assembly into place
• Reinstall the rack and rail stops; check for smooth rack travel

Replacement 8-32-thread screw used to secure panels, brackets and small components in compatible household appliances. Restores missing or stripped fasteners so panels and parts stay firmly attached during normal use. What it does:

• Secures trim, panels, brackets and control housings to maintain proper assembly.
• Replaces missing or damaged screws that can cause rattling, loose panels or misaligned components.
• Fits locations that require an 8-32 threaded fastener; correct length and head style for your application.
• Helps restore stable, vibration-free operation when worn or stripped fasteners are replaced.

• Disconnect power and water before servicing; wear eye protection and gloves.
• Use the correct screwdriver or driver bit to avoid stripping the screw head.
• Do not overtighten—turn until snug and secure to avoid damaging threads or surrounding parts.
• If the original used a washer or nut, reuse or replace as needed and the screw length and head type match the original.

This terminal box cover closes the dishwasher's electrical junction box under the unit, protecting and retaining the supply-wire connections. Replace a cracked, loose, or missing cover to restore a safe enclosure and proper wire containment. What it does:

• Encloses the dishwasher's junction box to prevent accidental contact with live wiring
• Helps secure and contain the incoming power wires
• Keeps debris out of the electrical connection area
• Common signs of failure: missing or broken cover, loose fit, stripped fastener point, rattling behind the kick panel

• Includes 1 terminal box cover

• Disconnect power at the circuit breaker before servicing
• Remove the lower access/kick panel to reach the junction box; remove the fastener and old cover
• Ensure all wiring is inside the box and the strain relief is secure; position the new cover and secure the fastener
• Do not operate the dishwasher without the junction box cover installed

The Friction Pad is an OEM replacement part for Whirlpool dishwashers. It is a component located within the dishwasher door hinge assembly that is responsible for reducing friction and providing smooth operation as the door opens and closes.

Friction pads can wear out over time due to repeated opening and closing of the dishwasher door. This repeated motion causes the pad material to break down gradually. If you notice increased resistance or noise when operating the door, or the door is not opening and closing as smoothly as before, it may be time to replace the friction pad.

Symptoms of a worn friction pad are:

• Difficulty opening or closing the dishwasher door
• Increased noise or squeaking sounds when operating the door
• Resistance or binding feeling when moving the door
• Door not staying securely in place when fully opened or closed

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8-18 x 1/2 inch.

The Insulation is an OEM part for Whirlpool dishwashers, specifically engineered to enhance the appliance's efficiency by reducing heat loss and minimizing noise. This insulation wraps around the dishwasher, acting as a barrier that keeps heat within the appliance during cycles and dampens the sound of its operation, making for a quieter kitchen environment.

Causes of a bad insulation part can include wear and tear over time, moisture damage leading to mold or mildew buildup, or physical damage from pests or mishandling during installation or repairs.

Symptoms of inadequate insulation include:

• Noticeable increase in the dishwasher's noise level
• Exterior surfaces of the dishwasher feeling warmer than usual
• Longer wash cycles due to inefficient temperature maintenance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-32 x 1/2 inch.

The Thermostat Clip is an OEM part for Whirlpool dishwashers. It plays an important supporting role by securely fastening the thermostat sensor inside the wash chamber.

Symptoms of a faulty Thermostat Clip can include:

• Fluctuating or inconsistent water temperatures between cycles
• Inability to properly detect temperature for desired heat levels
• Longer cycle times needed for reaching required temperatures
• Strange sounds or condensation around thermostat connection

Causes could arise from typical wear and tear stresses weakening plastic retaining clips. Exposure to harsh detergents may also erode clip material integrity over time.

This OEM replacement part is compatible with KitchenAid, Jenn-Air, Kenmore, and select Hotpoint and Roper dishwasher models as well.

Thermostat has 1/4 inch terminals.

The High Limit Thermostat is an OEM part for Whirlpool dishwashers. This safety feature is designed to prevent the dishwasher from overheating by shutting off the power if the internal temperature exceeds a certain limit. It acts as a safeguard against potential hazards, such as fires, and ensures the dishwasher operates within safe temperature ranges.

Over time, the high limit thermostat can become defective due to normal wear or electrical issues within the dishwasher. A malfunctioning thermostat may not accurately respond to temperature changes, which can lead to overheating or the dishwasher not reaching the necessary temperature for optimal cleaning.

Symptoms of a bad High Limit Thermostat include:

• Dishwasher not starting or completing a cycle
• The dishwasher stops heating water, affecting cleaning performance
• Overheating, which could potentially damage dishes or the dishwasher itself

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
