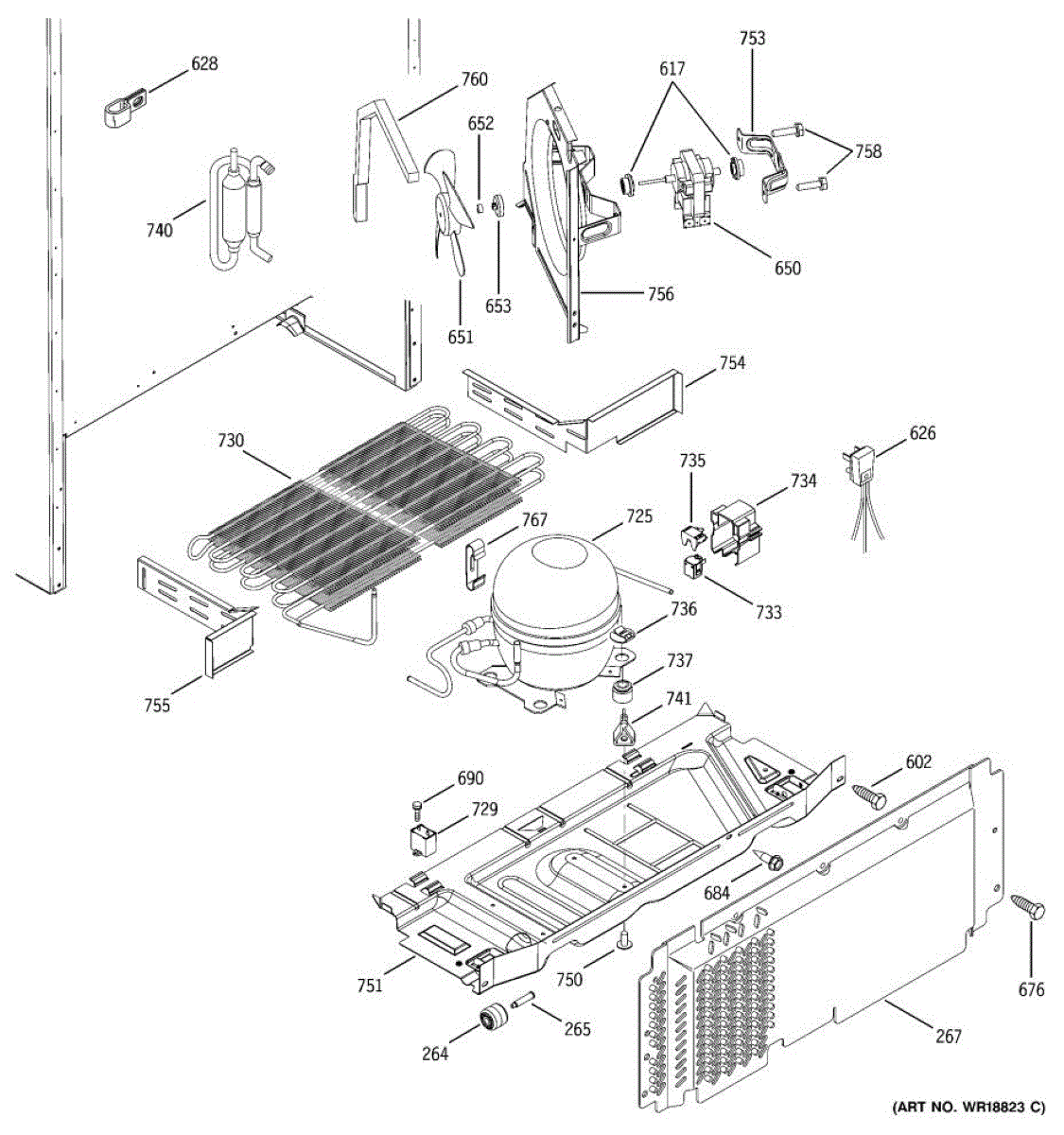

Parts for Ge GTS18SBMDRBS: 06 - Unit Parts

The Rear Refrigerator Wheel is an OEM replacement part for GE refrigerators. This wheel is attached to the bottom rear of the refrigerator, facilitating easy movement of the appliance for cleaning, maintenance, or repositioning. It is designed to support the weight of the refrigerator while ensuring smooth and stable mobility.

Symptoms of a bad Rear Refrigerator Wheel include:

• Difficulty moving the refrigerator
• Unusual noises, such as squeaking or grinding, when the appliance is moved
• The refrigerator not sitting level or stable
• Visible damage or wear to the wheel

Causes for a malfunctioning Rear Refrigerator Wheel can include wear and tear from regular movement, damage due to excessive weight or impact, or issues with the axle or mounting hardware that secure the wheel in place.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Grommet is an OEM part for GE refrigerators. This component serves as a cushion and stabilizer for the evaporator fan motor, reducing vibrations and noise while ensuring the fan operates smoothly. It helps to secure the fan motor in place, maintaining proper airflow and efficient cooling within the refrigerator.

Common causes of a bad grommet include wear and tear from constant use, damage from excessive vibrations, or degradation of the material over time.

Symptoms of a bad evaporator fan grommet include:

• Increased noise or rattling sounds coming from the fan area
• Vibrations felt within the refrigerator
• The evaporator fan motor becoming loose or misaligned
• Reduced cooling efficiency due to improper fan operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

The Condenser Fan Motor is an OEM replacement part for GE bottom-mount refrigerator models. Located behind the rear refrigerator panel, it powers the critical evaporator fan circulating airflow within the sealed system.

Symptoms of a bad motor include:

• Elevated compressor run times from lack of air movement
• Inability to maintain proper interior temperatures
• Abnormal compressor cycling patterns

Causes can involve normal wear over extended use taxing motor windings, accumulation of dirt interfering with operation, or damage sustained during maintenance or repairs.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator fan motor dust cap is an authentic OEM replacement part found on refrigerator and freezer fan motors. This dust cap prevents the fan motor bearing and housing from being damaged by dirt and debris. If the dust cap is cracked or broken, the fan may make loud squealing noises. If the dust cap is not removed and replaced, the fan could stop working and ultimately cause the refrigerator's temperature to be affected. To start, disconnect the power and water to the refrigerator. Remove food from the freezer so that the back panel of the freezer can be accessed to reach the fan. Remove the ice maker and set it outside the freezer. Disconnect the fan and take it out of the freezer to expose the fan's shaft and the dust cover. Pry the dust cover off and install the new one. Replace the fan and cover. Reconnect the wires and reinstall the icemaker. Put the food back in the freezer. Reconnect the power and water.The evaporator fan motor dust cap is a white plastic part that is sold individually. This dust cover is made for use in refrigerators manufactured by General Electric, Hotpoint, and Kenmore.

Size: 10-16 ab.

Size: 8-32 t. Includes 12 screws.

This 15 uF capacitor kit supports an AC motor by providing the phase shift needed to start and run smoothly. Replacing a weak or failed capacitor can help resolve hard-start or no-start issues and restore consistent performance. What it does

• Stores and releases energy to help a single-phase AC motor start and maintain proper torque
• Common symptoms include humming or buzzing without starting, repeated clicking, intermittent starting, or warmer-than-normal temperatures
• Visual clues of failure may include a swollen or cracked housing
• Matched 15 uF rating supports correct motor operation per the original design

• One 15 uF capacitor

• Disconnect power before servicing; verify the capacitor is fully discharged before handling
• Note wire positions; move one lead at a time to the new capacitor
• Match the microfarad (uF) rating to the original part for proper performance
• Secure the capacitor using the existing bracket/strap and route wires away from heat and moving parts

The Start Relay is an OEM part for GE refrigerators. It helps initiate the compressor by providing a temporary boost of power to start the cooling process.

Causes of a bad start relay can include electrical failures, overheating, or general wear and tear.

Symptoms of a bad start relay include:

• The compressor failing to start
• The refrigerator not cooling properly
• Clicking noises coming from the compressor area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This motor overload (thermal protector) helps protect the washer motor from overheating and motor damage by interrupting power if the motor draws excessive current or gets too hot. It's a simple, compact safety device that restores normal operation once cooled. What it does:

• Senses excessive motor temperature/current and cuts power to prevent motor burnout
• Helps stop motor humming or stalling caused by overload conditions
• Can prevent intermittent starts or trips when the motor overheats
• Resets automatically after the motor cools (depending on motor design)

• Disconnect power to the appliance before starting any repair
• Mounts onto the motor or motor harness per the OEM location; replace the faulty unit like-for-like
• Use basic hand tools; avoid tugging on wires—disconnect connectors carefully

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

This right-hand condenser baffle helps direct airflow around the condenser coil so your refrigerator cools efficiently and runs quietly. It replaces a damaged or missing baffle to restore proper air circulation and component protection. What it does:

• Channels airflow across the condenser coil to support efficient heat dissipation and consistent cooling.
• Helps reduce vibration and rattling by stabilizing airflow around rear components.
• Protects the condenser area from debris and accidental contact.
• Common symptoms of a failing or missing baffle: uneven cooling, louder compressor/condenser noise, or visible damage to the baffle.

• One right-hand condenser baffle

• Disconnect power to the appliance before starting any repair.
• Access may require removing the rear access panel or lower kick plate; follow your model's service manual.
• Handle edges carefully around the condenser; wear gloves to avoid cuts.
• If other components are damaged or obstructed, inspect and replace as needed for safe operation.

This condenser fan housing provides the mounting and airflow channel for the refrigerator condenser fan, helping maintain proper condenser cooling and airflow for efficient operation. Replaces a damaged or cracked housing to restore secure fan mounting and airflow direction. What it does:

• Secures the condenser fan motor and blade in the correct position behind the condenser coils
• Directs airflow across the condenser to help dissipate heat from the refrigeration system
• Reduces vibration and fan movement that can cause noise or wear
• Can prevent fan contact with other components if the original housing is cracked or broken

• One condenser fan housing

• Disconnect power to the appliance before starting any repair
• Some disassembly (rear access panel or toe grille) is typically required to reach the condenser area
• Handle sheet metal carefully; wear gloves to avoid cuts
• Reuse existing mounting hardware when possible; verify fan/motor alignment before fully tightening
