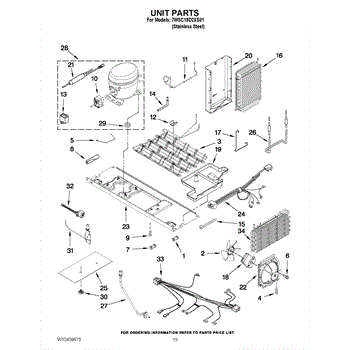

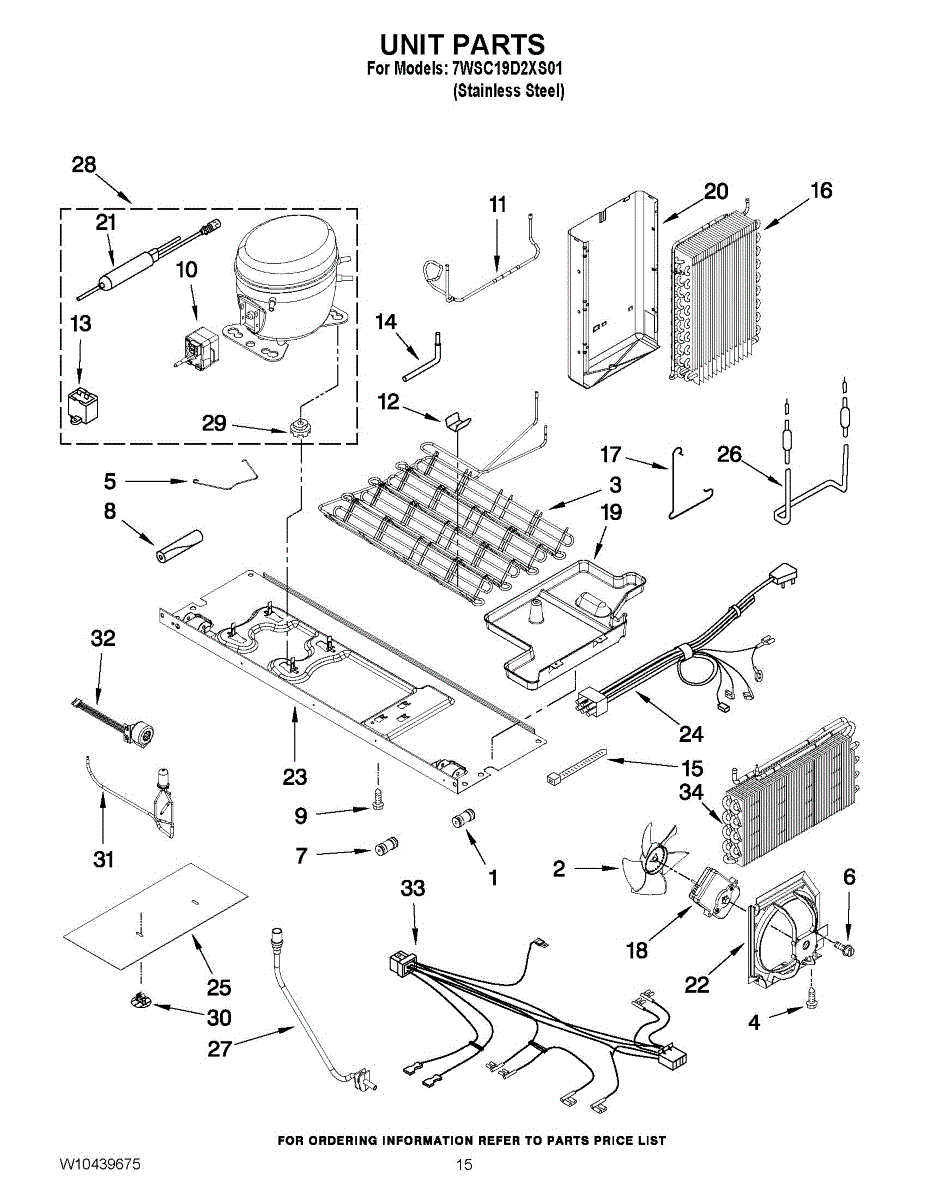

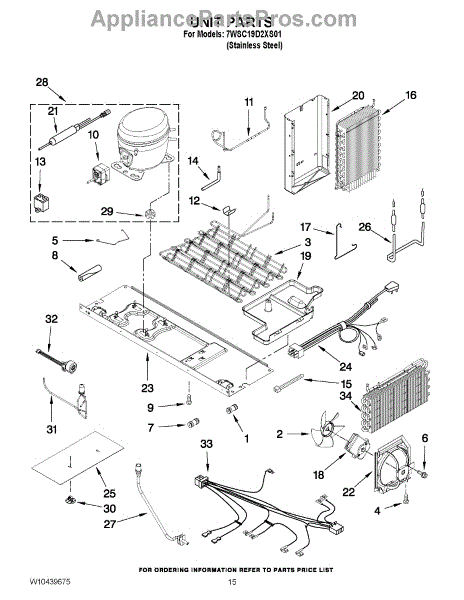

Parts for Whirlpool 7WSC19D2XS01: 09 - Unit Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This water tube connector joins sections of your refrigerator's water line for the dispenser and ice maker. It restores a secure, leak-resistant connection when the original coupling is damaged or leaking.

• Connects two segments of refrigerator water tubing
• Helps maintain proper water flow to dispenser and ice maker
• Resolves leaks caused by a cracked, worn, or loose connector
• Useful when replacing or rerouting water lines during service

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve line pressure
• Cut tubing square and insert fully until seated; tug gently to confirm a secure fit
• Restore water and check all connections for leaks; replace any damaged tubing as needed

The Water Line Union is an OEM part for Whirlpool refrigerators. It connects sections of the water line, ensuring a secure and leak-proof connection that facilitates the proper flow of water to the ice maker and water dispenser.

Causes of a bad water line union can include wear and tear from prolonged use, exposure to fluctuating temperatures, or physical damage from handling.

Symptoms of a bad water line union include:

• Leaks or water pooling around the refrigerator
• Reduced water flow to the dispenser or ice maker
• Water line disconnections
• Visible cracks or damage on the union

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This start device snaps onto the compressor to deliver the initial boost needed for startup and works with the overload protector to prevent repeated failed starts. Replacing a weak unit restores reliable compressor starts and consistent cooling.

• Provides the initial electrical path to start the compressor motor
• Works with the compressor's overload protector during startup
• Common symptoms: clicking or humming near the compressor, warm temperatures, intermittent or no cooling
• Visual clues of failure can include burn marks, melted housing, or loose internal pieces

• Disconnect power before servicing and wear cut-resistant gloves
• Access the compressor compartment, remove the cover, and note wire routing/orientation
• Seat the new start device fully on the compressor terminals and reconnect harnesses securely
• Transfer and reconnect those components as originally configured

The Start Device Assembly is an OEM part for Whirlpool refrigerators. It is a kit that includes the start relay and overload, both of which are crucial components for the proper operation of the compressor. The start relay is responsible for initiating the compressor's operation by providing an electrical boost to start the motor.

Causes of a faulty start device kit can include electrical component failure, power surges, or damage due to wear and tear over time.

Symptoms of a bad start device kit may include:

• The compressor not running or cycling on and off frequently
• Inadequate cooling or fluctuations in temperature
• Unusual noises coming from the refrigerator

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is an evaporator that is located inside many refrigerators. It has a part to play in ensuring the items inside the appliance stay cold. When the refrigerator turns from a liquid into a gas through evaporation, it cools the area nearby and makes it ideal for storing perishable food items. The evaporator pulls air from the refrigerator and blows it over the coils to keep it at the appropriate temperature. There are several signs that the evaporator is damaged or no longer working correctly. Sometimes it will make a chirping or squealing noise. It may cause the refrigerator to be too warm, which may cause issues with the food items inside. Frost buildup on the coils is also a bad sign. If the evaporator is damaged, it needs to be replaced. Unplug the refrigerator and remove the panel over the evaporator. Remove the clamps to uninstall the part. The new part can be installed in the same place. Make sure to test before use.This evaporator is made to be compatible with Maytag, Whirlpool, KitchenAid, and Kenmore refrigerators. It is directly sourced from the manufacturer and sold on an individual basis. This is an authentic OEM replacement component.

This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

The Condenser Fan Motor is an OEM part for Whirlpool refrigerators. This motor is responsible for powering the fan that cools the condenser coils, which helps dissipate heat from the refrigerator. Proper functioning of the condenser fan motor is crucial for maintaining the efficiency and cooling performance of the refrigerator.

Causes of a bad condenser fan motor can include wear and tear from regular use, dust and debris buildup, or electrical failures. A faulty fan motor can lead to overheating of the condenser coils, which can cause the refrigerator to operate inefficiently or stop cooling altogether.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator running warmer than usual
• The condenser coils being hot to the touch
• The fan not spinning or making unusual noises
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Due to a manufacturing change, if your original fan motor has a 3-terminal connector, order fan motor W10124096 which includes an adapter harness to convert to the new 4-terminal connector.

This fan mounting bracket secures the evaporator/condenser fan assembly and helps direct airflow for consistent cooling performance. It restores proper fan alignment and airflow when the original bracket is damaged or loose. What it does:

• Holds the fan motor/blade assembly in the correct position to prevent wobble and contact with housing
• Channels airflow for efficient heat exchange and temperature control
• Reduces vibration and noise caused by a broken or bent bracket
• Helps prevent fan-related contact damage to nearby components

• Inspect surrounding components for damage before installing; replace any worn fasteners
• Use appropriate hand tools; avoid overtightening to prevent cracking the bracket
• Disconnect power to the appliance before beginning work to avoid injury

This cover-unit is the outer cabinet cover that protects internal components and gives the appliance a finished appearance. It restores a secure, neat exterior and prevents exposure to wiring or moving parts. What it does:

• Replaces a cracked, dented, or missing outer cabinet cover to restore appearance and protection
• Shields internal components from dust and accidental contact
• Helps maintain proper alignment of adjacent panels and trim
• Reduces risk of snagging or injury from exposed edges

• Disconnect power to the appliance before starting any repair
• Installation typically requires basic hand tools (screwdriver, nut driver) and care to align mounting tabs
• Inspect mounting clips and screws; replace any damaged fasteners for a secure fit

This defrost heater mounts at the freezer's evaporator and melts frost during the automatic defrost cycle, keeping airflow unobstructed and temperatures stable. Replace a failed heater to clear ice buildup and restore proper cooling performance. What it does:

• Heats the evaporator coil at set intervals to melt accumulated frost/ice
• Prevents ice from blocking airflow between freezer and refrigerator sections
• Helps maintain consistent temperatures and efficient cooling
• Common symptoms of failure: thick frost on the back freezer wall, weak airflow, refrigerator warming while the freezer seems cold, fan noise from ice contact

• Disconnect power before servicing; allow heavy ice buildup to thaw safely
• Access the heater behind the freezer's rear panel at the evaporator
• Transfer any clips/shields as needed; route wires exactly as the original and keep the element clear of plastic parts
• Handle the element carefully; avoid bending or stressing it, then reassemble and monitor temperatures over several hours

The DRAIN TUBE is an OEM part specifically engineered for Whirlpool refrigerators. This essential component plays a crucial role in efficiently removing excess water or condensation from the refrigerator. Its precise design and compatibility ensure proper fitting and functionality within the appliance, preventing moisture buildup and potential water damage.

A damaged or clogged drain tube can result in issues related to excess moisture within the refrigerator. Causes of a malfunctioning drain tube might include blockages due to debris accumulation, physical damage, or wear and tear over time, leading to inadequate drainage or water pooling.

Symptoms of a faulty DRAIN TUBE may include:

• Water pooling or leakage inside the refrigerator
• Excessive condensation or moisture buildup
• Inadequate drainage resulting in water accumulation in the refrigerator

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This solenoid valve coil energizes the refrigerant service valve to help control refrigerant flow in compatible refrigeration systems. Replaces a worn or failed coil to restore valve actuation and reliable cooling system operation. What it does

• Energizes the refrigerant service valve so the valve can open or close when the system calls for it
• Common replacement when the valve won't actuate or the compressor cycle is abnormal
• Helps stop intermittent cooling caused by a stuck or non-responsive valve coil
• Fits into the valve assembly and provides the magnetic force needed for proper valve movement

• Disconnect power to the appliance before servicing to prevent shock or unintended compressor operation
• Inspect the valve and connector for corrosion or damage; replace the valve if body damage is found

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/16 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
