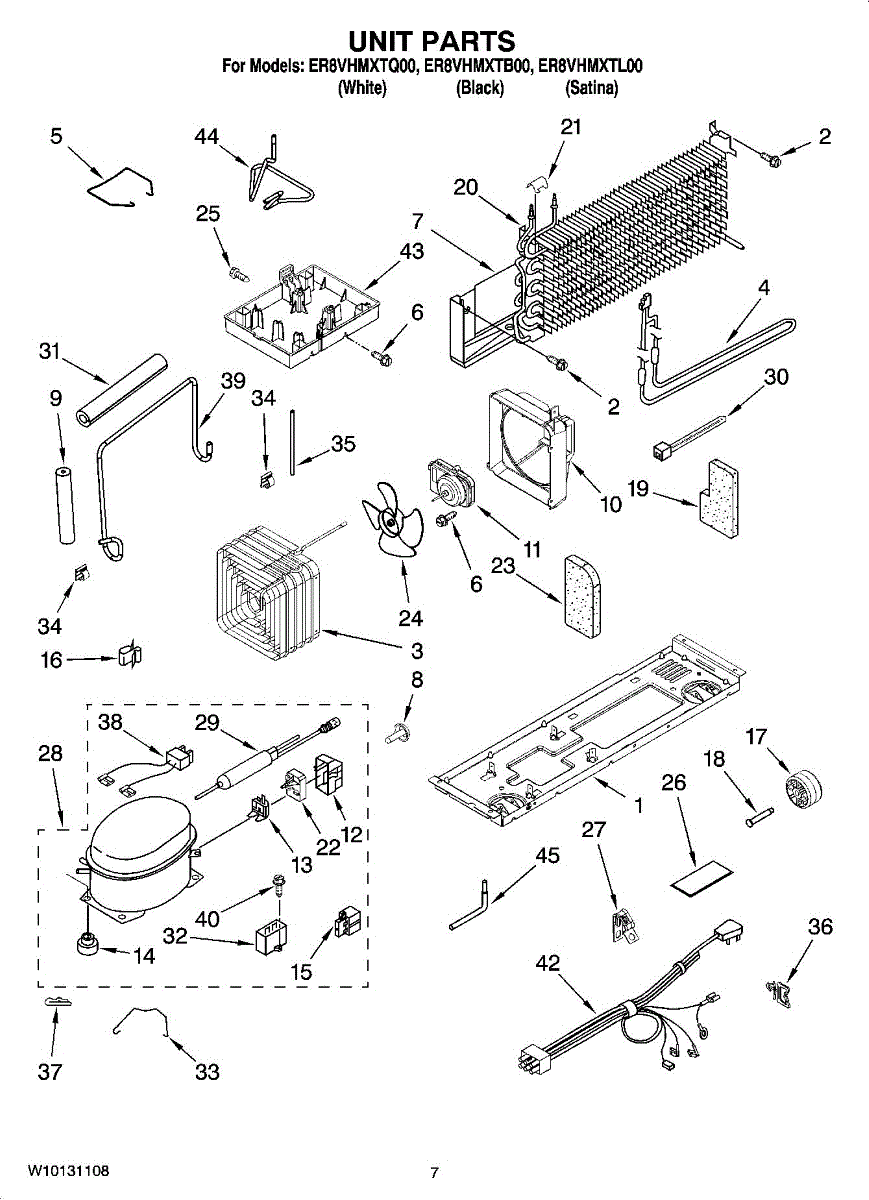

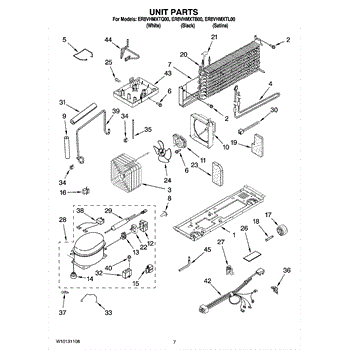

Parts for Whirlpool ER8VHMXTL00: 04 - Unit Parts

Refrigerator making excessive noise or vibrating? This compressor support plate stabilizes the compressor assembly, reducing vibration and noise issues.

8-18 x 1/2 inch mounting screw for refrigerators, washers, dryers, and other appliances. Replace stripped, missing, or damaged screws during repairs.

Fix a refrigerator that won't cool properly with a new condenser. This part releases heat from the cooling system. Moderate DIY repair, 1-2 hours.

Fix freezer icing and blocked vents with this defrost heater. Melts frost buildup on evaporator coils during defrost cycle. 30-minute DIY repair.

Mounting screw for refrigerator assembly. Secures internal components and panels. Replace if stripped, rusted, missing, or damaged during repairs.

Guide sleeve for washer drum or agitator assembly. Replaces worn, cracked, or missing sleeves that cause misalignment or rattling during operation.

Air baffle directs airflow in your refrigerator's freezer or fresh food compartment. Replace if cracked, broken, or missing to restore proper air circulation.

Refrigerator not cooling but freezer works? A failed condenser fan motor prevents heat from escaping. DIY repair takes 10-20 minutes with basic tools.

Protects electrical connections from shorts and corrosion. Covers power terminal where cord connects to compressor. Simple screwdriver removal.

Freezer won't cool or compressor won't start? This thermal overload protector cuts power when the motor overheats. Straightforward DIY repair.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

The Compressor Start Relay is an OEM part for Whirlpool refrigerators. This part provides the necessary power boost to start the compressor.

Causes of a bad start relay can include electrical issues, wear and tear from regular use, or damage from power surges or overheating.

Symptoms of a bad compressor start relay include:

• The refrigerator not cooling properly
• The compressor not starting or frequently shutting off
• Clicking noises coming from the compressor area
• The refrigerator running but not reaching the desired temperature
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This refrigerator roller supports the unit's weight and enables smooth movement for positioning and cleaning. Replace when wheels crack or roll roughly.

Rivet for refrigerators. Secures components and panels inside the cabinet. Replace if rivet is loose, missing, or broken during repair work.

Foam insulation support for refrigerator evaporator compartment. Replaces cracked, compressed, or missing foam that no longer provides proper insulation.

Fix water leaking on the floor or cooling issues with this refrigerator evaporator assembly. Located behind the freezer back panel. Moderate repair.

Secures bi-metal thermostat or temperature sensor for accurate temperature control. Replace if loose or damaged to restore proper cooling. Confirm fit.

Fixes refrigerator not cooling or compressor not running. This start relay and overload kit restores cooling when the compressor fails to start. DIY repair.

Foam insulation support for refrigerator evaporator compartment. Replaces cracked, compressed, or missing foam that no longer provides proper insulation.

Fix a refrigerator that's not cooling properly with this evaporator fan blade. Connects to the motor shaft to circulate cold air throughout compartments.

Hex washer head screw for refrigerator panel and component fastening. Replace when screw is stripped, missing, or corroded to secure loose parts.

Fix a warm refrigerator and freezer or loud rattling noise during operation. This compressor repairs cooling failures from sealed system issues.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Secures wiring bundles inside your microwave. Replace this wire tie if it's cracked, broken, or missing to keep internal wires organized and secure.

Refrigerator stopped cooling or compressor won't start? The run capacitor provides electrical charge to keep the compressor motor running smoothly.

Secures the compressor to the refrigerator frame. Replace if strap is cracked, broken, or missing to properly mount and stabilize the compressor unit.

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order when original clip is broken, cracked, or missing.

This extension is a replacement support piece that helps restore proper alignment and secure fit for the affected appliance component, improving function and preventing binding. It's a small structural part used where a factory extension is required. What it does

• Provides structural support and alignment for the mating part or assembly
• Helps restore smooth movement and prevent rubbing or binding of sliding components
• Addresses symptoms such as loose trim, uneven panels, or a drawer/panel that won't seat properly
• Useful when the original extension is cracked, broken, or missing

• One extension piece as pictured

• Disconnect power (and water if applicable) before beginning any repair
• Basic hand tools are typically required; avoid forcing fasteners or assemblies
• Inspect mating parts for damage and replace any additional worn components for best results

Fixes freezer that won't start or runs intermittently. This capacitor wire assembly restores secure electrical connections to the motor for reliable operation.

Collects condensation beneath the evaporator coils in your top-mount refrigerator. Replace if cracked, warped, or missing to prevent water leakage.

Size: 1/2 inch.

Size: 5/8 inch.

Refrigerator not cooling properly? A faulty 1/4 inch service valve can prevent proper refrigerant flow. This valve connects refrigerant lines in your system.

Service valve for refrigerators, freezers, and ice makers. Used for refrigerant system service and maintenance. 5/16 inch fitting size for technicians.

Fix refrigerant leaks or cooling issues with this 3/8 inch service valve. Essential for refrigeration system repairs and maintenance on multiple models.

Fix refrigerant leaks or low cooling with this 3/4 inch service valve. Essential for AC system pressure testing and refrigerant recharge procedures.

Fix refrigerant leaks or low cooling with this 3/16 inch service valve. Essential for AC recharging and system maintenance on multiple models.
