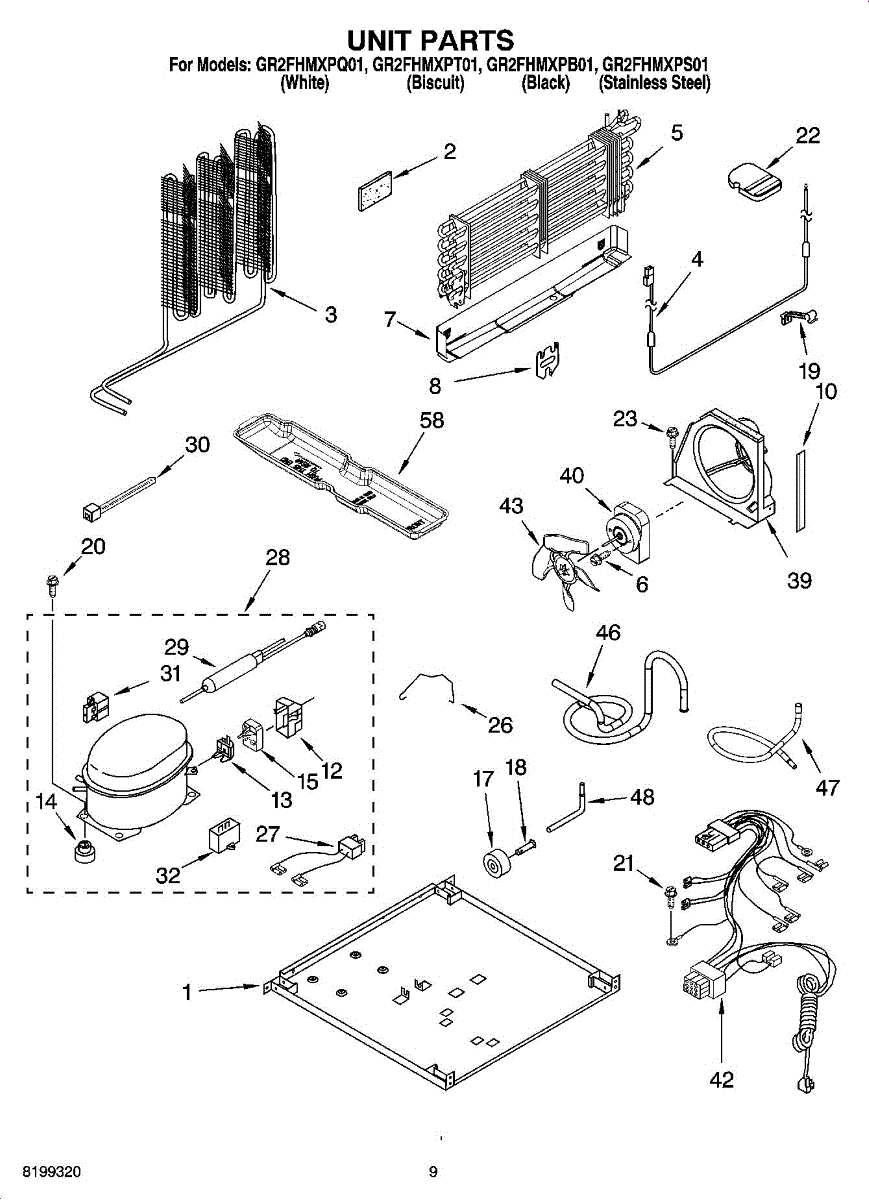

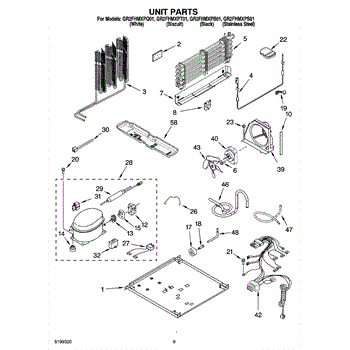

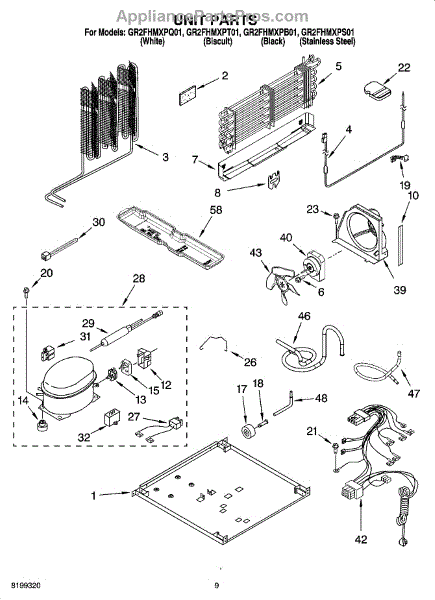

Parts for Whirlpool GR2FHMXPQ01: 05 - Unit Parts

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

The Defrost Heater is an OEM replacement part for Whirlpool French door refrigerators. It is an electric heating element strategically placed within the refrigerator compartment and freezer liners. This component aids in preventing excessive moisture buildup from condensation formed during normal operation.

Causes for heater failure include standard component degradation from prolonged use. Exposure to moisture accumulating over time can damage wiring insulation or short-circuit coil filaments as well.

Symptoms of an inadequate defrost heater involve:

• Frost buildup interfering with door seals and interior shelving
• Promotion of mold/mildew growth from sustained dampness
• Food spoilage risks due to the inability to regulate proper humidity

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

This overload protector is a thermal motor protector that cuts power if the dryer motor overheats, helping prevent motor damage and unsafe operation. Replace a failed unit to restore the motor's built-in overheating protection. What it does:

• Senses excessive motor temperature and interrupts motor power to prevent damage.
• Common symptom: dryer may not start or the motor hums but won't turn when the overload has failed.
• Helps stop repeated motor overheating and can prevent associated electrical faults.
• Works as the motor's thermal safety device; must be replaced if open or damaged.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Transfer wiring and mounting exactly as removed; do not bypass the protector.
• Inspect motor and blower for obstructions or causes of overheating before reassembly.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor

Compressor relay and overload.

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

Screw: 8-16 x 3/8 inch.

This genuine replacement screw secures appliance panels and components, restoring proper fit and stopping movement. Use it when a missing or damaged fastener causes loose trim or rattling. What it does

• Secures panels, brackets, and small assemblies to restore proper fit
• Helps eliminate rattling, vibration, or misaligned trim caused by a missing or stripped screw
• Replaces lost or damaged fasteners during maintenance or part replacement
• Matches OEM fit for reliable fastening where specified in diagrams

• Use the matching screw location shown in the appliance diagram; do not force or overtighten
• Use the correct screwdriver or bit to avoid stripping the head
• Disconnect power and follow appliance safety procedures before accessing internal components
• If threads are damaged, replace with the correct OEM fastener rather than reusing a compromised hole

This wire assembly connects the capacitor to the appliance's motor or control, restoring a secure electrical path for reliable start/run operation. Replaces a damaged or worn harness to help resolve starting and intermittent power issues. What it does:

• Provides insulated wiring and terminals to link the capacitor to the motor or control
• Ensures a secure electrical connection for proper start/run signaling
• Can resolve symptoms such as failure to start, humming or intermittent motor starting
• Prevents shorts or arcing from frayed or damaged wiring when functioning correctly

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a dangerous charge — have the capacitor safely discharged before disconnecting wires
• Match connectors and routing to the original harness; secure wires away from moving parts and heat sources

This refrigerator compressor circulates refrigerant to cool the appliance and restore proper temperatures. Replaces a failed compressor to help the refrigerator maintain set temperatures when the cooling system is compromised. What it does:

• Pumps refrigerant through the sealed cooling system to enable heat exchange and cooling.
• Runs the refrigeration cycle so the refrigerator and freezer can reach and hold target temperatures.
• Common symptom linkage: fridge not cooling, compressor humming or not running, or frequent cycling.
• Can cause system pressure issues if damaged or leaking.

• One compressor (single sealed unit)

• Power should be disconnected before beginning work and the refrigerant must be recovered per regulations.
• System evacuation, leak testing, and proper recharge with the correct refrigerant are necessary after replacement.
• May require replacement of mounting hardware, start device, or filter-drier—verify system condition during service.

The Compressor Start Relay is an OEM part for Whirlpool refrigerators. This part provides the necessary power boost to start the compressor.

Causes of a bad start relay can include electrical issues, wear and tear from regular use, or damage from power surges or overheating.

Symptoms of a bad compressor start relay include:

• The refrigerator not cooling properly
• The compressor not starting or frequently shutting off
• Clicking noises coming from the compressor area
• The refrigerator running but not reaching the desired temperature
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Condenser Fan Motor is an OEM part for Whirlpool refrigerators. This motor is responsible for powering the fan that cools the condenser coils, which helps dissipate heat from the refrigerator. Proper functioning of the condenser fan motor is crucial for maintaining the efficiency and cooling performance of the refrigerator.

Causes of a bad condenser fan motor can include wear and tear from regular use, dust and debris buildup, or electrical failures. A faulty fan motor can lead to overheating of the condenser coils, which can cause the refrigerator to operate inefficiently or stop cooling altogether.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator running warmer than usual
• The condenser coils being hot to the touch
• The fan not spinning or making unusual noises
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Due to a manufacturing change, if your original fan motor has a 3-terminal connector, order fan motor W10124096 which includes an adapter harness to convert to the new 4-terminal connector.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

This evaporator tray collects defrost/condensate water and holds it where warm air can evaporate it, helping prevent leaks and odors. Replace a cracked or warped tray to restore proper drainage and protect surrounding floors and cabinetry.

• Collects water from the evaporator/defrost system and contains it safely
• Promotes evaporation using airflow and heat near the condenser area
• Helps prevent puddles beneath the appliance and mildew odors
• Common signs of failure: water on the floor, recurring leaks after defrost, visible cracks/warping, or standing water in the pan

• Disconnect power and allow components to cool before servicing
• Access the tray from the base or rear (panel removal varies by model)
• Transfer any brackets, clips, or grommets from the old tray as needed
• Ensure the drain tube seats fully into the tray and that the tray is level; restore power and check for leaks
