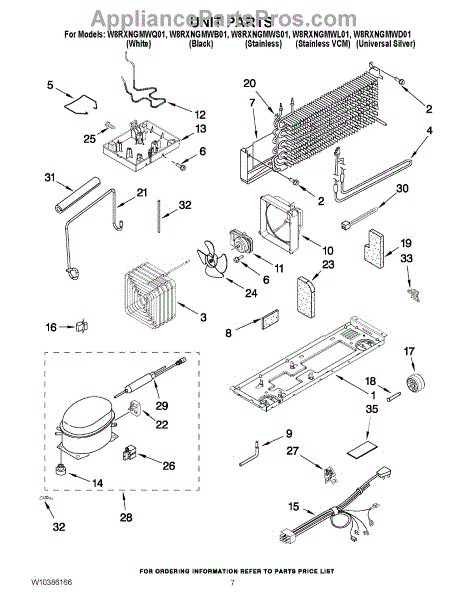

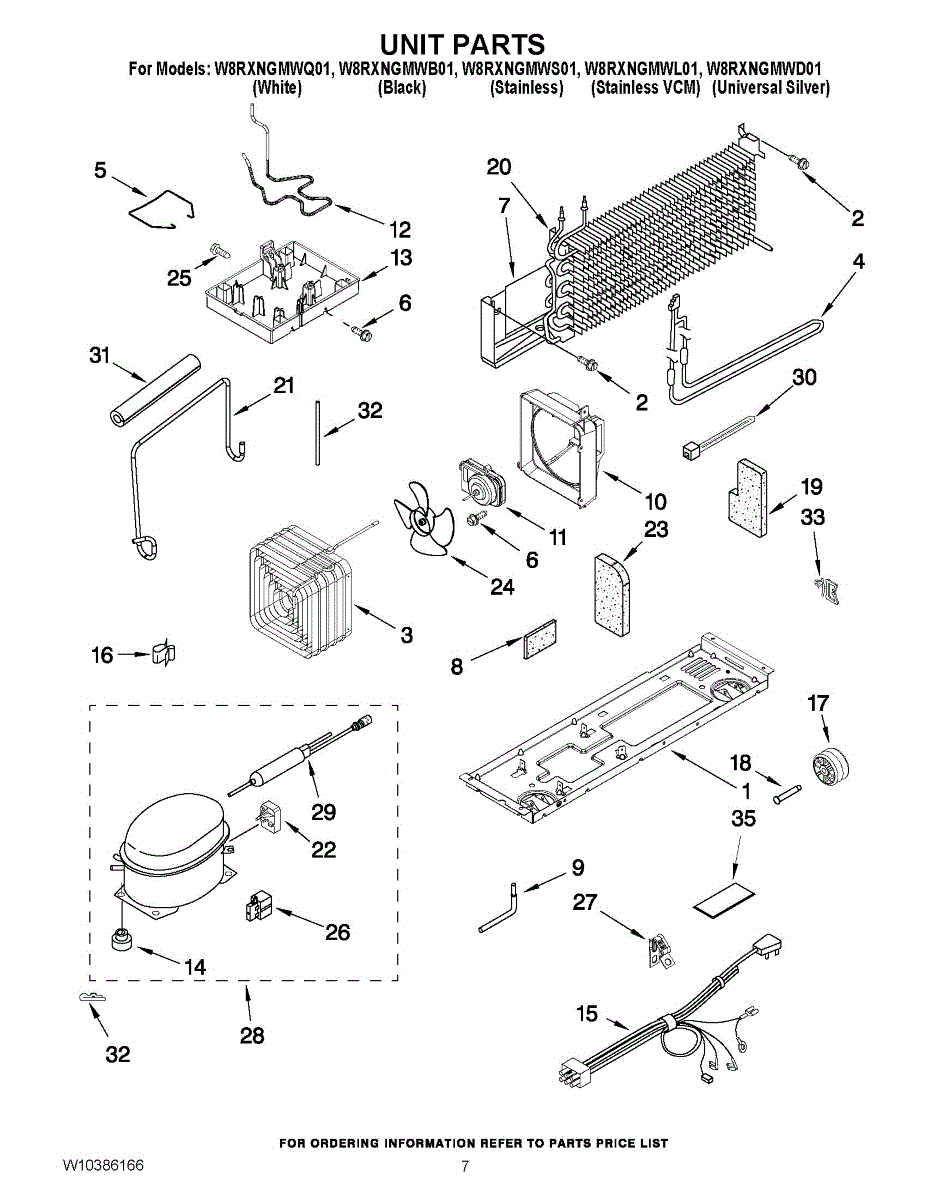

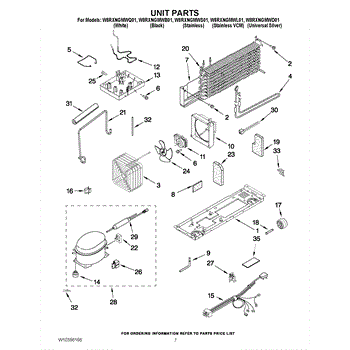

Parts for Whirlpool W8RXNGMWB01: 04 - Unit Parts

This compressor support plate stabilizes and secures the compressor assembly, reducing vibration and noise while keeping components aligned for reliable operation. It's a direct-fit replacement when the original plate is bent, cracked, or missing. What it does

• Provides a stable mounting surface for the compressor to prevent movement during operation
• Helps reduce vibration and associated noise by keeping the compressor secured
• Maintains proper compressor alignment to protect hoses, wiring, and nearby components
• Prevents metal-on-metal contact that can cause wear or damage over time

• One compressor support plate

• Intended for experienced DIYers; disconnect power and unplug the appliance before starting
• Requires removal of access panels and partial disassembly of the refrigeration compartment
• Inspect mounting hardware and rubber isolators/grommets (replace if worn) and torque fasteners to OEM specs
• Follow all safety precautions for handling refrigerant-containing systems; do not attempt compressor replacement without proper training

Size: 8-18 x 1/2 inch.

The Defrost Heater is an OEM part for Whirlpool refrigerators. This heater turns on during the defrost cycle to melt the frost on the evaporator coils. If you need the defrost thermostat order WP4387490

Causes may include cracked heater elements reducing heat output or open circuit damage limiting functionality over time.

Symptoms of a faulty heater involve:

• Periodic refrigerator odors
• Prolonged defrost cycles or remaining ice
• Frost and ice buildup beyond normal amounts

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

The Condenser Fan Motor is an OEM part for Whirlpool refrigerators. This motor is responsible for powering the fan that cools the condenser coils, which helps dissipate heat from the refrigerator. Proper functioning of the condenser fan motor is crucial for maintaining the efficiency and cooling performance of the refrigerator.

Causes of a bad condenser fan motor can include wear and tear from regular use, dust and debris buildup, or electrical failures. A faulty fan motor can lead to overheating of the condenser coils, which can cause the refrigerator to operate inefficiently or stop cooling altogether.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator running warmer than usual
• The condenser coils being hot to the touch
• The fan not spinning or making unusual noises
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Due to a manufacturing change, if your original fan motor has a 3-terminal connector, order fan motor W10124096 which includes an adapter harness to convert to the new 4-terminal connector.

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This wire harness assembly routes power and control signals between the appliance control and components, restoring reliable electrical connections for proper operation. It replaces damaged or worn wiring to help resolve intermittent or failed component function. What it does:

• Provides the electrical connections between controls, switches and components so circuits complete correctly
• Replaces frayed, burnt or broken wiring that can cause intermittent operation or component failure
• Helps address symptoms such as no power to a circuit, unresponsive controls, or intermittent cycling
• Ensures secure plug-and-play connections when the correct harness is used

• Disconnect power (unplug appliance or switch off breaker) before beginning work
• Take photos of existing wiring and connector orientations to ensure correct reinstallation
• Match connectors and routing to the original harness; secure with existing clips or ties

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This compressor start device energizes the refrigerator compressor's start winding to begin the cooling cycle, then disengages it. Replacing a weak or failed start device can restore reliable starts and address repeated clicking and warm/no-cool symptoms.

• Provides initial power to the compressor's start winding for reliable startup
• Disengages the start circuit once the compressor is running
• Common failure symptoms: compressor won't start, frequent clicking from the rear, refrigerator or freezer not cooling
• Heat damage or burnt odor on the old device may be present when it fails

• Unplug the refrigerator before servicing; wear cut-resistant gloves
• Remove the rear access panel to reach the compressor compartment
• Note wire positions; if your model uses a separate run capacitor, transfer it; move wires to the new device one at a time
• Align the device with the compressor terminals and press straight on until fully seated; reinstall any cover or retainer

This compressor start device energizes the refrigerator compressor's start winding to begin the cooling cycle, then disengages it. Replacing a weak or failed start device can restore reliable starts and address repeated clicking and warm/no-cool symptoms.

• Provides initial power to the compressor's start winding for reliable startup
• Disengages the start circuit once the compressor is running
• Common failure symptoms: compressor won't start, frequent clicking from the rear, refrigerator or freezer not cooling
• Heat damage or burnt odor on the old device may be present when it fails

• Unplug the refrigerator before servicing; wear cut-resistant gloves
• Remove the rear access panel to reach the compressor compartment
• Note wire positions; if your model uses a separate run capacitor, transfer it; move wires to the new device one at a time
• Align the device with the compressor terminals and press straight on until fully seated; reinstall any cover or retainer

This is a replacement hex-washer-head screw used to fasten panels and components on compatible Whirlpool appliances. It restores proper fastening to eliminate loose parts, rattles, or misaligned assemblies for safe, stable operation. What it does:

• Secures panels, brackets, and small assemblies to the appliance frame
• Prevents vibration-related noise and movement from loose fasteners
• Replaces missing, stripped, or corroded screws to restore fit and alignment
• Simple hardware fix that supports other component repairs

• Unplug the appliance or shut off power before servicing
• Use the correct-size hex or socket driver to avoid stripping the head
• Thread carefully and tighten until snug—do not overtighten to avoid damaging parts
• Inspect mating threads and replace any that are damaged

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This extension is a replacement support piece that helps restore proper alignment and secure fit for the affected appliance component, improving function and preventing binding. It's a small structural part used where a factory extension is required. What it does

• Provides structural support and alignment for the mating part or assembly
• Helps restore smooth movement and prevent rubbing or binding of sliding components
• Addresses symptoms such as loose trim, uneven panels, or a drawer/panel that won't seat properly
• Useful when the original extension is cracked, broken, or missing

• One extension piece as pictured

• Disconnect power (and water if applicable) before beginning any repair
• Basic hand tools are typically required; avoid forcing fasteners or assemblies
• Inspect mating parts for damage and replace any additional worn components for best results

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
