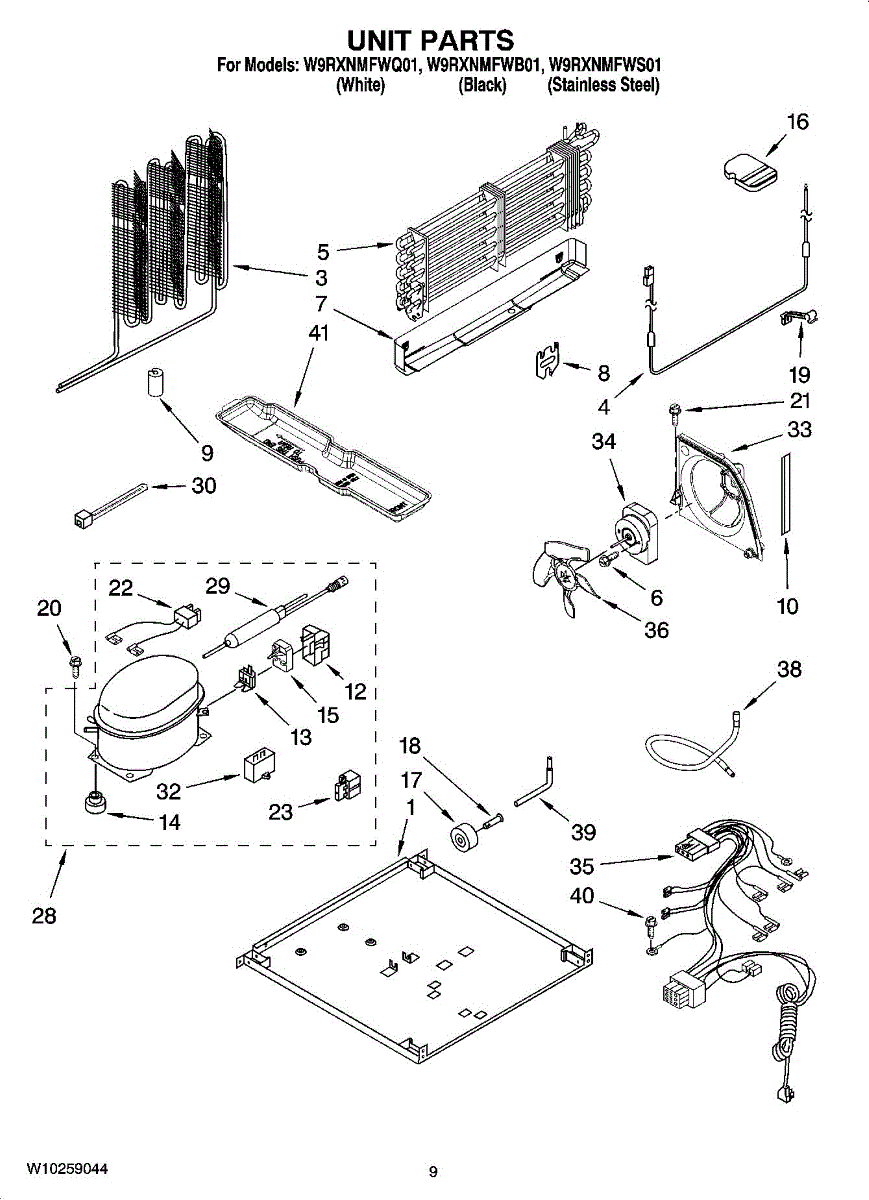

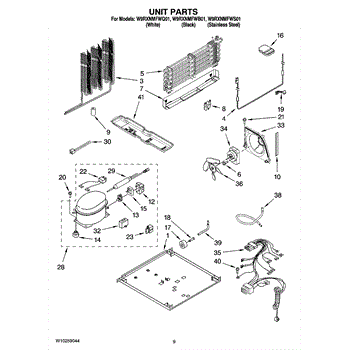

Parts for Whirlpool W9RXNMFWS01: 05 - Unit Parts

Ice buildup in freezer or tripping breakers? The defrost heater melts frost on evaporator coils. Moderate DIY repair with multimeter testing recommended.

Fix a refrigerator that's not cooling or freezing unevenly with this evaporator coil assembly. Moderately difficult repair requiring basic tools.

Replacement mounting screw for securing panels, brackets, and components in appliances. Needed when original screws are stripped, missing, or damaged.

Seals openings where hoses or wires pass through cabinet walls. Replace if cracked, torn, or missing to prevent chafing and vibration noise. Verify fit.

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the pow

Fix a refrigerator compressor that runs too hot or won't start. This overload protector shields the compressor from damage. Common DIY repair part.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

Refrigerator not cooling or won't start? A failed compressor start device prevents startup. DIY repair in under 30 minutes restores reliable cooling.

This refrigerator roller supports the unit's weight and enables smooth movement for positioning and cleaning. Replace when wheels crack or roll roughly.

Cabinet roller axle supports refrigerator wheels for smooth movement. Replace if rollers wobble or fridge is hard to move. Verify fit with your model.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Replacement mounting screw for securing panels, brackets, and components in appliances. Needed when original fastener is missing, stripped, or damaged.

This wire assembly connects the capacitor to the appliance's motor or control, restoring a secure electrical path for reliable start/run operation. Replaces a damaged or worn harness to help resolve starting and intermittent power issues. What it does: <

Refrigerator not cooling or clicking but not starting? This compressor start relay provides the initial boost to start your compressor. DIY-friendly repair.

Refrigerator not cooling or freezer icing up? A faulty compressor may be the cause. This part is the heart of your cooling system, requiring expertise.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smoo

Refrigerator making rattling or vibrating noise? This condenser bracket assembly secures the condenser coil to eliminate movement and noise.

Refrigerator not cooling but freezer works? A failed condenser fan motor prevents heat from escaping. DIY repair takes 10-20 minutes with basic tools.

Wire harness for refrigerators. Connects electrical components like thermostats. Replace if wires are frayed, connectors are damaged, or harness is broken.

Screw: 8-16 x 3/8 inch.

Water pooling under your fridge? A cracked evaporator drip pan lets defrost water leak onto your floor. This pan collects meltwater and lets it evaporate safely.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
