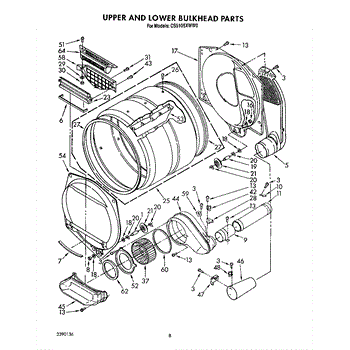

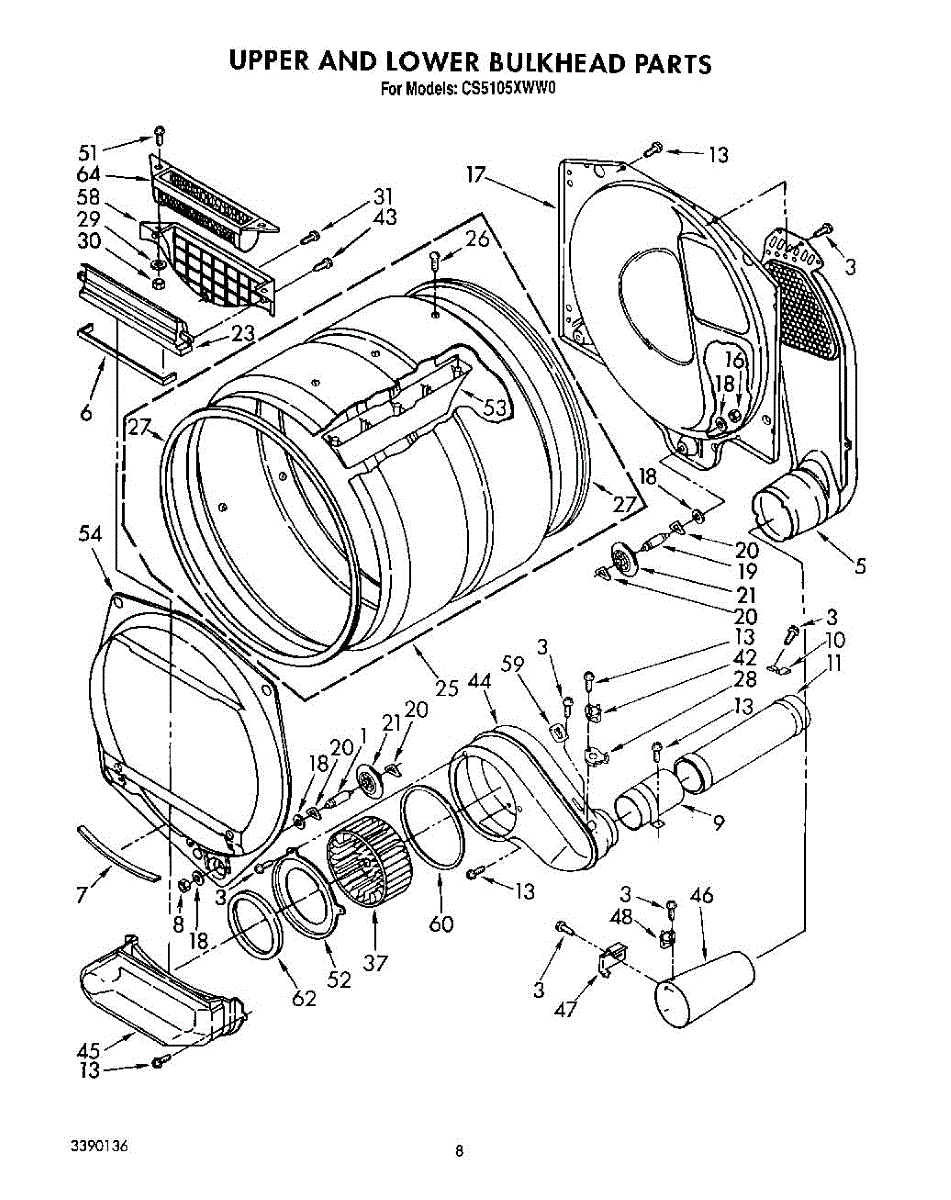

Parts for Whirlpool CS5105XWN0: 05 - Upper And Lower Bulkhead, Lit / Optional Parts

The Front Drum Roller Shaft is an OEM part for Whirlpool dryers. This component provides support and stability to the drum while it rotates, ensuring smooth and quiet operation during the drying cycle. The roller shaft works in conjunction with the drum rollers to maintain proper alignment and reduce friction.

Over time, the front drum roller shaft can wear out or become damaged due to continuous use and the constant movement of the drum. Factors such as heavy loads, misalignment, and lack of lubrication can contribute to the deterioration of the shaft.

Symptoms of a bad front drum roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The drum not rotating smoothly
• Increased friction or resistance when turning the drum by hand
• Uneven or excessive wear on the drum rollers

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

The Dryer Outlet Housing Seal is an OEM part for Whirlpool dryers. This seal ensures that the hot air and moisture are properly vented out of the dryer during the drying cycle, maintaining efficiency and preventing leaks. It fits around the outlet housing to create a tight seal, keeping the internal components protected and ensuring optimal drying performance. The seal measures approximately 15 inches.

You should replace the outlet housing seal if it becomes damaged or worn out. Causes of a bad seal can include wear and tear over time, heat damage, or physical deterioration from repeated use.

Symptoms of a bad outlet housing seal include:

• Air leaks around the dryer outlet
• Reduced drying efficiency
• Excessive lint buildup around the dryer vent
• Unusual noises during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Outlet Housing Seal is an OEM part for Whirlpool dryers. This seal ensures that the hot air and moisture are properly vented out of the dryer during the drying cycle, maintaining efficiency and preventing leaks. It fits around the outlet housing to create a tight seal, keeping the internal components protected and ensuring optimal drying performance. The seal measures approximately 15 inches.

You should replace the outlet housing seal if it becomes damaged or worn out. Causes of a bad seal can include wear and tear over time, heat damage, or physical deterioration from repeated use.

Symptoms of a bad outlet housing seal include:

• Air leaks around the dryer outlet
• Reduced drying efficiency
• Excessive lint buildup around the dryer vent
• Unusual noises during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This lock nut secures appliance components and resists loosening from vibration. Replacing a stripped, rusted, or missing nut restores a firm, reliable connection to reduce noise and prevent parts from shifting or backing off.

• Secures brackets, shafts, pulleys, panels, or other hardware as designed by the manufacturer
• Helps prevent fasteners from loosening due to vibration and thermal cycling
• Common fix for rattling/vibration noises and components that work loose over time
• Replaces damaged, rounded, or missing original nut to restore proper fit

• Disconnect power and shut off gas/water supplies before servicing
• Remove the worn nut with the appropriate wrench or socket
• Start the new nut by hand to avoid cross-threading; tighten securely—do not overtighten
• Inspect the mating bolt/stud and any washers; replace if worn or damaged

This exhaust pipe routes exhaust air from the appliance to the home vent, restoring proper airflow for safe, efficient operation. Use when the original pipe is cracked, bent, or leaking. What it does:

• Channels exhaust gases and lint from the appliance to the external vent
• Prevents exhaust leaks that can cause poor drying or cooking performance
• Helps maintain correct airflow to reduce overheating and moisture buildup
• Fits where a damaged or corroded exhaust connection needs replacement

• One exhaust pipe

• Disconnect power (and gas if applicable) before servicing; follow appliance safety procedures
• Inspect surrounding seals and clamps; replace clamps or ducting if damaged
• Secure pipe with OEM-recommended fasteners and ensure vent path is clear

This part has been discontinued and is no longer available.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This bulkhead is the front interior panel that supports the drum and helps direct dryer airflow for efficient tumbling and exhaust. It restores proper drum alignment and airflow when the original panel is worn or damaged. What it does:

• Provides a stable mounting surface for the drum and front bearing/glide assembly
• Helps channel air from the drum to the exhaust path for consistent drying
• Prevents drum wobble and rubbing that can cause noise or fabric wear
• Reduces air leaks and hot spots that can extend dry times or trigger heat issues

• One bulkhead panel

• Disconnect power and venting before beginning any repair
• Removing the front panel and drum is typically required to access and replace the bulkhead
• Inspect drum seals, rollers, and bearings while the dryer is open; replace any worn components
• Use appropriate tools and follow OEM instructions.

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drum Support Roller is an OEM replacement part for Whirlpool dryers. It plays a crucial role in supporting and facilitating the smooth rotation of the dryer drum during the drying cycle.

Symptoms of needing to replace the drum support roller include:

• Excessive noise or grinding sounds coming from the dryer drum
• Difficulty in rotating the drum or drum not turning at all
• Visible signs of wear, cracking, or damage on the existing roller(s)
• Increased vibrations or shaking during the drying cycle

Causes of a faulty drum support roller can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Lint Screen Housing is an OEM part for Whirlpool dryers. This part holds the lint screen in place, ensuring that lint is effectively captured during the drying cycle. This housing helps maintain dryer efficiency by preventing lint from entering the exhaust system, which can cause blockages and reduce performance.

Causes of a bad lint screen housing can include frequent use, accidental impacts, or heat-related degradation over time.

Symptoms of a bad lint screen housing include:

• Difficulty fitting the lint screen securely
• Lint escaping into the dryer drum or exhaust system
• Visible cracks or breaks in the housing
• Reduced drying efficiency and longer drying times

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement dryer drum that holds and tumbles laundry so air circulates evenly for efficient drying. Restores a smooth rotating drum surface to prevent fabric damage and improve drying performance. What it does:

• Houses and tumbles clothes while allowing heated air to pass through the load.
• Replaces a dented, cracked or scored drum that can catch or abrade fabric.
• Stops metal-on-metal scraping or grinding noises caused by a damaged drum surface.
• Helps eliminate uneven drying caused by a misshapen or warped drum.

• One replacement drum.

• Disconnect power (and gas supply for gas models) before starting any repair.
• Drum removal usually requires loosening the front panel and supporting the drum; consider a second person—the drum is heavy and awkward.
• Inspect and replace related components if worn to prevent repeat failures.
• Test-run the dryer after installation to ensure smooth rotation and proper clearance.

The Dryer Drum Felt Seal is an OEM replacement part for Whirlpool electric dryers. Located inside the spinning dryer drum, it lines the perimeter and protects the interior surface from abrasions. This seal measures approximately 82 inches in length.

Symptoms of a bad dryer drum felt seal include:

• Scratches or scuff marks visible on the inside of the drum
• Visible wear patterns or thinning of the felt material
• Premature rusting or corrosion of the steel drum
• Chipped or delaminated areas exposing bare steel

Causes of failure can include normal wear from friction generated during high-speed spins. Mineral deposits and grit trapped between the seal and drum may accelerate wear over extended use as well.

This OEM part is also compatible with brands like Maytag, Amana and Kenmore.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Blower Wheel is an OEM part for Whirlpool dryers. This component is essential in the dryer's air system, as it is responsible for moving air through the drum and out the vent. The blower wheel works by pulling air over the heating element, circulating it through the clothes, and expelling the moist air outside, which assists in the efficient drying of laundry.

Symptoms of a failing Blower Wheel include:

• Reduced airflow, resulting in clothes not drying properly or increased drying times
• Unusual noises like rattling or thumping, suggesting the wheel may be loose or damaged
• Excessive vibration of the dryer, especially if the blower wheel is unbalanced
• The dryer overheating due to restricted airflow if the wheel is clogged or malfunctioning

Causes of a bad blower wheel typically involve objects getting caught in the wheel, lint build-up that unbalances the wheel, or wear and tear that leads to the wheel's fins breaking or deforming.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Cycling Thermostat is an OEM part for Whirlpool dryers. It regulates and monitors the temperature inside the dryer during the drying cycle. It ensures that the dryer doesn't overheat and prevents potential damage to clothes or the dryer itself.

Causes of a faulty cycling thermostat can include wear and tear over time, electrical issues, or sensor malfunction.

Symptoms of a bad cycling thermostat may include:

• Clothes taking longer than usual to dry
• Inconsistent drying results
• Overheating or burning smell
• The dryer not heating at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool screw is an OEM replacement part responsible for securely fastening various components and parts within Whirlpool appliances. These screws are essential for maintaining the structural integrity and safe operation of the appliance. These screws hold together critical components like panels, brackets, handles, and internal parts.

This part fixes the following symptoms:

• Loose or wobbly handles on refrigerators, ovens, or other appliances
• Vibrations or rattling noises during appliance operation
• Inability to assemble or disassemble parts during appliance repair or maintenance

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This blower housing directs dryer airflow from the drum to the exhaust for proper ventilation and consistent drying performance. It replaces a cracked or damaged housing to restore airflow and reduce noise. What it does:

• Channels heated air from the drum to the exhaust vent to maintain drying efficiency
• Helps support the blower wheel and keeps the wheel aligned for smooth operation
• Commonly replaced for reduced airflow, longer dry times, or unusual noise from the rear of the dryer
• Can prevent overheating caused by restricted or leaking airflow

• Disconnect power (and gas supply if applicable) before beginning repair
• Handle edges carefully; wear gloves to avoid cuts and protect the blower wheel
• Reassemble panels and test dryer on a short cycle to confirm airflow and quiet operation

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

The High Limit Thermostat is an OEM replacement part for Whirlpool dryers. This safety device monitors internal dryer temperatures. The high-limit thermostat automatically interrupts power if excessive heat builds up inside the dryer drum and ventilation area.

Causes of a bad high-limit thermostat typically include wear over many heat cycles. Without this critical safeguard functioning reliably, overheating dangers increase.

Symptoms of a bad high-limit thermostat include:

• Dryer failing to heat or stop heating unexpectedly
• Repeated blowing of fuses or breaker trips
• Smoky odors emitted from the dryer vent

This OEM Whirlpool replacement is also compatible with some Maytag, Roper, and select Kenmore dryer models as well.

This 10-32 machine screw secures panels, brackets, and internal assemblies in your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and helps keep components properly aligned.

• Provides a threaded fastener for metal-to-metal connections
• Helps maintain correct alignment of panels, brackets, and housings
• Replaces missing, rusted, or stripped screws
• Symptoms include loose or vibrating panels, gaps/misalignment, or hardware that won't tighten

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Match the 10-32 thread and length to the original screw for the location
• Start by hand to avoid cross-threading; tighten snugly without over-torquing
• Retain and reinstall any original clips, spacers, or washers used in your model

This dryer blower cover encloses the blower wheel and seals the housing so air moves efficiently from the lint screen to the exhaust. Replacing a cracked or missing cover restores airflow for consistent drying performance and helps keep lint contained.

• Covers the blower wheel and seals the blower housing
• Directs air from the lint screen through the exhaust duct
• Helps maintain proper airflow and drying performance
• Damage or gaps may cause reduced airflow, longer dry times, vibration/noise, or lint leaking inside the cabinet

• Unplug dryer and let components cool before servicing
• Access the blower housing; front or rear access varies by model
• Clean lint from housing and ducts; inspect the blower wheel and any gasket/seal
• Seat cover squarely and tighten fasteners evenly; verify the blower turns freely and no air leaks are present

This drum baffle restores proper tumbling by lifting and separating laundry as the dryer drum rotates. It helps improve drying performance and reduces garment bunching. What it does:

• Lifts and tumbles clothes so air flows more evenly through the load
• Helps prevent garments from clumping or wrapping around the drum
• Can reduce rubbing, thumping, or scraping noises caused by a loose or damaged lifter
• Restores consistent drum contact and improves drying efficiency

• Disconnect power before starting any repair to avoid shock or injury
• Access typically requires opening the dryer cabinet or front panel; small tools may be needed
• Align the baffle with factory mounting holes and secure with existing fasteners; use correct screws if replacements are required
• Inspect and replace worn drum or support parts as needed for reliable operation

This front drum bulkhead is the stationary front panel that supports the dryer drum and seals the drum opening to maintain proper airflow and drum alignment for reliable drying performance. What it does:

• Provides a mounting surface and seal for the front of the dryer drum to help maintain correct drum alignment
• Directs airflow from the drum into the exhaust plenum for consistent drying
• Reduces rubbing and wear on the drum edge and front roller or glide surfaces
• Can help stop visible grinding, scraping or excess vibration when worn or cracked

• One front drum bulkhead

• Turn off power and disconnect the dryer before beginning service
• Handle plastic parts carefully to avoid cracking; check surrounding seals and rollers during replacement
• Some models require removal of the front panel and drum for access; keep fasteners organized for reassembly

The Thermal Fuse is an OEM part for Whirlpool dryers. It is a critical safety component designed to protect the dryer from overheating by blowing and cutting off power if the temperature exceeds safe limits. This disposable, one-time fuse is essential for preventing potential fire hazards and ensuring the appliance operates within safe temperatures.

Symptoms of a bad Thermal Fuse include:

• The dryer not starting or suddenly stopping during a cycle
• No heat being produced while the dryer is running
• Unexplained cessation of all dryer functions

Causes of a bad thermal fuse can stem from restricted airflow due to lint buildup, a malfunctioning heating element that causes excessive temperatures, or other electrical issues within the dryer.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Blower Housing Seal is an OEM part for Whirlpool dryers. This seal is strategically placed around the blower housing to prevent air leaks, which can reduce the efficiency of your dryer by allowing heated air to escape and drawing in unheated air. A proper seal ensures optimal air flow and temperature regulation within the dryer, contributing to faster drying times and reduced energy consumption.

Symptoms of a failing blower housing seal include:

• Increased drying times due to inefficient heat use
• Unusual noises from air escaping the blower housing
• Excess lint escaping into the dryer cabinet, which could lead to maintenance issues

Causes of blower housing seal degradation typically involve wear and tear from regular use, exposure to high temperatures that can cause the material to harden and crack, and improper installation that can lead to premature failure.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gasket fits between the dishwasher's transition duct and its cover plate. It creates a tight barrier that helps keep wash water and steam contained, protecting the door cavity from moisture intrusion.

• Seals the joint between the transition duct and cover plate in the inner door vent path
• Helps prevent water or steam leakage from the vent area
• Replace if the seal is torn, deformed, brittle, missing, or leaking around the vent

• Disconnect power and turn off the water supply before servicing
• Remove the outer door panel to access the transition duct and cover plate
• Note the seal's orientation, remove the old gasket, and clean mating surfaces
• Seat the new seal evenly and reassemble; test a short cycle to check for leaks

Spray paint. Color: Toast. Size: 12 oz. can.

Spray paint. Color: Platinum. Size: 12 oz. can.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Touch-up paint. Color: Toast. Size: 1 qt. can.

Touch-up paint. Color: Platinum. Size: 1qt. can.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Bottle with brush. Color: Harvest Gold. It's 0.6 fluid ounces.

Bottle with brush. Color: Platinum. Size: 0.6 fl.oz.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
