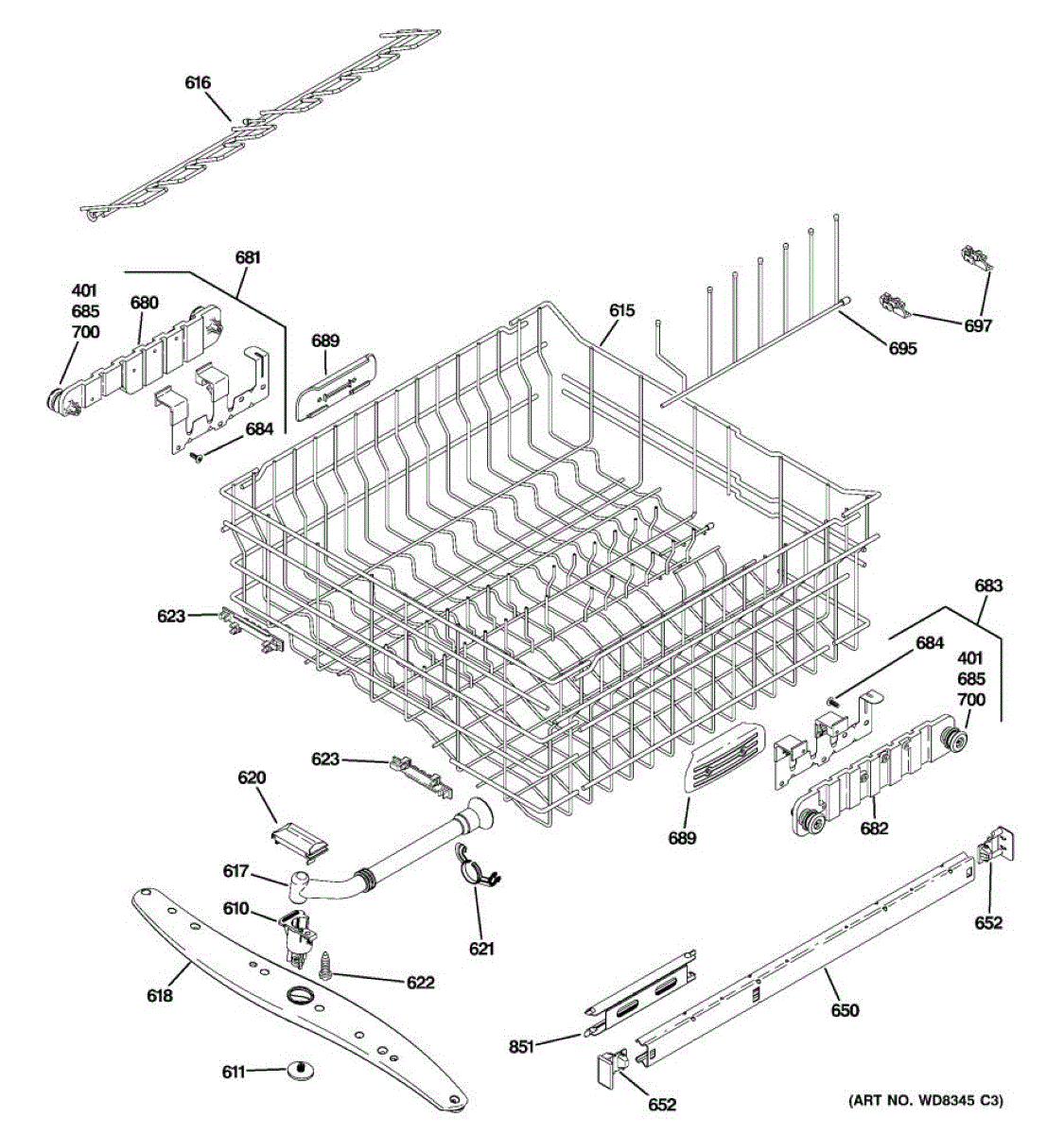

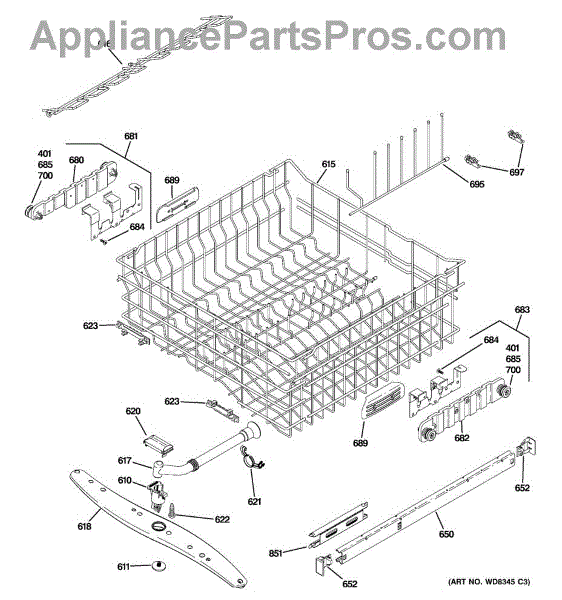

Parts for Ge PDWF800R30BB: 03 - Upper Rack Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dishes not getting clean in the upper rack? A worn middle spray arm hub prevents proper rotation and water distribution. DIY fix in 15 minutes.

Specs: B-16 HXW 1/2 SS

Upper dishrack assembly for dishwashers. Holds dishes and cookware on top rack. Replace if rusted, cracked, or plastic coating is peeling. Includes rollers.

Routes water from the pump to the middle spray arm in your dishwasher. Replace if cracked, clogged, or leaking to restore proper water delivery to the rack.

This middle spray arm assembly mounts at the center wash level and distributes pressurized water across both racks. Replacing a damaged or clogged arm restores even spray coverage and helps resolve weak cleaning performance, especially on the upper rack.

• Directs and disperses wash water from the mid-level for thorough coverage
• Rotates to spray dishes on both racks when unobstructed
• Helps when dishes come out dirty, the top rack isn't getting clean, or the arm is cracked/clogged
• Restores proper spray pattern and circulation

• Disconnect power and water supply before servicing the dishwasher
• Open the dishwasher; remove the upper rack if needed. Release the retainer and pull the old mid-level arm off its hub/tube
• Align and press the new arm onto the hub until secure; it spins freely
• Run a test cycle to normal spray and rotation

This middle spray arm bracket secures the mid-level spray arm to the upper rack, keeping it centered and aligned so it spins freely and delivers even spray coverage for reliable cleaning performance.

• Supports and stabilizes the middle spray arm beneath the upper rack
• Maintains proper clearance for smooth rotation and spray pattern
• Replace if cracked, warped, or worn
• Common symptoms: middle arm falls off or won't spin, wobbles, scraping noises, or poor cleaning on the upper rack

• Disconnect power to the dishwasher before servicing
• Slide out the upper rack; release tabs or fasteners to remove the old bracket
• Transfer the spray arm to the new bracket and snap or secure it in place
• Spin the arm by hand to ensure free rotation before running a cycle

Secures the middle water feed tube to the upper rack in your dishwasher. Replace if cracked, broken, or missing to keep the conduit properly aligned.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement finger indexer for dishwasher dishrack. Installs on the left side to guide and separate dishes. Replace if cracked, broken, or missing.

Replacement finger indexer for dishwasher dishrack. Installs on the right side to secure and guide dish rack movement. Order if broken or missing.

The inner track component that allows the upper dishwasher rack to slide smoothly in and out for loading and unloading. Replace when the rack binds, tilts unevenly, or becomes difficult to pull out or push back in.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Secures the dishrack and prevents it from sliding out too far during loading. Replace if cracked, broken, or missing to keep your rack stable.

Structural bracket that secures and supports the dishwasher wheel assembly. Replace if cracked, broken, or damaged to restore proper rack stability.

Left-hand lever rack assembly for dishwashers. Installs on the rack mechanism to restore proper lever engagement. Replace if cracked, broken, or worn.

Replacement wheel bracket for your dishwasher rack assembly. Secures wheels to the rack frame. Order a new bracket if yours is cracked, broken, or missing.

Right-hand lever rack assembly for dishwashers. Replaces worn or broken lever support components. Restores smooth lever movement and secure latch operation.

Specs: 8-18 b por 1/2 ss

Replacement mounting screw for dishwasher installation. Secures dishwasher components and panels. Order a new screw if original is stripped or missing.

Small clip that secures the tine row insert to your dishwasher rack. Replace if broken, cracked, or missing to keep dishes upright during wash cycles.

Upper dishrack roller and axle kit includes: 4 rollers and 4 axles.

Roller bearing cage installs in the dishwasher rack track to support smooth gliding. Replace if cracked, broken, or causing the rack to stick or slide out.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
