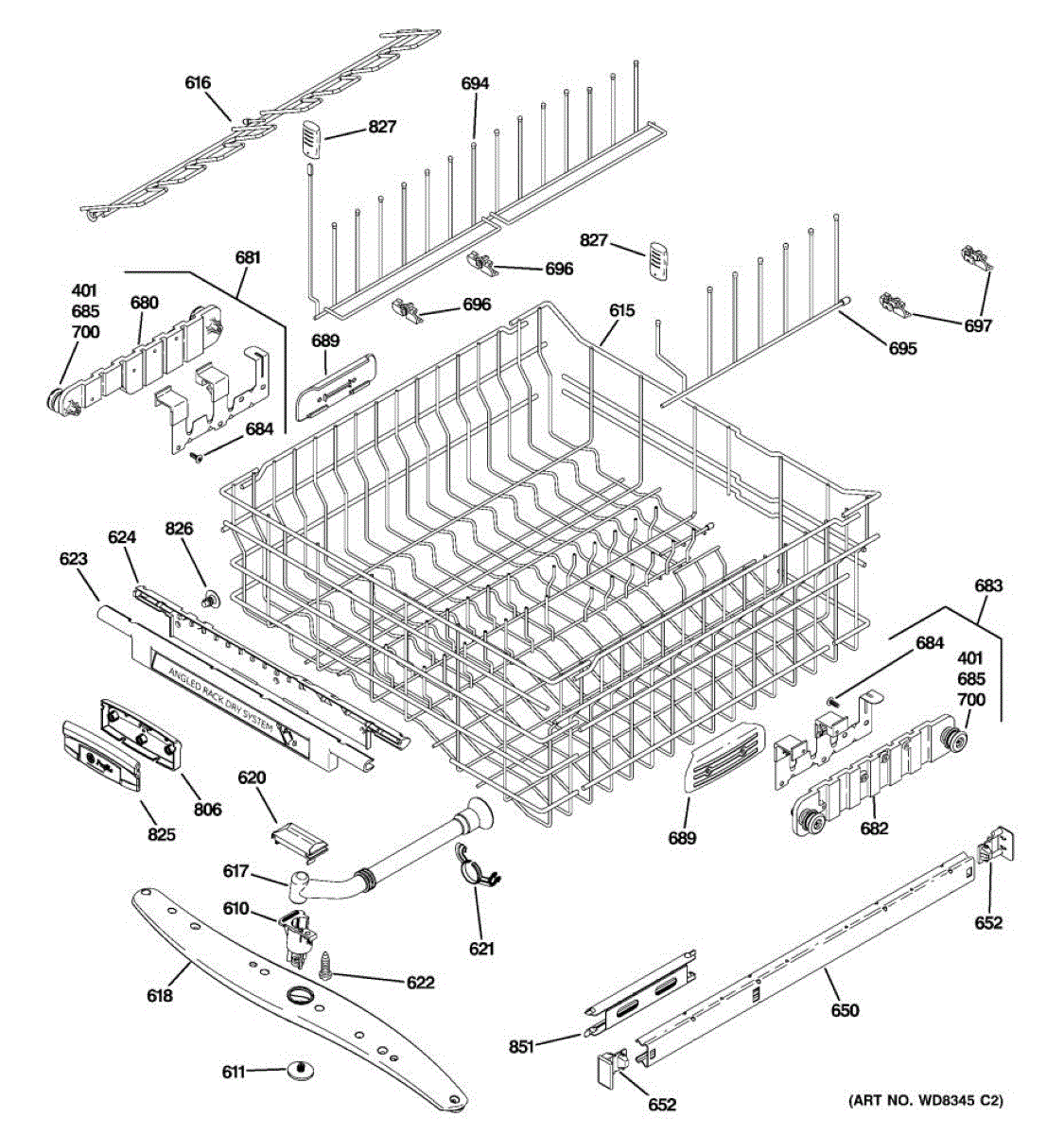

Parts for Ge PDWT505T30BB: 03 - Upper Rack Assembly Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Dishes not getting clean in the upper rack? A worn middle spray arm hub prevents proper rotation and water distribution. DIY fix in 15 minutes.

Specs: B-16 HXW 1/2 SS

Upper dishrack assembly for dishwashers. Holds dishes and cookware on top rack. Replace if rusted, cracked, or plastic coating is peeling. Includes rollers.

Routes water from the pump to the middle spray arm in your dishwasher. Replace if cracked, clogged, or leaking to restore proper water delivery to the rack.

This middle spray arm assembly mounts at the center wash level and distributes pressurized water across both racks. Replacing a damaged or clogged arm restores even spray coverage and helps resolve weak cleaning performance, especially on the upper rack.

• Directs and disperses wash water from the mid-level for thorough coverage
• Rotates to spray dishes on both racks when unobstructed
• Helps when dishes come out dirty, the top rack isn't getting clean, or the arm is cracked/clogged
• Restores proper spray pattern and circulation

• Disconnect power and water supply before servicing the dishwasher
• Open the dishwasher; remove the upper rack if needed. Release the retainer and pull the old mid-level arm off its hub/tube
• Align and press the new arm onto the hub until secure; it spins freely
• Run a test cycle to normal spray and rotation

This middle spray arm bracket secures the mid-level spray arm to the upper rack, keeping it centered and aligned so it spins freely and delivers even spray coverage for reliable cleaning performance.

• Supports and stabilizes the middle spray arm

Secures the middle water feed tube to the upper rack in your dishwasher. Replace if cracked, broken, or missing to keep the conduit properly aligned.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration

Secures the dishrack and prevents it from sliding out too far during loading. Replace if cracked, broken, or missing to keep your rack stable.

Structural bracket that secures and supports the dishwasher wheel assembly. Replace if cracked, broken, or damaged to restore proper rack stability.

Left-hand lever rack assembly for dishwasher door/drawer mechanisms. Replaces cracked, bent, or worn levers to restore proper engagement and alignment.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replacement wheel bracket for your dishwasher rack assembly. Secures wheels to the rack frame. Order a new bracket if yours is cracked, broken, or missing.

This hex washer-head screw is used in dishwashers to secure panels, brackets, and other hardware. Replacing a missing or corroded fastener restores a tight, stable installation and helps stop looseness or vibration during cycles.

• Fastens dishwas

Replacement mounting screw for dishwasher installation. Secures dishwasher components and panels. Order a new screw if original is stripped or missing.

Upper dishrack assembly for dishwashers. Holds dishes and cookware on top rack. Replace if rusted, cracked, or plastic coating is peeling. Includes rollers.

Dishwasher rack tine clip. Used to hold the tines in place within the rack. Color: gray. Measures about 1 inch wide by 1 inch high by 1-1/2 inches deep.

Small clip that secures the tine row insert to your dishwasher rack. Replace if broken, cracked, or missing to keep dishes upright during wash cycles.

Upper dishrack roller and axle kit includes: 4 rollers and 4 axles.
