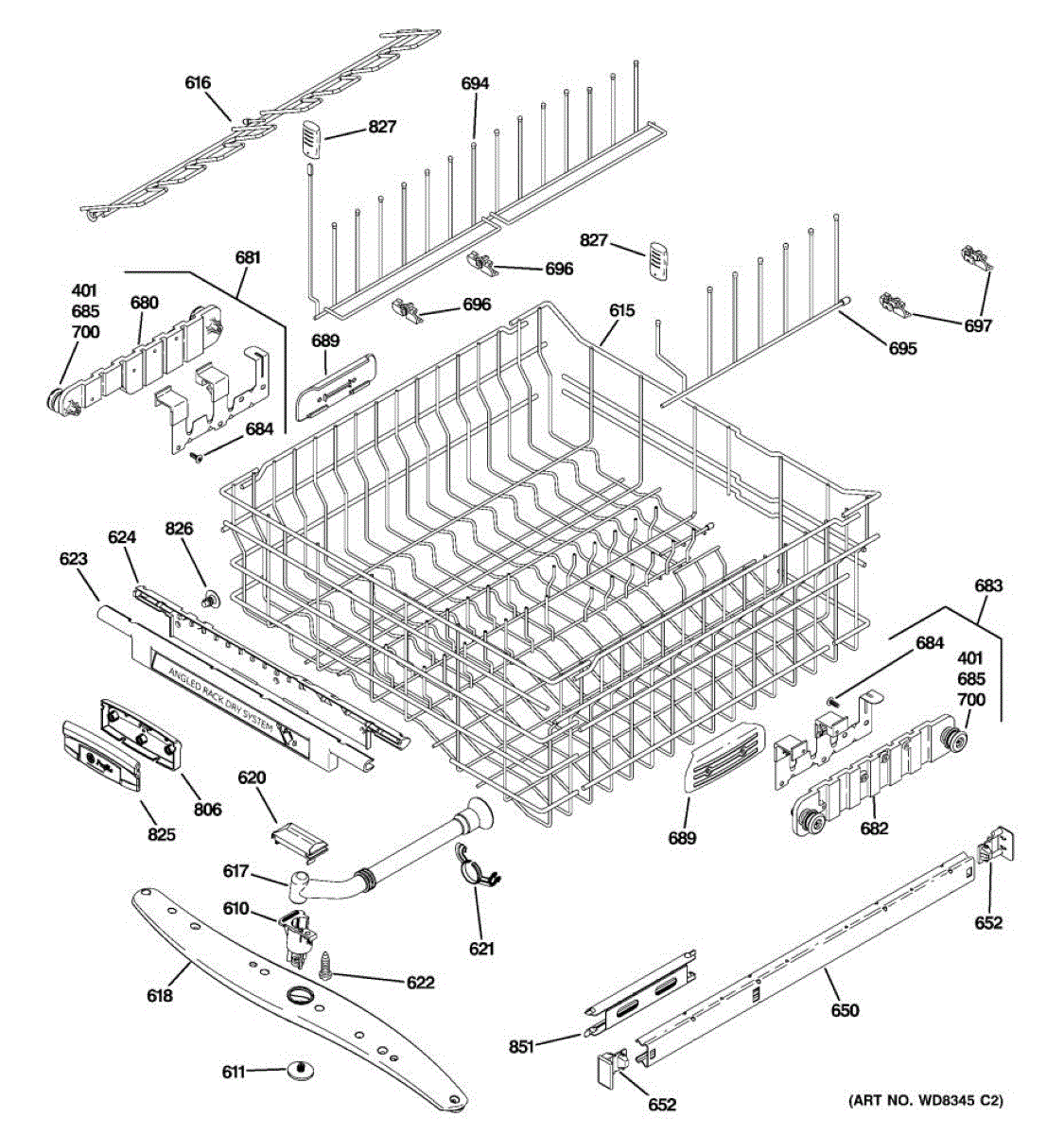

Parts for Ge PDWT580R30SS: 03 - Upper Rack Assembly Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Seal washer that sits between the dishwasher pump and motor assembly. Replace if cracked, deteriorated, or causing leaks beneath the pump housing.

Dishes not getting clean in the upper rack? A worn middle spray arm hub prevents proper rotation and water distribution. DIY fix in 15 minutes.

Secures the spray arm assembly in your dishwasher. Replace if the original screw is stripped, corroded, missing, or no longer holds the arm firmly.

Upper dishrack assembly for dishwashers. Holds dishes and cookware on top rack. Replace if rusted, cracked, or plastic coating is peeling. Includes rollers.

Routes water from the pump to the middle spray arm in your dishwasher. Replace if cracked, clogged, or leaking to restore proper water delivery to the rack.

This middle spray arm assembly mounts at the center wash level and distributes pressurized water across both racks. Replacing a damaged or clogged arm restores even spray coverage and helps resolve weak cleaning performance, especially on the upper rack.

• Directs and disperses wash water from the mid-level for thorough coverage
• Rotates to spray dishes on both racks when unobstructed
• Helps when dishes come out dirty, the top rack isn't getting clean, or the arm is cracked/clogged
• Restores proper spray pattern and circulation

• Disconnect power and water supply before servicing the dishwasher
• Open the dishwasher; remove the upper rack if needed. Release the retainer and pull the old mid-level arm off its hub/tube
• Align and press the new arm onto the hub until secure; it spins freely
• Run a test cycle to normal spray and rotation

Secures the mid-level spray arm to the upper rack for proper alignment and rotation. Replace if cracked, broken, or missing to restore spray coverage.

Secures the middle water feed tube to the upper rack in your dishwasher. Replace if cracked, broken, or missing to keep the conduit properly aligned.

Mounting screw for dishwasher tub assembly. Secures internal components like spray arms and baskets. Replace if stripped, corroded, or missing.

Secures the dishrack and prevents it from sliding out too far during loading. Replace if cracked, broken, or missing to keep your rack stable.

Structural bracket that secures and supports the dishwasher wheel assembly. Replace if cracked, broken, or damaged to restore proper rack stability.

Left-hand lever rack assembly for dishwasher door/drawer mechanisms. Replaces cracked, bent, or worn levers to restore proper engagement and alignment.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replacement wheel bracket for your dishwasher rack assembly. Secures wheels to the rack frame. Order a new bracket if yours is cracked, broken, or missing.

Hex washer head screw secures dishwasher panels, brackets, and trim. Replace missing, corroded, or stripped fasteners to restore stable installation.

Replacement mounting screw for dishwasher installation. Secures dishwasher components and panels. Order a new screw if original is stripped or missing.

Upper dishrack assembly for dishwashers. Holds dishes and cookware on top rack. Replace if rusted, cracked, or plastic coating is peeling. Includes rollers.

Dishwasher rack tine clip. Used to hold the tines in place within the rack. Color: gray. Measures about 1 inch wide by 1 inch high by 1-1/2 inches deep.

Small clip that secures the tine row insert to your dishwasher rack. Replace if broken, cracked, or missing to keep dishes upright during wash cycles.

Upper dishrack roller and axle kit includes: 4 rollers and 4 axles.

This Handle Rear Cover replaces the rear trim piece for a refrigerator or freezer door handle, restoring a finished appearance and protecting the handle mounting area from wear and grime. Designed to match OEM fit and finish. What it does:

• Covers the rear side of the door handle to hide mounting hardware and provide a clean look
• Protects the handle attachment point from dirt and damage
• Helps maintain proper alignment and appearance of the door handle
• Commonly replaced when cracked, scratched, or missing

• Remove power to the appliance or ensure doors are secured per owner's manual before starting
• Usually installs by snapping into place or fastening with existing screws—reuse original hardware unless damaged
• Handle trim orientation matters; confirm correct side and position before securing

Replacement gripper support comb for your dishwasher's dishrack. Installs on the rack to hold dishes and utensils securely. Replace if cracked or missing.

Roller bearing cage installs in the dishwasher rack track to support smooth gliding. Replace if cracked, broken, or causing the rack to stick or slide out.
