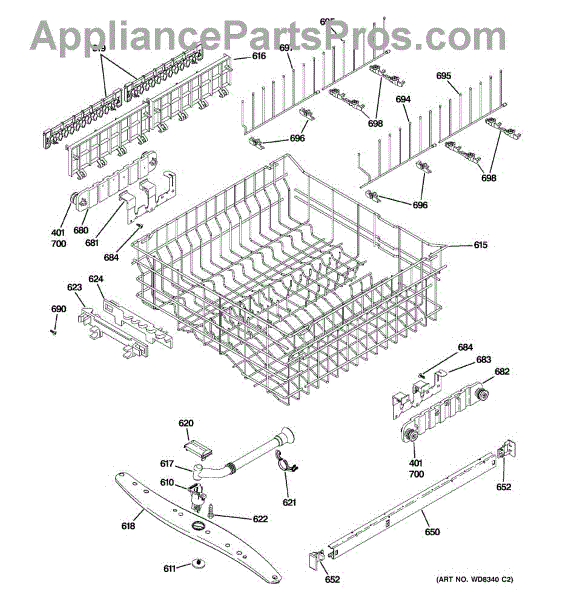

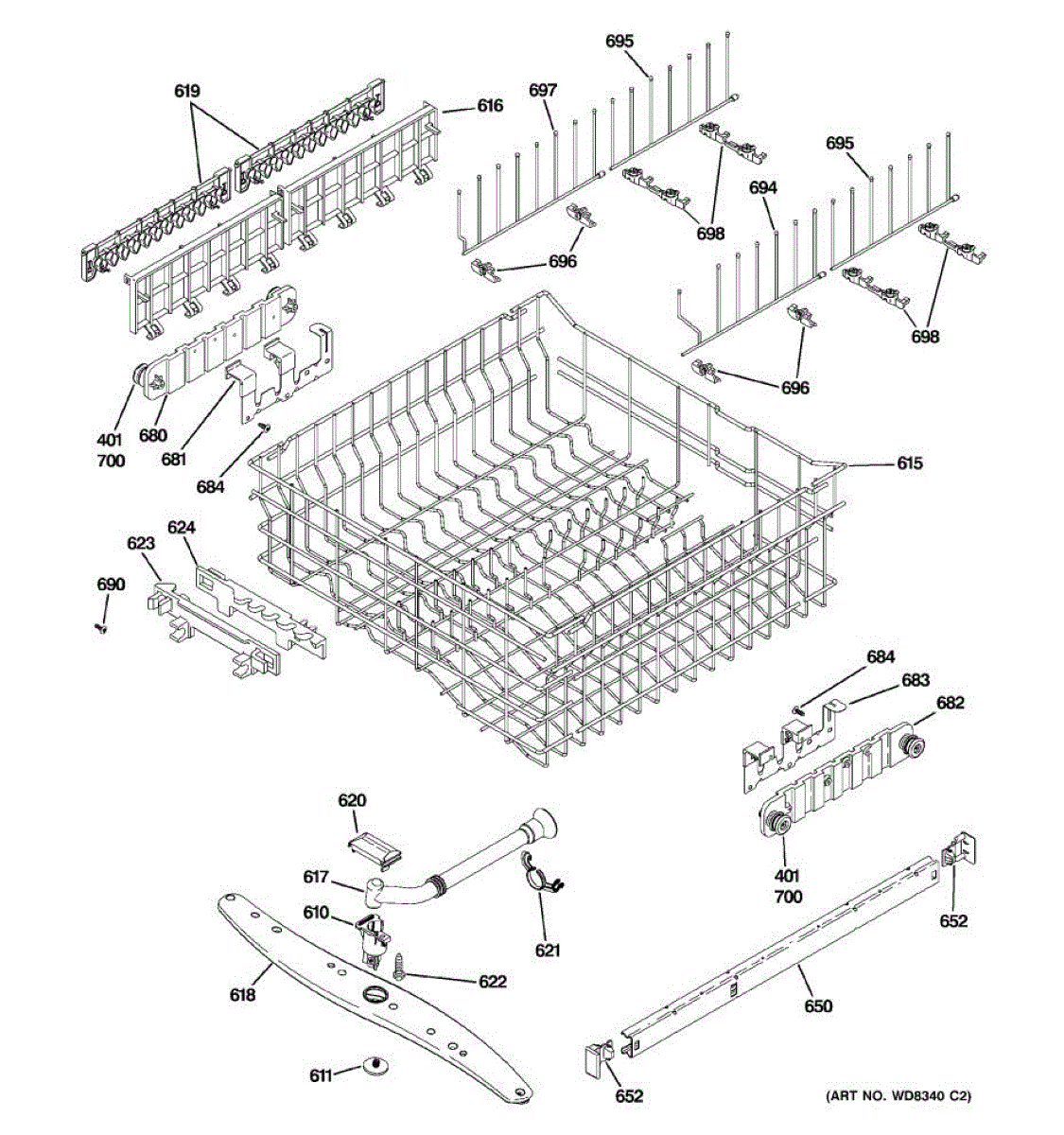

Parts for Ge GLD7400R10BB: 03 - Upper Rack Asssembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dishes not getting clean in the upper rack? A worn middle spray arm hub prevents proper rotation and water distribution. DIY fix in 15 minutes.

Specs: B-16 HXW 1/2 SS

Multi-purpose shelf for dishwasher interior. Replaces broken, cracked, or missing shelves. Adds versatile storage space for small items during wash cycles.

Routes water from the pump to the middle spray arm in your dishwasher. Replace if cracked, clogged, or leaking to restore proper water delivery to the rack.

Secures wine glasses and goblets in your dishwasher rack. Replace broken, cracked, or missing stemware clips to prevent tipping during wash cycles.

This middle spray arm bracket secures the mid-level spray arm to the upper rack, keeping it centered and aligned so it spins freely and delivers even spray coverage for reliable cleaning performance.

• Supports and stabilizes the middle spray arm beneath the upper rack
• Maintains proper clearance for smooth rotation and spray pattern
• Replace if cracked, warped, or worn
• Common symptoms: middle arm falls off or won't spin, wobbles, scraping noises, or poor cleaning on the upper rack

• Disconnect power to the dishwasher before servicing
• Slide out the upper rack; release tabs or fasteners to remove the old bracket
• Transfer the spray arm to the new bracket and snap or secure it in place
• Spin the arm by hand to ensure free rotation before running a cycle

Secures the middle water feed tube to the upper rack in your dishwasher. Replace if cracked, broken, or missing to keep the conduit properly aligned.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement slide rail for dishwasher upper rack. Installs on cabinet wall to guide rack in and out. Needed when original is bent, twisted, or broken.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Secures the end of the dishwasher rack slide rail. Replace if cracked, broken, or missing to prevent racks from sliding off track or misaligning.

Left-hand rack adjustment lever assembly for your dishwasher. Replaces broken or worn levers that allow rack height adjustment. Essential for proper fit.

Right-hand dishrack lever assembly for dishwashers. Secures and adjusts the dish rack position. Replace if broken, cracked, or worn to restore smooth operation.

Specs: 8-18 b por 1/2 ss

Dishwasher rack tine clip. Used to hold the tines in place within the rack. Color: gray. Measures about 1 inch wide by 1 inch high by 1-1/2 inches deep.

Small clip that secures the tine row insert to your dishwasher rack. Replace if broken, cracked, or missing to keep dishes upright during wash cycles.

Upper dishrack roller kit with 4 nylon rollers and 4 axles. Replace broken, cracked, or worn rollers that prevent smooth rack gliding in your dishwasher.
