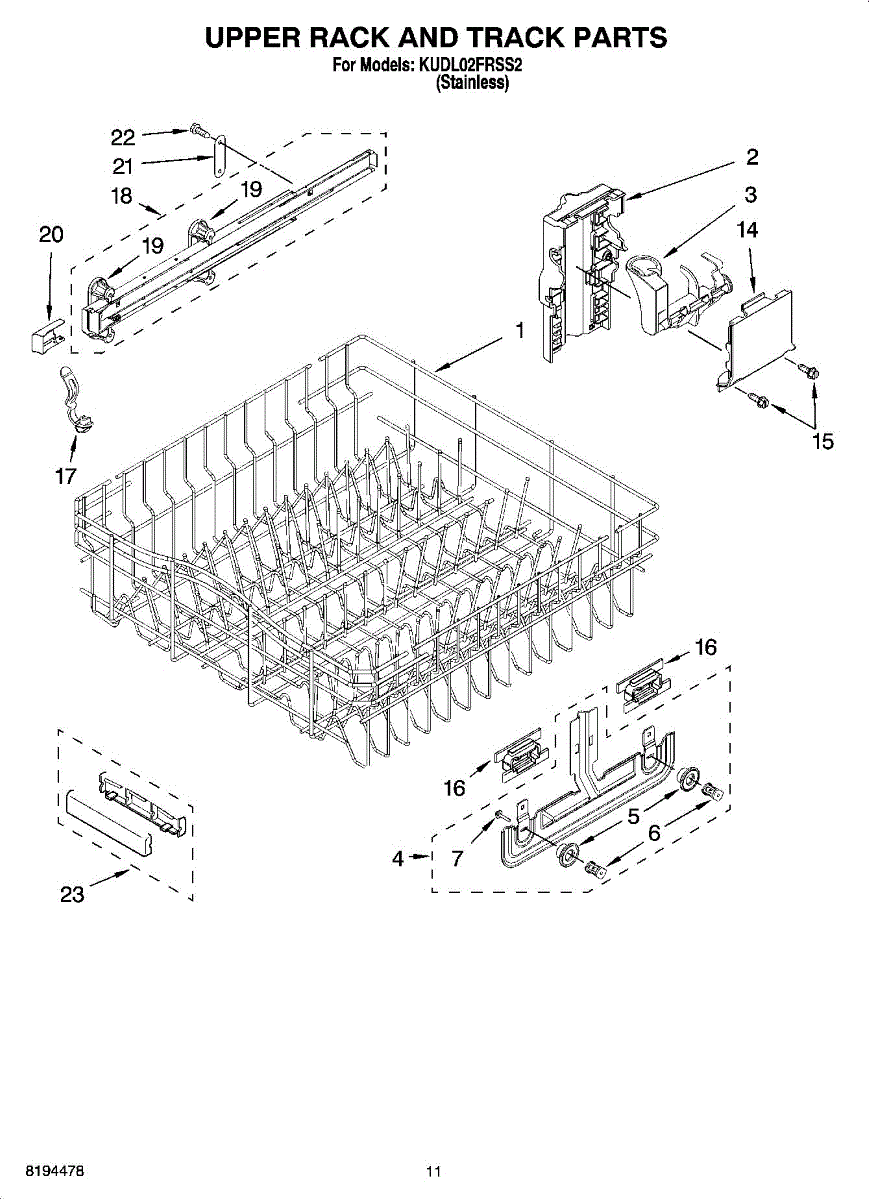

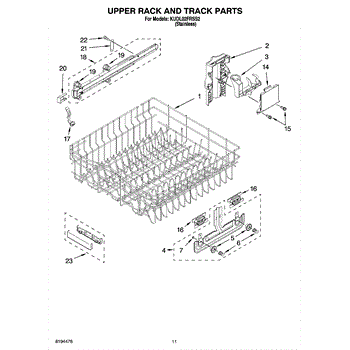

Parts for Kitchenaid KUDL02FRSS2: 09 - Upper Rack And Track Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replacement upper dishrack for dishwashers. Holds dishes, glasses, and utensils during wash cycles. Replace if rusted, cracked, or broken tines damage items.

Adjuster kit for upper dishrack. Also order retainer part number WP3400918 as needed

Dishrack adjuster assembly for dishwashers. Mounts to upper rack and slides along track rails. Replace if wheels are broken, housing is cracked, or worn.

Replacement wheel for dishwasher upper rack. Attaches to the rack and rolls along interior tracks for smooth gliding. Needed when wheels are broken, cracked, or missing.

Replacement axle for dishwasher upper rack height adjustment mechanism. Needed when the axle is broken, cracked, or missing from the rack roller assembly.

This replacement screw fastens appliance components such as panels, brackets, or trim. Use it to replace a missing, stripped, or rusty fastener and restore a secure, rattle-free fit in your appliance assemblies.

• Secures panels, brackets, or hardware to maintain proper alignment
• Helps eliminate vibration, rattling, or loose-feeling parts
• Replaces fasteners that are missing, corroded, or cross-threaded
• Typical signs you need it: loose handle or panel, gaps, or hardware that won't stay tight

• Disconnect power (and shut off gas, if applicable) before servicing
• Match thread type and length to the original fastener for proper fit
• Start threads by hand to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if present

Adjuster kit for upper dishrack. Also order retainer part number WP3400918 as needed

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This small plastic clip attaches to the dishwasher rack tines to hold lightweight or small items in place during the wash cycle, preventing them from flipping over and collecting dirty water. It is especially useful for securing items like plastic lids, baby bottle caps, and other small pieces that tend to move around. Replace this clip if it has become cracked, broken, or no longer grips the rack tines securely.

Guides the upper dishrack as it slides in and out. Replace if cracked, broken, or if rollers have fallen out, causing loose or unsteady rack movement.

This upper dishrack track mounts to the dishwasher tub wall and provides a smooth glide path for the rack rollers. Replacing a damaged track restores easy in-and-out movement and helps keep the upper rack aligned and secure.

• Guides and supports the upper dishrack as it slides in and out
• Maintains rack alignment to prevent binding or derailing
• Typical failure signs: rack jams or falls off, rough/squeaky travel, visible cracks or breaks in the track
• Can keep the rack from fully sliding in, making the door harder to close

• Disconnect power and turn off the water supply before servicing
• Remove the upper rack by releasing the end caps/stops
• Unfasten the old track from the tub (screws/clips), then position and secure the new track
• Reinstall the rack and end caps; verify smooth rack travel before restoring power and water

This is a small plastic stop clip that mounts on the upper dishrack track to prevent the rack from sliding out too far when pulled forward. It acts as a catch to keep the rack securely on its rails during loading and unloading. Replace this clip if your upper rack slides off its track, falls forward when extended, or if the original stop is cracked or missing.

Left side.

Gasket for upper wheel.

Factory #10-16 screw secures dishwasher panels, brackets, and covers. Replace worn, stripped, or missing screws to restore tight assembly.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
