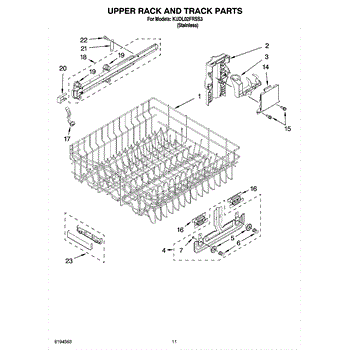

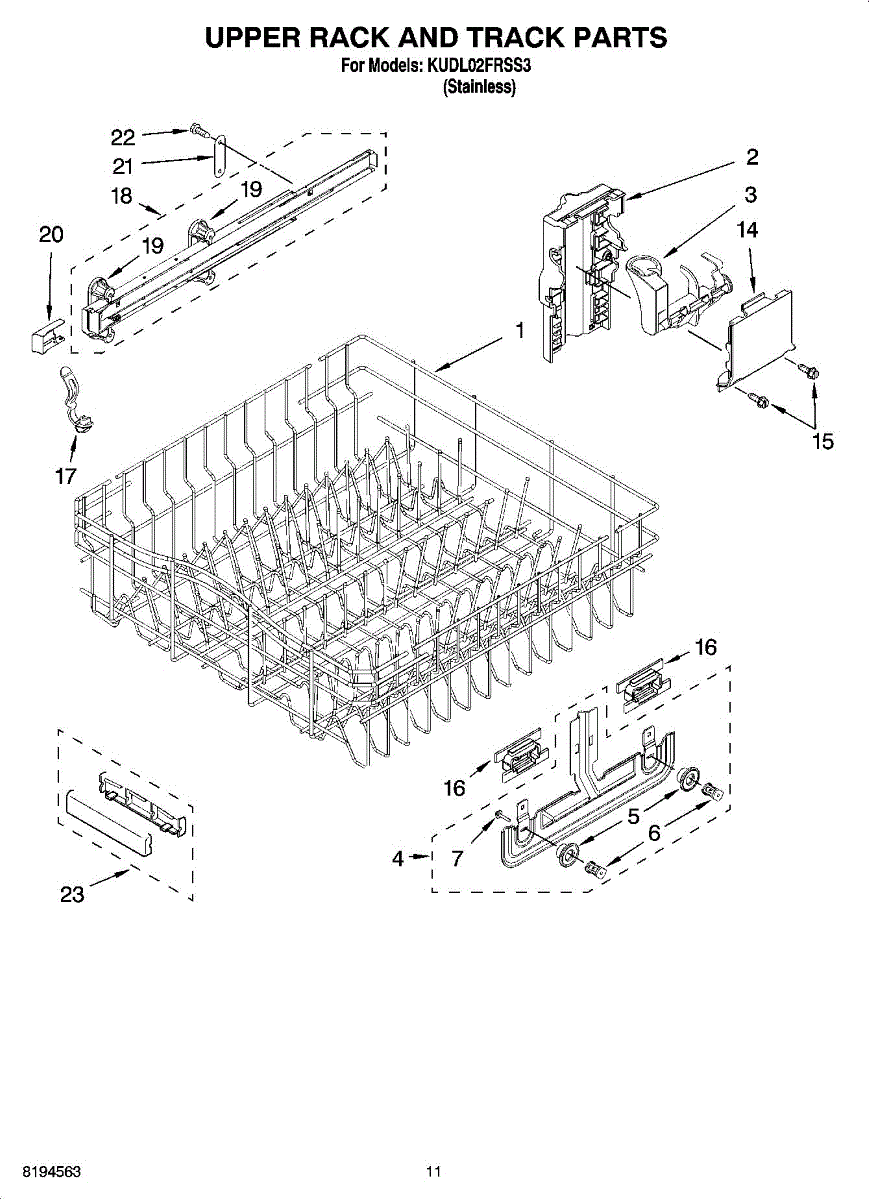

Parts for Kitchenaid KUDL02FRSS3: 09 - Upper Rack And Track Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Dishrack is an OEM part for Whirlpool dishwashers. This dishrack provides the structure and support needed to hold dishes, glasses, and utensils securely during the washing cycle. It is designed to maximize space and ensure that items are correctly positioned for optimal cleaning.

Causes of a bad dishrack include exposure to harsh detergents, repeated loading and unloading of heavy items, and general wear over many washing cycles.

Symptoms of a bad Dishrack include:

• Rust spots or flakes on the rack
• Broken or bent tines
• Difficulty in sliding the rack in and out
• Dishes not being held securely in place

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Adjuster kit for upper dishrack. Also order retainer part number WP3400918 as needed

This genuine OEM adjuster helps set and fine-tune an appliance's alignment so doors close correctly and the cabinet sits level. It restores stable operation and reduces rocking or vibration caused by an uneven appliance surface. What it does:

• Provides a threaded adjustment point to raise, lower, or support an appliance corner or panel
• Helps correct uneven cabinets, tilted doors, or appliances that rock or vibrate during use
• Restores proper door alignment and sealing when misalignment is caused by height/level issues
• Works as the appliance's mechanical support where an adjustable foot or bracket is used

• Always disconnect power (and water, if applicable) before servicing the appliance
• Support the appliance securely before making height adjustments or removing/installing the adjuster
• Use appropriate hand tools; avoid excessive force that could damage threads or mounting points

The Upper Dishrack Wheel is an OEM part for Whirlpool dishwashers. It is designed to allow the upper dishrack to slide in and out smoothly during loading and unloading. This wheel attaches to the dishrack and runs along the tracks inside the dishwasher, ensuring stable and easy movement.

You should replace the upper dishrack wheel if it becomes worn out or damaged. Causes of a bad dishrack wheel can include regular wear and tear from frequent use, damage from overloading the rack, or breaking due to impacts. These issues can hinder the dishrack’s movement, making it difficult to access the upper rack.

Symptoms of a bad upper dishrack wheel include:

• The upper dishrack not sliding smoothly or becoming stuck
• Uneven or lopsided dishrack positioning
• Noise or grinding sounds when moving the dishrack
• The wheel appearing cracked, broken, or missing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Adjuster Axle is an OEM part for Whirlpool dishwashers. It plays a crucial role in the height adjustment mechanism of the upper rack, allowing users to customize the rack's position to accommodate different dish sizes. This axle ensures that the adjustment is smooth and stable, providing flexibility in the dishwasher's loading capacity.

You should replace the adjuster axle if it becomes worn out or damaged. Causes of a bad adjuster axle can include wear from frequent adjustments, breakage from overloading the rack, or damage from mishandling.

Symptoms of a bad adjuster axle include:

• Difficulty in adjusting the height of the upper rack
• The rack not staying in the desired position
• Unusual movement or instability of the rack
• The adjuster mechanism not functioning properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components such as panels, brackets, or trim. Use it to replace a missing, stripped, or rusty fastener and restore a secure, rattle-free fit in your appliance assemblies.

• Secures panels, brackets, or hardware to maintain proper alignment
• Helps eliminate vibration, rattling, or loose-feeling parts
• Replaces fasteners that are missing, corroded, or cross-threaded
• Typical signs you need it: loose handle or panel, gaps, or hardware that won't stay tight

• Disconnect power (and shut off gas, if applicable) before servicing
• Match thread type and length to the original fastener for proper fit
• Start threads by hand to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if present

Adjuster kit for upper dishrack. Also order retainer part number WP3400918 as needed

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This light clip secures the interior lamp assembly in place so the refrigerator light stays positioned and protected. It's a small plastic retainer designed to hold the lamp or lens securely behind the housing. What it does:

• Holds the interior lamp or lens assembly in position to prevent movement or rattling
• Keeps the lamp properly aligned so the light bulb and cover stay seated
• Helps prevent contact between the bulb and other components that could cause noise or damage
• Commonly replaced when the lamp cover is loose, rattles, or won't stay clipped in place

• One light clip

• Disconnect power to the appliance before beginning any work
• Access the lamp area by removing the lamp cover or housing per your model's instructions
• The clip typically snaps into place; no special tools are usually required
• Test lamp fit and switch operation before restoring normal use

This rack track assembly guides the dishrack as it slides in and out, keeping it aligned and stable. Replacing a worn or broken track restores smooth rack movement and helps prevent derailing and uneven loading.

• Supports and guides the rack for smooth sliding action
• Maintains rack alignment to prevent wobbling or tipping
• Replaces cracked, warped, or broken rack tracks
• Common symptoms: rack binds, won't extend fully, falls off/derails, or sits unevenly

• Disconnect power to the appliance before servicing
• Pull the rack forward and release any rack end stops per your model
• Remove the old track, position the new track, and fully engage mounting tabs/clips
• Reinstall stops and verify the rack slides smoothly

This upper dishrack track mounts to the dishwasher tub wall and provides a smooth glide path for the rack rollers. Replacing a damaged track restores easy in-and-out movement and helps keep the upper rack aligned and secure.

• Guides and supports the upper dishrack as it slides in and out
• Maintains rack alignment to prevent binding or derailing
• Typical failure signs: rack jams or falls off, rough/squeaky travel, visible cracks or breaks in the track
• Can keep the rack from fully sliding in, making the door harder to close

• Disconnect power and turn off the water supply before servicing
• Remove the upper rack by releasing the end caps/stops
• Unfasten the old track from the tub (screws/clips), then position and secure the new track
• Reinstall the rack and end caps; verify smooth rack travel before restoring power and water

Right side.

Left side.

Gasket for upper wheel.

This factory fastener is a #10-16 screw used to secure appliance panels and components. Replacing worn or missing hardware restores a tight fit, helps prevent rattles, and keeps parts properly aligned for dependable operation.

• Secures brackets, panels, and covers to the cabinet or frame
• Replaces missing, stripped, or corroded mounting hardware
• Helps reduce vibration and rattling from loose mounts
• Correct 10-16 thread to match designated OEM mounting points

• Disconnect power and shut off water or gas supply before servicing
• Match the screw to the original location using your model's diagram
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• If replacing multiple screws, swap one at a time to maintain alignment
