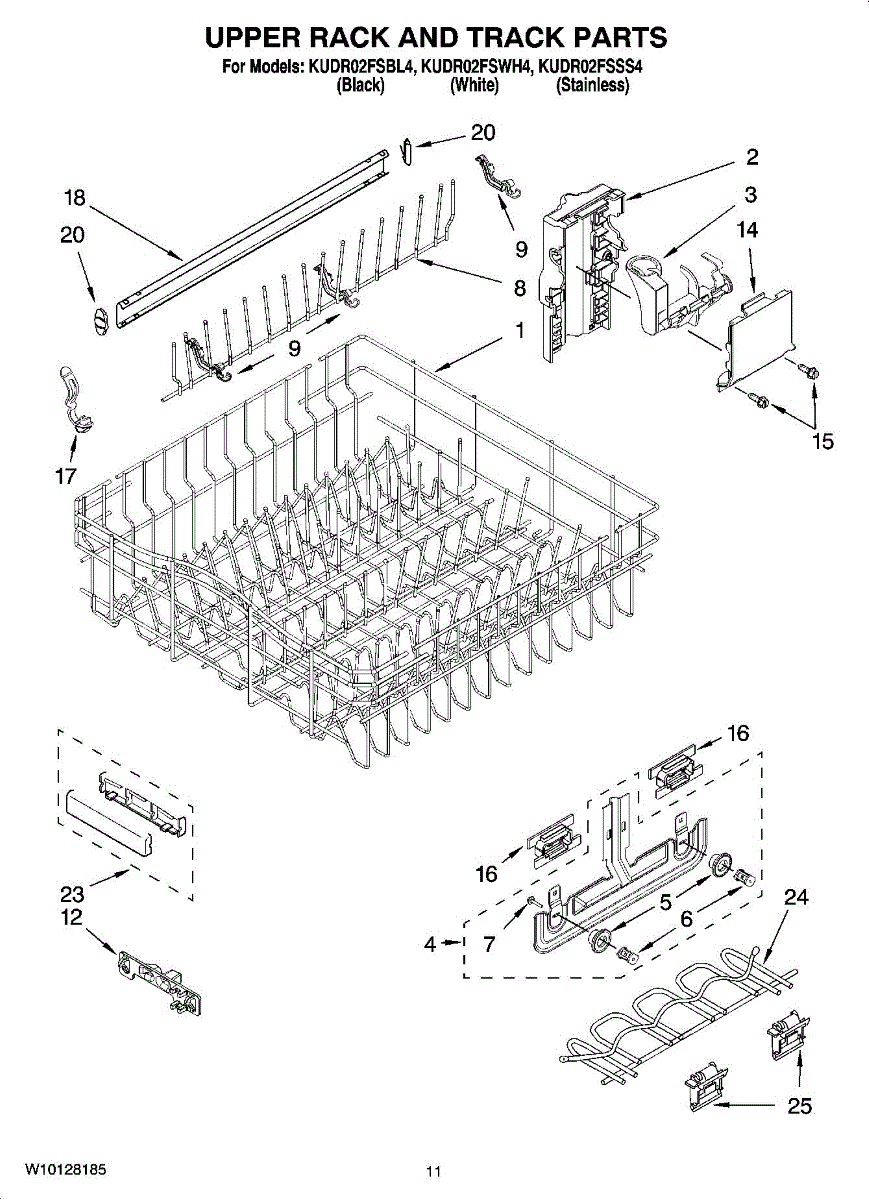

Parts for Kitchenaid KUDR02FSWH4: 09 - Upper Rack And Track Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Upper dish rack assembly for dishwashers. Holds glasses, cups, and small items on the top level. Replace if cracked, warped, rusted, or deteriorating.

This upper rack adjuster sets and secures the dishwasher's top rack height so dishes clear the spray arms and load properly. When the adjuster wears or breaks, the rack can become uneven or stuck, leading to poor cleaning and loading issues.

• Provides the mechanism to raise/lower and lock the upper dishrack height
• Keeps the top rack level and secured to the rail during operation
• Common symptoms of failure: rack drops on one side, won't adjust, feels loose, or comes off the track
• Contribute to poor wash results when the rack can't be positioned correctly

• Disconnect power and water supply before servicing
• Remove upper rack end caps/stops and slide the rack out to access the adjuster
• Release or unfasten the old adjuster, transfer any reusable clips/wheels if applicable, and install the new adjuster
• Set both sides of the rack to the same height; reinstall rack and confirm smooth travel and secure locking

Replacement door hinge adjuster for dishwashers. Restores proper door alignment and smooth closing action. Needed when adjuster is broken or worn.

Replacement dishwasher dishrack wheel installs on the upper or lower rack to restore smooth gliding. Replace worn, broken, or missing wheels to fix jamming.

Replacement axle for dishwasher upper rack height adjustment mechanism. Needed when the axle is broken, cracked, or missing from the rack roller assembly.

This replacement screw fastens appliance components such as panels, brackets, or trim. Use it to replace a missing, stripped, or rusty fastener and restore a secure, rattle-free fit in your appliance assemblies.

• Secures panels, brackets, or hardware to maintain proper alignment
• Helps eliminate vibration, rattling, or loose-feeling parts
• Replaces fasteners that are missing, corroded, or cross-threaded
• Typical signs you need it: loose handle or panel, gaps, or hardware that won't stay tight

• Disconnect power (and shut off gas, if applicable) before servicing
• Match thread type and length to the original fastener for proper fit
• Start threads by hand to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if present

Replace your cracked, rusted, or broken dishwasher tine row. This adjustable row installs in the upper or lower rack for flexible dish loading.

Gray plastic pivot clip for dishwasher upper rack tine rows. Replaces broken, cracked, or missing pivots that prevent tines from adjusting properly.

Secures tines in your dishwasher rack to hold dishes and utensils in place. Replace if cracked, broken, or missing to restore proper rack function.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

This upper rack adjuster sets and secures the dishwasher's top rack height so dishes clear the spray arms and load properly. When the adjuster wears or breaks, the rack can become uneven or stuck, leading to poor cleaning and loading issues.

• Provides the mechanism to raise/lower and lock the upper dishrack height
• Keeps the top rack level and secured to the rail during operation
• Common symptoms of failure: rack drops on one side, won't adjust, feels loose, or comes off the track
• Contribute to poor wash results when the rack can't be positioned correctly

• Disconnect power and water supply before servicing
• Remove upper rack end caps/stops and slide the rack out to access the adjuster
• Release or unfasten the old adjuster, transfer any reusable clips/wheels if applicable, and install the new adjuster
• Set both sides of the rack to the same height; reinstall rack and confirm smooth travel and secure locking

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

Fix dishwasher racks that won't adjust or stay in place with this positioner arm. Guides rack movement and reduces noise from misaligned positions.

This light clip secures the interior lamp assembly in place so the refrigerator light stays positioned and protected. It's a small plastic retainer designed to hold the lamp or lens securely behind the housing. What it does:

• Holds the interior lamp or lens assembly in position to prevent movement or rattling
• Keeps the lamp properly aligned so the light bulb and cover stay seated
• Helps prevent contact between the bulb and other components that could cause noise or damage
• Commonly replaced when the lamp cover is loose, rattles, or won't stay clipped in place

• One light clip

• Disconnect power to the appliance before beginning any work
• Access the lamp area by removing the lamp cover or housing per your model's instructions
• The clip typically snaps into place; no special tools are usually required
• Test lamp fit and switch operation before restoring normal use

The Upper Dishrack Rail is an OEM replacement part for Whirlpool dishwashers. It guides upper racks in and out for easy access to dishes.

Causes of faulty rails can include worn rollers, broken clips, or stress cracks in modules after repeated cycles.

Symptoms of a bad upper dishrack rail include:

• Difficulty inserting or removing the upper rack smoothly
• Off-track movement that impacts washing coverage
• Detached ends or segments that compromise stability

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replaces cracked, broken, or missing dishwasher rack stop clips. Secures upper or lower dishrack to track rail, preventing rack from sliding out too far.

Upper rack cup shelf for dishwashers. Snaps into rack clips to hold cups securely. Replace when cracked, rusted, broken, or missing from your rack.

Replacement dishwasher cupshelf clip secures the cup shelf to the upper rack. Order a new clip if yours is cracked, broken, or missing from the rack assembly.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
